For: Sachs

15484

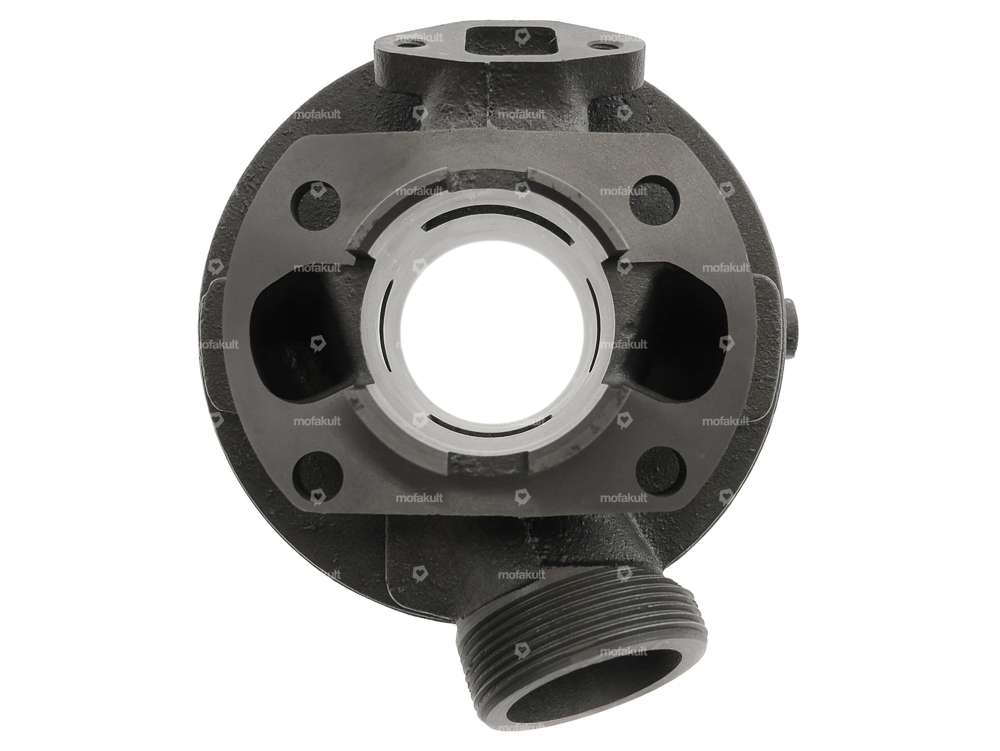

38 mm cylinder kit square inlet | Sachs 50/3, 50/4

Home
| Motor
| Cylinder
| Cylinder & racing set
EUR 151.20

Incl. 21% VAT.

Complete cylinder kit for Sachs 3- and 4-speed engines with foot shift.

Für 32 mm flame tubes with an M40x1.5 mounting nut.
Ø outside: 119 mm

Should be used with a 17 mm Bing carburetor.

To be able to mount this cylinder on a Sachs 50/2 engine, various adjustments must be made.

Details

Nominal diameter38 mm
MaterialGray cast iron
Surfacesandblasted
Displacement50 ccm
Crankshaft stroke42 mm
Number of fixing points4 pcs
Thread inletM5x0.8 (standard thread)
Hole spacing inlet31 mm
Ø piston pin (B)12 mm
Outlet typeUnion nut
Thread outletM35x2 (standard thread)
Hole pattern [mm]51 x 40
CamouflagedNo
Area of applicationTuning

Suitable for the following models

Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

50/3

50/4 - MLFB (2.6 PS), LKH (4.5 PS)
