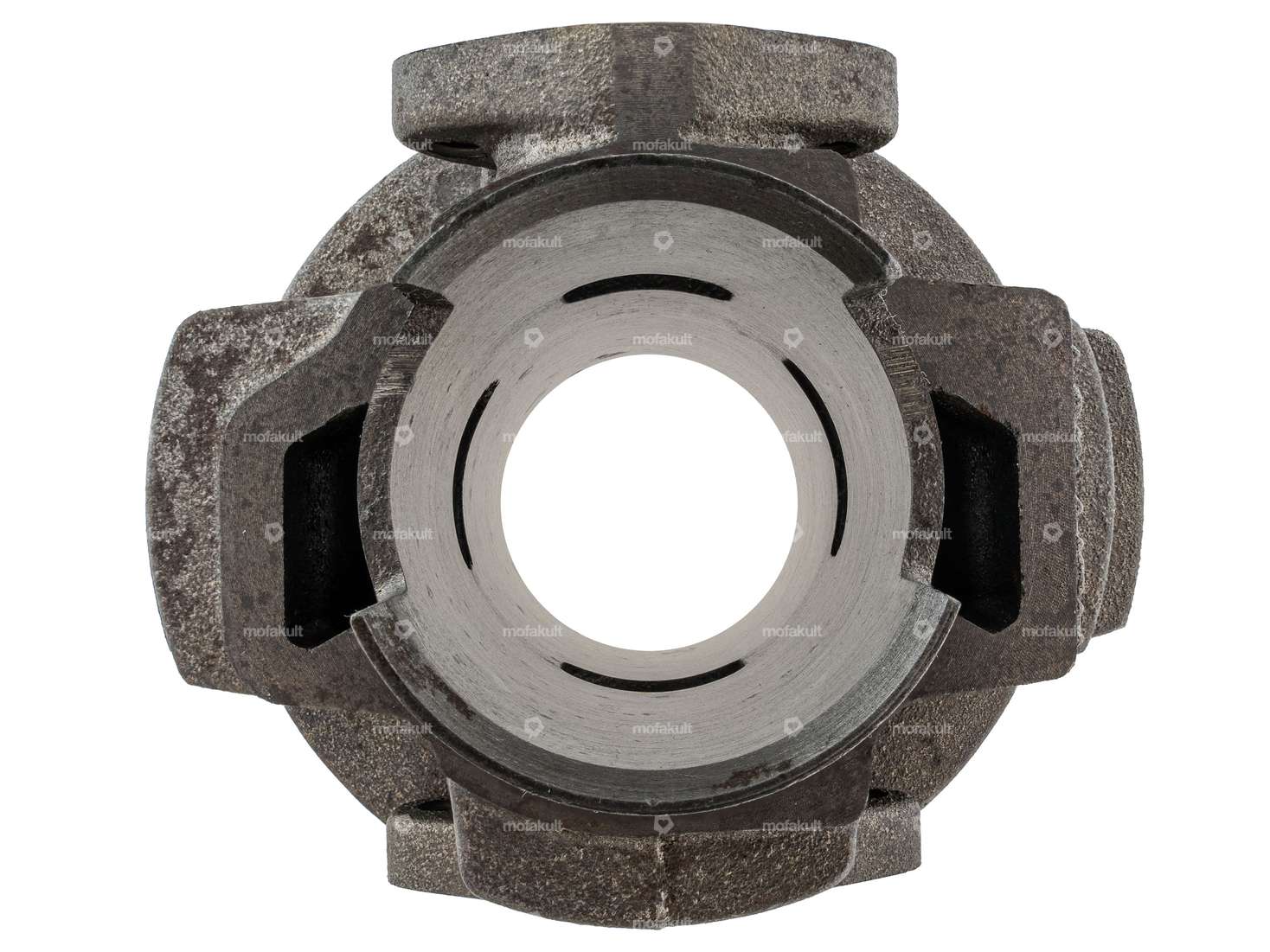

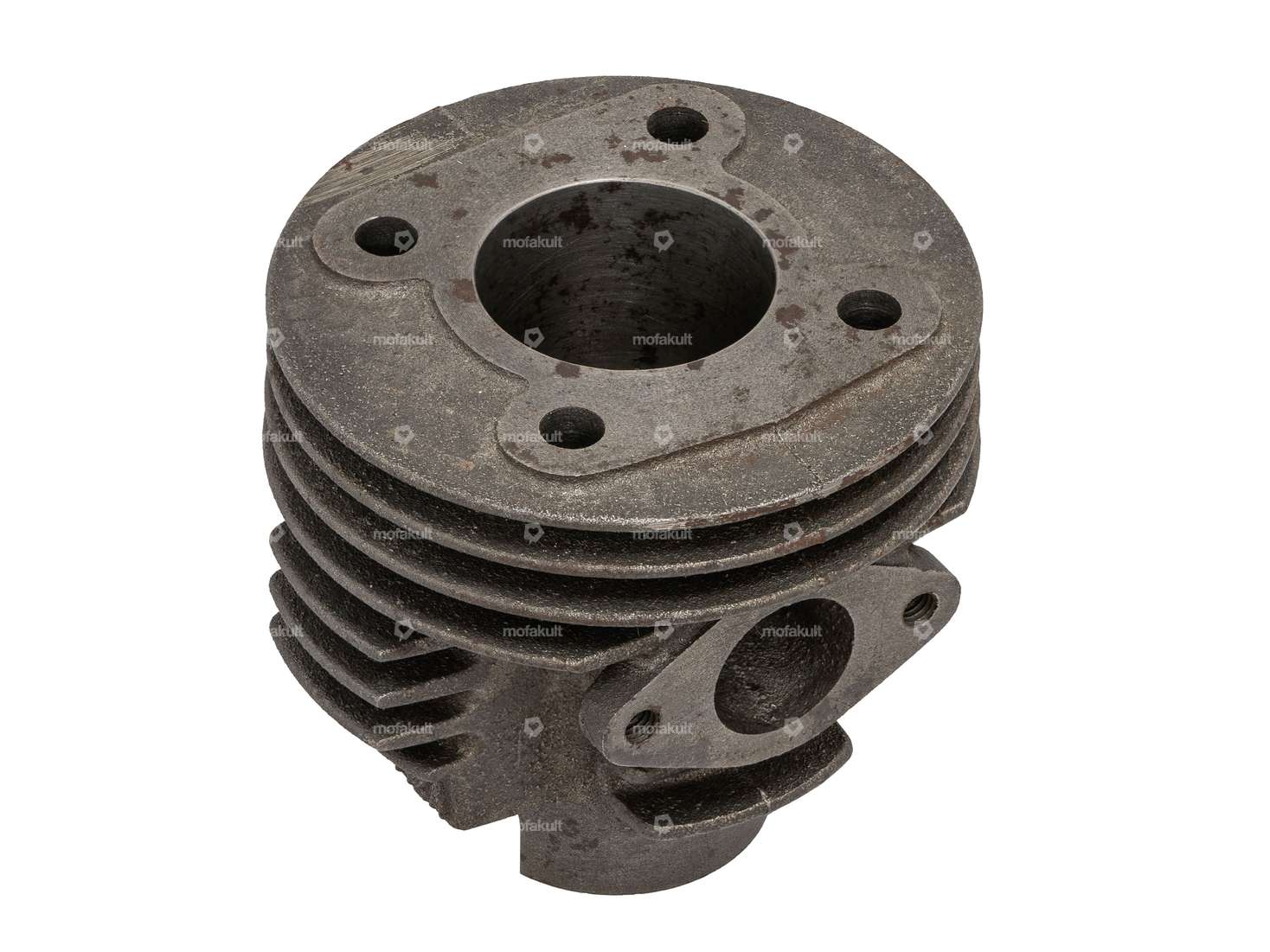

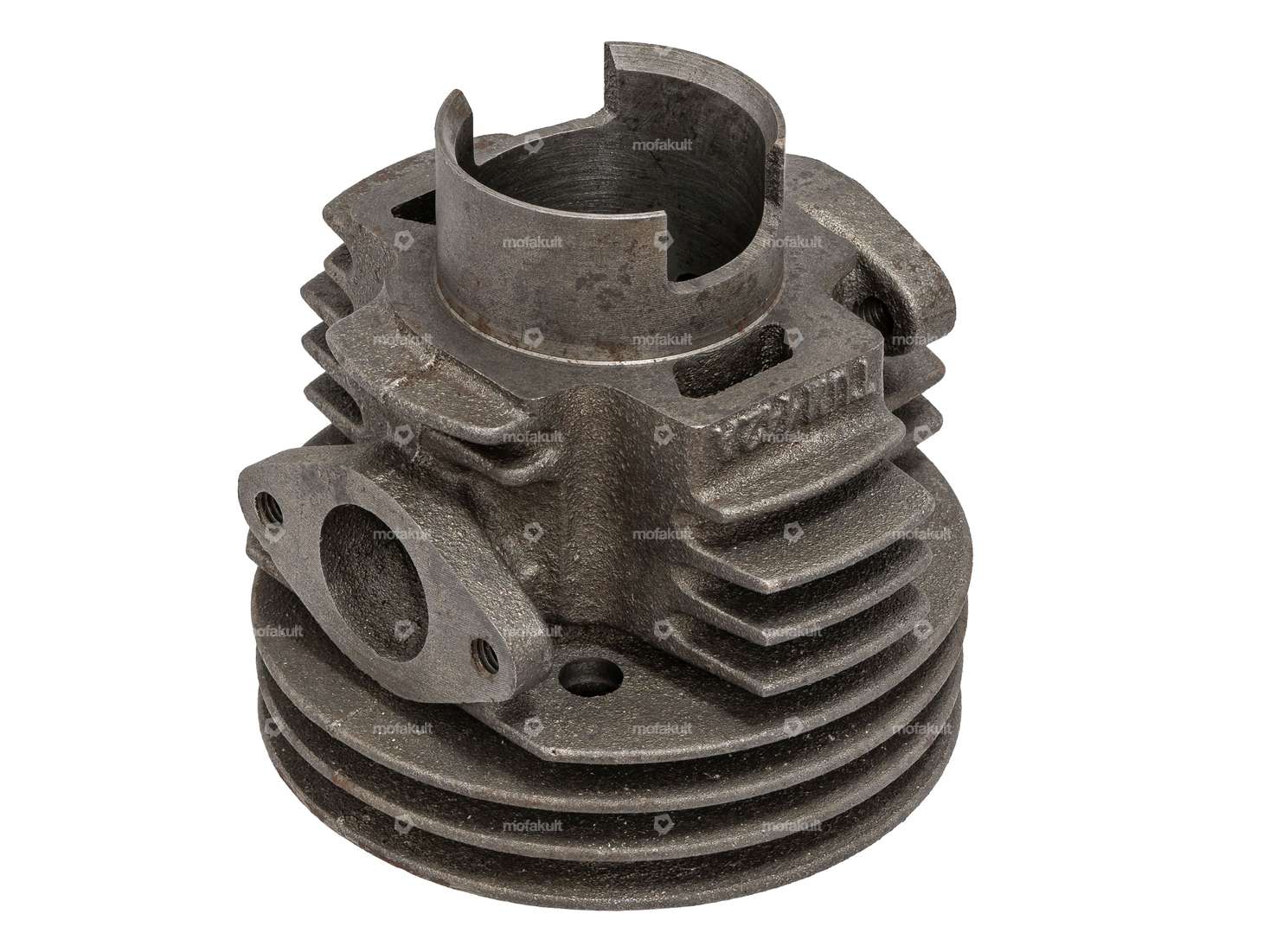

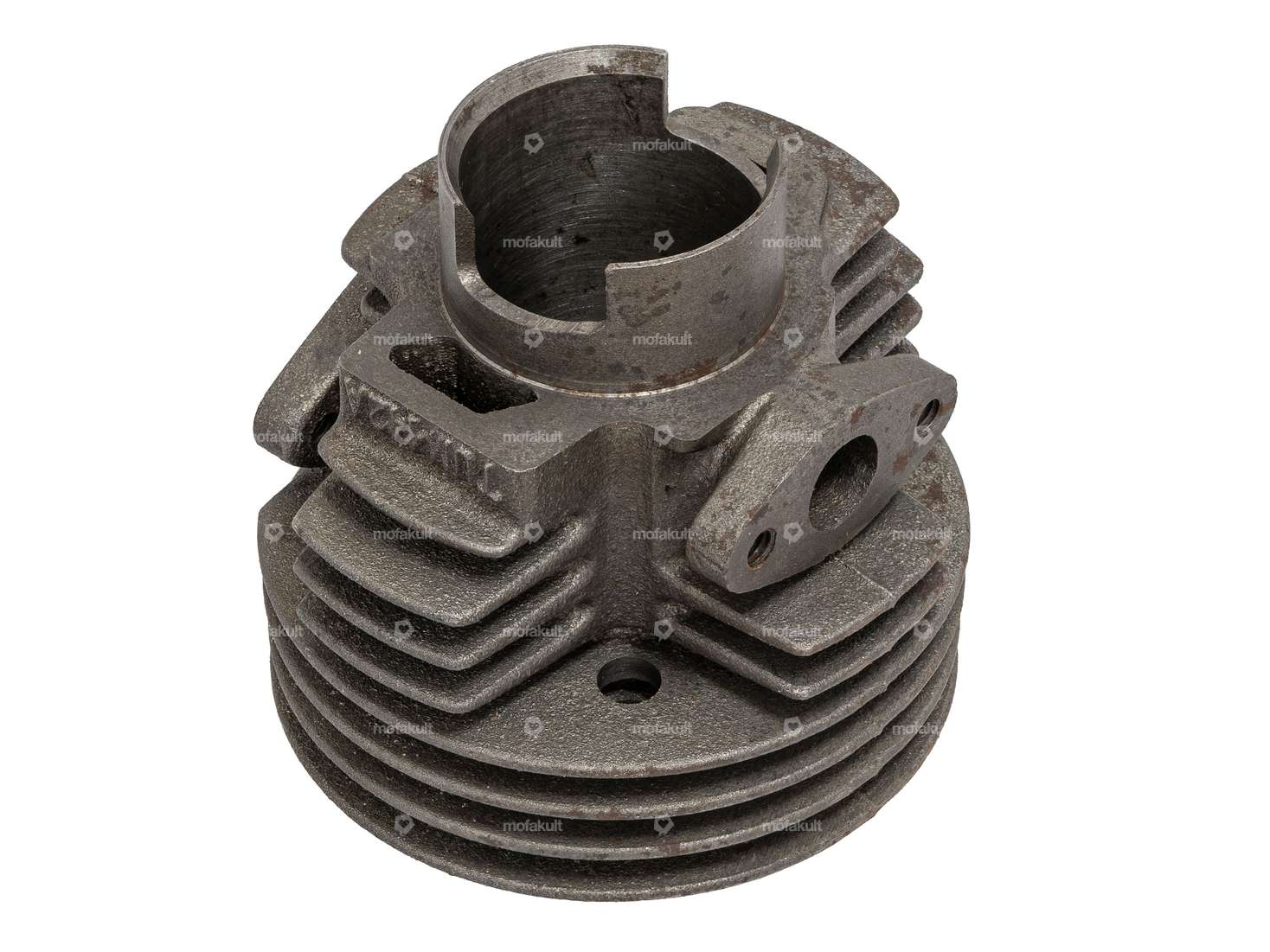

Original 38 mm cylinder kit for your Tomos moped / moped (old version) of the 2L, 3L, 4L series. The cylinder comes from the license replica of the Puch Velux and MS / MV engines.
The cast iron cylinder has a slight rust film due to years of storage. However, this can be easily removed with a little scotch and oil.
Corresponding add-on parts such as pistons, seal kit, stud bolts etc. can be found in the accessories section.
Cast-in number on the cylinder base: TUM142A
NOS – New from old stock.
| Material | Gray cast iron |
| Surface | raw |
| Nominal diameter | 38 mm |
| Manufacturer | Tomos |
| Number of fixing points | 4 pcs |
| Camouflaged | Yes |
| Displacement | 50 ccm |
| Area of application | Original |
| Outlet type | straight |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Tomos |
