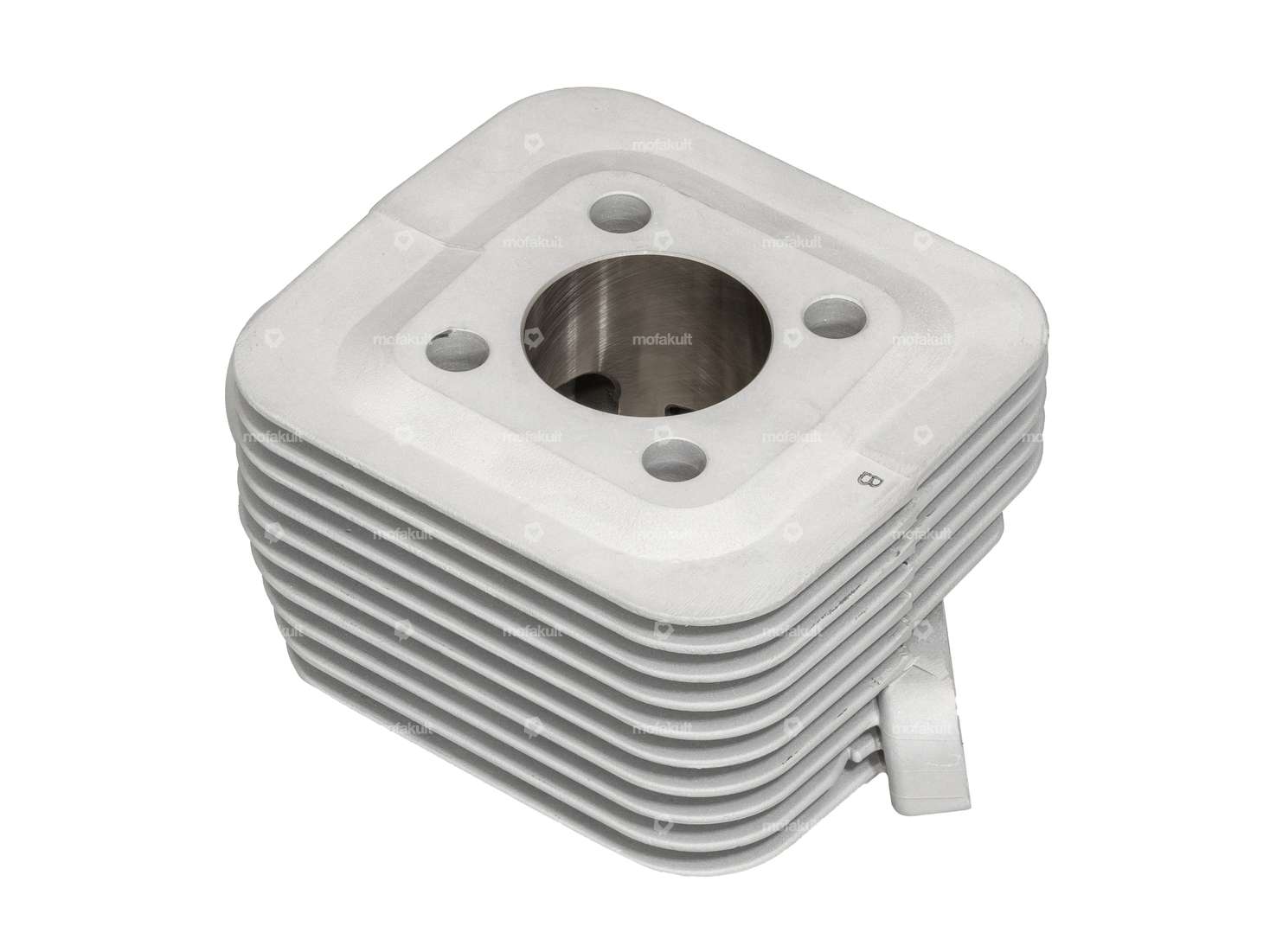

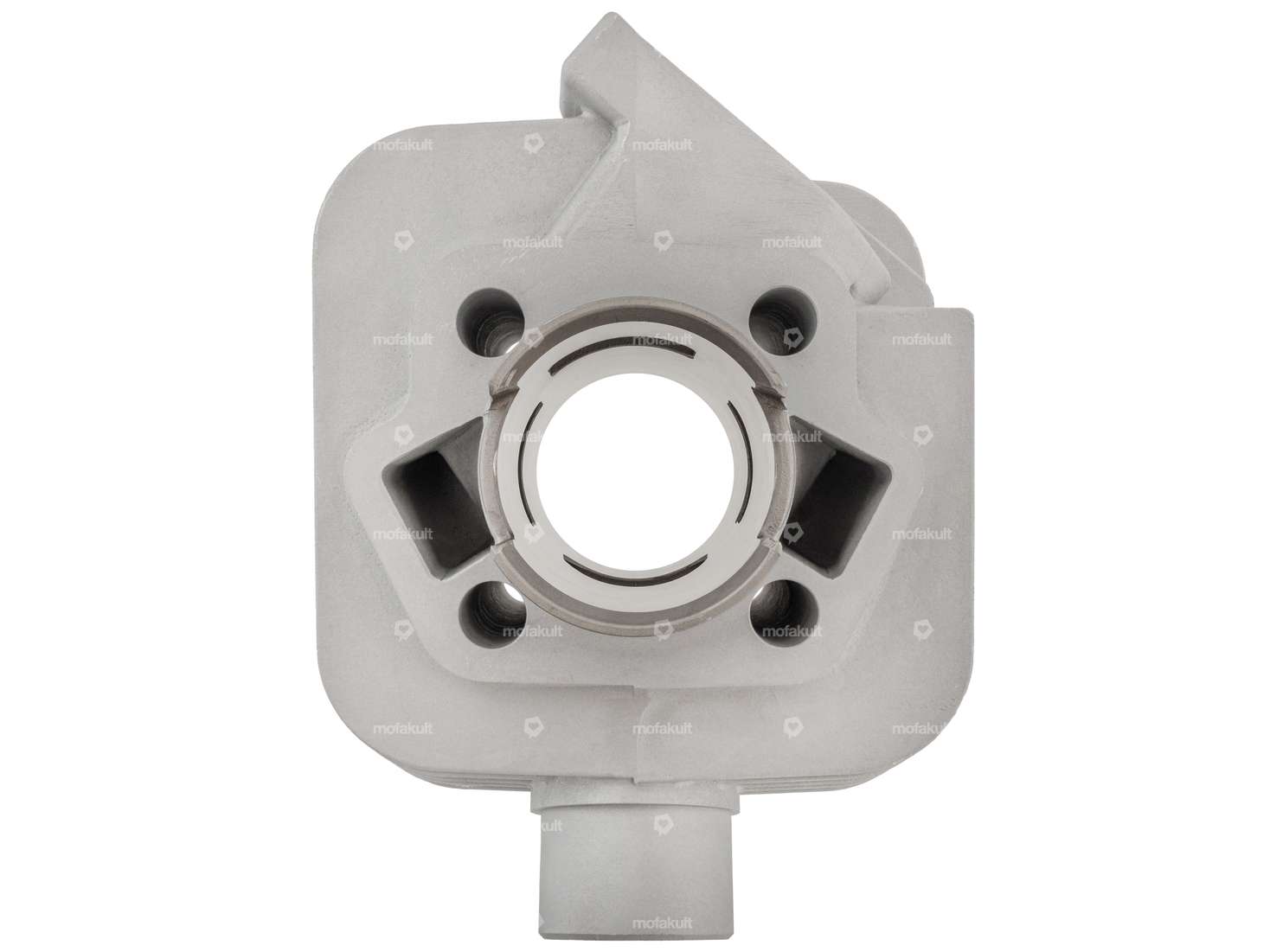

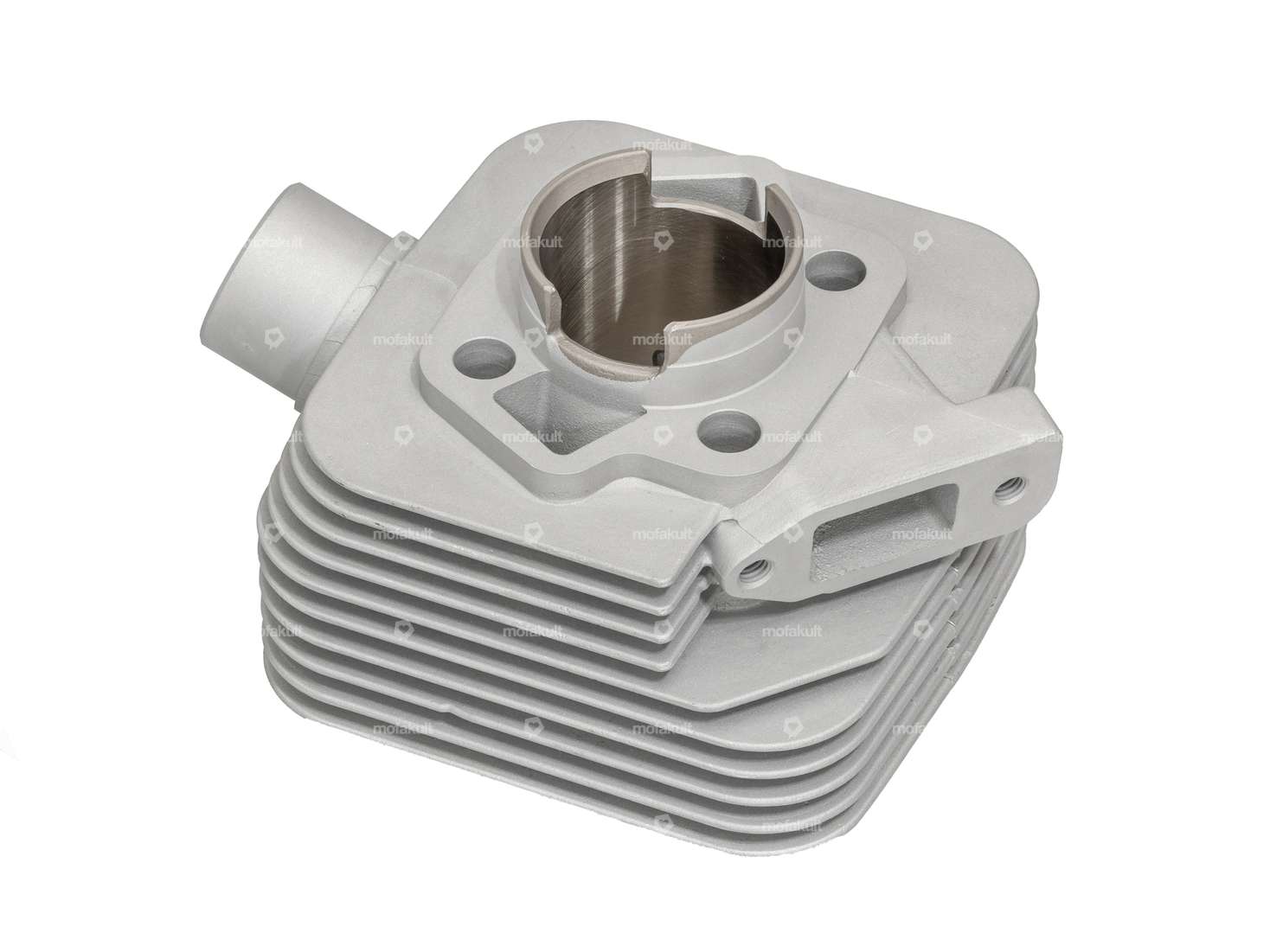

High-quality 40 mm aluminum cylinder with Nikasil coating for fan-cooled Kreidler Florett Super TS, Mustang (1965–1969), Kreidler Florett GT–TM, and other small motorcycles.
The cylinder kit can also be installed as a tuning cylinder in Kreidler models such as the K 54, K54 0, K54 0M, K 54/2A, LF – LF, LH K 54/32, etc.
The cylinder was designed to be nearly identical to the original Zeta cylinder with 5.8 PS. The durable cylinder delivers strong torque and solid performance even at high RPMs.

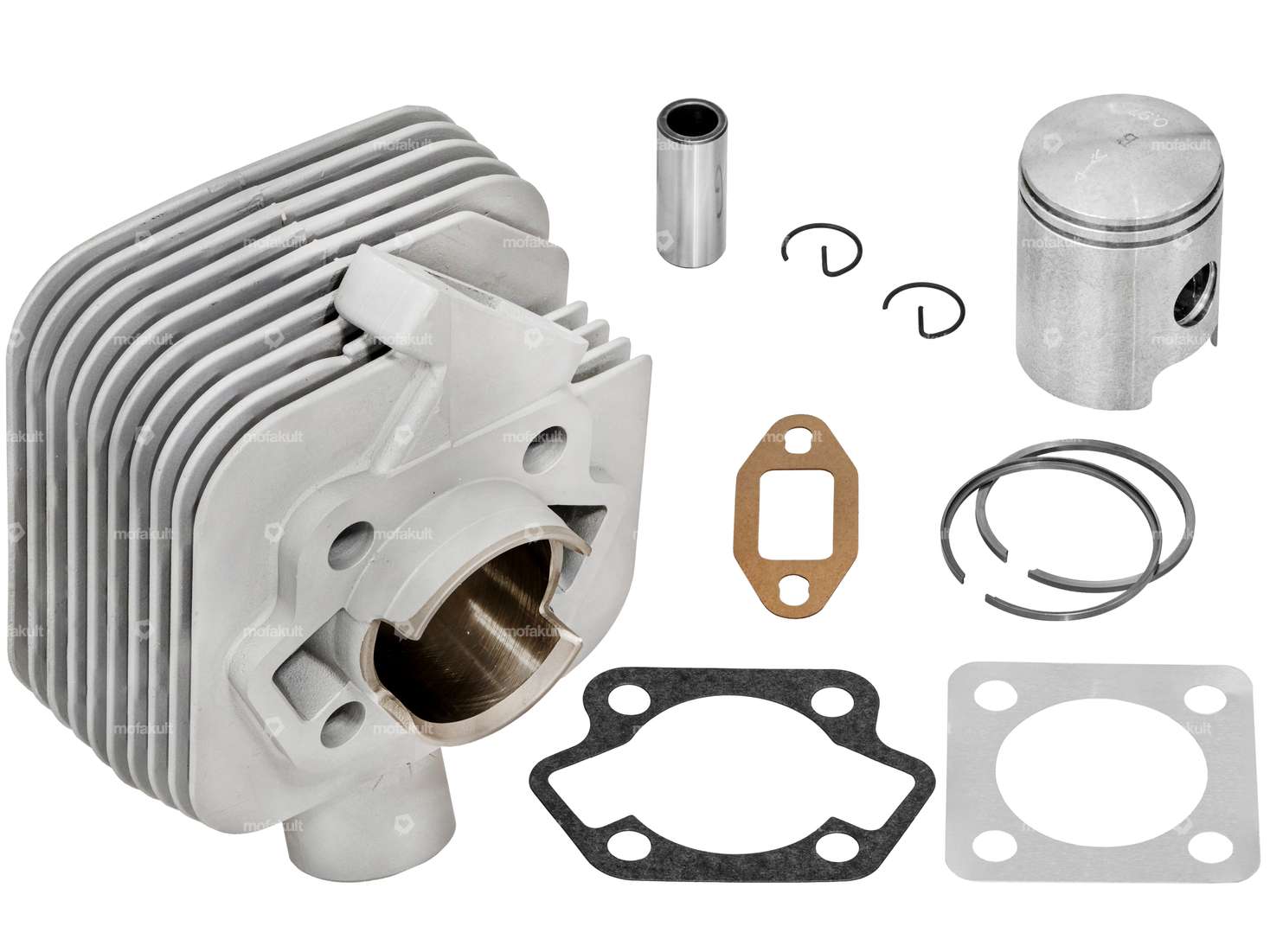

Scope of delivery as shown in Figure 1, including cylinder, piston kit, and gasket set.
Exhaust flange diameter: 32 mm
; Intake port: 15 x 25 mm
; Intake stud spacing: 32 mm
; Piston pin diameter: 14 mm
; Mounting hole pattern: 43.5 x 43.5 mm
Note: Please observe the installation direction during assembly. The piston is installed with the arrow pointing toward the exhaust on the exhaust side.
Brand-name product from the manufacturer NC-MOTORPARTS.
| Material | Aluminum |
| Surface | sandblasted |
| Nominal diameter | 40 mm |
| Manufacturer | NCMotorparts |
| Area of application | Tuning |
| Hole spacing inlet | 32 mm |
| Ø Outlet outside | 32 mm |
| Number of fixing points | 4 pcs |
| Thread inlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Ø piston pin (B) | 14 mm |
| Outlet type | clamped |
| Camouflaged | No |
| Kreidler |
