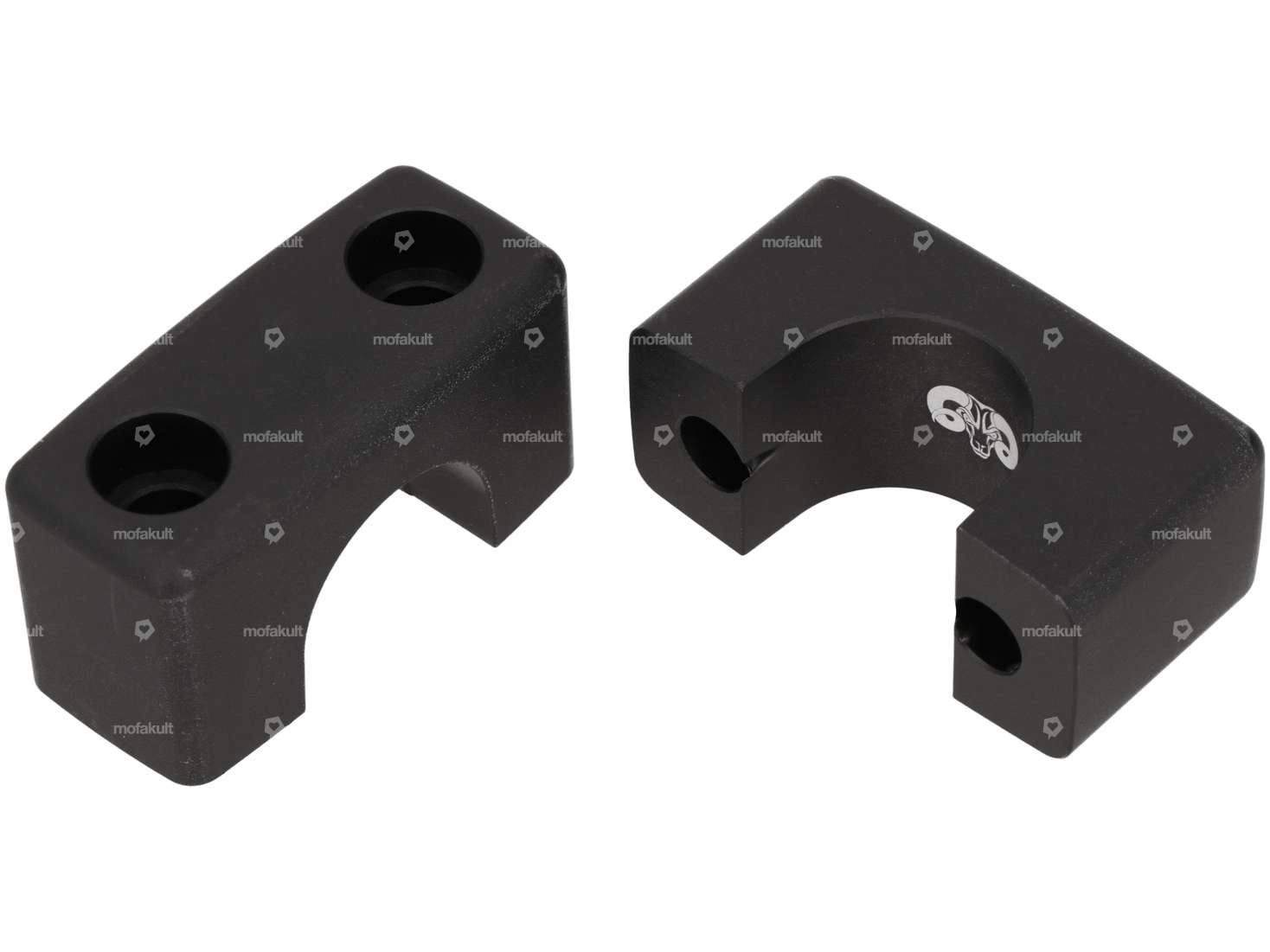

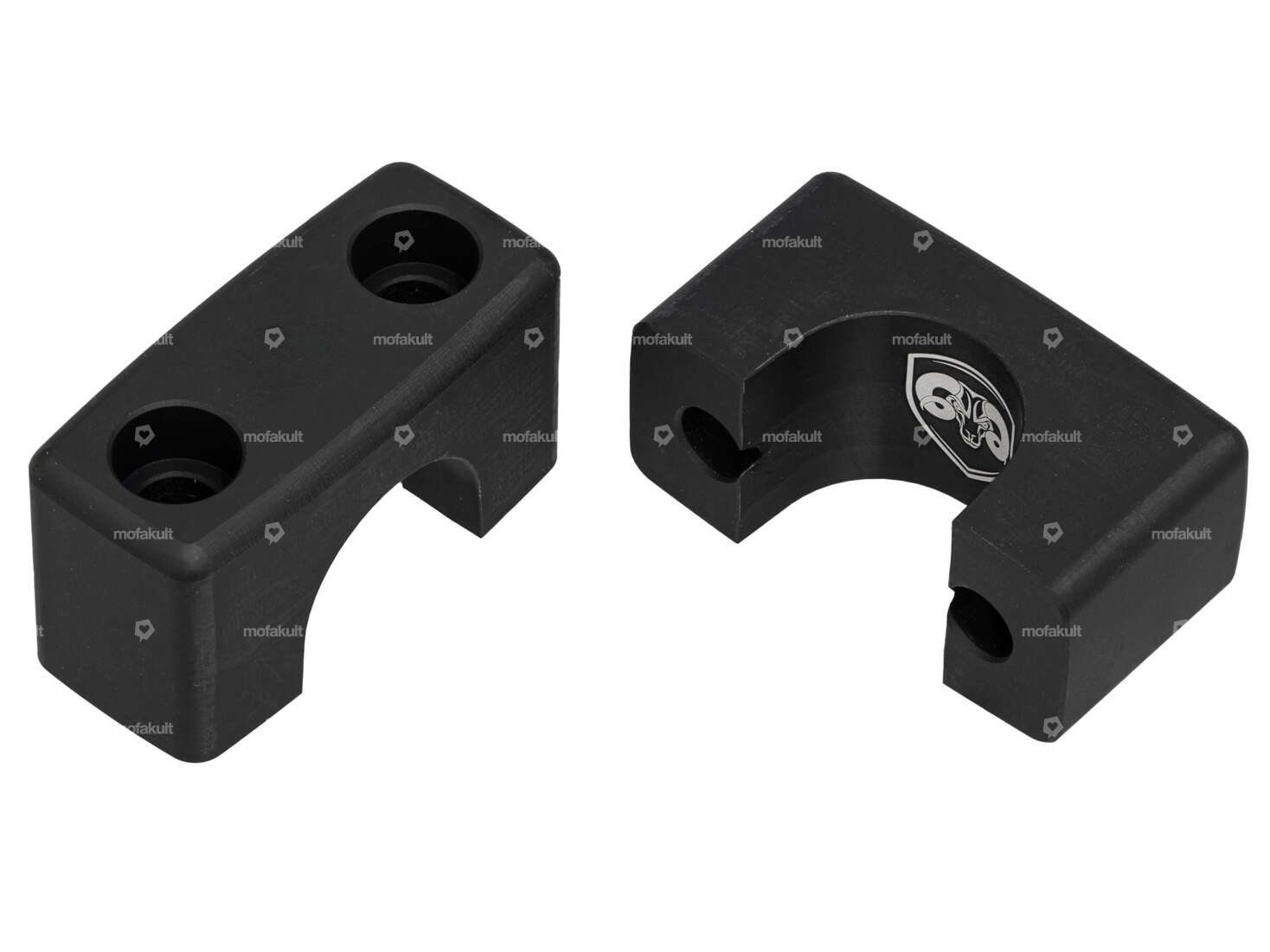

A pair of clamping shells / mounting brackets for mounting the handlebars on the fork plate of all original Puch forks, as well as the original EBR reproduction forks for Puch mopeds.
Made of aluminium, black anodized.
Outer dimensions (lxwxh): 49 x 22 x 26 mm
Hole spacing: 30 mm
Hole diameter: 7.3 mm
Excellent quality from the premium custom brand 66HEROES.
| Manufacturer | 66HEROES |
| Total length | 49 mm |
| Color | black-matt |
| Material | Aluminum |
| Surface | anodized |
| Clamping diameter | 22 mm |
| Width | 22 mm |
| Height | 26 mm |
| Ø mounting hole | 7.3 mm |
| Number of fixing points | 2 pcs |
| Hole spacing | 30 mm |
| Puch |
