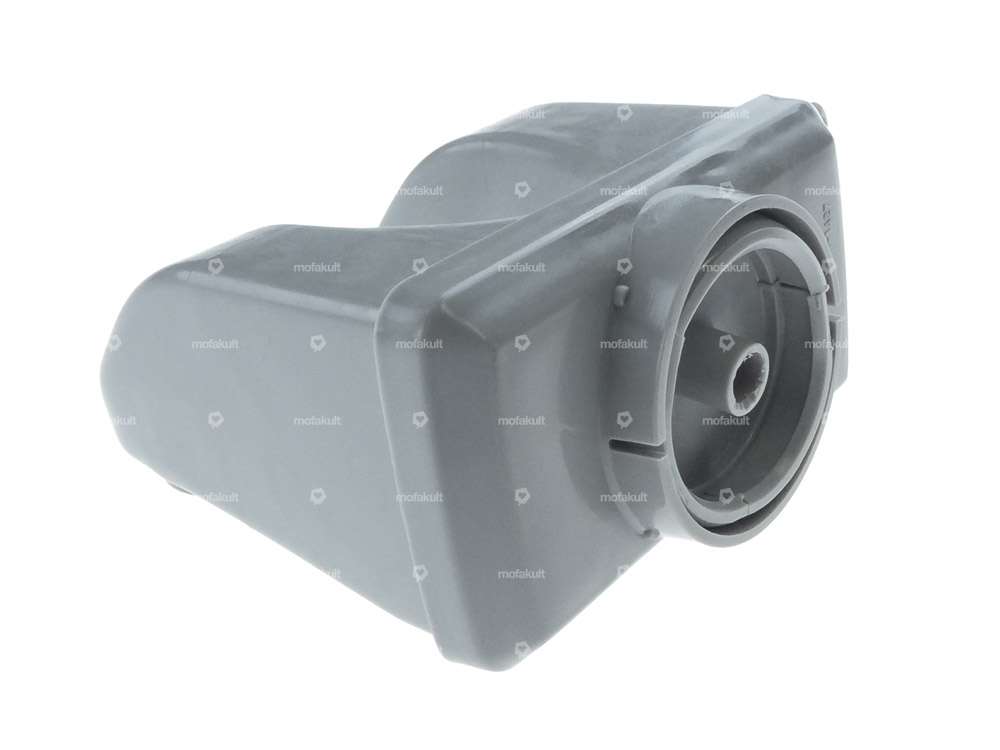

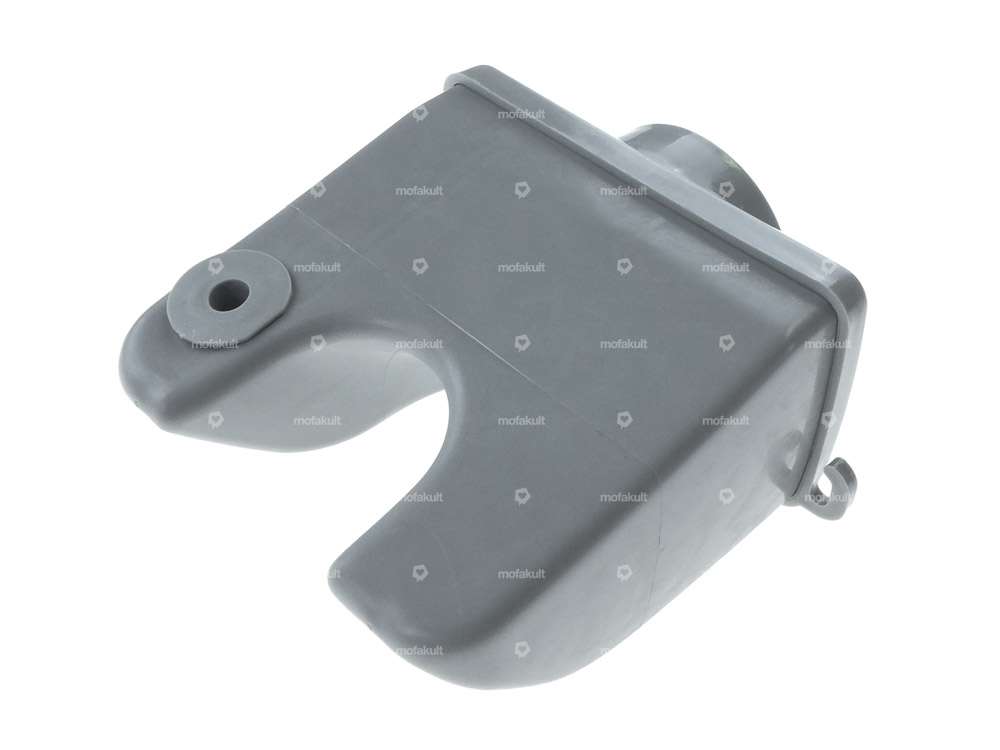

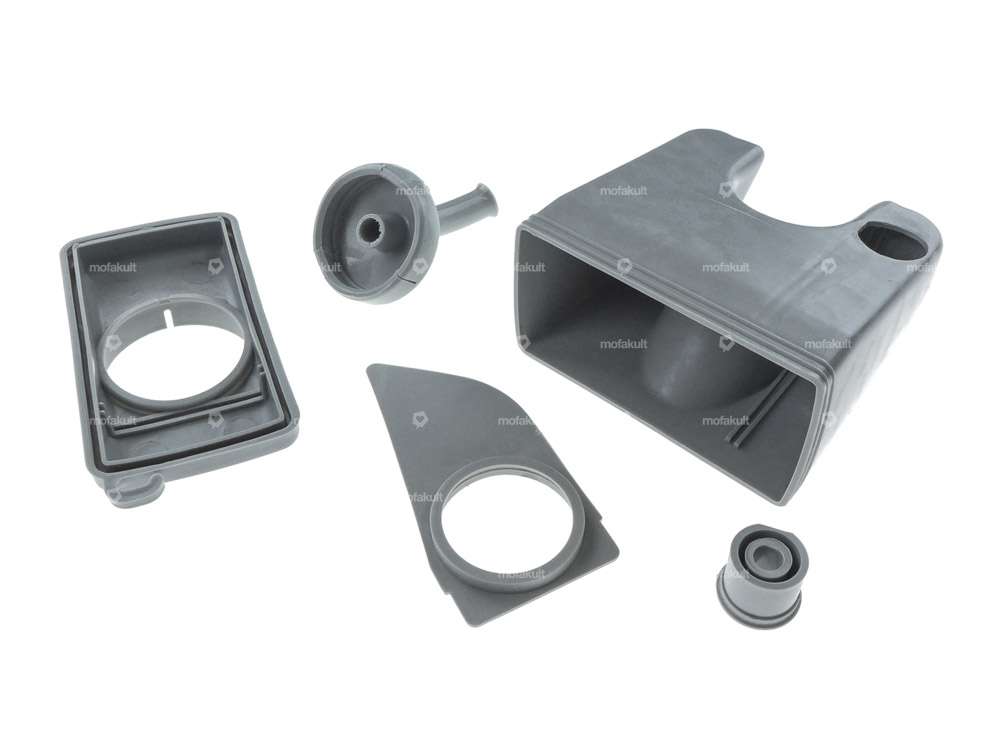

Air filter box gray | Zündapp Belmondo, Bergsteiger

Air filter screen Ø 60 mm original

Material: Steel · Surface: galvanized (yellow) · Ø outside: 60 mm · Puch OEM number: 362.1.15.040.2

17 mm Bing SRF carburetor (replica)

Material: Aluminum · Component group Carburetor: Carburetor complete · Mounting type: Plug connection clamped · Carburetor type: SRF · Nominal diameter: 17 mm · Ø Internal connection: 23 mm · Height: 117 mm · Ø Air filter connection: 60 mm · Ø Air filter connection: 64 mm · Width: 64 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M4x0.7 (standard thread) · Nozzle block: 2.xx · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m · Total length: 78 mm · Area of application: Tuning

17 mm carburetor set (Bing SRF replica) | Zündapp Belmondo

Component group Carburetor: Carburetor complete · Nominal diameter: 16 mm · Nominal diameter: 17 mm · Carburetor type: SRF · Hole spacing inlet: 40 mm · Mounting type: Flange · Mounting type: Plug connection clamped · Ø fuel hose connection: 6 mm · Ø Inside entrance: 17 mm · Ø Internal connection: 23 mm · Ø Output inside: 17 mm · Ø Air filter connection: 60 mm · Area of application: Tuning · Choke control: Hand choke

swiing® ingenious 16 mm intake manifold Bing SRF | Zündapp Belmondo (Type 247)

Manufacturer: swiing® ingenious parts · Material: Aluminum · Mounting type: Screws · Number of fixing points: 2 pcs · Ø External connection: 23 mm · Ø inside: 16 mm · Total length: 35 mm · Height flange center hole: 35 mm · Total height: 42 mm · Camouflaged: No · Hole spacing inlet: 40 mm · Area of application: Tuning

Screw-on Air Filter Clamp 50–70 mm W2 Stainless Steel / Galvanized | Zündapp Belmondo, Bergsteiger

Ø inside: 50 - 70 mm

GPO light switch with wiring harness base chrome version

Manufacturer: GPO · Material: Plastic · Number of cables: 5 pcs · Housing material: Steel · Surface: chrome-plated · Color: Chrome · Substructure material: Steel · Functions: High beam (headlights) · Functions: Horn · Functions: Light off · Functions: Low beam · Functions: Motor stop · Number of positions: 3 pcs · Cable bifurcation to motor: 970 mm · Cable bifurcation to lamp: 180 mm · Cable bifurcation to switch: 420 mm · Cable length: 970 mm · Height: 25 mm · Width: 30 mm · Ø Handlebars: 22 mm · Total length: 50 mm

Rim tape blue 17" (protection for inner tube)

Manufacturer: Made in Germany · Material: Rubber · Color: blue · Wheel size: 17 " · Width: 23 mm · Total length: 1280 mm

swiing® revival gasket outlet | Zündapp Belmondo

Manufacturer: swiing® revival parts · Material: Graphite / Graphite · Place of use: Outlet · Number of fixing points: 2 pcs · Thickness: 1.5 mm · Ø outside: 38.3 mm · Hole spacing: 40 mm · Ø mounting hole: 7.1 mm · Ø inside: 25 mm · Total length: 53 mm

Fuel tap vertical M10x1 (to screw in) outgoing at the bottom / cast iron

Manufacturer: Made in Italy · Possible lever positions: open / closed / reserve · Thread type: MF10x1 (fine pitch thread) · Material lever: Metal · Mounting type: screw in (thread) · Filter type: Plastic net · Installation direction: vertical / vertical · Outlet direction: below · Spare tube shape: straight · Ø fuel hose connection: 6 mm · Reserve level: 65 mm

swiing® revival 17" rear fender Inox | Zündapp Belmondo

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Surface: polished · Color: Chrome · Mounting type: Nuts & bolts · Folding the ends: closed folded · Folding the ends: not folded · Wheel size: 17 " · Shape of the mudguard: partly round · Total length over ends: 595 mm · Scope: 950 mm · Wide mudguard profile: 70 mm · Height of mudguard profile: 25 mm · Total height from support surface to top edge: 305 mm

swiing® revival 17" front fender Inox | Zündapp Belmondo

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Surface: polished · Color: Chrome · Mounting type: Nuts & bolts · Folding the ends: closed folded · Wheel size: 17 " · Shape of the mudguard: partly round · Total length over ends: 525 mm · Scope: 638 mm · Wide mudguard profile: 69 mm · Height of mudguard profile: 25 mm · Total height from support surface to top edge: 157 mm

swiing® ingenious exhaust manifold 28 mm left chrome | Zündapp Belmondo

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Mounting type: Stud bolts & nuts · Number of fixing points: 2 pcs · Ø outside: 28 mm · Ø inside: 25 mm · Hole spacing outlet: 40 mm · Total length: 360 mm

Fuel tap M10x1 (to screw in) bottom outgoing | Zündapp Belmondo

Manufacturer: Made in Italy · Ø fuel hose connection: 6 mm · Spare tube shape: straight · Mounting type: screw in (thread) · Thread type: MF10x1 (fine pitch thread) · Reserve level: 65 mm

GPO exhaust cigar original Ø 28 / 55 mm | Zündapp Belmondo, Bergsteiger

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Mounting type: Screwed clamp · Ø Internal connection: 28 mm · Ø outside: 55 mm · Ø Flame tube outside: 28 mm · Exhaust type: Cigar · Total length: 560 mm

swiing® revival rear mudguard strut chrome | Zündapp Belmondo

Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Mounting type: Nuts & bolts · Number of fixing points: 3 pcs · Distance mudguard - center hole: 318 mm · Ø mounting hole: 6.5 mm · Total length: 345 mm
