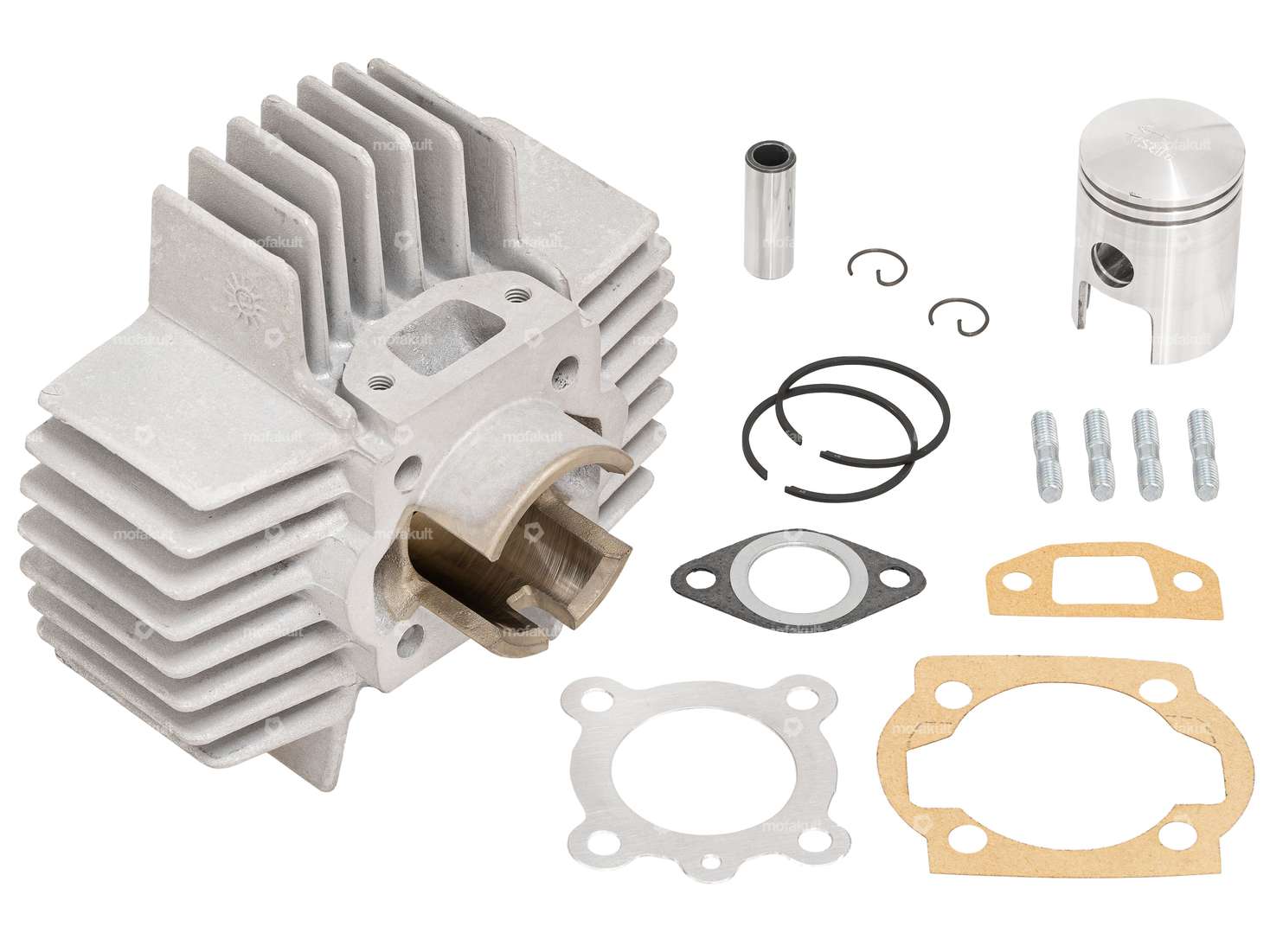

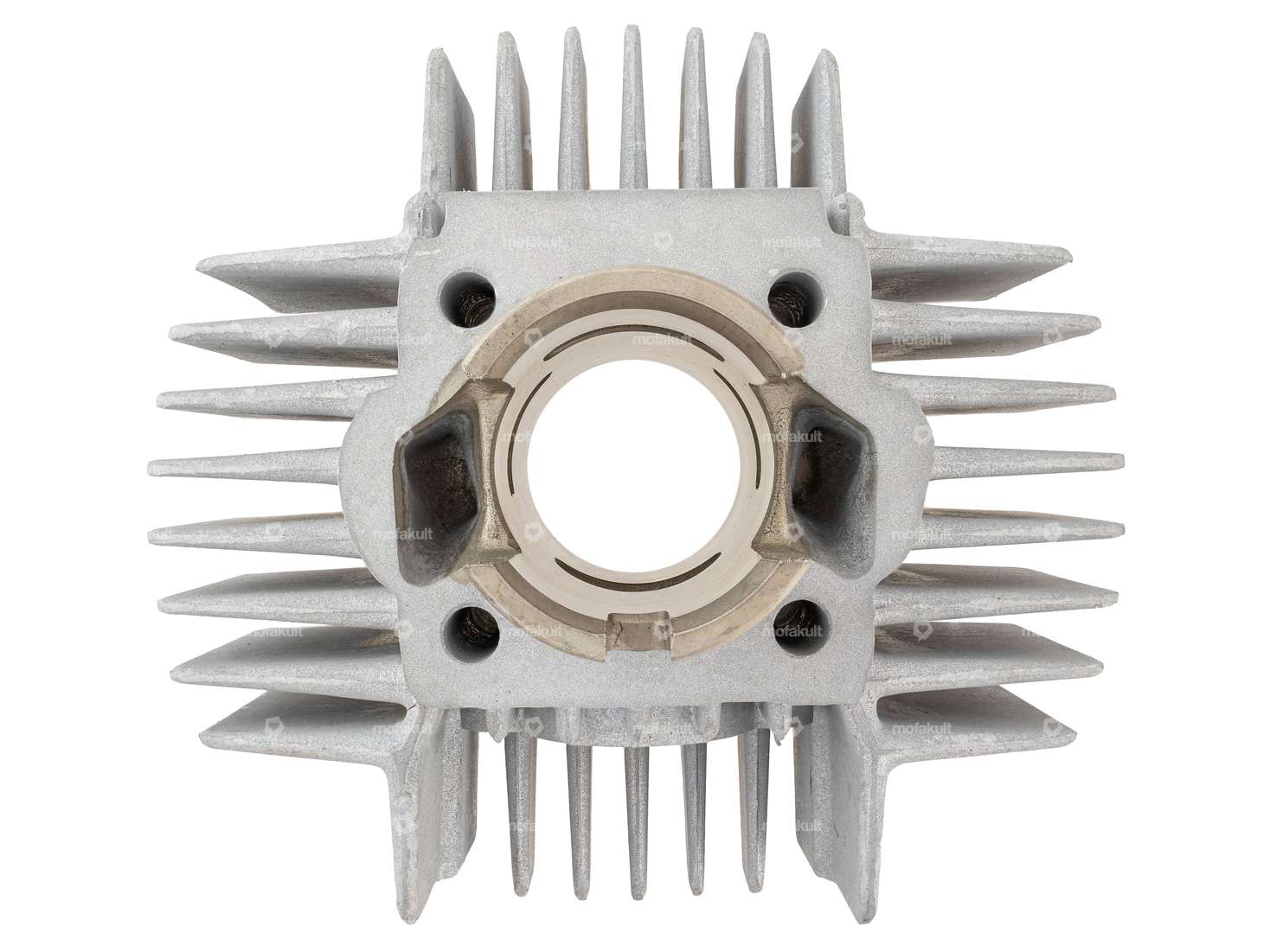

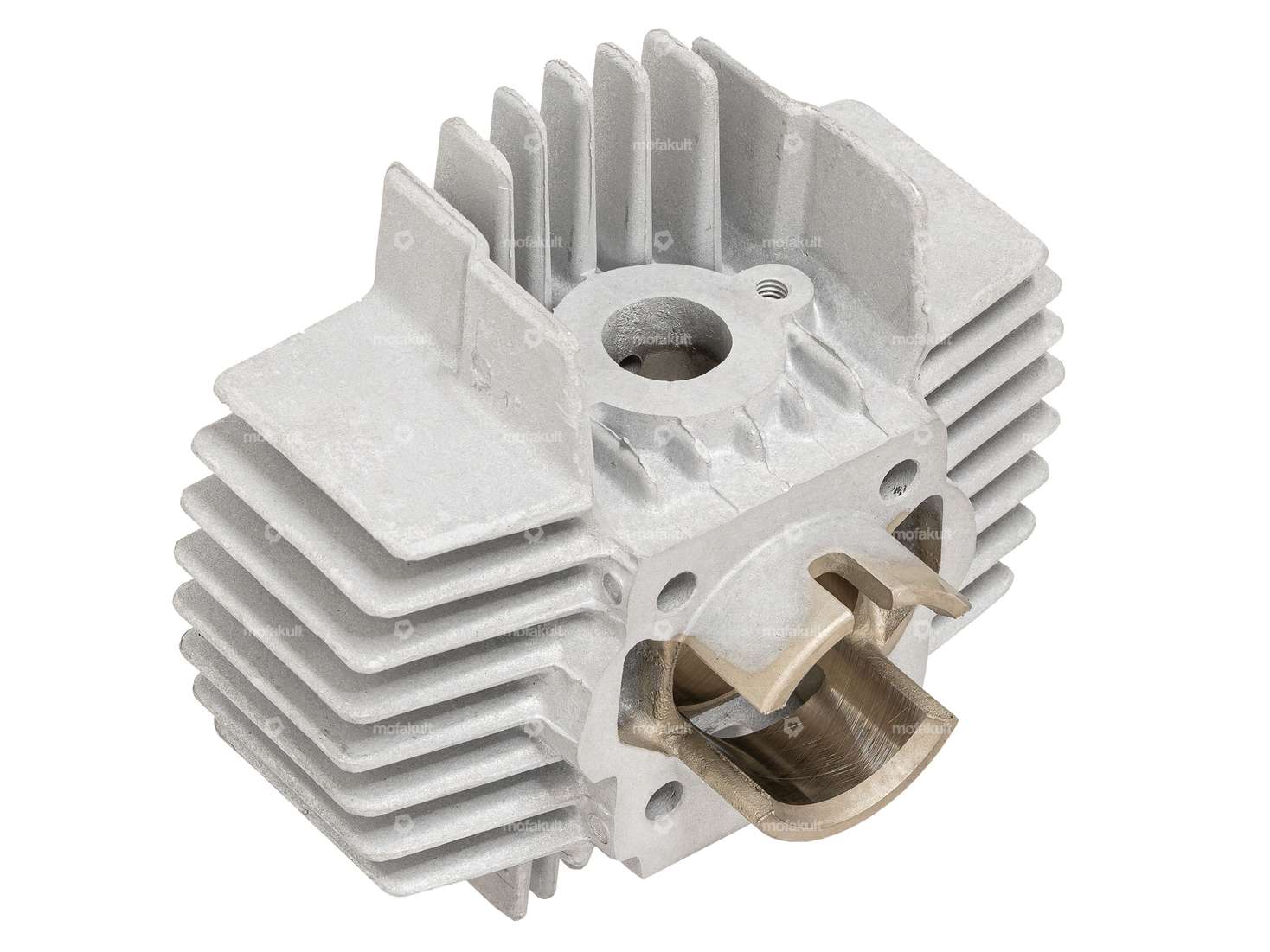

38 mm racing cylinder from Airsal suitable for various Puch mopeds
.The cylinder delivers good performance at a low price.

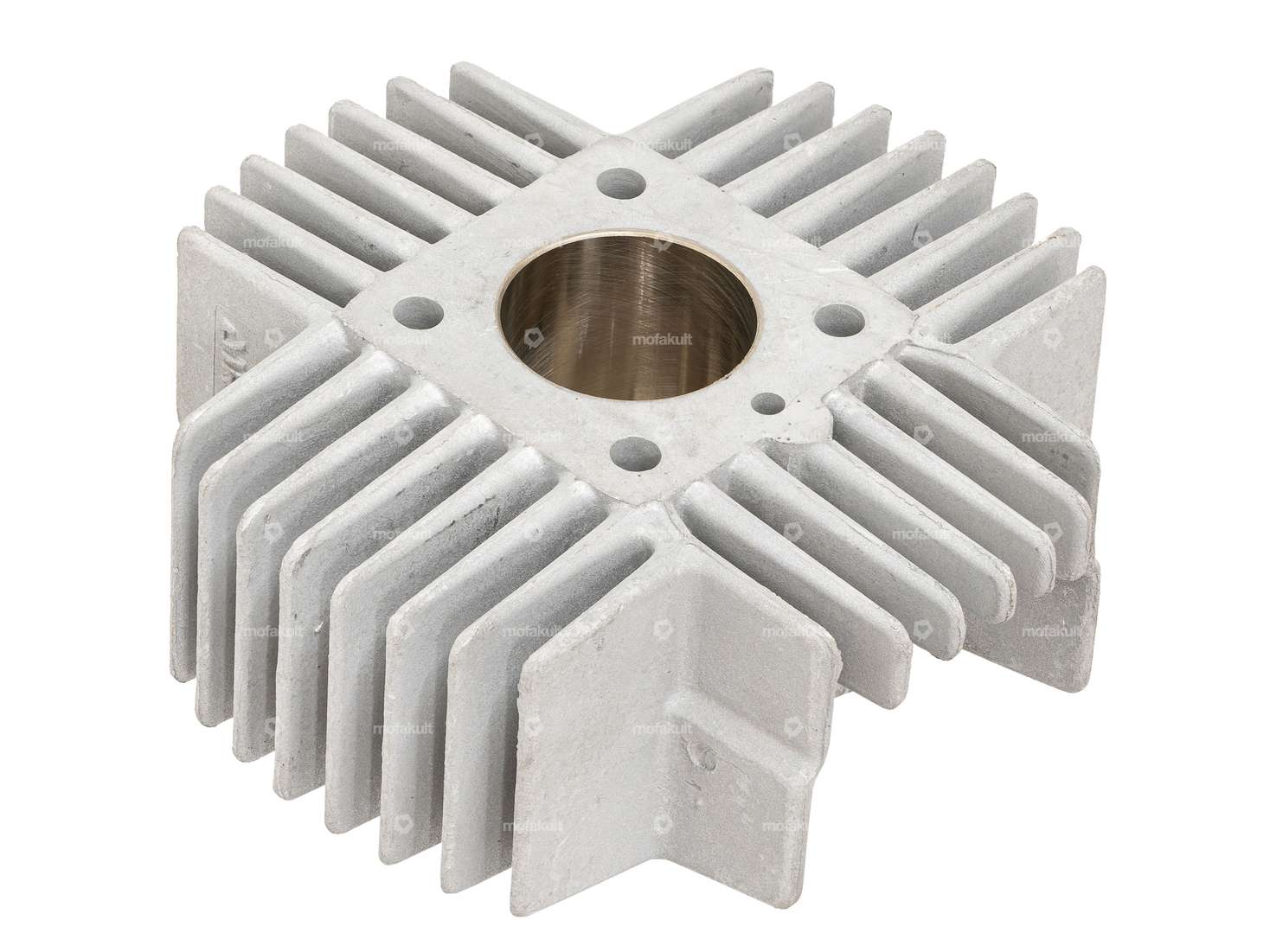

The cooling fins are slightly larger than on the original cylinders, thus providing better cooling.
| Nominal diameter | 38 mm |
| Manufacturer | Airsal |
| Camouflaged | No |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Material | Aluminum |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 48 mm |
| Ø outlet inside | 20 mm |
| Inlet window | 23.5 / 21.5 x 15 |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing inlet | 38 mm |
| Ø piston pin (B) | 12 mm |
| Number of fixing points | 4 pcs |
| Outlet type | straight |
| Area of application | Tuning |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Decompressor | Yes |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
