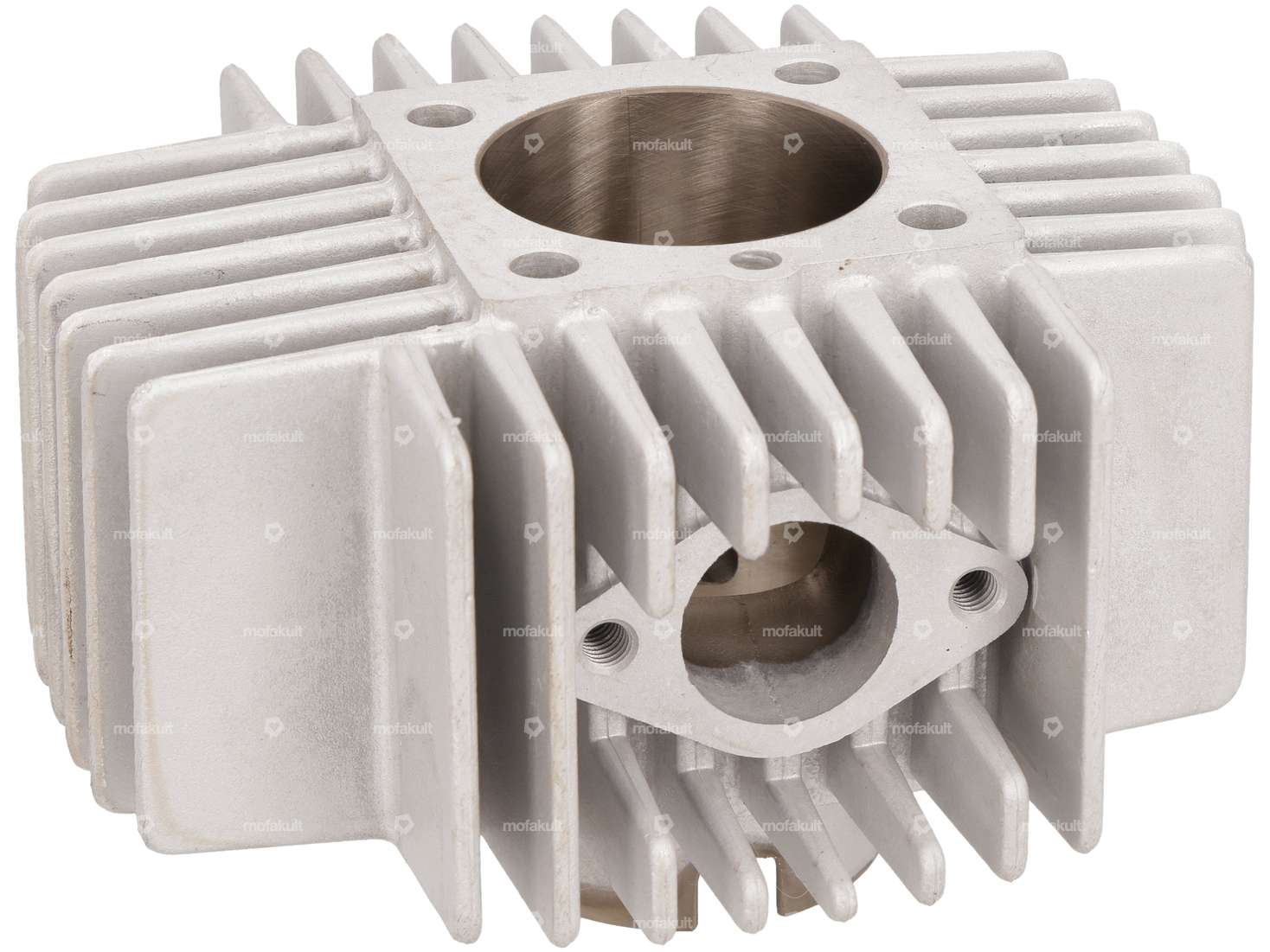

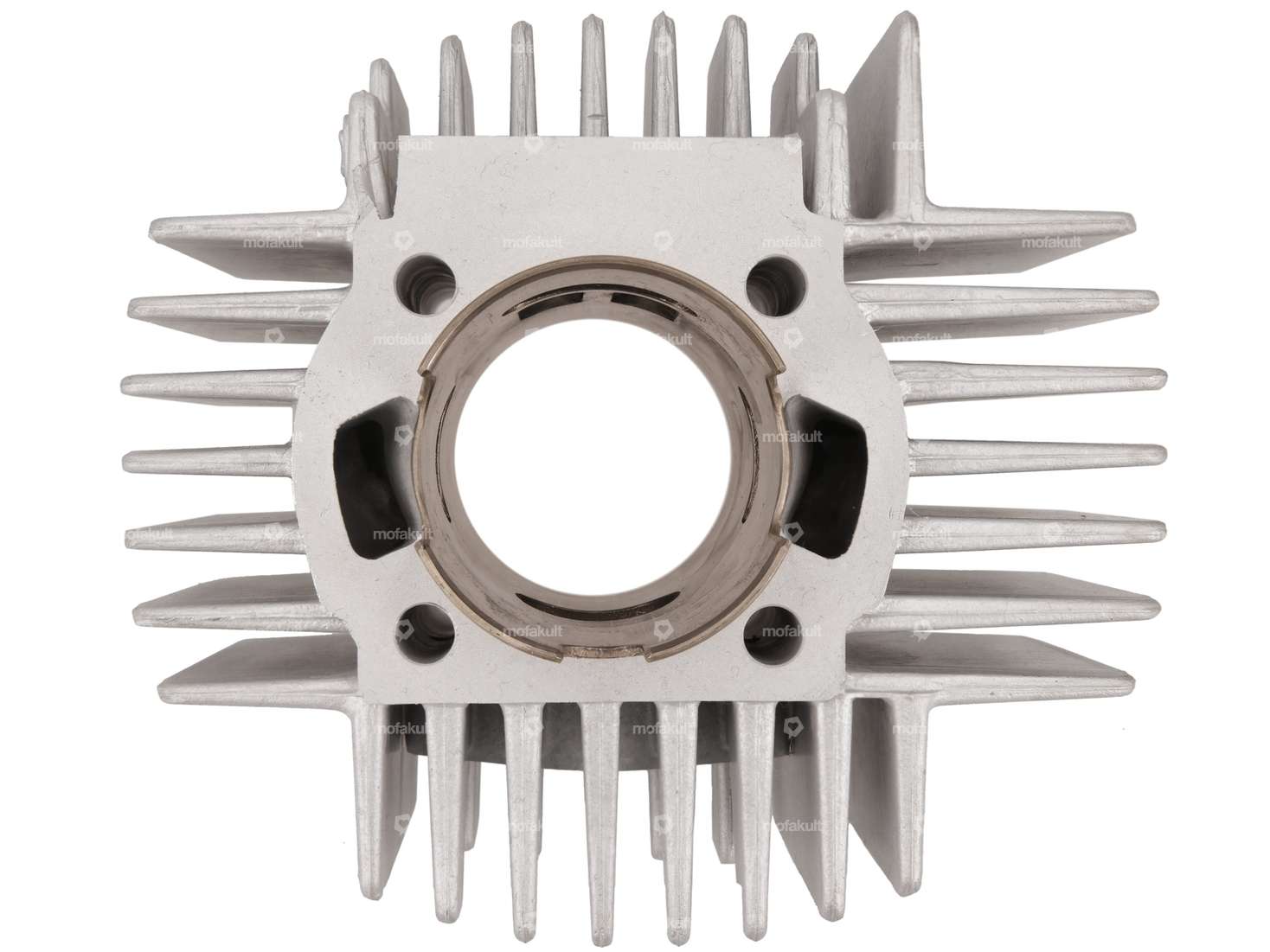

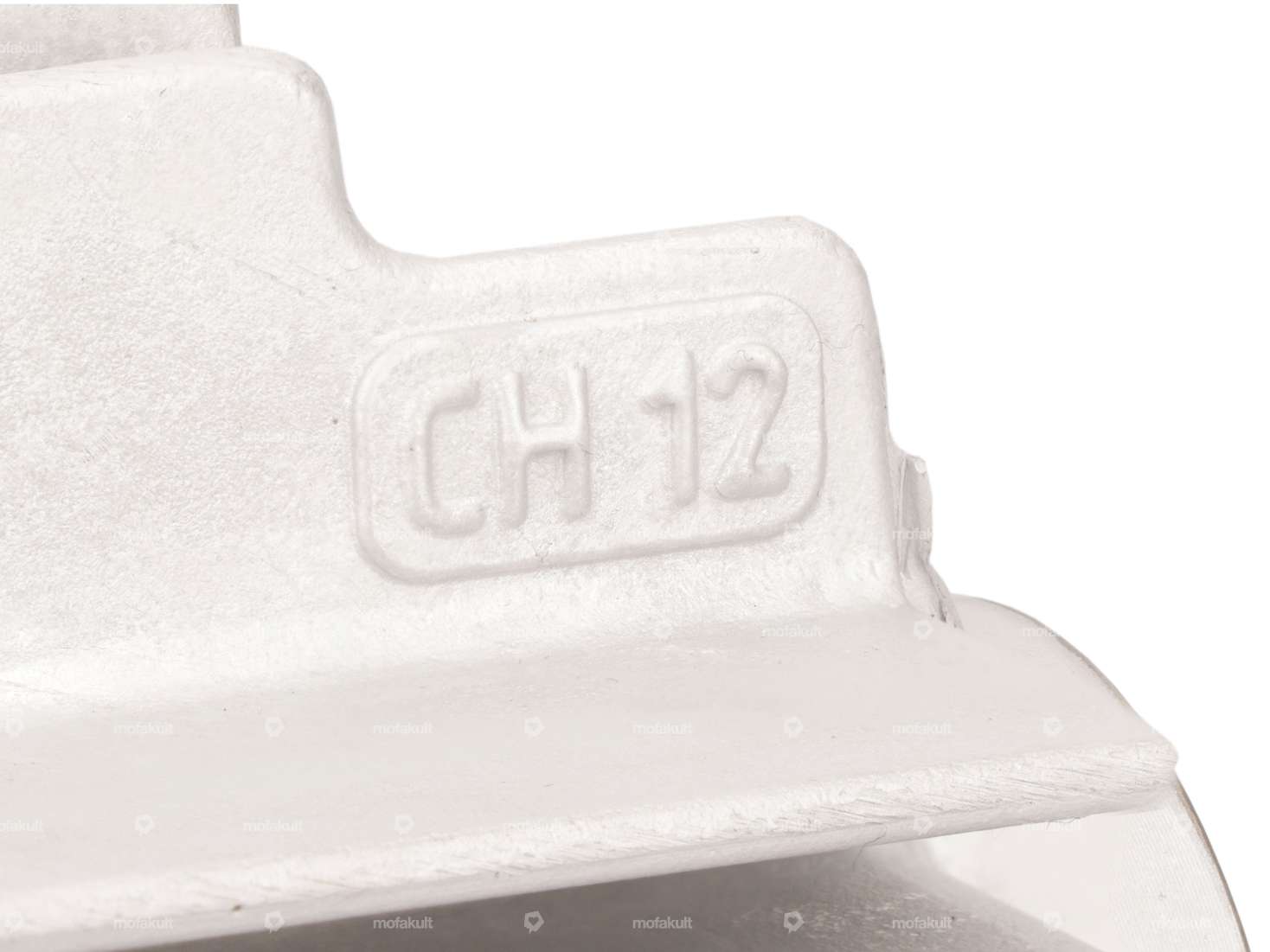

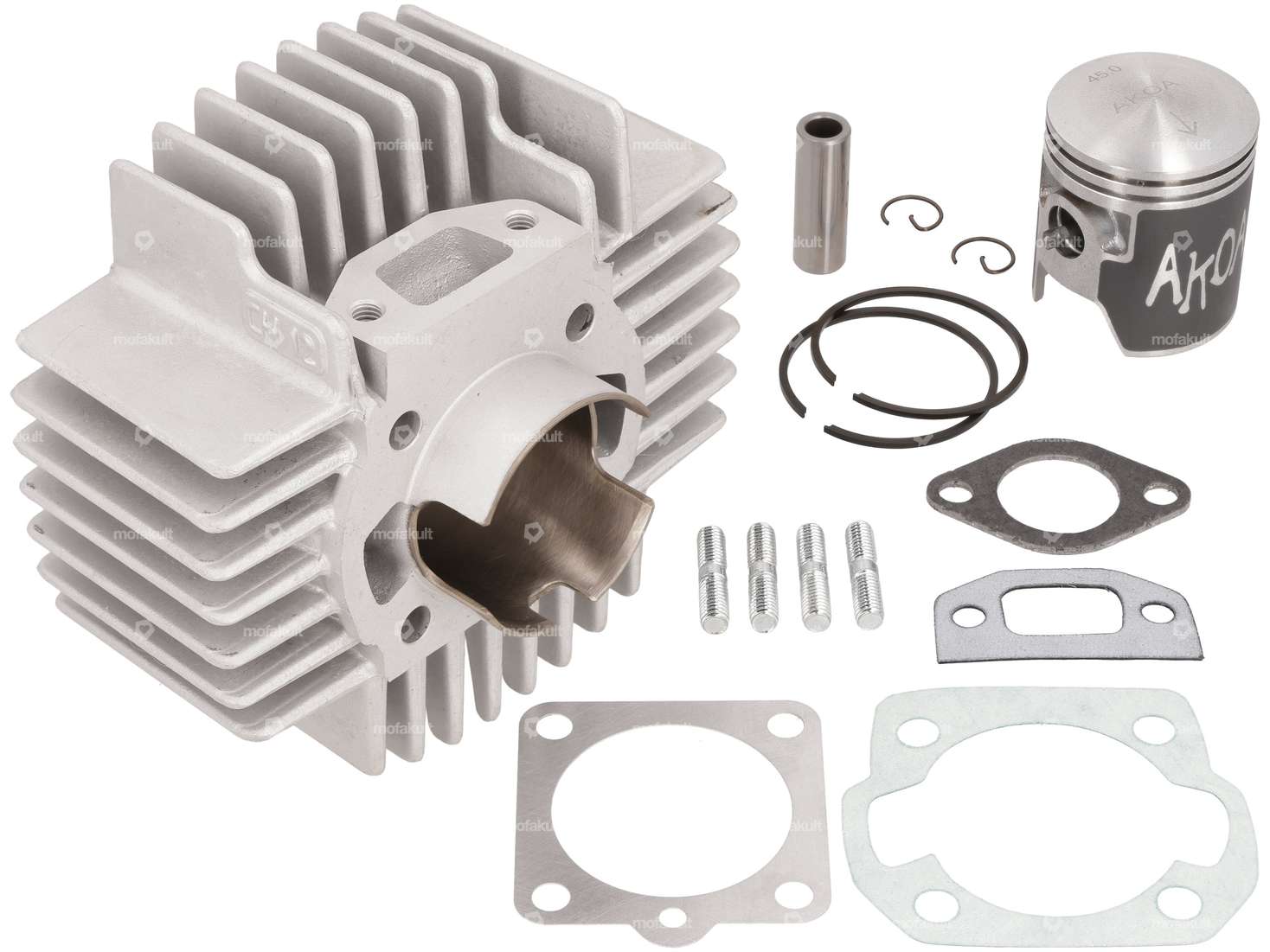

AKOA 45 mm cylinder kit gray CH12 camouflaged | Puch E50 / ZA50 / Z50

swiing® revival stud bolt set M6 x 106 | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Width across flats: 10 mm · Thread length: 13 mm · Thread length: 18.5 mm · Total length: 106 mm · Drive: External hexagon · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Alternative version of the Puch OEM number: 360.1.10.034.1

Loctite 243 medium-strength threadlocker 10 ml

Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents: 10 ml · Area of application: Chemistry · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

swiing® ingenious 15 mm carburetor set camouflaged | Puch E50

Manufacturer: swiing® ingenious parts · Nominal diameter: 15 mm · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Ø Inside entrance: 15 mm · Mounting type: Plug connection clamped · Mounting type: Stud bolts & nuts · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Hole spacing inlet: 38 mm · Ø Internal connection: 20 mm · Ø fuel hose connection: 5 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 62 · Clamping screw torque (max.): 4 N/m · Area of application: Tuning

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing type: Needle roller and cage assembly · Dimension needle bearing: 12/15 x 14.2 · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Width: 14.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

NGK B7HS spark plug short thread

Manufacturer: NGK · Candle thread type: short · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Thread type: MF14x1.25 (fine pitch thread) · Width across flats: 21 mm

swiing® ingenious resonance exhaust set Ø 28 / 70 mm | Puch Maxi, X30 Sport

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Ø outside: 70 mm · Total length: 730 mm · Color: Chrome · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp · Flame tube attachment: Flange

GPO gasket set cylinder 45 mm Puch

Material: Aluminum · Manufacturer: GPO · Material: Sealing carton · Ø cylinder: 45 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Decompressor: Yes · Area of application: Tuning

swiing® revival stud bolt set M6x30 (10.9 strength) galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Width across flats: 10 mm · Thread length: 12 mm · Total length: 30 mm · Drive: External hexagon · Diameter: 6 mm · Thread type: M6x1 (standard thread) · Strength class: 8 · Strength class: 10.9

Solder wire Ø 2 mm Determination of the crimping edge (10 cm piece)

Area of application: Workshop accessories · Total length: 100 mm · Diameter: 2 mm

swiing® ingenious 17 mm carburetor set camouflaged | Puch E50

Manufacturer: swiing® ingenious parts · Nominal diameter: 17 mm · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Carburetor type: SRF · Mounting type: Plug connection clamped · Ø Air filter connection: 27.5 mm · Hole spacing inlet: 38 mm · Mixed oil connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.2 · Nozzle size: 74 · Clamping screw torque (max.): 4 N/m · Area of application: Racing · Area of application: Tuning

AKOA piston 45 mm | Puch E50 / ZA50 (air-cooled) / ZA50 (cat.) / Z50

Manufacturer: AKOA · Material: Aluminum · Surface: molybdenum-coated · Ø outside piston (A): 44.98 mm · Compression height (C): 22.48 mm · Curvature (D): 3.65 mm · Total piston height (E): 52.56 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.46 mm · Thick piston ring: 1.72 mm · Ø piston pin (B): 12 mm · Weight piston kit: 99.41 g

swiing® revival cable guide mudguard black | Puch

Manufacturer: swiing® revival parts · Material: Plastic · Color: black · Mounting type: Plug connection · Number of fixing points: 2 pcs · Total length: 74 mm · Height: 12.5 mm · Hole spacing: 63 mm

GPO control bearing set M26x1 | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Bearing type: Bearing ring · Ø mounting frame: 31 mm · Color: silver · Ø inside: 26.8 mm · Ø outside: 41 mm · Thread type: MF26x1 (fine pitch thread)

swiing® revival snap ring low control bearing set

Nominal diameter: 20 mm · Nominal diameter: 28 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Height: 7 mm · Thickness: 0.6 mm · Puch OEM number: 349.1.30.015.1 · Sachs OEM no.: P0521

swiing® revival speedometer disk (instead of speedometer drive) Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Color: Chrome · Ø outside: 47 mm · Ø mounting hole: 12 mm · Ø axle: 12 mm · Total height: 12 mm

GPO mudguard strut silver | Puch Maxi S, N

Manufacturer: GPO · Material: Steel · Outer width: 25.5 mm · Surface: varnished · Color: silver · Wheel size: 17 " · Distance mudguard - center hole: 197 mm · Distance mudguard - center hole: 231 mm · Ø mounting hole: 6 mm · Wide intake: 53 mm · Number of fixing points: 8 pcs · Mounting type: Nuts & bolts · Hole spacing: 40 mm · Total length: 240 mm

swiing® revival 17" front fender square Inox | Puch Maxi S, N

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Surface: polished · Color: Chrome · Folding the ends: closed folded · Wheel size: 17 " · Shape of the mudguard: angular · Total length over ends: 565 mm · Scope: 740 mm · Wide mudguard profile: 82 mm · Height of mudguard profile: 35 mm · Mounting type: Nuts & bolts · Total height from support surface to top edge: 200 mm

swiing® revival stud bolt set M6 x 106 | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Width across flats: 10 mm · Thread length: 13 mm · Thread length: 18.5 mm · Total length: 106 mm · Drive: External hexagon · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Alternative version of the Puch OEM number: 360.1.10.034.1

GPO front mudguard strut 17" chrome

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Outer width: 160 mm · Wheel size: 17 " · Distance mudguard - center hole: 300 mm · Color: Chrome · Mounting type: Nuts & bolts · Total length: 305 mm · Number of fixing points: 4 pcs · Ø mounting hole: 12.5 mm

AKOA 45 mm cylinder head gray | Puch E50 / ZA50 (air-cooled) / ZA50 (cat.) / Z50

Manufacturer: AKOA · Material: Aluminum · Surface: varnished · Area of application: Tuning · Ø cylinder: 45 mm · Height: 54.5 mm · Width: 123.2 mm · Total length: 132.2 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Candle thread: short · Decompressor: No
