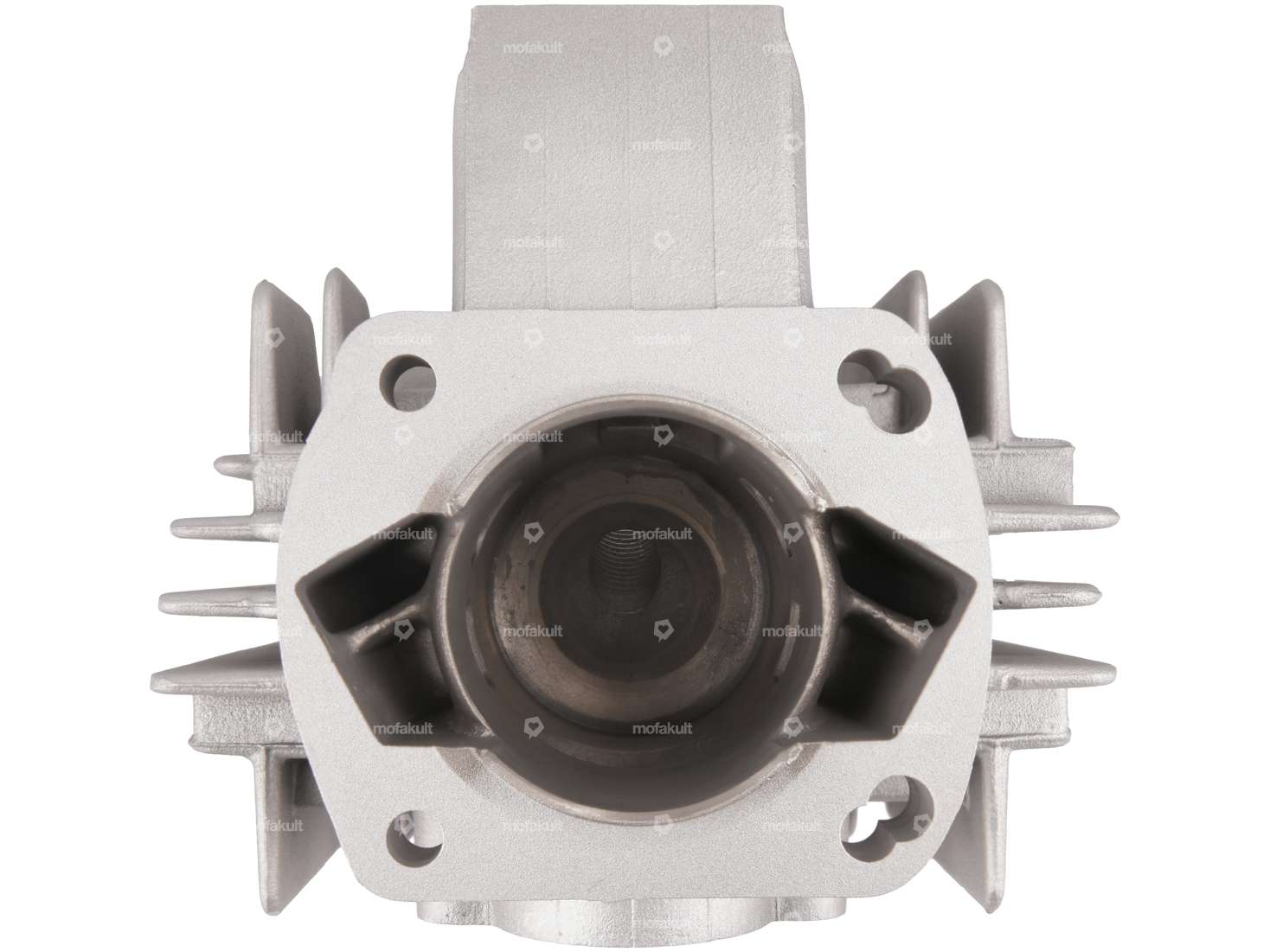

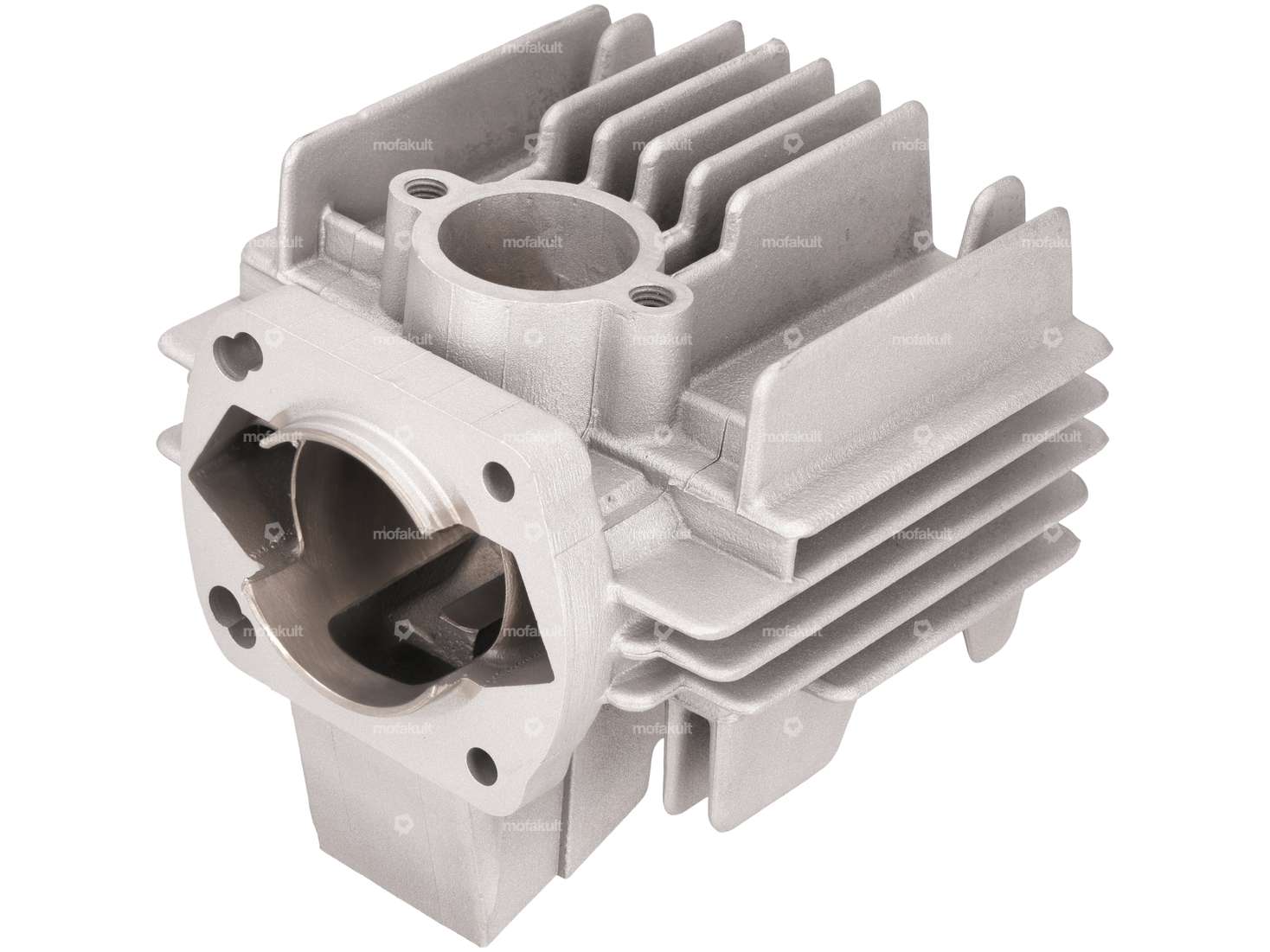

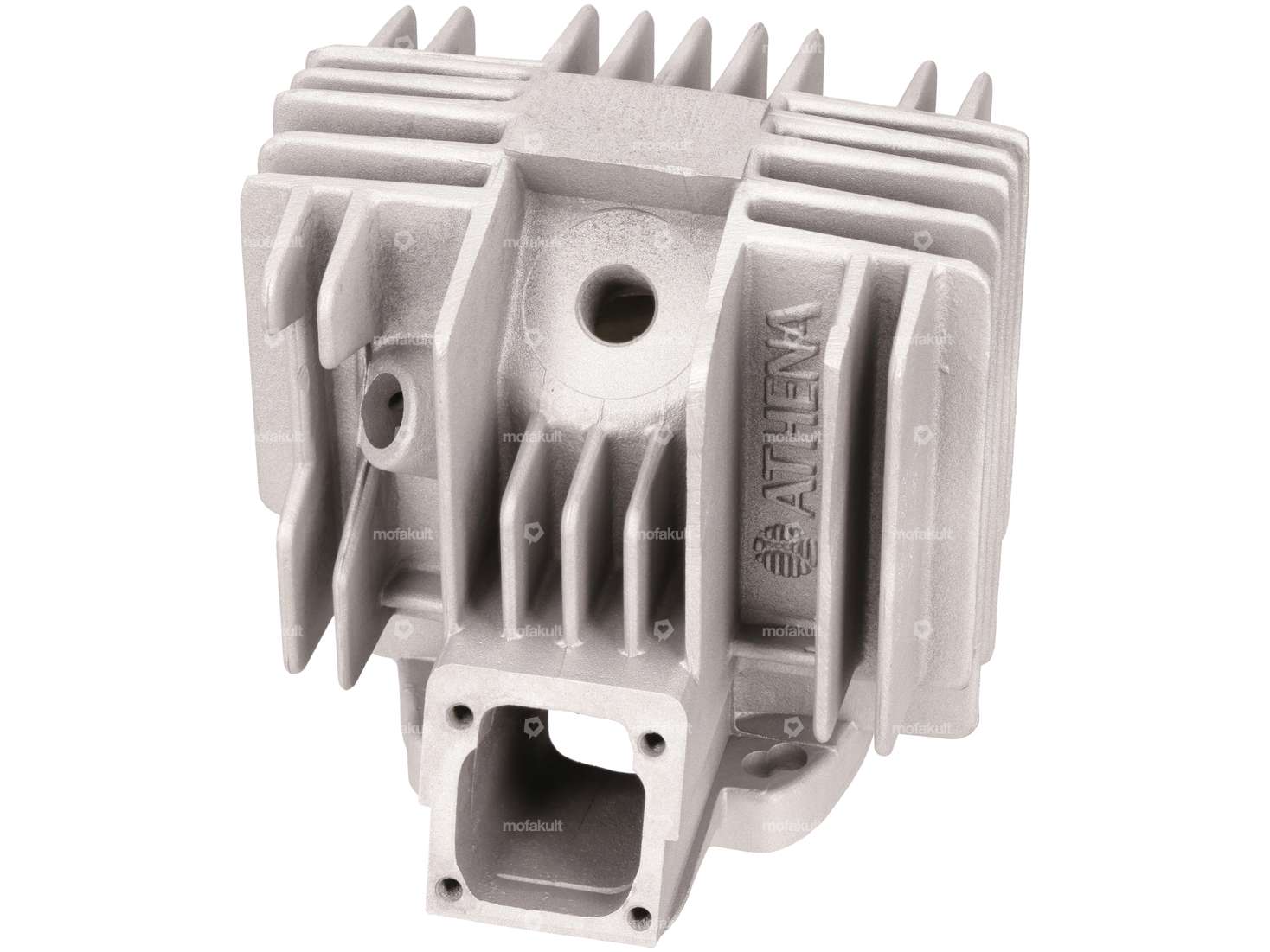

Racing cylinder of the Athena brand for Sachs 504 (with adaptations), 505 & 508 engines, which were installed on Hercules Prima M, 2, 3, 4, 5 and Optima mopeds / mopeds, among others.
Thanks to the large intake, overflow and exhaust, this tuning cylinder provides a considerable increase in performance.
Technical data cylinder:

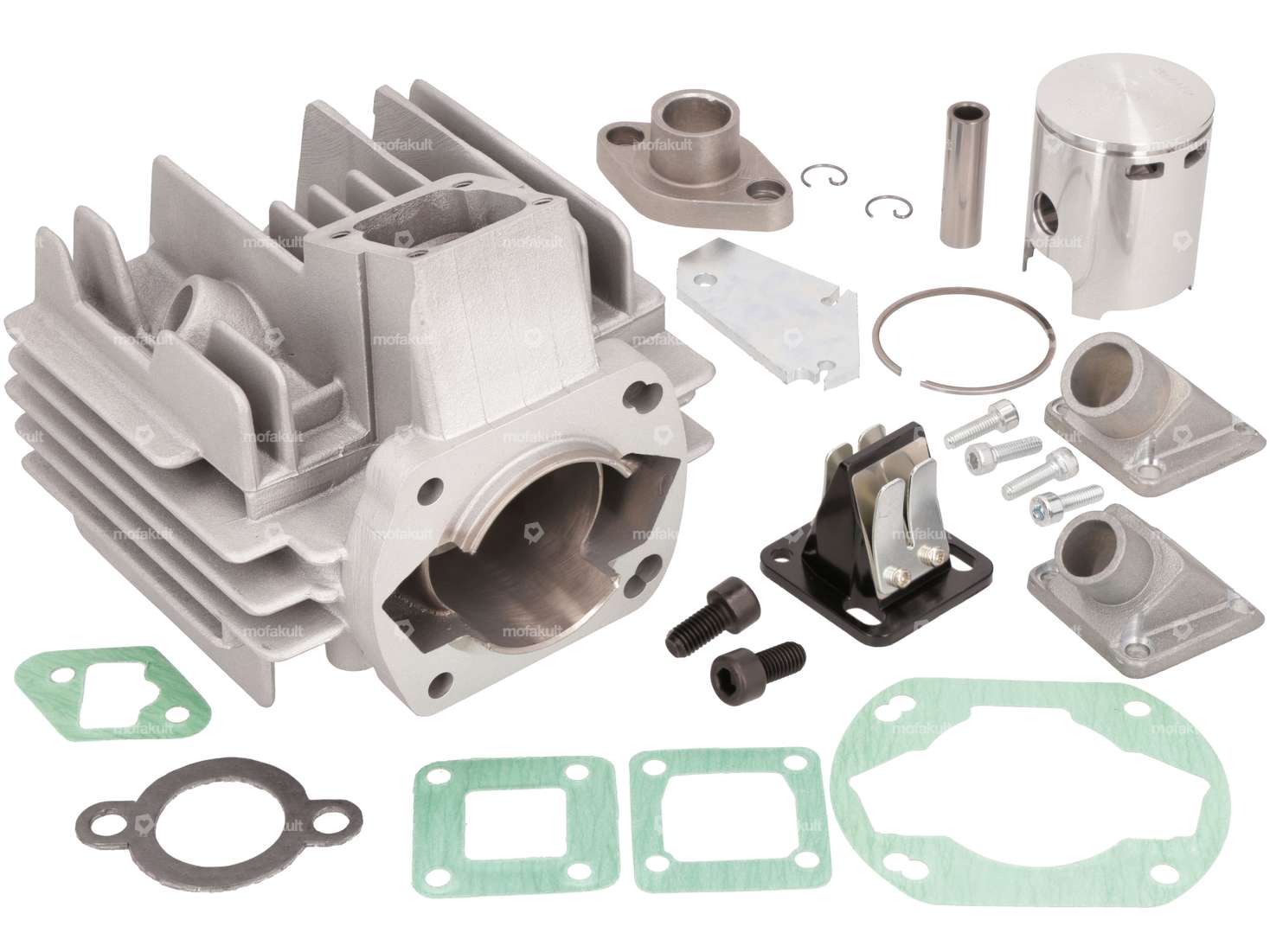

The intake manifold with diaphragm system for Dell'Orto SHA or PHBG carburetor and exhaust flange is included in the scope of delivery.
Notes:
Plugs with long thread must be used.
For Swiss 504 engines (42 mm stroke), the following modifications must be made to the cylinder:
As experience has shown that the steel diaphragm plates supplied can break, we recommend replacing them with carbonite diaphragm plates. You can find these and other suitable parts in the accessories section.
Manufacturer | Athena |
Material | Aluminum |
Camouflaged | No |
Area of application | Tuning |
Surface | sandblasted |
Crankshaft stroke | 44 mm |
Nominal diameter | 48 mm |
Ø cylinder neck | 51.8 mm |
Ø Outlet outside | 26 mm |
Ø Inlet inside | 14.7 mm, 17.8 mm |
Inlet window | 31.9 x 36.2 |
Ø outlet inside | 19.4 mm |
Thread inlet | M5x0.8 (standard thread) |
Ø piston pin (B) | 12 mm |
Hole spacing outlet | 50 mm |
Hole spacing inlet | 32.5 mm |
Outlet type | straight, clamped |
Number of fixing points | 4 pcs |
Thread outlet | M8x1.25 (standard thread) |
Hole pattern [mm] | 56/60 x 56 |
Decompressor | M10x1.5 |
Sachs | 505 (with pedal shaft) - 1A (AT), 2A (HG) 508 - 1 A |
Hercules | Great - 2, 3, 4, 5, Optima |
Accessories & related products
Athena piston 48 mm #B | Sachs 504 / 505
Manufacturer: Athena · Nominal diameter: 48 mm · Ø outside piston (A): 47.96 mm · Ø piston pin (B): 12 mm · Compression height (C): 30.12 mm · Curvature (D): 1.94 mm · Total piston height (E): 59 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: B · Piston weight: 123 g
EUR 81.50

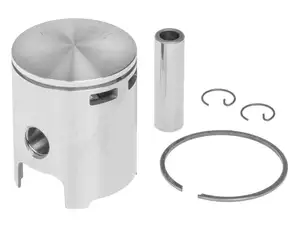

Athena piston 48 mm #A | Sachs 504 / 505
