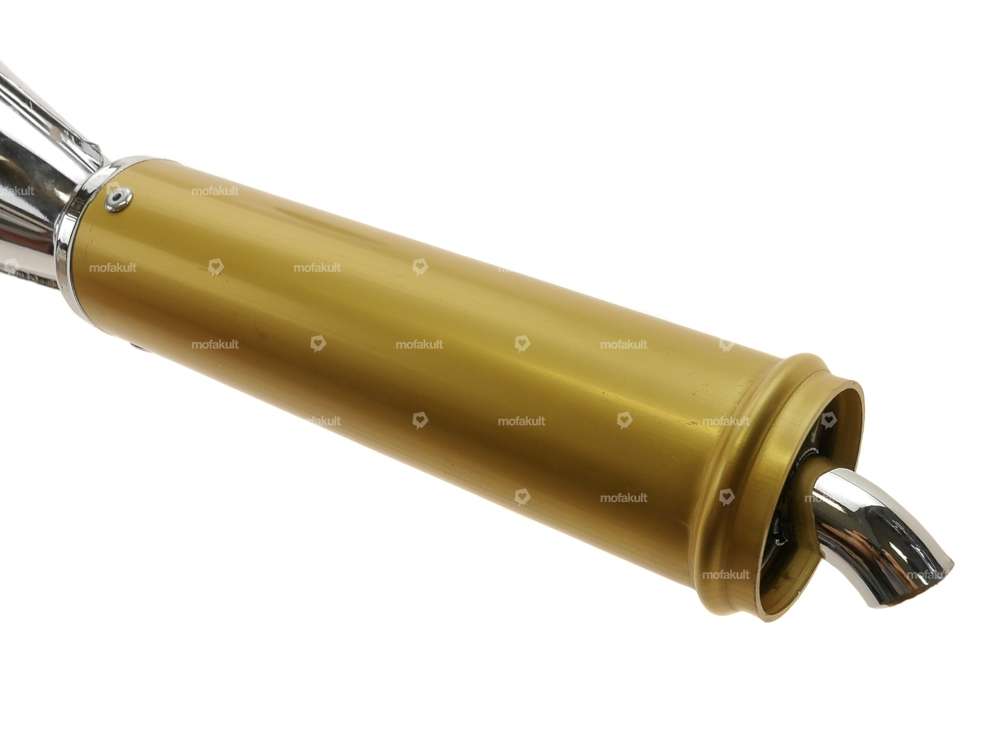

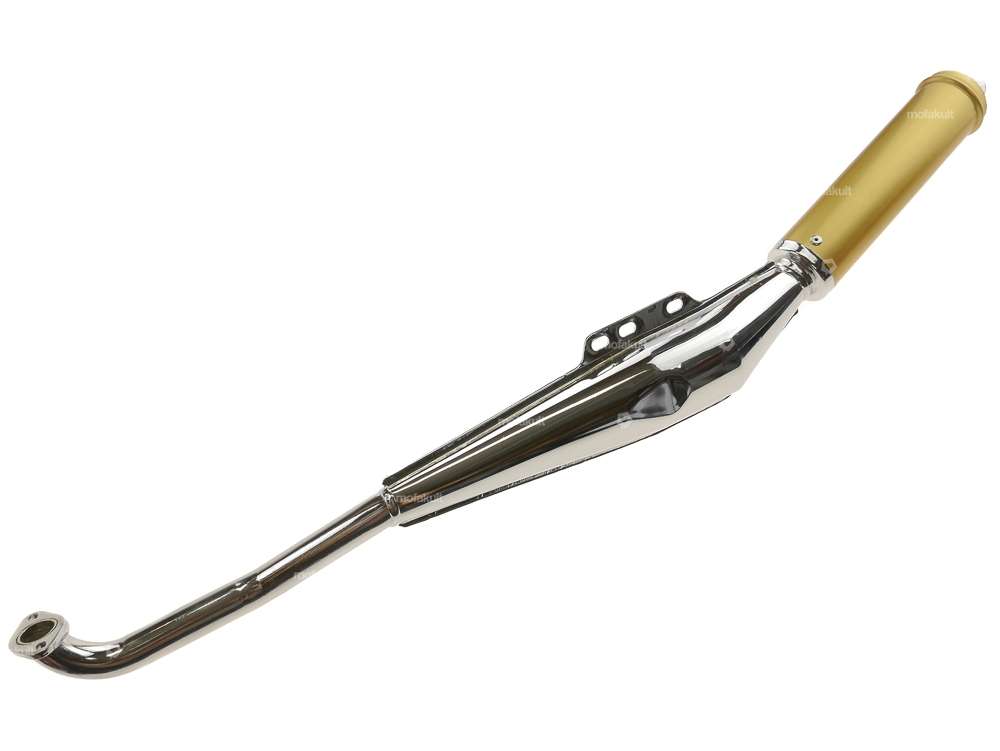

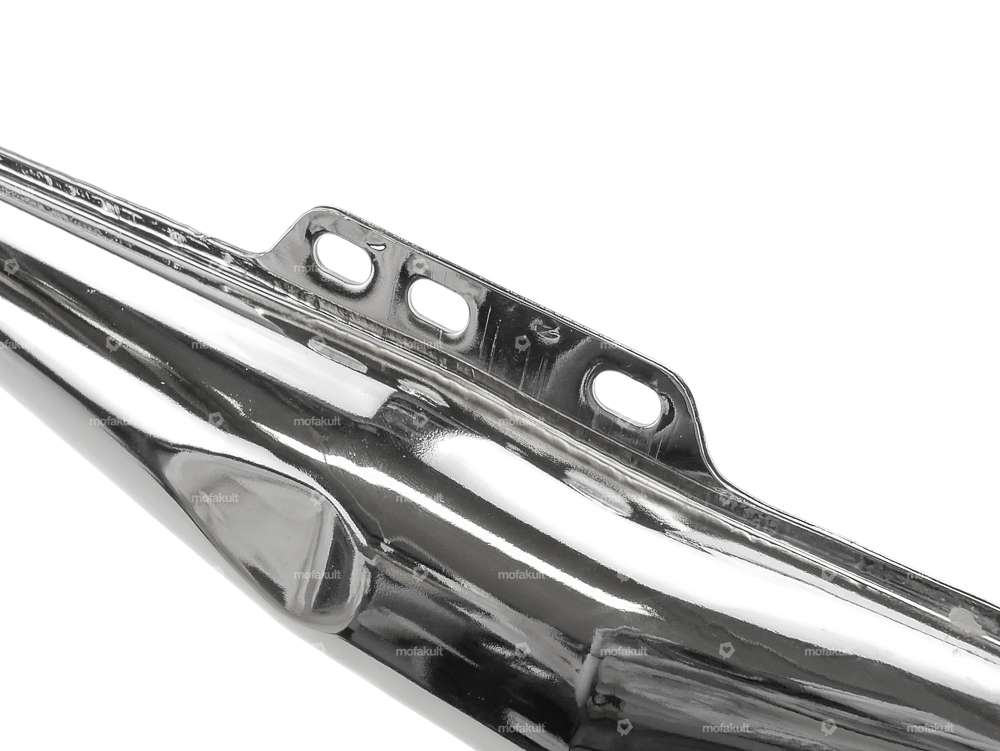

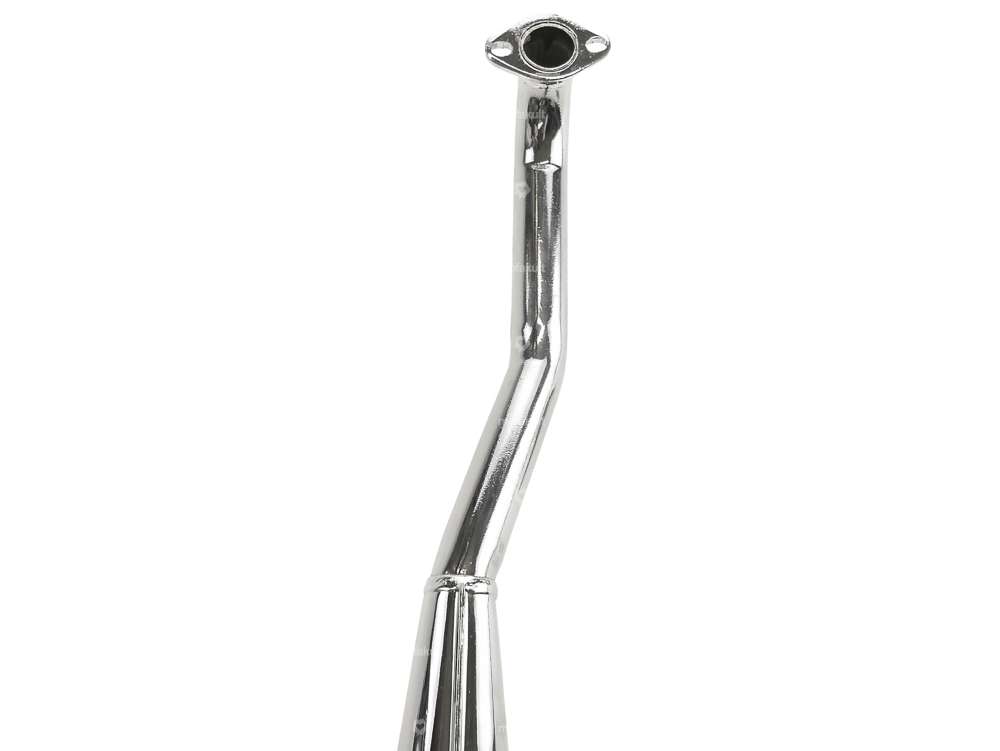

Biturbo exhaust chrome / gold | Puch

Large outlet seal with metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Thickness: 2.1 mm · Reinforced: Yes · Area of application: Tuning · Ø outlet inside: 27 mm · Hole spacing outlet: 42.5 mm · Ø screw holder: 6.3 mm

Insulating wool exhaust 25 x 40 cm

Material: Ceramics · Color: white · Height: 220 mm · Width: 400 mm · Thickness: 10 mm

Brass nut M6 3D

Material: Brass · Area of application: Standard · Nut type: Neck nut · Height: 25 mm · Drive: External hexagon · Surface: blank · Ø outside: 9 mm · Thread depth: 25 mm · Shank length: 20 mm · Thread type: M6x1 (standard thread) · Width across flats SW: 10 mm

Nut M6 extra high galvanized

Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Nut type: Hexagon nut 3D · Thread type: M6x1 (standard thread) · Height: 18 mm · Area of application: Standard · Width across flats SW: 10 mm

M6 brass exhaust nut

Material: Brass · Nut type: Hexagon nut · Thread type: M6x1 (standard thread) · Drive: External hexagon

Insulating wool (balls)

Manufacturer: Made in Portugal · Material: Fabric insert · Color: beige · Surface: raw · Total length: 26 mm · Ø inside: 39 mm · Ø outside: 45.5 mm

LIQUI MOLY Exhaust assembly paste 150 g

Manufacturer: LIQUI MOLY · Area of application: Chemistry · Color: gray · Contents [g]: 150 g · Temperature resistance (min.): 0 - 700 °C

swiing® ingenious gasket outlet 28 mm graphite

Manufacturer: swiing® ingenious parts · Material: Graphite / Graphite · Place of use: Exhaust · Thickness: 3 mm · Reinforced: No · Ø outlet inside: 28 mm · Ø inside: 27.4 mm · Hole spacing outlet: 42.5 mm · Area of application: Tuning · Ø screw holder: 6.6 mm

swiing® ingenious M6 special nut exhaust flange (hexagon socket) strength 10

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Thread length: 17 mm · Total length: 25 mm · Ø outside: 10 mm

KMC drive chain 415H (reinforced) 128L

Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Chain pitch: 1/2" x 3/16" · Chain type: 415H · Rolling circumference: 1626 mm · Number of chain links: 128 pcs · Chain lock type: Spring lock · Ø bore: 4 mm · Ø Pin: 3.94 mm · Color: gray

Airsal 45 mm cylinder kit 70 ccm camouflaged | Puch

Nominal diameter: 45 mm · Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Inlet window: 23.5 / 20 x 15 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Camouflaged: Yes · Area of application: Tuning

GPO 15 mm carburetor tuning | Puch

Manufacturer: GPO · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Nozzle size: 62 · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Width: 50 mm · Height: 95 mm · Area of application: Tuning

15 mm intake manifold | Puch E50

Material: Aluminum · Camouflaged: Yes · Area of application: Tuning · Ø inside: 14.5 mm · Hole spacing inlet: 38 mm · Ø External connection: 20 mm · Number of fixing points: 2 pcs · Total length: 47 mm · Mounting type: Screws · Total height: 54 mm · Height flange center hole: 43 mm

swiing® revival upright spring blue galvanized | Puch

Spring design: Tension spring · Ø wire: 2.5 mm · Length spring hook: 19 mm · Length spring hook: 53 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: galvanized (blue) · Ø outside: 14 mm · Total length: 122 mm · Ø inside: 9 mm

Airsal 38 mm cylinder kit 50 cc camouflaged | Puch Maxi, X30

Nominal diameter: 38 mm · Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 20 mm · Inlet window: 23.5 / 20 x 14.5 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Camouflaged: Yes · Area of application: Tuning

Large outlet seal with metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Thickness: 2.1 mm · Reinforced: Yes · Area of application: Tuning · Ø outlet inside: 27 mm · Hole spacing outlet: 42.5 mm · Ø screw holder: 6.3 mm

swiing nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG

Manufacturer: swiing · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Total length: 8 mm · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Nozzle thread: M5x0.8 (standard thread)

GPO air filter screen Ø 52 mm "Racing"

Manufacturer: GPO · Material: Steel · Camouflaged: No · Area of application: Tuning · Color: yellow · Surface: galvanized (yellow) · Height: 9.7 mm · Ø outside: 52 mm
