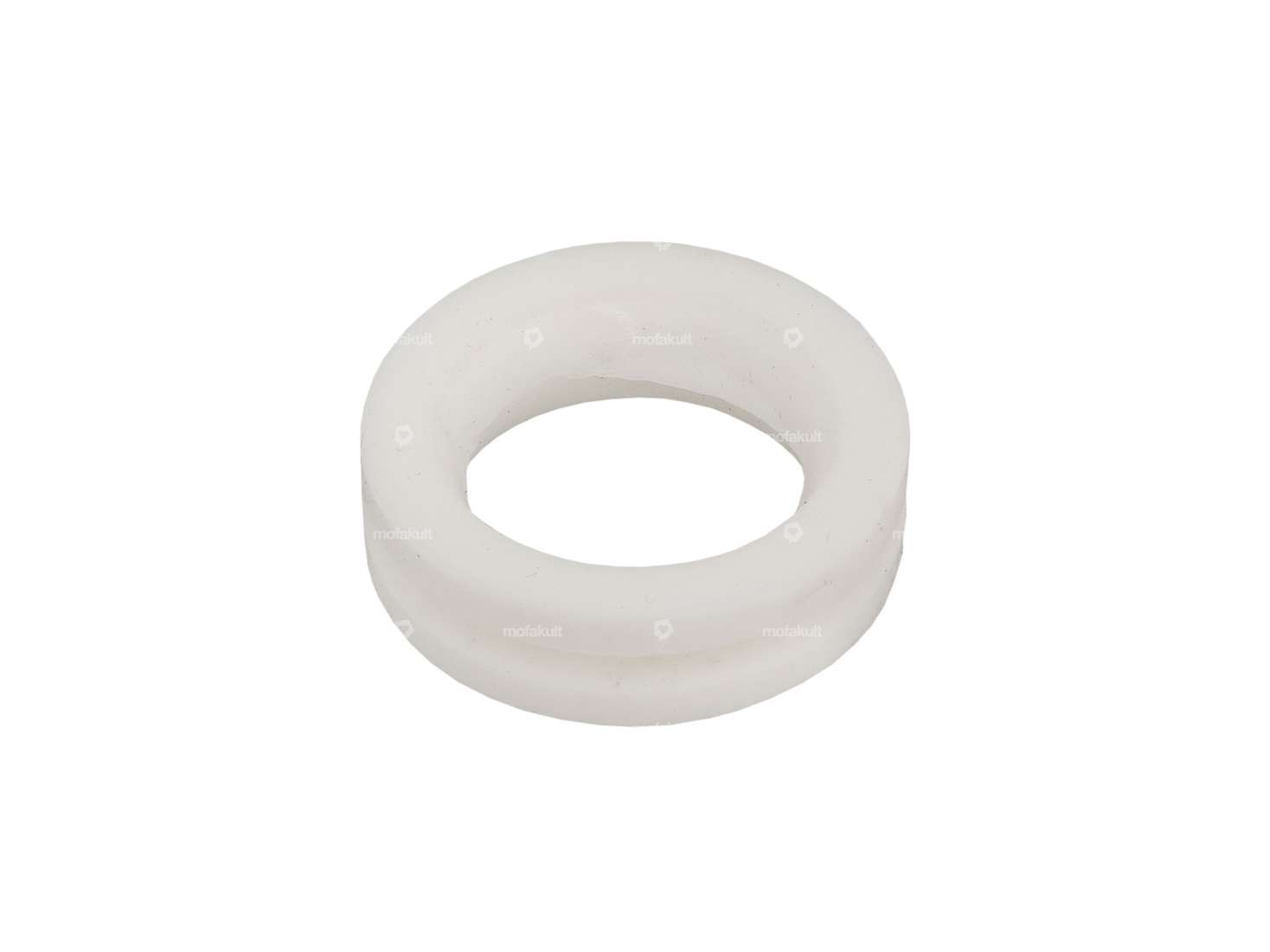

White rubber ring for the headlight bracket and on the frame of your Puch DS50 / VZ50 / VZ50M / VMS50 / VS50 / MV50 / DS50V moped / small motorcycle.
The soft plastic ring serves as edge protection for grommets.

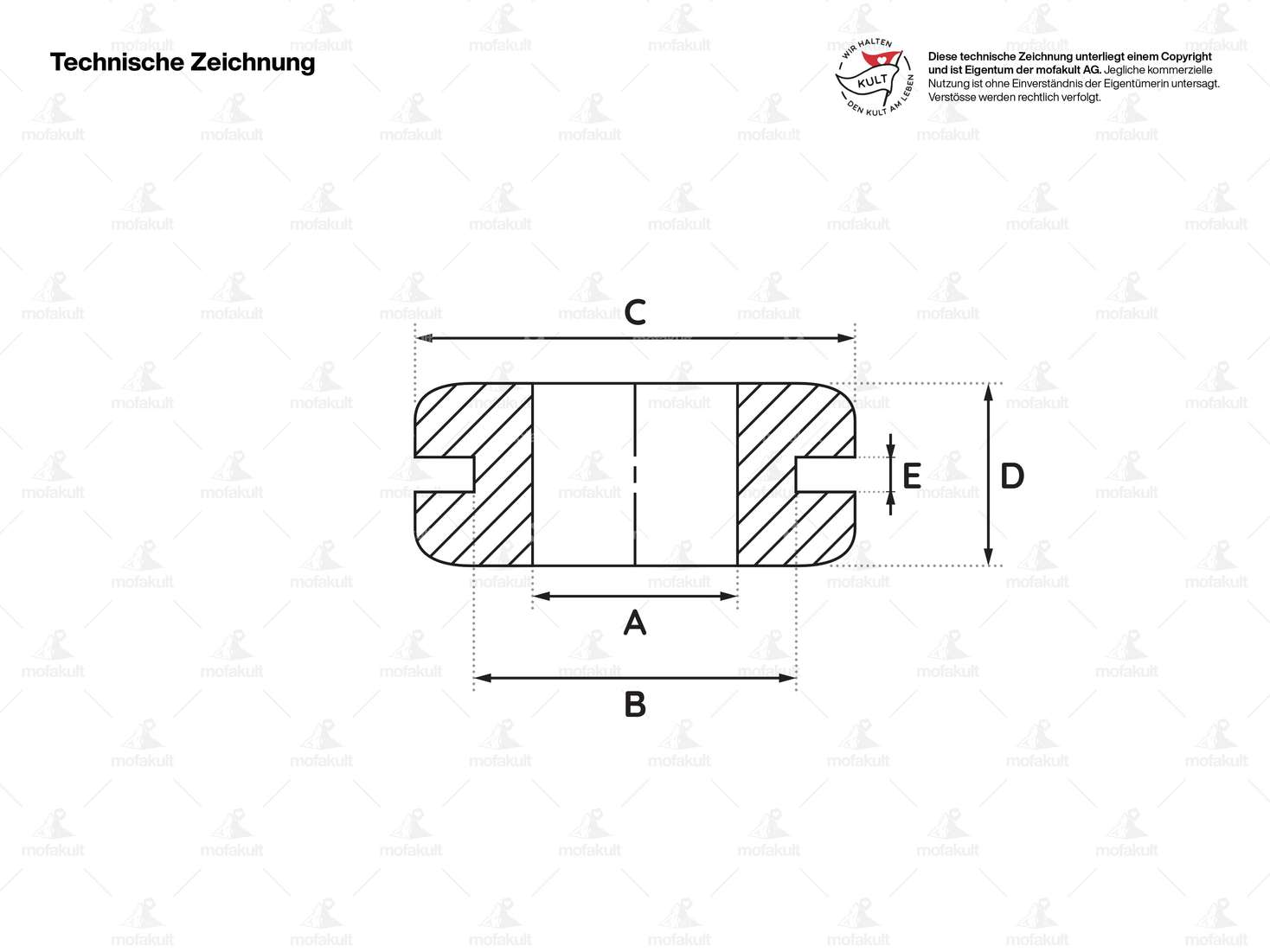

Ø outside (ØD max.): 28 mm
Height (H): 7.8 mm
Material thickness (H2): 2.6 mm
Ø inner (D): 18 mm
Ø mounting hole (FH): 22 mm
Original Puch spare part number: 364.2.30.052.1
| Material | Rubber |
| Ø inside | 18 mm |
| Ø outside | 28 mm |
| Height | 7.8 mm |
| Color | white |
| Ø mounting hole | 22 mm |
| Material thickness | 2.6 mm |
| Puch | 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
