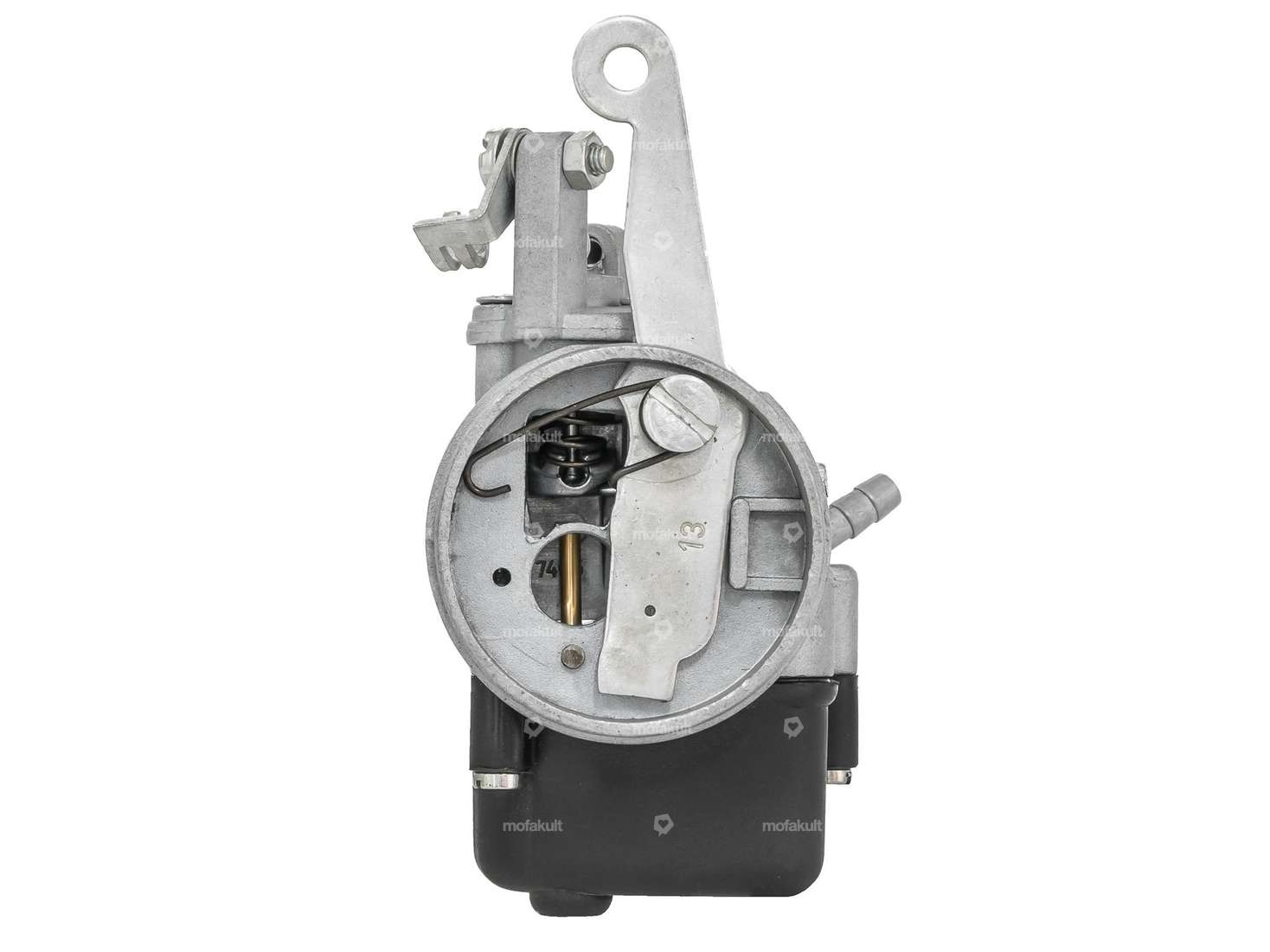

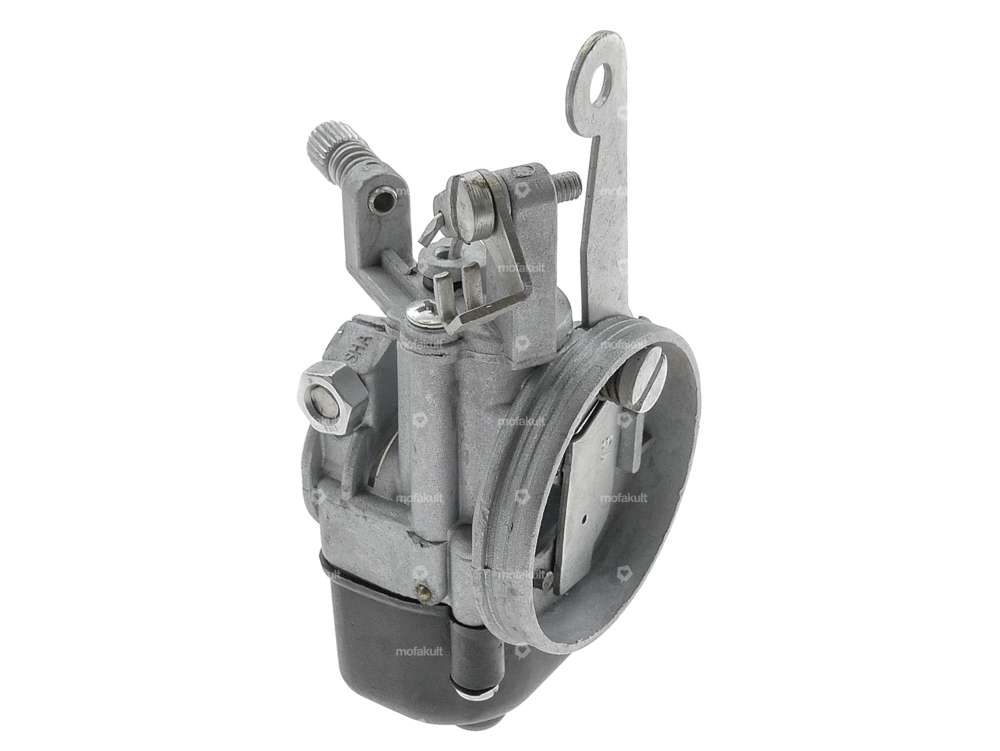

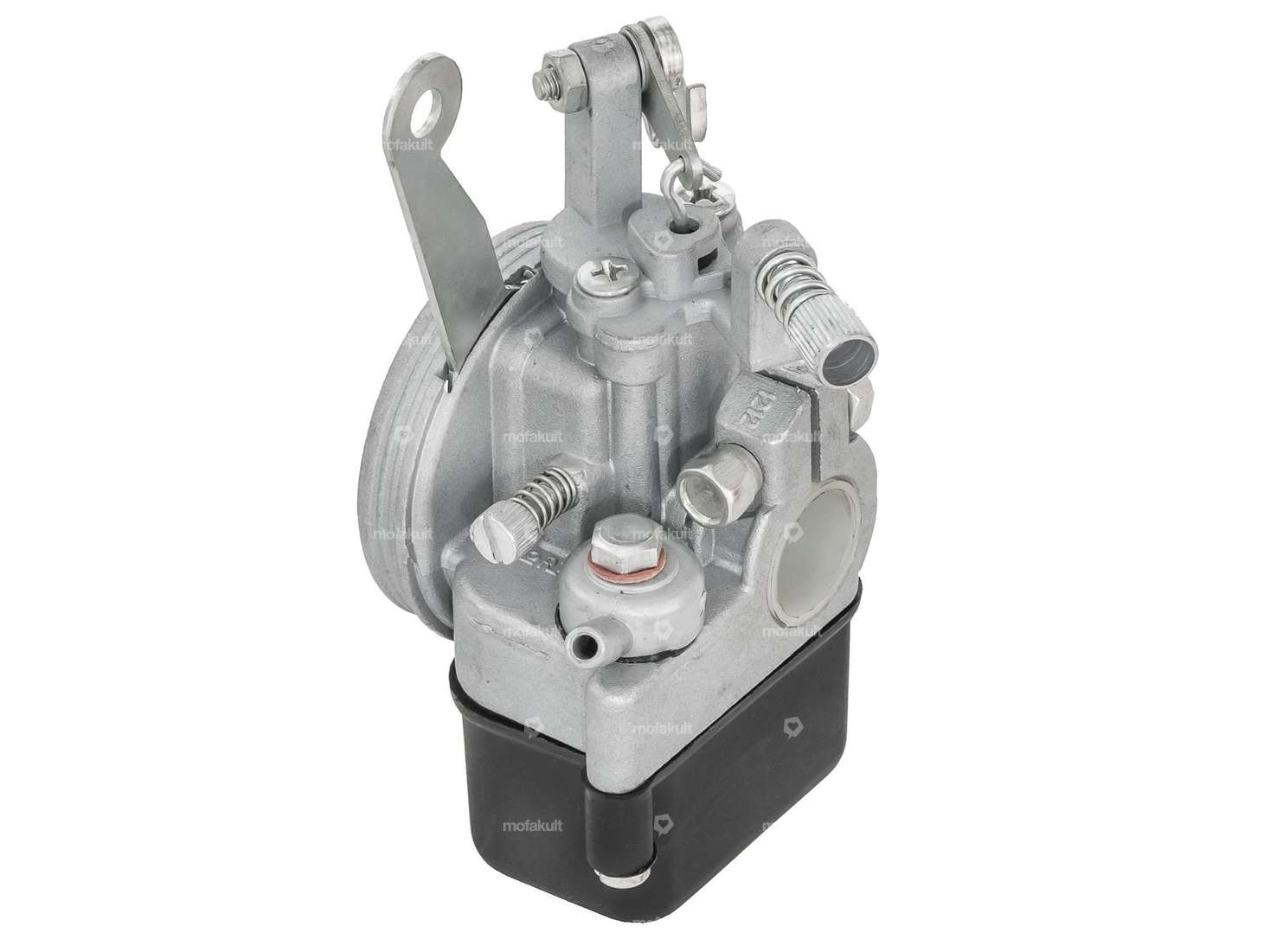

Favourable 12 / 12 replica carburettor for your Piaggio Si moped / moped.
The tuning carburettor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburettor type: SHA type 3 (SHA3)
Main diameter (M5): 62
Inlet connection diameter: 16 mm (or 18 mm after removing the reducer). 18 mm after removing the reducing sleeve)
Ø outside air filter connection: 50.3 mm
Ø passage on air filter side: 12 mm
Ø passage on intake manifold side: 12 mm
Total height: 117.5 mm
Total length: 60 mm
Total width: 60 mm
Note: The finish of the aftermarket carburettors varies. The idle throttle bore is not perfect on all of them. We also recommend that you clean the carburetor again before installation, as some metal shavings from production can be found in the carburetor. If you want to be on the safe side and avoid problems, go straight for the original Dell'Orto product.
You can find suitable jets, air filters and original Dell'Orto carburettors in the accessories section.
Good quality reproduction product from the Asian market.
Details
| Manufacturer | Quenching |
| Nominal diameter | 12 mm |
| Total length | 60 mm |
| Width | 60 mm |
| Height | 118 mm |
| Area of application | Tuning |
| Component group Carburetor | Carburetor complete |
| Carburetor type | SHA (Piaggio) |
| Ø fuel hose connection | 6 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Ø without reducing sleeve | 18 mm |
| Ø Internal connection | 16 mm |
| Ø Inside entrance | 12 mm |
| Ø Output inside | 12 mm |
| Ø Air filter connection | 50.3 mm |
| Mounting type | Plug connection |
| Choke control | Hand choke |
| Nozzle size | 62 |
Suitable for the following models
| Piaggio | Si |
