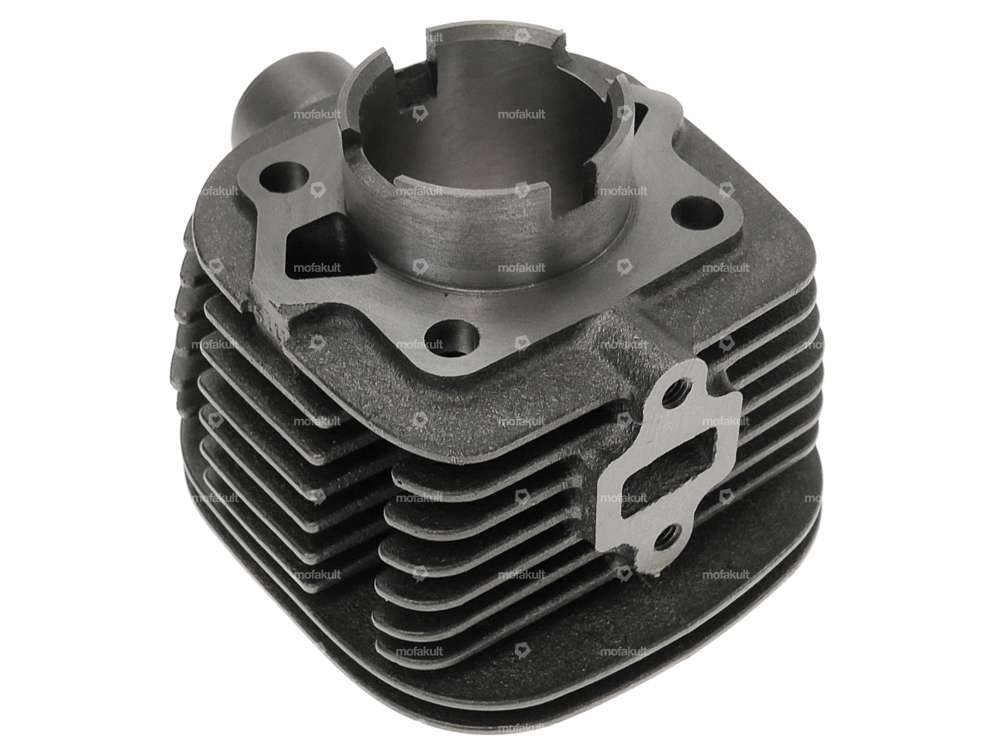

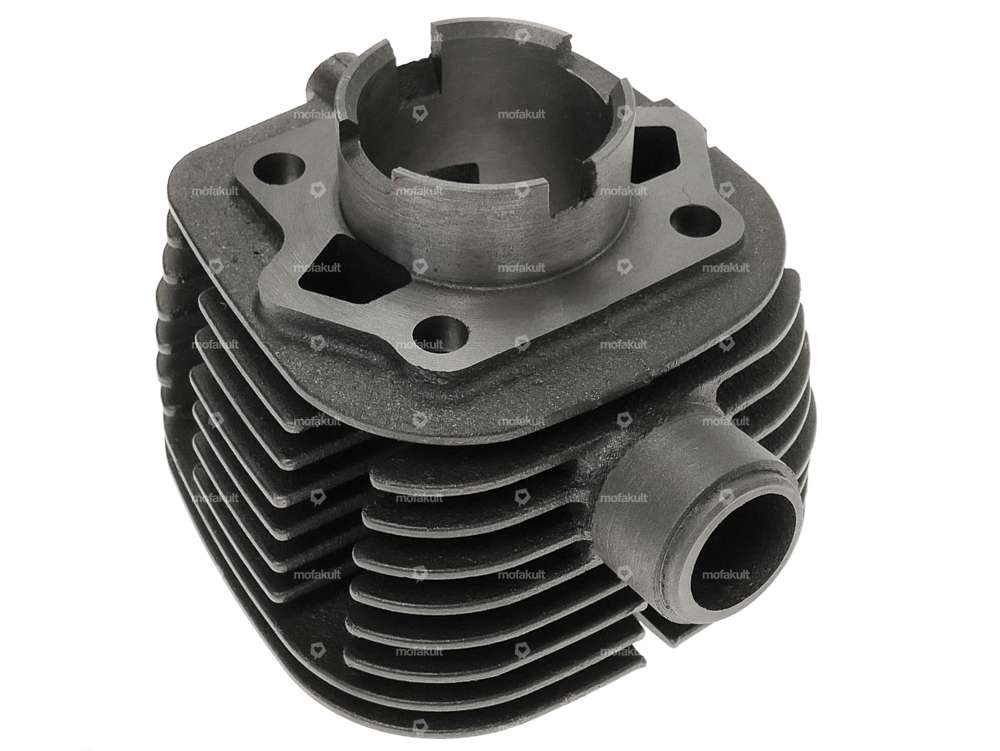

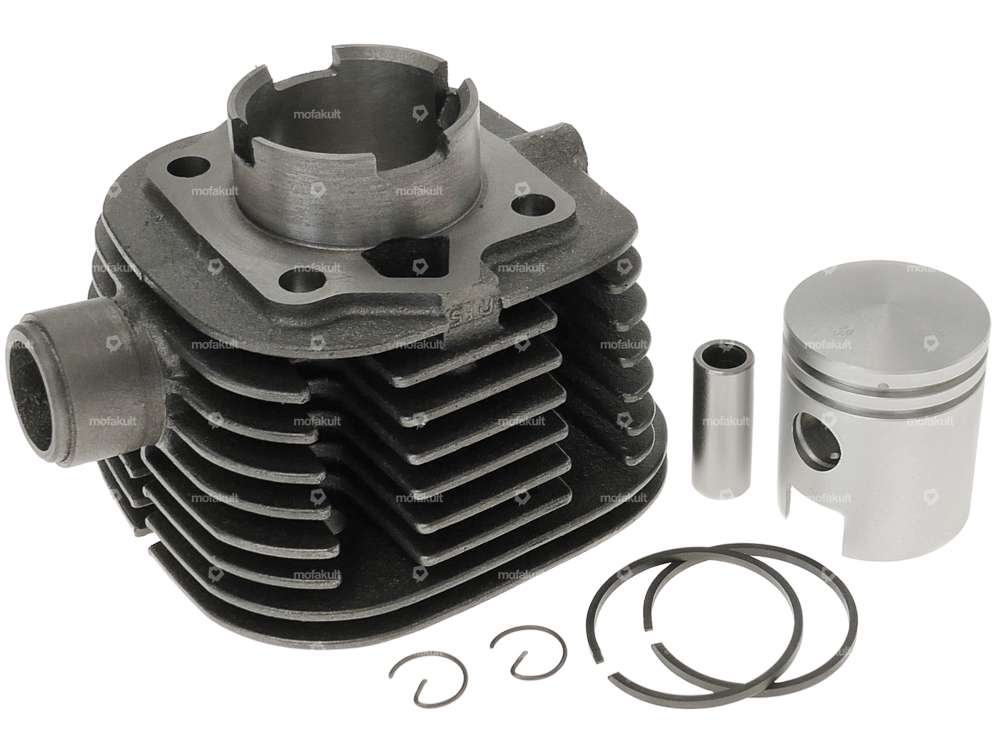

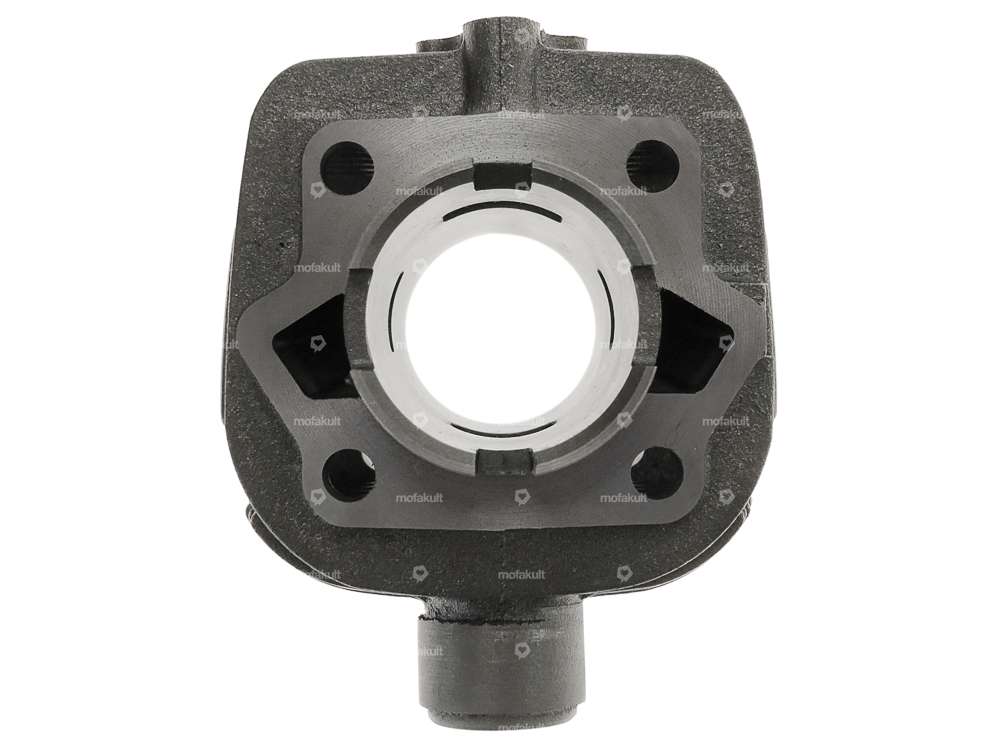

Complete cylinder kit suitable for Victoria MS50 / MS51 small engines.
Can also be installed on Swiss DKW M50 engines with adaptations to the stud bolts
High-quality reproduction cylinder incl. pistons, piston rings, piston pins and piston pin retainers.
Note: Please note the installation direction when assembling. The piston is inserted with the arrow pointing towards the outlet on the exhaust side.
| Material | Gray cast iron |
| Camouflaged | No |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Ø piston pin (B) | 12 mm |
| Nominal diameter | 38 mm |
| Ø Outlet outside | 28 mm |
| Hole pattern [mm] | 46 x 46 |
| Number of fixing points | 4 pcs |
| Outlet type | clamped |
| Hole spacing inlet | 33 mm |
| Area of application | Standard |
| DKW |
| Victoria |
