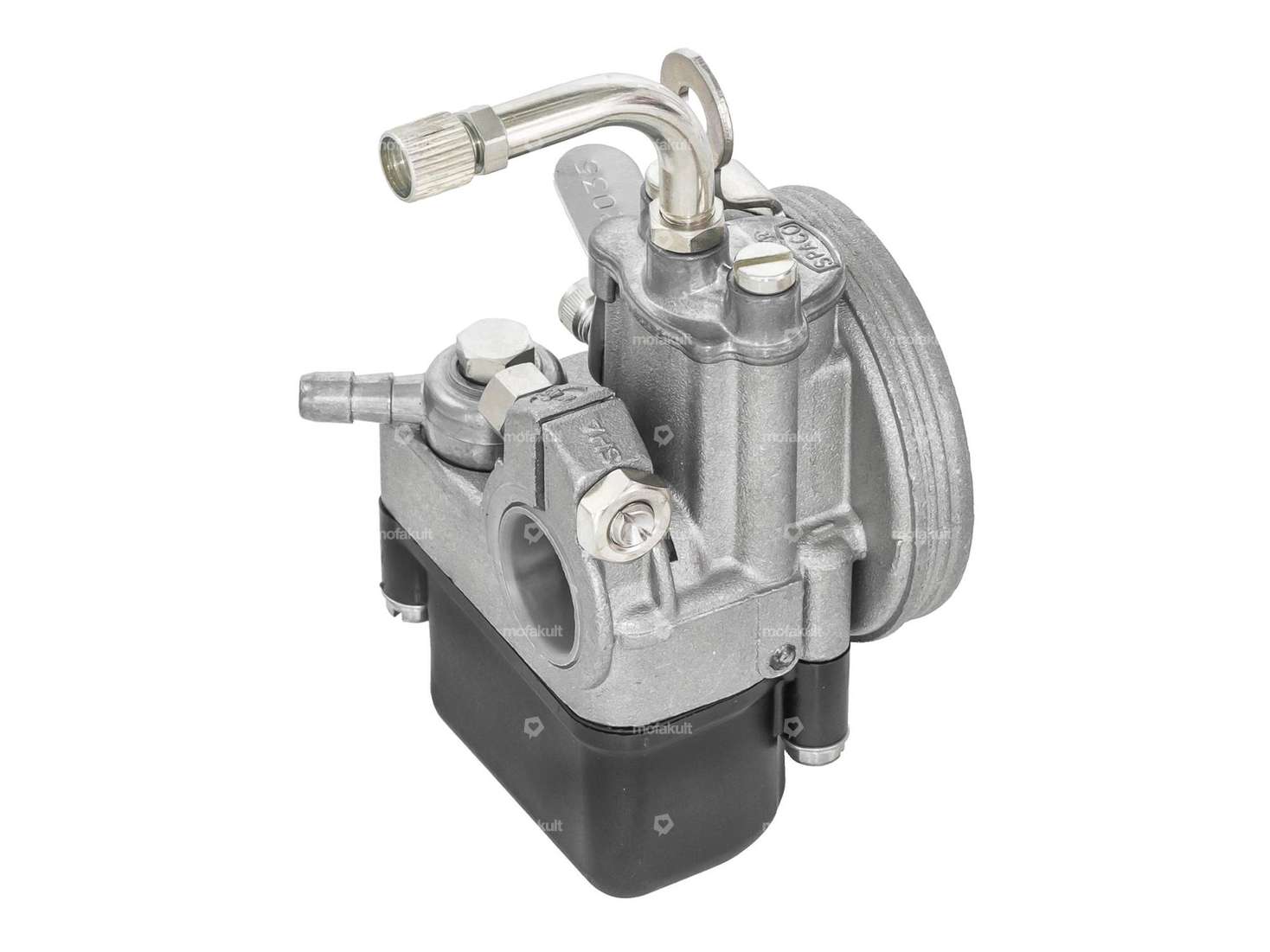

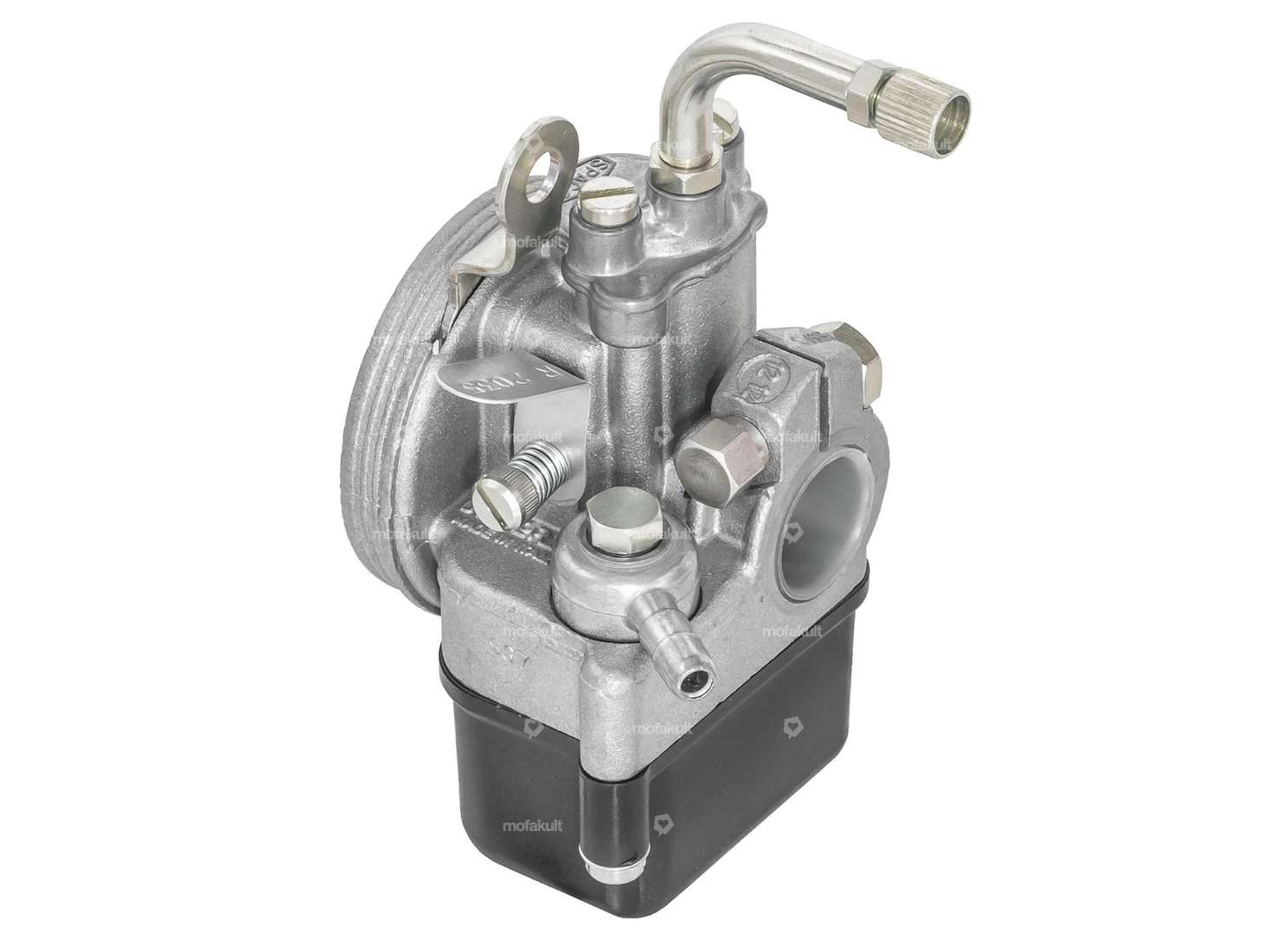

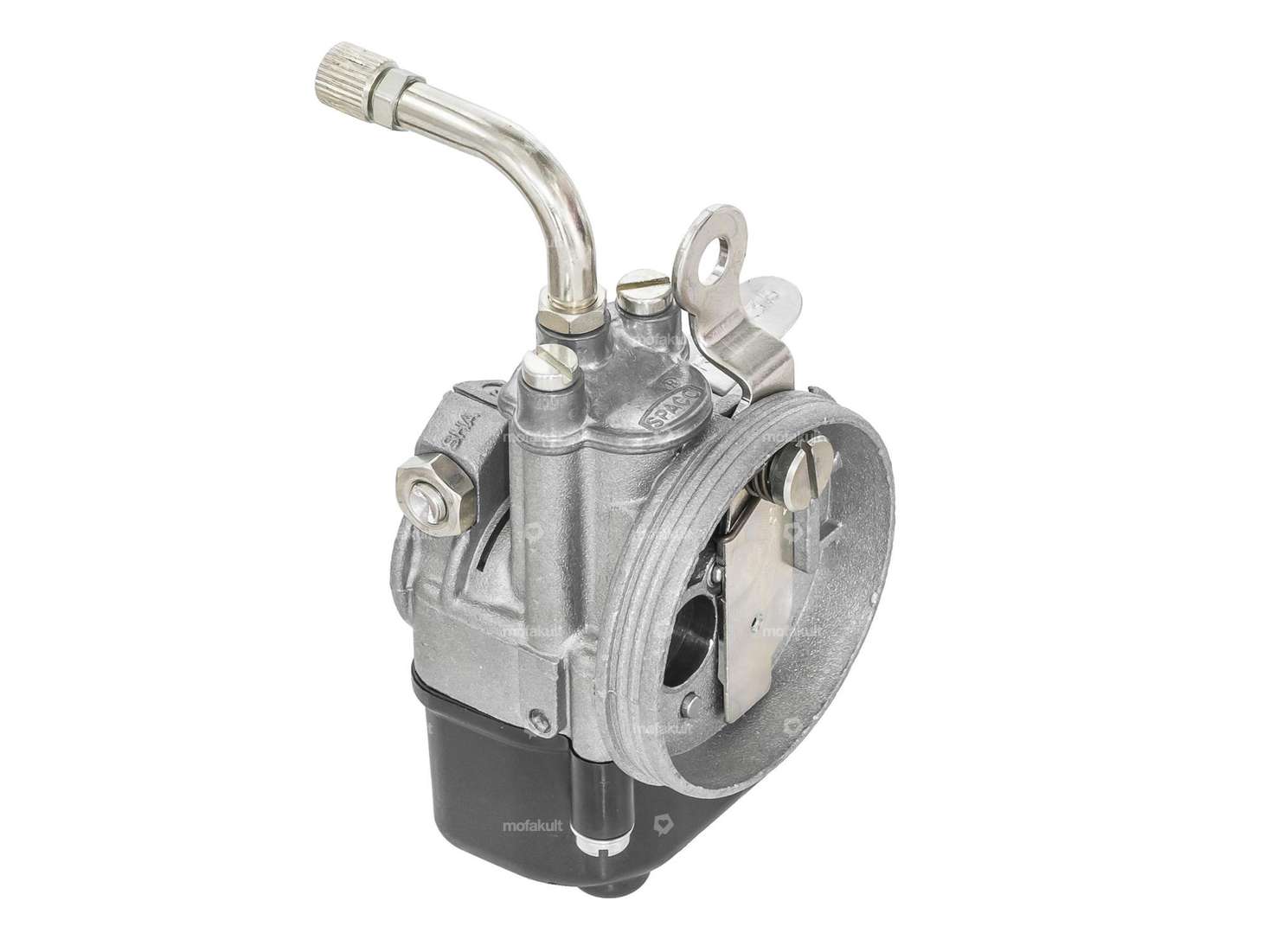

The Dell'Orto 12 / 12 SHA racing carburetor impresses with its compact design and can also be used universally for various mopeds, mopeds and small motorcycles in addition to your Piaggio Ciao.

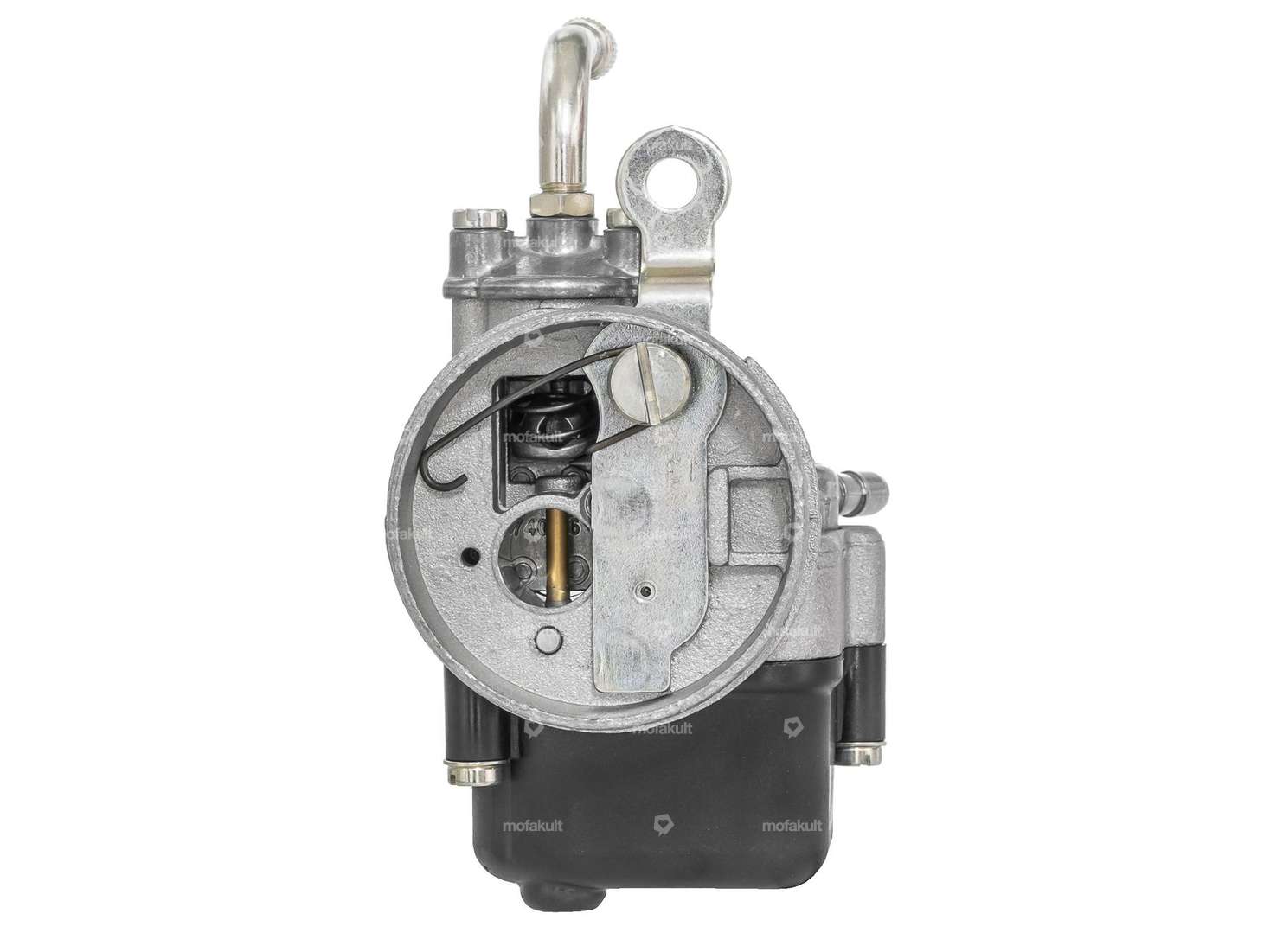

The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburetor type: SHA type 3 (SHA3)
Main thread size (M5): 48
Inlet connection diameter: 16 mm (or 18 mm after removing the reduction sleeve)
Ø external air filter connection: 50.6 mm
Ø passage on air filter side: 12 mm
Ø passage on intake manifold side: 12 mm
Total height: 95 mm (without pipe bend)
Total length: 45 mm
Total width: 60 mm
You can find matching nozzles and air filters in the accessories section.
Quality product from the Italian manufacturer Dell'Orto.
| Nominal diameter | 12 mm |
| Manufacturer | Dell'Orto |
| Camouflaged | No |
| Material | Aluminum |
| Component group Carburetor | Carburetor complete |
| Color | black |
| Carburetor type | SHA (Piaggio) |
| Total length | 55 mm |
| Ø without reducing sleeve | 18 mm |
| Ø Inside entrance | 12 mm |
| Width | 60 mm |
| Ø Output inside | 12 mm |
| Height | 110 mm |
| Ø Air filter connection | 50.6 mm |
| Ø Internal connection | 16 mm |
| Mounting type | Plug connection clamped |
| Ø fuel hose connection | 6 mm, 5.1 mm |
| Mixed oil connection | No |
| Vacuum connection | No |
| Choke control | Hand choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 48 |
| Area of application | Tuning |
| Piaggio | Ciao - PX, C24 |
