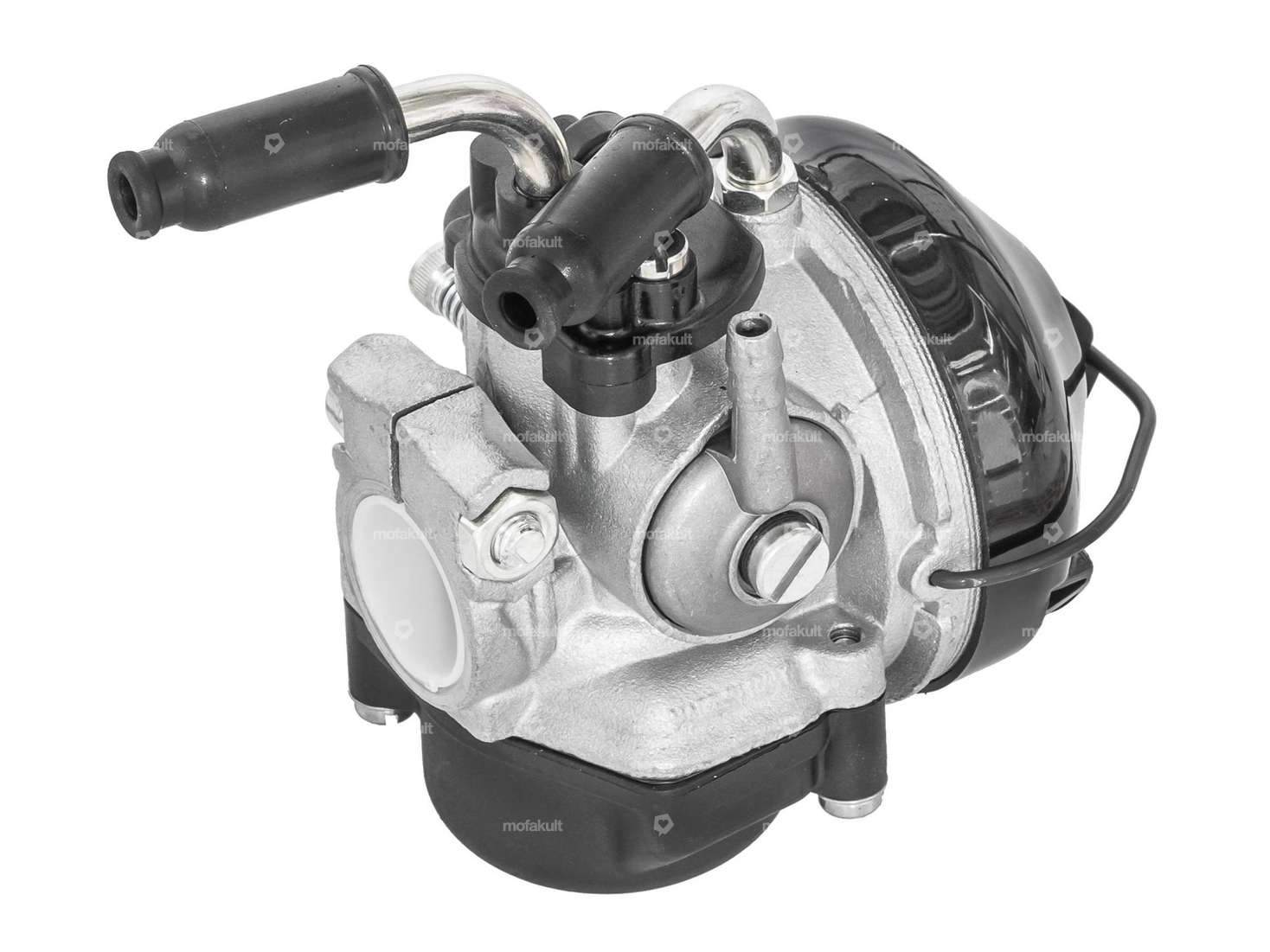

The Dell'Orto 15 / 15 C SHA racing carburetor impresses with its compact design and can be used universally for various mopeds, mopeds and small motorcycles.
The integrated air filter screen can be easily removed for cleaning purposes.
The tuning carburetor has a cable-operated choke / start slide.
Carburetor type: SHA type 4 (SHA4)
Main thread size (M5): 68
Inlet connection diameter: 19 mm (resp. 21 mm after removing the reducing sleeve)
Ø outside air filter connection: 59 mm
Ø passage on air filter side: 15 mm
Ø passage on intake manifold side: 15 mm
Total height: 82 mm (without pipe bend)
Total length: 58 mm
Total width: 69 mm
For matching nozzles and alternative air filters, see accessories.
Quality product from the Italian manufacturer Dell'Orto.
| Nominal diameter | 15 mm |
| Manufacturer | Dell'Orto |
| Area of application | Tuning |
| Component group Carburetor | Carburetor complete |
| Total length | 58 mm |
| Carburetor type | SHA |
| Width | 69 mm |
| Height | 82 mm |
| Ø without reducing sleeve | 21 mm |
| Ø Inside entrance | 15 mm |
| Ø Output inside | 15 mm |
| Ø Air filter connection | 59 mm |
| Ø Internal connection | 19 mm |
| Ø fuel hose connection | 6 mm |
| Choke control | Cable choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 68 |
| Mounting type | Plug connection clamped |
| Universal |
| Tomos |
