Dell'Orto 15 mm PHBG AS carburetor hand choke

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 154.10

Incl. 21% VAT.

Description

15 mm PHBG racing carburetor for universal use for your moped, moped and small motorcycle.
This high-quality racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 70 cc.

The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary lines and the mixture adjustment screw.

The carburetor has an M32x1.25 thread on the air filter side. The air filter can be attached directly to the thread.

Main thread size (M5): 70 (with throttle plate)
Adjacent thread size (idle thread): 50
Choked thread size: 60
Air filter connection diameter: 32 mm (M32 x 1.25)
Inlet connection diameter: 24 mm (or 26 mm after removing the reducer). 26 mm after removing the reducing sleeve)
Total height: 125 mm
Total width: 75 mm

Matching nozzles, air filters and intake manifolds can be found in the accessories section.

Quality product from the Italian manufacturer Dell'Orto.

Nominal diameter15 mm
ManufacturerDell'Orto
Area of applicationTuning
Component group CarburetorCarburetor complete
Carburetor typePHBG AS
Width75 mm
Ø without reducing sleeve26 mm
Height125 mm
Mounting typePlug connection clamped
Ø Air filter connection32 mm
Ø Internal connection24 mm
Air filter connection threadMF32x1.25 (fine pitch thread)
Ø fuel hose connection6 mm
Choke controlHand choke
Choke nozzle size60
Nozzle threadM5x0.8 (standard thread)
Nozzle size70
Size of secondary nozzle50

Accessories & related products

18.5 mm intake manifold Dell'Orto PHBG | Puch E50

For: Puch

10659

18.5 mm intake manifold Dell'Orto PHBG | Puch E50

Material: Aluminum · Surface: polished · Color: Chrome · Ø External connection: 23.9 mm · Ø inside: 18.8 mm · Total length: 40 mm · Hole spacing inlet: 38 mm · Area of application: Tuning · Total height: 57 mm · Height flange center hole: 45 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Camouflaged: No

EUR 21.20

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Tomos · Cilo · Hercules

10703

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø Stranded wire: 1.2 mm · Cable length: 1650 mm · Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Nipple shape: Ball · Area of application: Standard · Number of components: 1 pcs

EUR 2.85

swiing® revival nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG

For: Universal · Pony / Cilo (Beta 521 & 512) · Piaggio

10902

swiing® revival nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG

Drive: Slot · Manufacturer: swiing® revival parts · Quantity: 10 pcs · Component group Carburetor: Spraying · Material: Brass · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Total length: 8 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 75 · Nozzle size: 78 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92

EUR 24.80

swiing® revival nozzle set M5 (92 - 110) Dell'Orto SHA, PHBG

For: Universal · Pony / Cilo (Beta 521 & 512) · Piaggio

10903

swiing® revival nozzle set M5 (92 - 110) Dell'Orto SHA, PHBG

Drive: Slot · Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98 · Nozzle size: 100 · Nozzle size: 102 · Nozzle size: 104 · Nozzle size: 106 · Nozzle size: 108 · Nozzle size: 110 · Total length: 8 mm

EUR 24.80

swiing® revival nozzle set M5 (80 - 100) Dell'Orto SHA, PHBG

For: Universal · Pony / Cilo (Beta 521 & 512) · Piaggio

17985

swiing® revival nozzle set M5 (80 - 100) Dell'Orto SHA, PHBG

Drive: Slot · Total length: 8 mm · Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98 · Nozzle size: 100

EUR 24.80

Not in stock

swiing® revival nozzle M5 (30 - 120 of your choice) Dell'Orto SHA, PHBG
angle-right

For: Universal · Pony / Cilo (Beta 521 & 512) · Piaggio · Tomos

22000

swiing® revival nozzle M5 (30 - 120 of your choice) Dell'Orto SHA, PHBG

Drive: Slot · Manufacturer: swiing® revival parts · Component group Carburetor: Spraying · Material: Brass · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Total length: 8 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 30 · Nozzle size: 31 · Nozzle size: 32 · Nozzle size: 33 · Nozzle size: 34 · Nozzle size: 35 · Nozzle size: 36 · Nozzle size: 37 · Nozzle size: 38 · Nozzle size: 39 · Nozzle size: 40 · Nozzle size: 41 · Nozzle size: 42 · Nozzle size: 43 · Nozzle size: 44 · Nozzle size: 45 · Nozzle size: 46 · Nozzle size: 47 · Nozzle size: 48 · Nozzle size: 49 · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60 · Nozzle size: 61 · Nozzle size: 62 · Nozzle size: 63 · Nozzle size: 64 · Nozzle size: 65 · Nozzle size: 66 · Nozzle size: 67 · Nozzle size: 68 · Nozzle size: 69 · Nozzle size: 70 · Nozzle size: 71 · Nozzle size: 72 · Nozzle size: 73 · Nozzle size: 74 · Nozzle size: 75 · Nozzle size: 76 · Nozzle size: 77 · Nozzle size: 78 · Nozzle size: 79 · Nozzle size: 80 · Nozzle size: 81 · Nozzle size: 82 · Nozzle size: 83 · Nozzle size: 84 · Nozzle size: 85 · Nozzle size: 86 · Nozzle size: 87 · Nozzle size: 88 · Nozzle size: 89 · Nozzle size: 90 · Nozzle size: 91 · Nozzle size: 92 · Nozzle size: 93 · Nozzle size: 94 · Nozzle size: 95 · Nozzle size: 96 · Nozzle size: 97 · Nozzle size: 98 · Nozzle size: 99 · Nozzle size: 100 · Nozzle size: 101 · Nozzle size: 102 · Nozzle size: 103 · Nozzle size: 104 · Nozzle size: 105 · Nozzle size: 106 · Nozzle size: 107 · Nozzle size: 108 · Nozzle size: 109 · Nozzle size: 110 · Nozzle size: 111 · Nozzle size: 112 · Nozzle size: 113 · Nozzle size: 114 · Nozzle size: 115 · Nozzle size: 116 · Nozzle size: 117 · Nozzle size: 118 · Nozzle size: 119 · Nozzle size: 120

EUR 4.15

Dell'Orto choke nozzle 60 PHBG 15 - 21 mm
undefined

Universal

23762

Dell'Orto choke nozzle 60 PHBG 15 - 21 mm

Drive: Slot · Manufacturer: Dell'Orto · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Nozzle type: Choke nozzle · Nozzle size: 60

EUR 12.90

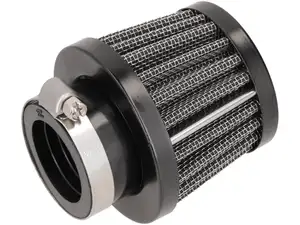

66HEROES Air filter mushroom grille black Dell'Orto PHBG (Ø=28 mm)
