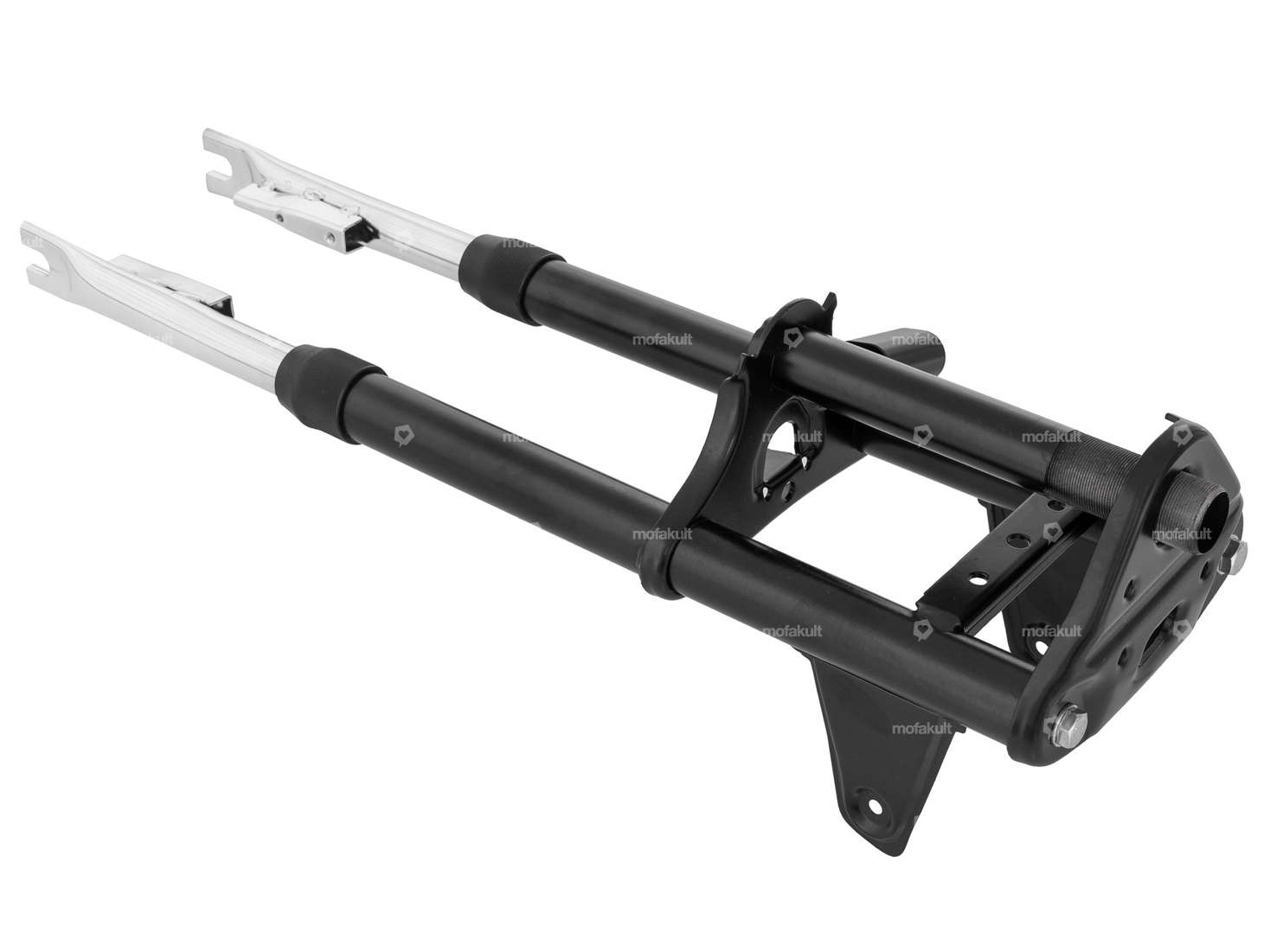

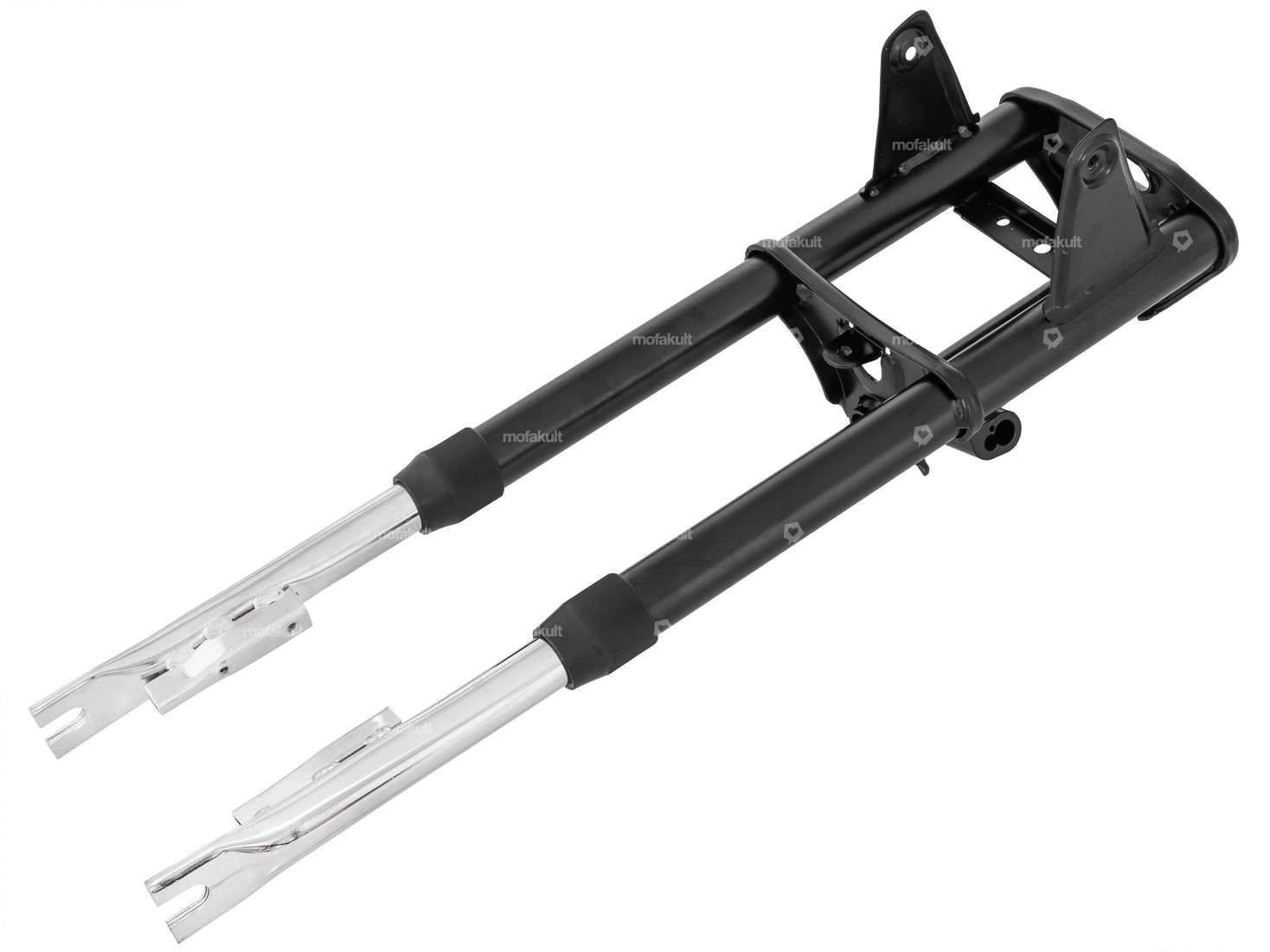

Black-painted EBR fork compatible with Puch Maxi S and Puch Maxi N mopeds.

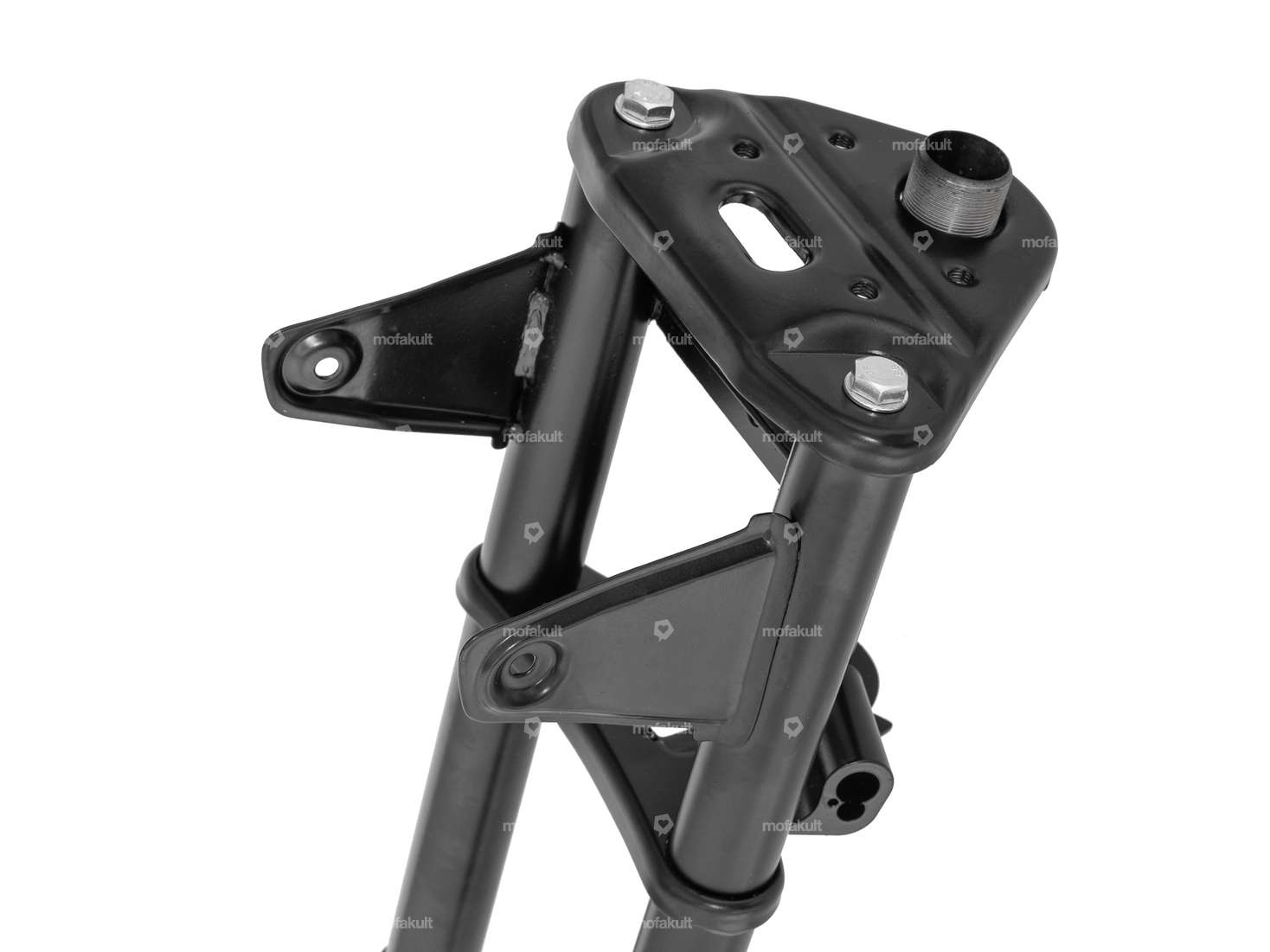

The fork has a welded fork lock mount—just like the original Puch forks from back in the day.
You can find the matching fork lock in the accessories section below.
Designed for handlebar mounting on the fork plate.
Inner Ø of head tube (for stem mounting): 22 mm
; head tube length: 18 cm
; total length: 57 cm
Brand-name product from the Italian manufacturer EBR.
| Manufacturer | EWC |
| Material | Steel |
| Surface | varnished, chrome-plated |
| Color | black, Chrome |
| Spar end distance (center-center) | 120 mm |
| Ø outer head tube | 26.2 mm |
| Ø head tube inside | 22.3 mm |
| Adjustable | No |
| Head tube length | 180 mm |
| Total length | 580 mm |
| Thread length | 57 mm |
| Thread type | MF26x1 (fine pitch thread) |
| Fork bridge - center wheel axle | 385 mm |
| Distance brake cam to wheel axle center-center | 40 mm |
| Ø spars | 23 mm |
| Puch |
