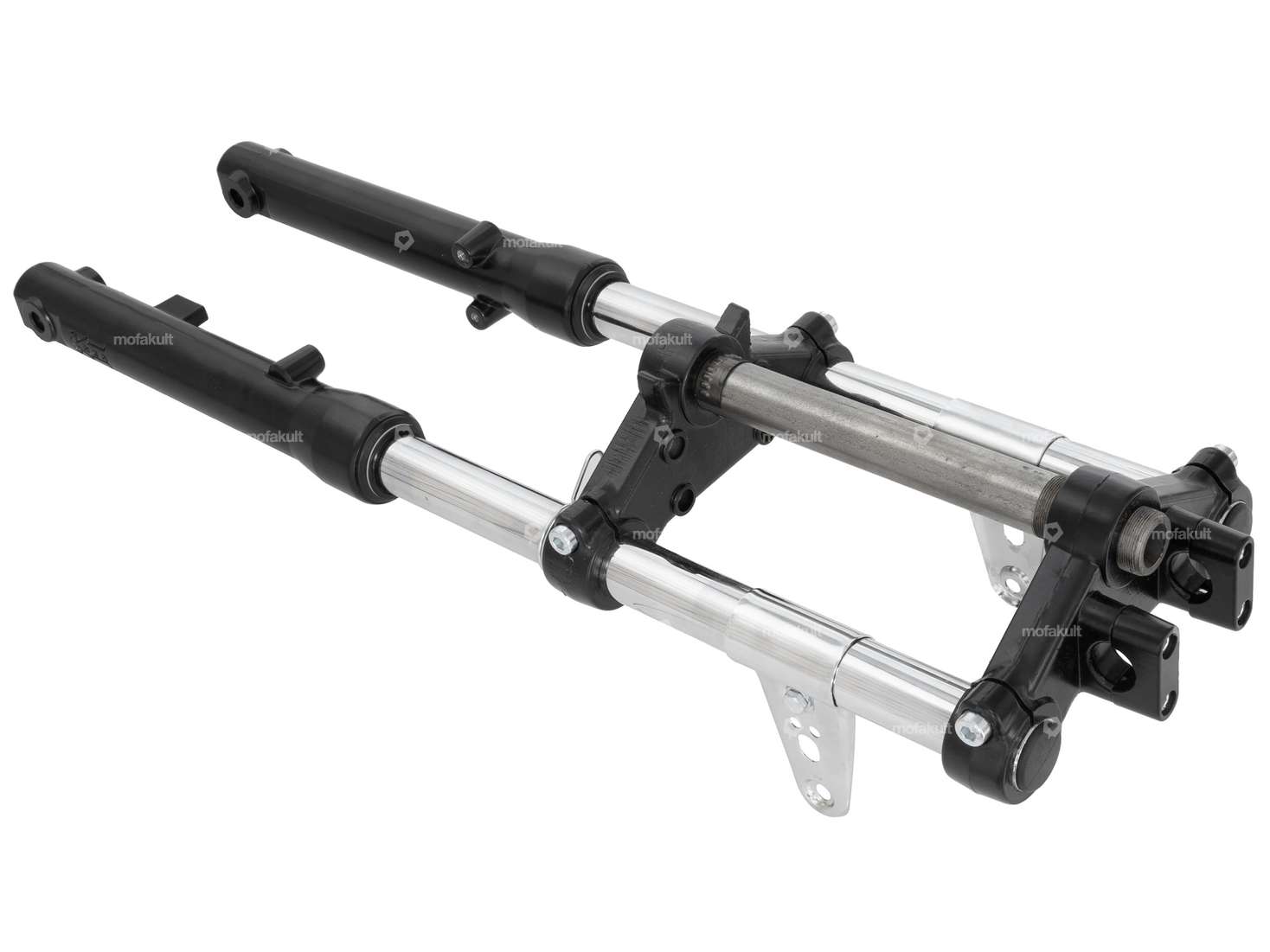

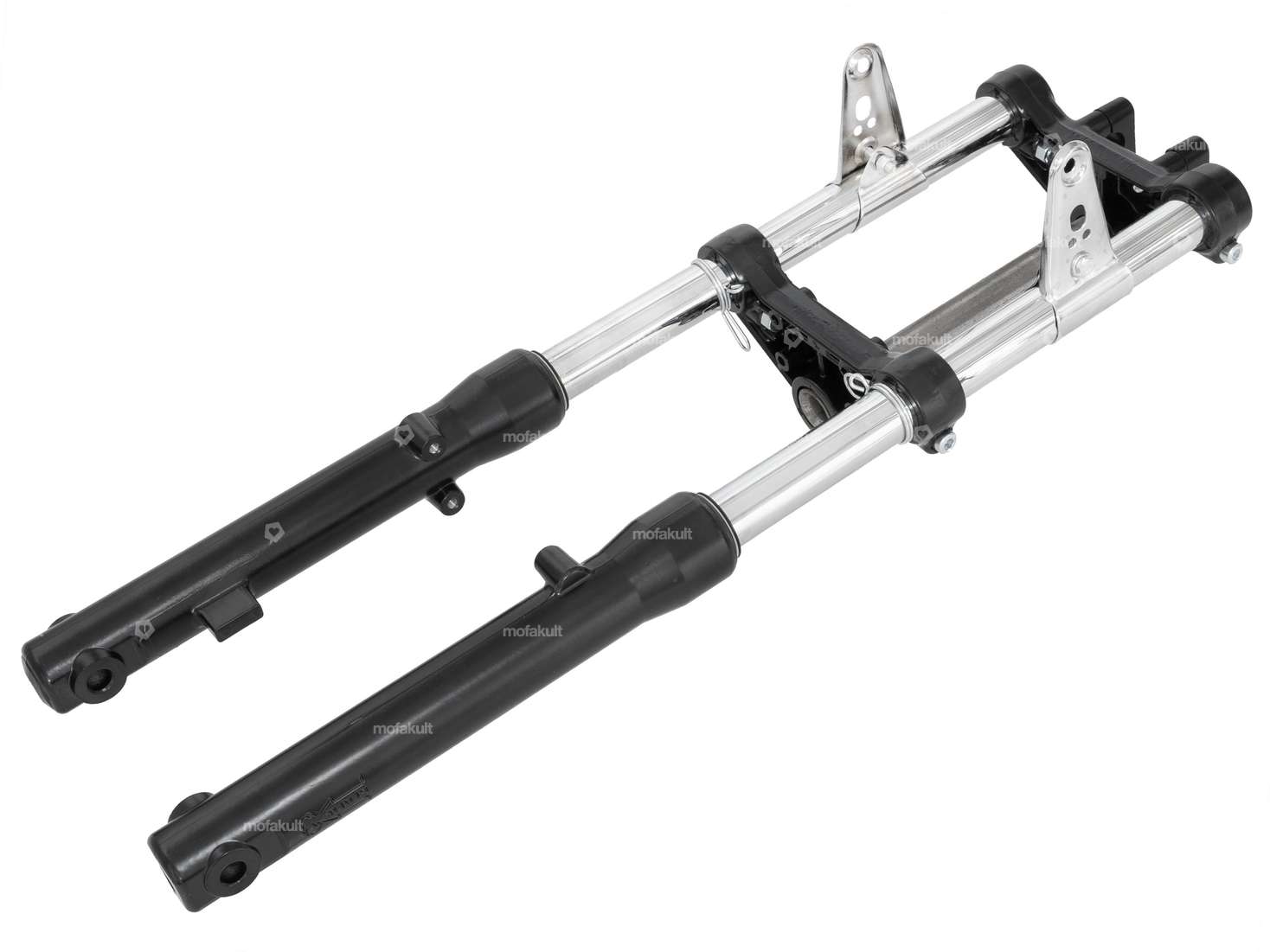

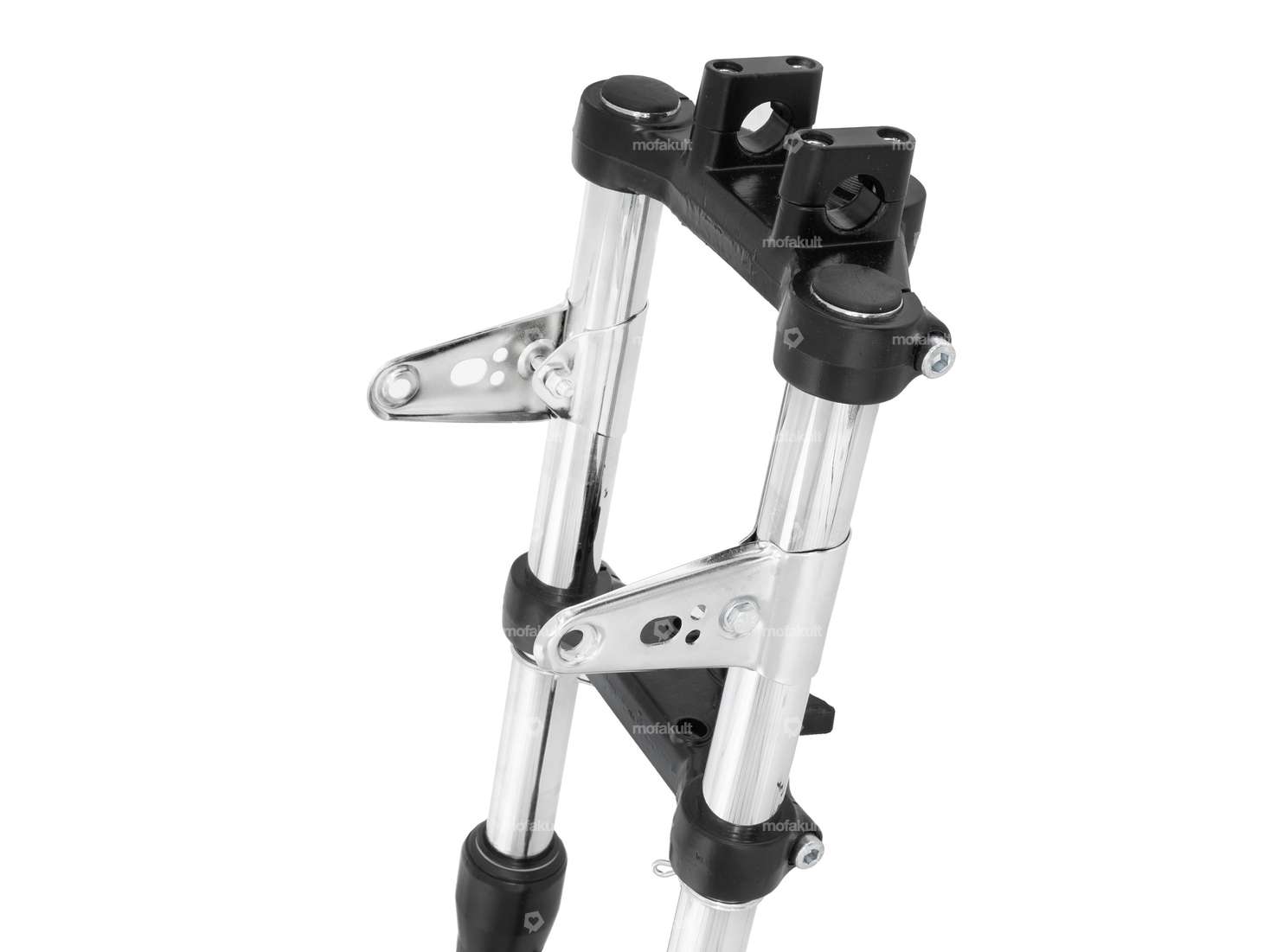

Black painted, reinforced telescopic fork suitable for Tomos Sprint, Quadro and FunSport mopeds.

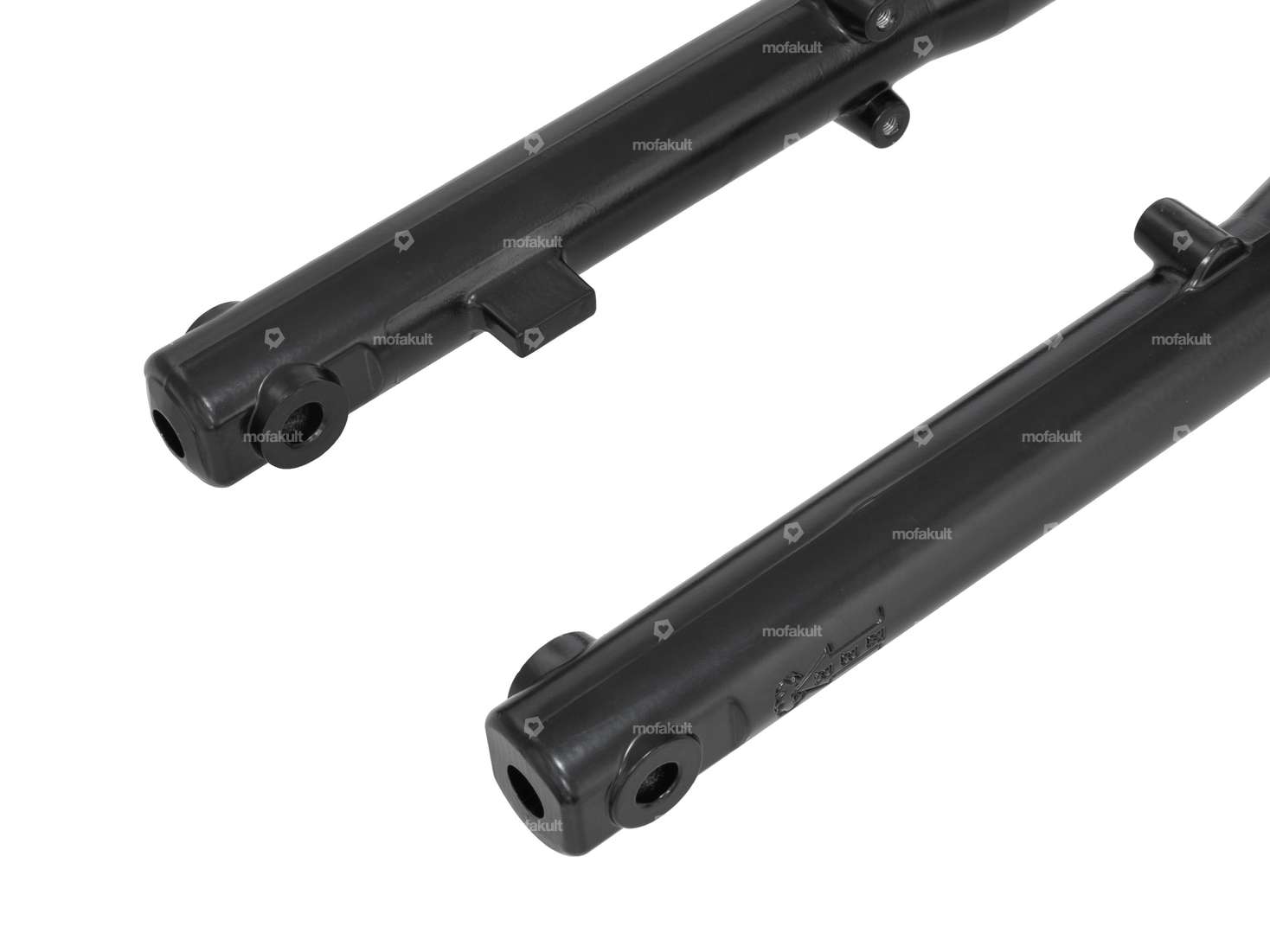

The dip tubes are made of aluminum, painted black, the stanchions are chrome-plated.
Stanchion tube diameter: 30 mm
Total length: 660 mm
Head tube length: 220 mm
Fork bridge - center wheel axle: 428 mm
Head tube thread: M26
Matching add-on parts and additional options for scaffolding can be found in the accessories section.
Branded product from the Italian manufacturer EBR.
| Manufacturer | EWC |
| Thread length | 50 mm |
| Material | Aluminum, Steel |
| Surface | varnished, chrome-plated |
| Color | black, Chrome |
| Spar end distance (center-center) | 150 mm |
| Thread type | MF26x1 (fine pitch thread) |
| Ø head tube inside | 20 mm |
| Ø outer head tube | 25.8 mm |
| Total length | 660 mm |
| Ø spars | 30 mm |
| Head tube length | 220 mm |
| Fork bridge - center wheel axle | 428 mm |
| Distance brake cam to wheel axle center-center | 70 mm |
| Tomos OEM number | 236839 |
| Tomos |
