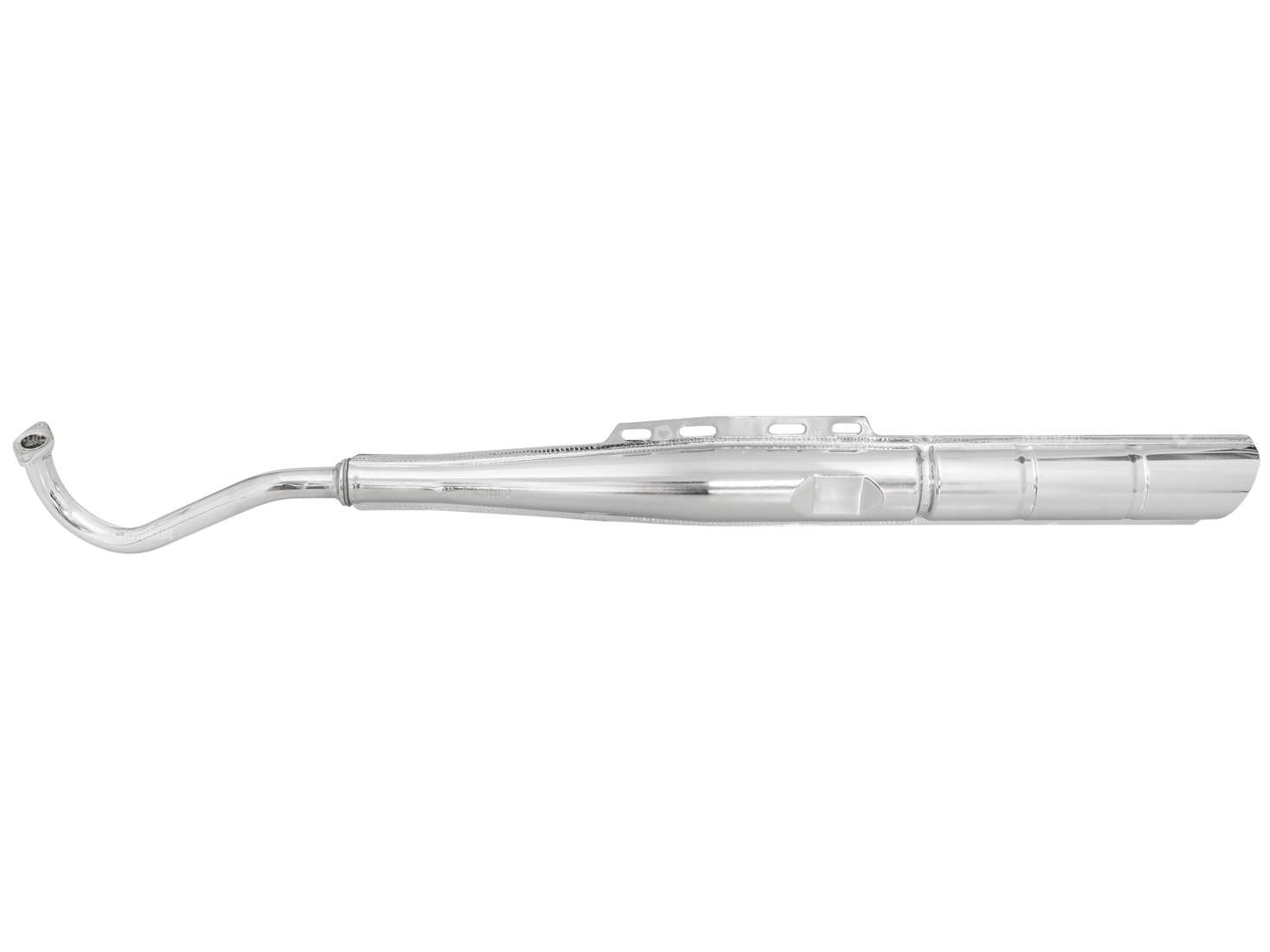

22 mm replica exhaust suitable for Puch Maxi S & N, Puch X30 Sport NS / NL, as well as Supermaxi LG1 / LG2 (if Puch Maxi cylinder is mounted) moped / moped.
The exhaust is a 2-piece, bolted, with corresponding Puch number.

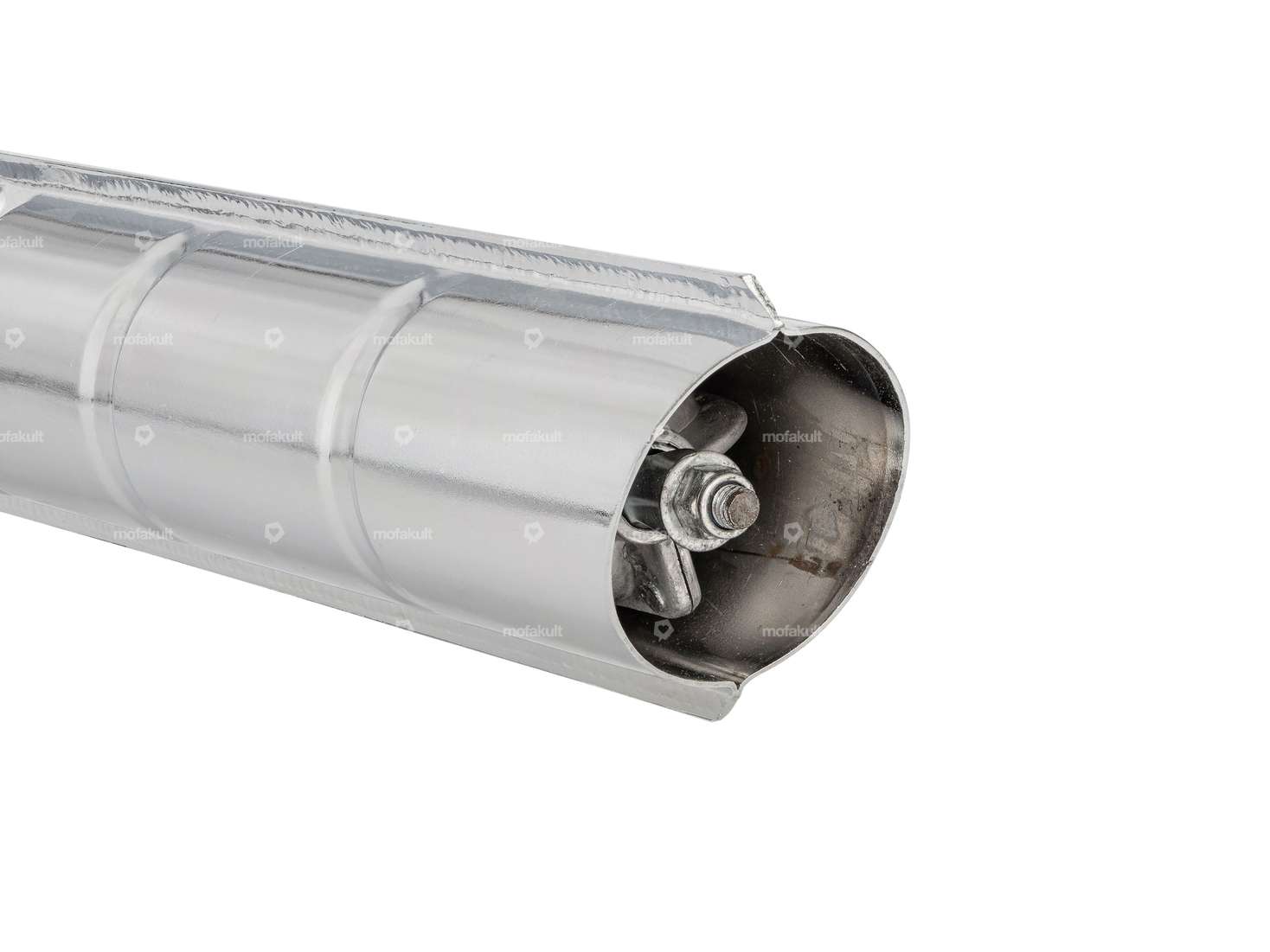

The M7 bolt at the end of the flame tube must be locked with an additional nut, otherwise the nut may loosen and the muffler insert may fall out.
We also recommend replacing the mounted gasket between the flame tube and the muffler. You can find a high-quality replacement product in the accessories section.
Attention: The sound of the replica exhausts can be slightly louder than the originals, which can be remedied by wrapping wool around the muffler. You will find this in the accessories section below.

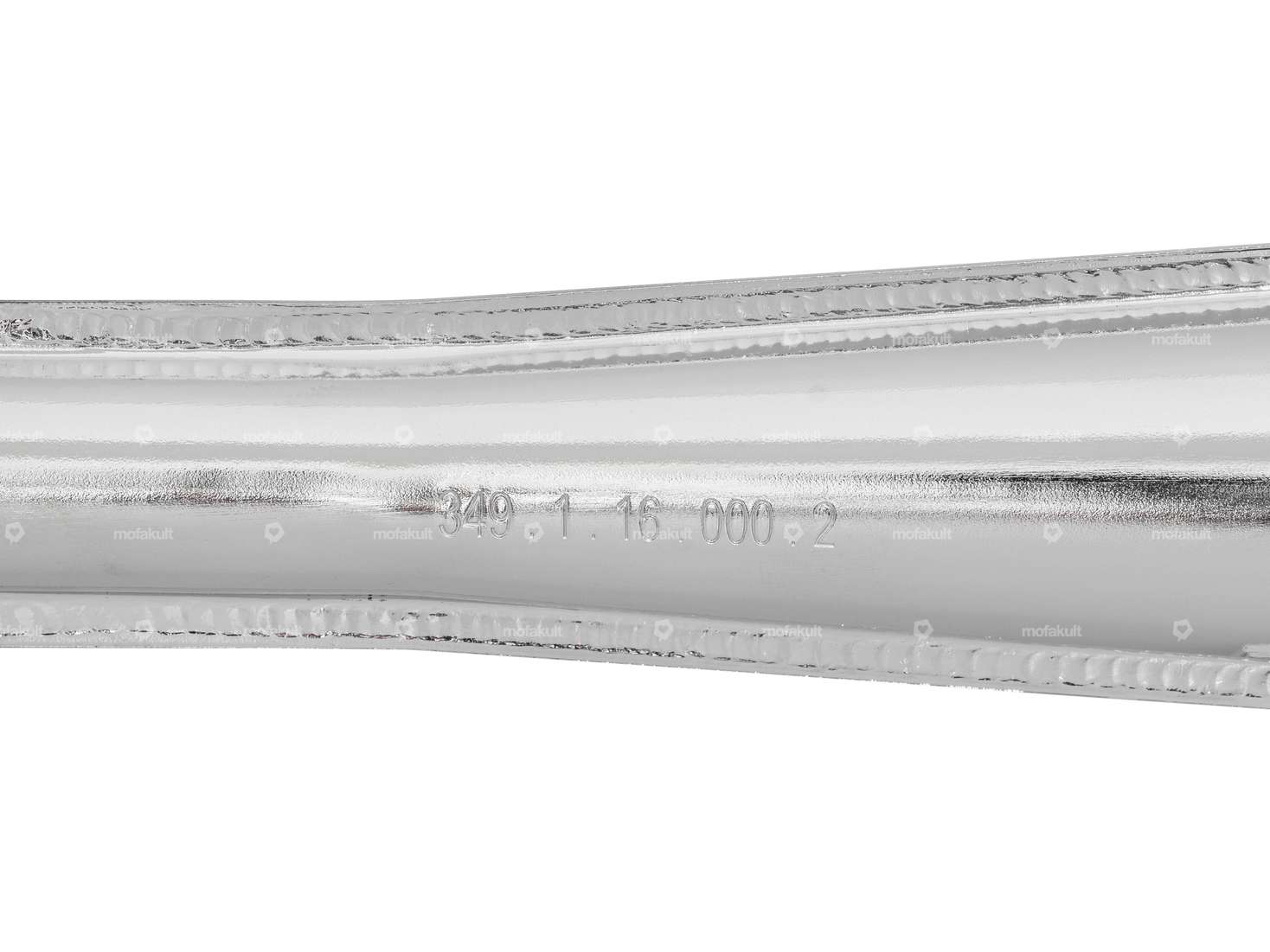

Original Puch spare part number: 349.1.16.000.2
A quality product made in Portugal.
| Manufacturer | Made in Portugal |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Total length | 920 mm |
| Ø outside | 58 mm |

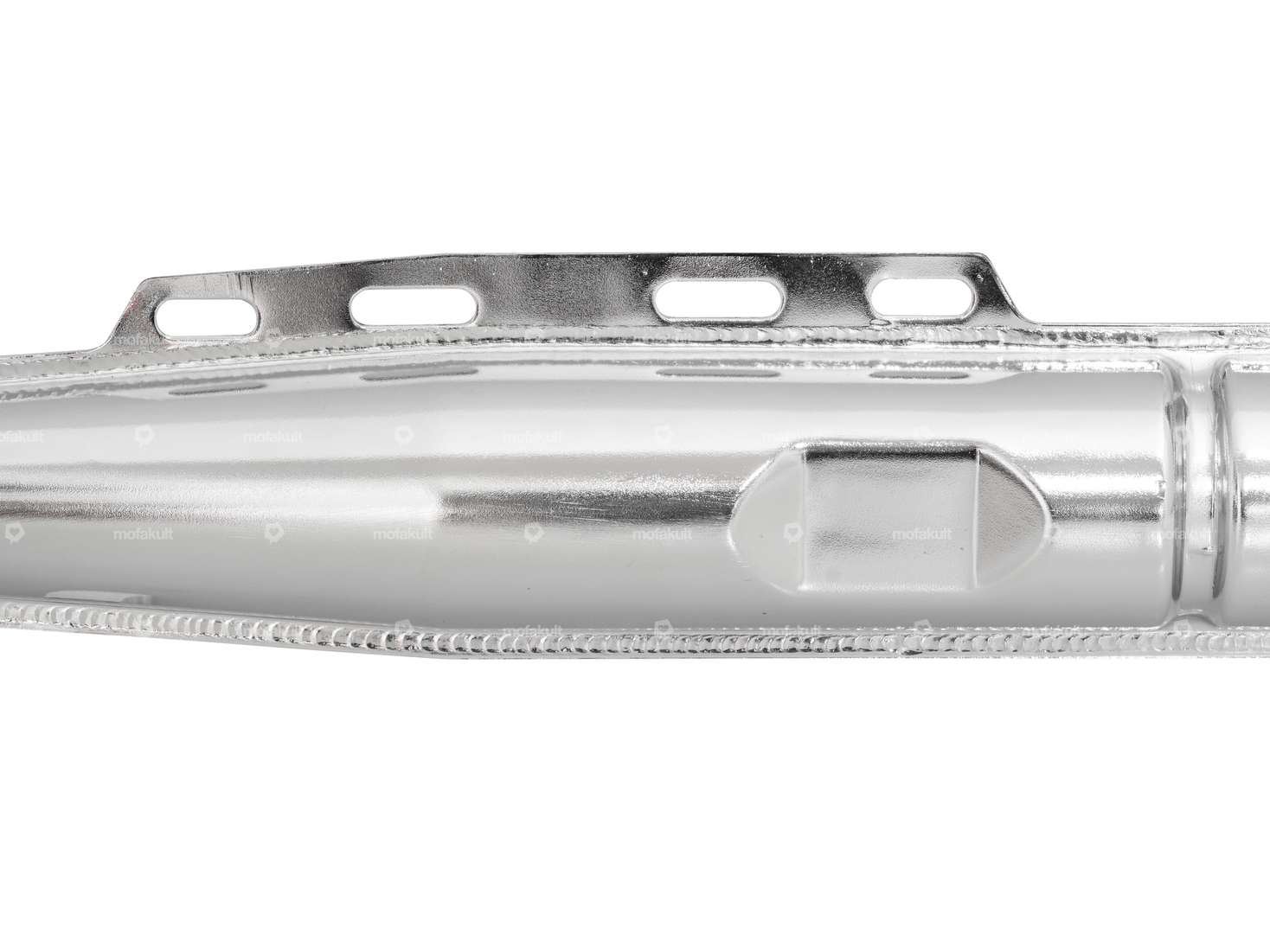

| Mounting type | Welded lug, Stud bolts & nuts |
| Ø Flame tube outside | 22 mm |
| Exhaust type | Flute |
| Number of fixing points | 4 pcs |

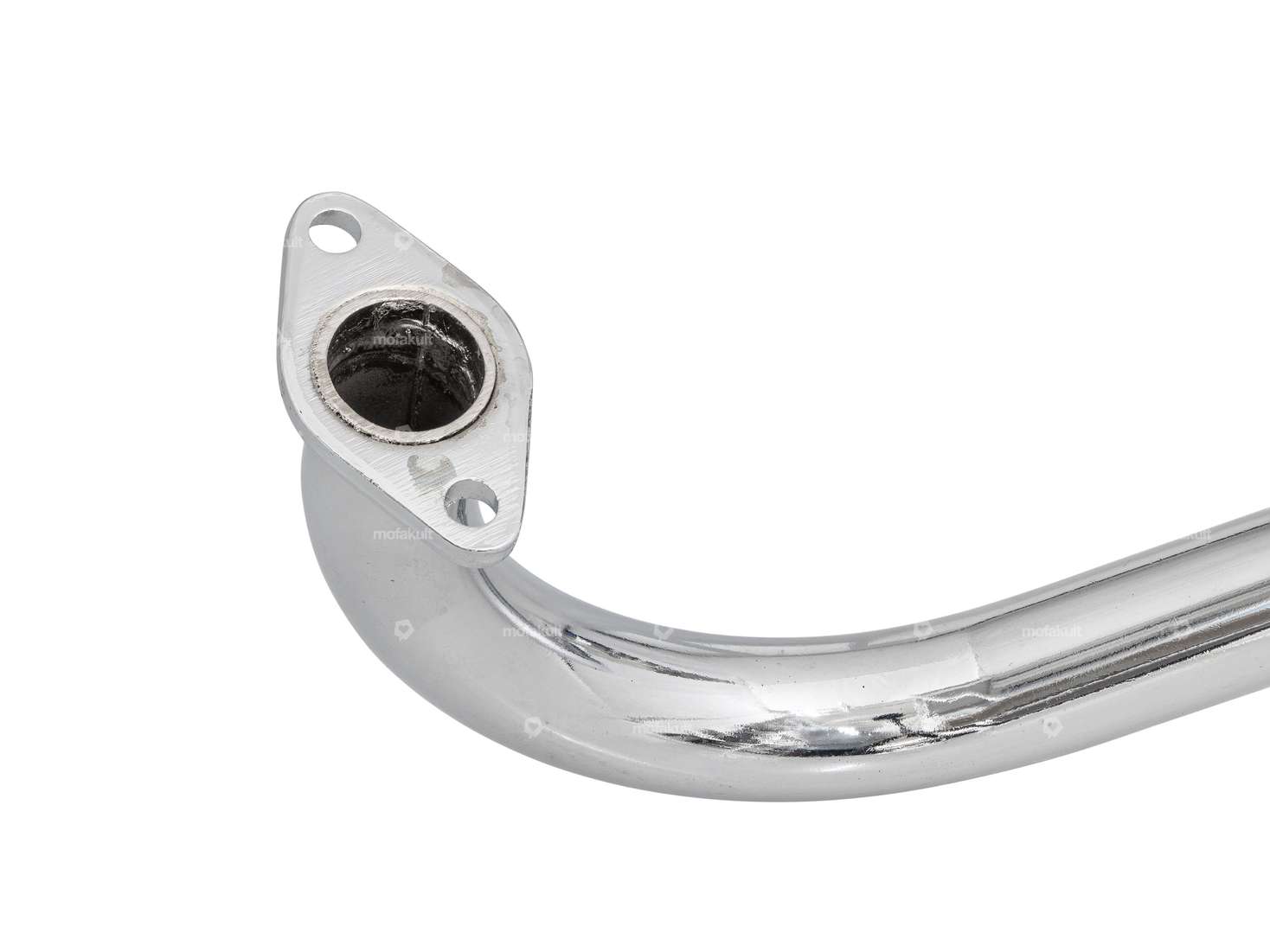

| Flame tube attachment | Flange |
| Puch | E50 |
