For: Puch

15026

Exhaust 22 mm | Puch Supermaxi LG1/LG2

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 86.40

Incl. 21% VAT.

Description

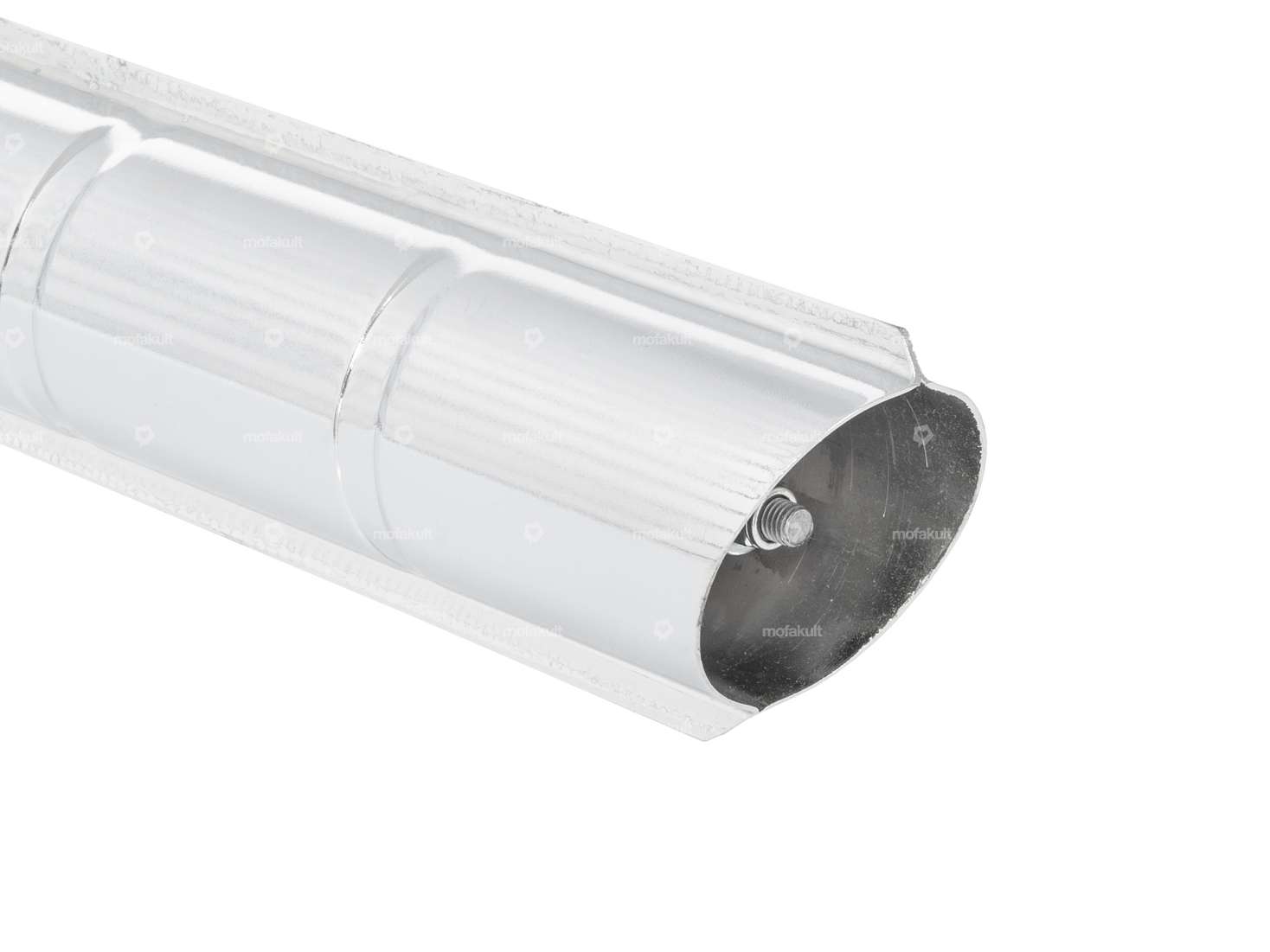

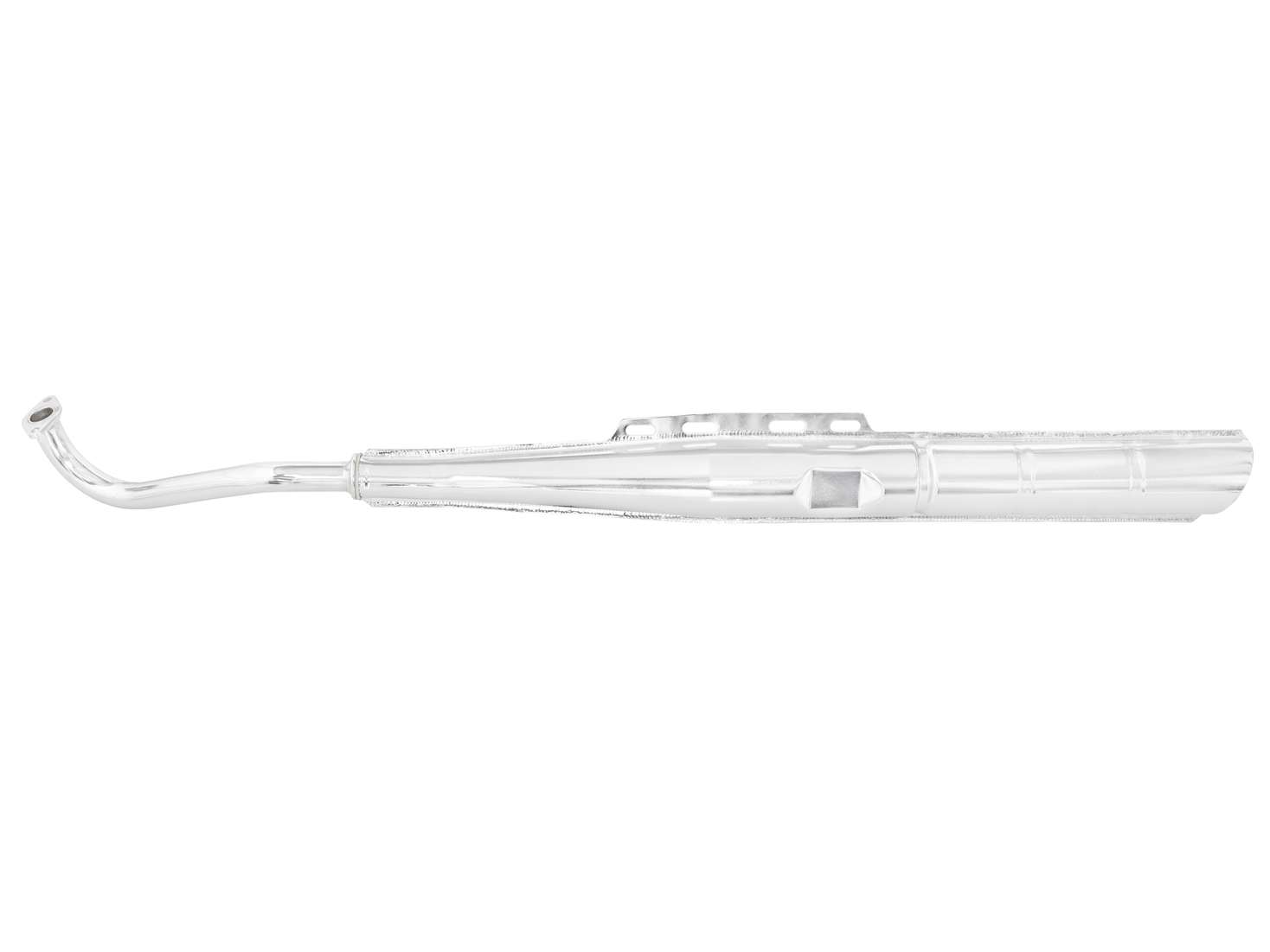

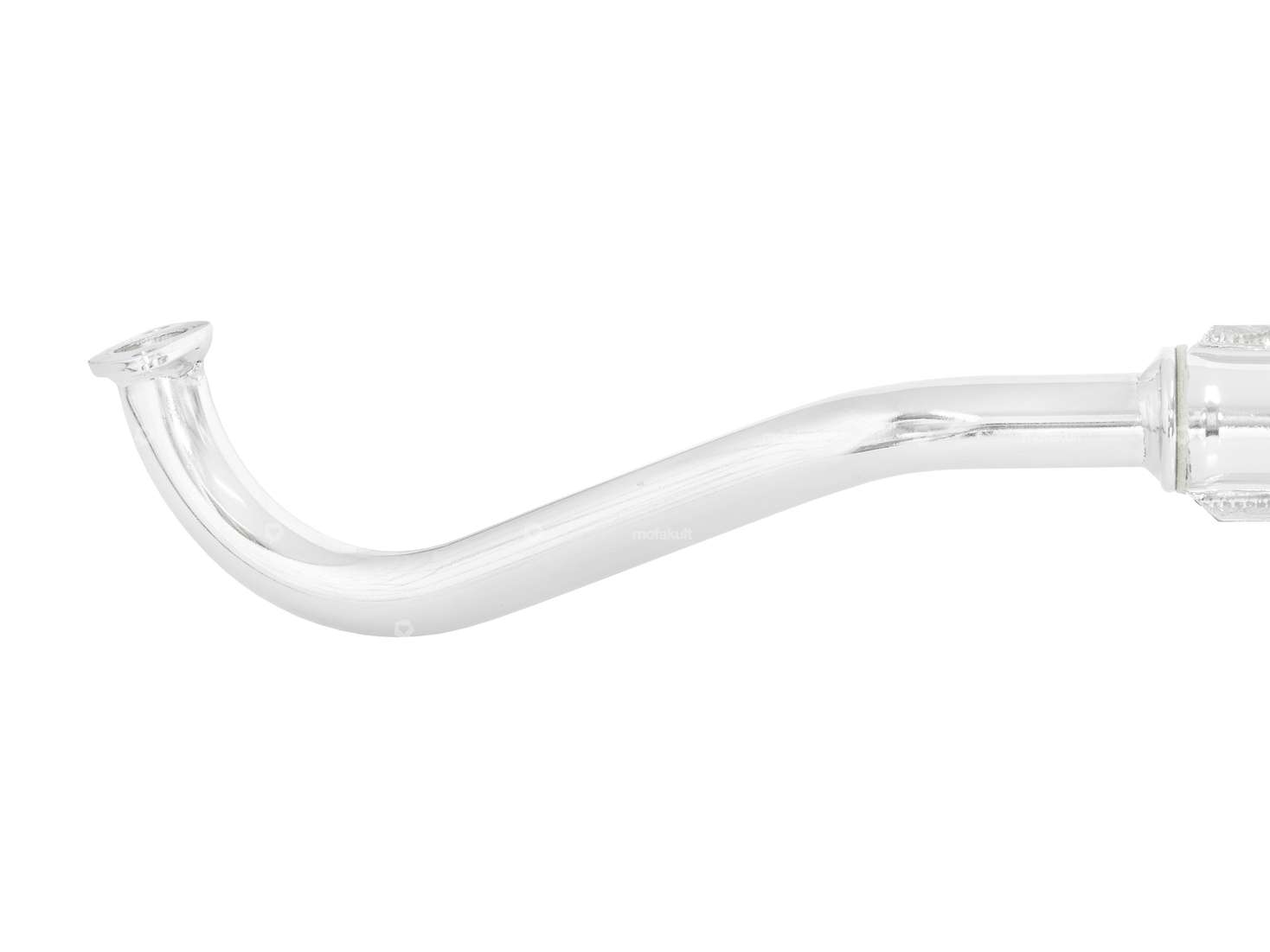

Special 22 mm exhaust suitable for Puch Supermaxi LG1 / LG2 mopeds.

With a slanted mounting flange so that it can be fitted to the Puch Supermaxi cylinders mentioned.
Not suitable for conventional Puch Maxi cylinders.

The M7 bolt at the end of the flame tube must be locked with an additional nut, otherwise the nut may loosen and the muffler insert may fall out.

Attention: The sound of the replica exhausts can be slightly louder than the original, so you can wrap wool around the muffler to help. You can find this in the accessories below.

A quality product made in Portugal.

ManufacturerMade in Portugal
MaterialSteel
Surfacechrome-plated
ColorChrome
Ø Silencer58 mm
Ø outside56.5 mm
Ø Internal connection19 mm
Ø Flame tube outside22 mm
Mounting typeWelded lug
Total length915 mm
Flame tube attachmentFlange
Number of fixing points4 pcs
Puch

E50

ZA50 (air-cooled)
