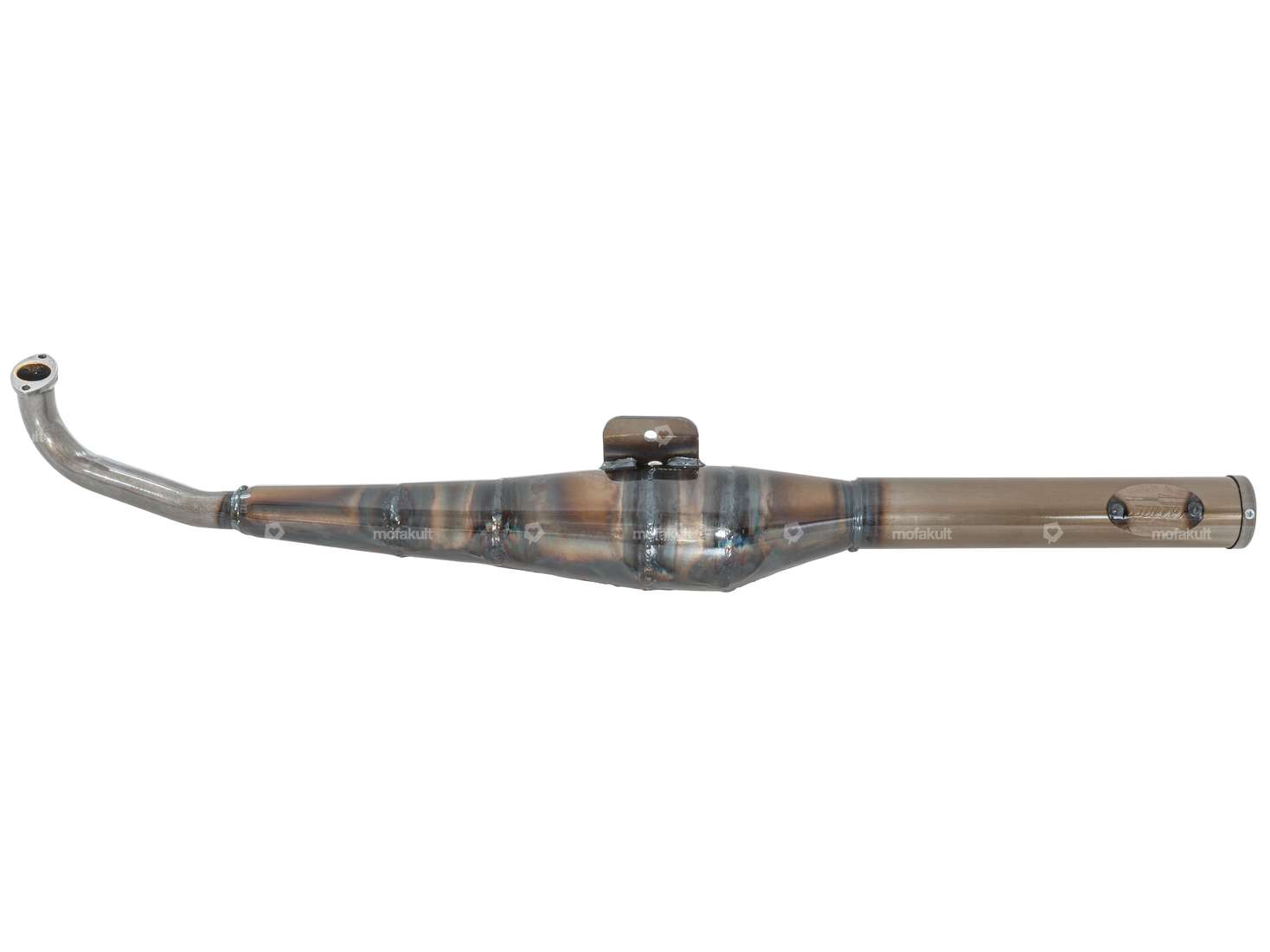

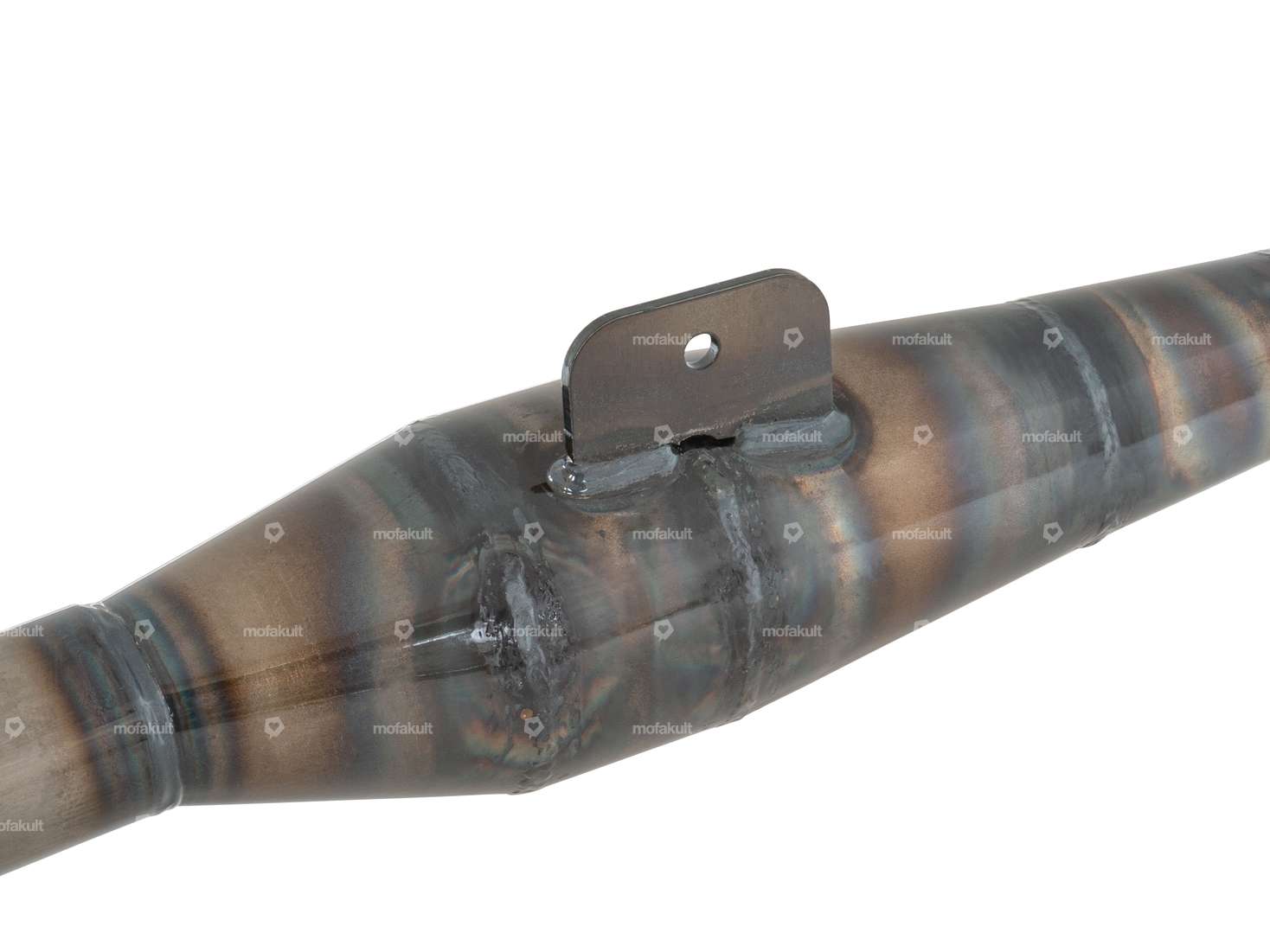

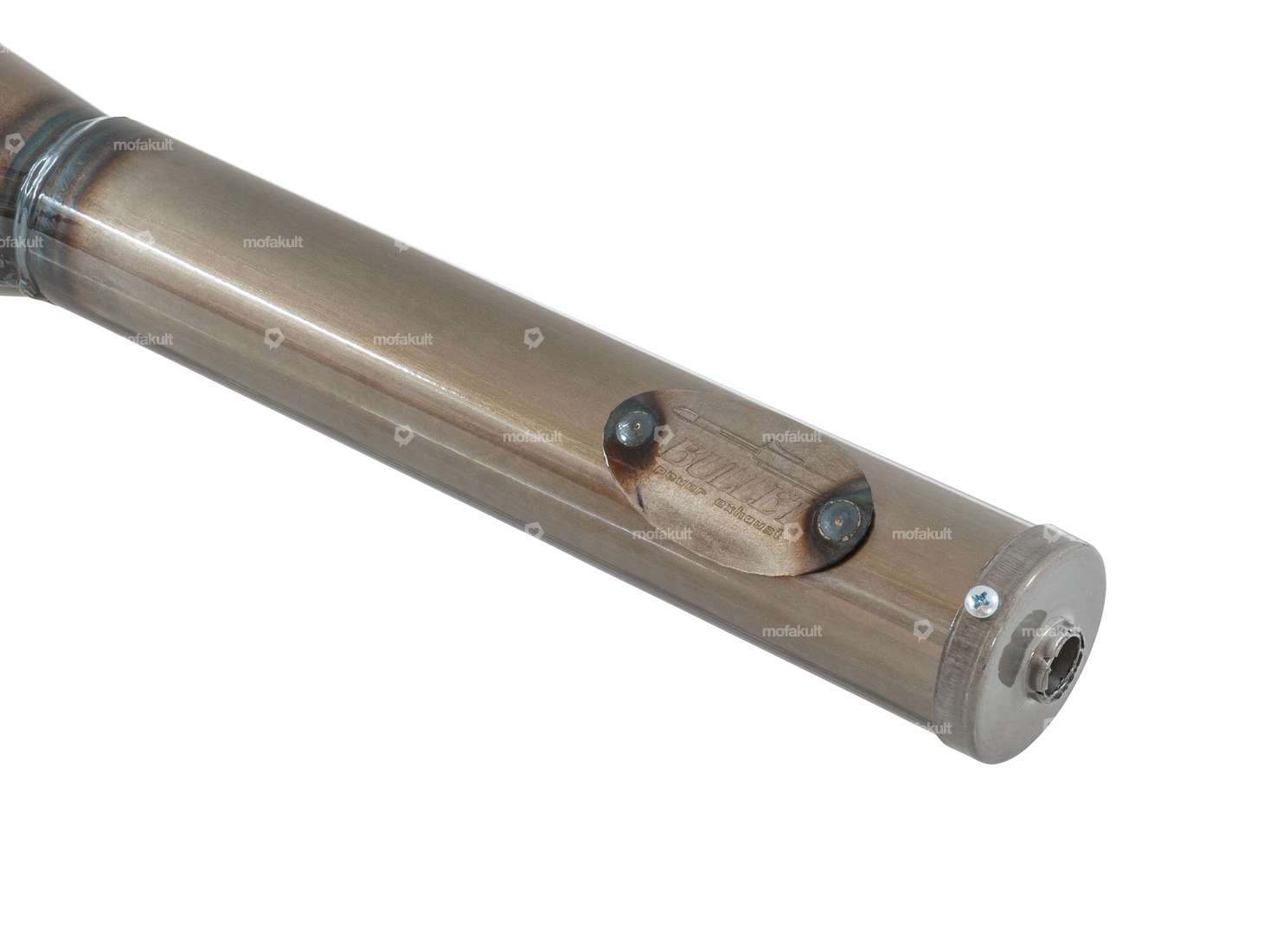

Exhaust "Bullet EVO-1" blanco | Puch Maxi E50

swiing® ingenious crankshaft "High End" | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Number of gears: 1 pcs · Thread length: 11 mm · Thread length: 15 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Ø Connecting rod eye: 15 mm · Weight: 968 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm

swiing 50 ccm 1.6 hp cylinder set original look | Puch E50

Nominal diameter: 38 mm · Manufacturer: GPO · Manufacturer: swiing · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Outlet type: straight · Number of fixing points: 4 pcs · Decompressor: No

Centrifugal multi-plate clutch "Triple-Clutch" High End | Puch E50

Manufacturer: Made in Switzerland · Area of application: Cross · Area of application: High End · Area of application: Racing · Area of application: Tuning

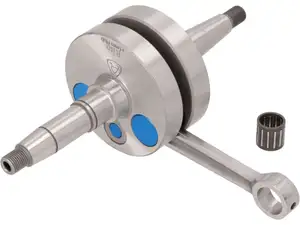

Rito crankshaft Racing (+1mm stroke) (old model) | Puch E50

Manufacturer: Rito · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 44 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Weight: 939 g · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 16 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Thread length: 10.5 mm · Thread length: 12.5 mm · Area of application: High End · Dimension needle bearing: 12 / 15 x 15 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs · Puch OEM number: 349.1.10.015.0 · Alternative version of the Puch OEM number: 349.1.10.015.0

swiing® ingenious 17 mm carburetor set camouflaged | Puch E50

Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Carburetor type: SRF · Nominal diameter: 17 mm

swiing® ingenious EVO ignition | Puch E50, Z50

Manufacturer: swiing® ingenious parts · Tension: 12 V · Light coil voltage: 12 V · Performance: 60 W · Direction of rotation: any · Number of fixing points: 3 pcs · Ø mounting plate: 90 mm · Mounting type: Screws · Ø Internal flywheel: 63.5 mm · Ø Flywheel outside: 75 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning

GPO flywheel trigger M26x1.5 / M22x1.5 | Puch, Sachs, Beta 521

Width across flats (trigger): 27 mm · Width across flats Screw: 19 mm · Manufacturer: GPO · Clamping depth: 10 mm · Material: Steel · Surface: blackened · Number of components: 1 pcs · Total length: 55 mm · Total length: 75 mm · Strength class: 8.8 · Thread type: MF22x1.5 (fine pitch thread) · Thread type: MF26x1.5 (fine pitch thread) · Area of application: (Dis)assembly tool

GPO clutch trigger | Puch E50

Manufacturer: GPO · Material: Steel · Surface: blackened · Area of application: (Dis)assembly tool

GPO chain tensioner | Puch Maxi S

Manufacturer: GPO · Material: Plastic · Material: Steel · Surface: galvanized (blue) · Color: black · Color: silver · Number of teeth: 10 pcs · Number of fixing points: 1 pcs · Total length: 175 mm · Ø outside sprocket: 36 mm · Thread type: M6x1 (standard thread)

Ignition cover Standard | Puch

Material: Steel · Surface: chrome-plated · Color: Chrome · Number of fixing points: 2 pcs · Ø inside: 125 mm · Ø outside: 130 mm · Height: 48 mm

Side panels black matt | Puch Maxi S

Manufacturer: Made in Italy · Material: Plastic · Color: black · Puch OEM number: 349.4.28.502.2 · Alternative version of the Puch OEM number: 349.4.28.603.2 · Puch OEM number: 349.7.28.503.2

Large outlet seal with metal ring

Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Reinforced: Yes · Thickness: 2.1 mm · Ø outlet inside: 27 mm · Ø screw holder: 6.3 mm · Hole spacing outlet: 42.5 mm · Area of application: Tuning

GPO sprocket 15 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: Hardened · Number of teeth: 15 pcs · Recording type: Interlocking · Ø inside: 13.7 mm · Ø inside: 16.9 mm · Total thickness: 4.6 mm

Starter cable Ø 1.5 mm x 160 cm | Puch Maxi

Ø Stranded wire: 1.5 mm · Nipple shape: Barrel (transverse) · Ø nipple: 8 mm · Nipple length: 12 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Cable length: 1600 mm · Area of application: Standard

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

16 mm circlip

Place of use: Universal · Fuse type: Outside · Material: Spring steel · Nominal diameter: 16 mm
