Racing kit with 44 mm diameter for your Tomos moped / moped with A35 engine.
This 65 cc racing cylinder made of aluminum with nickel-silicon carbide coating (colloquially known as Nikasil) impresses with its good workmanship and long service life.
In order to get the full power out of the tuning cylinder, a racing exhaust and a carburetor with plenty of oomph should be fitted.

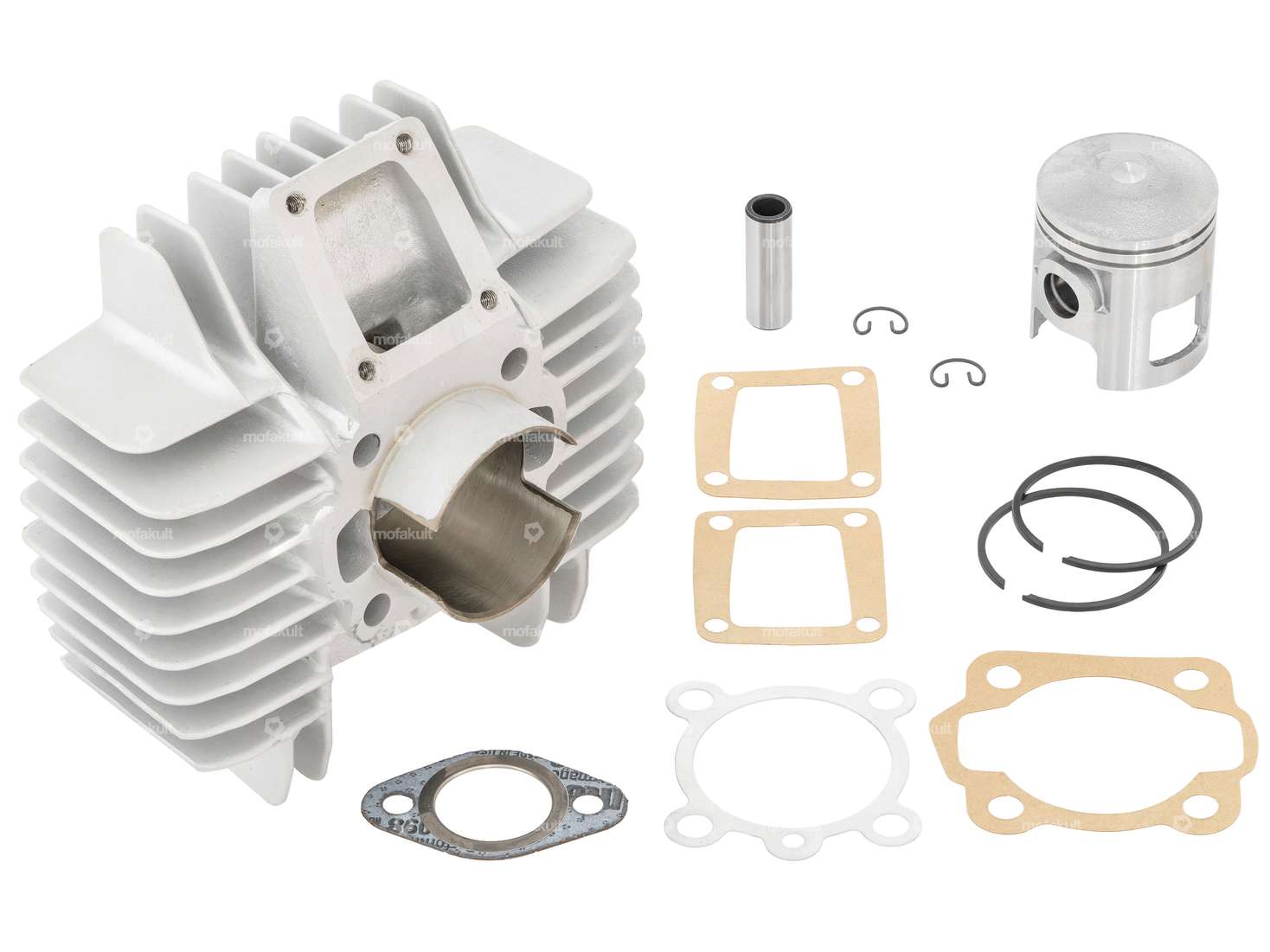

All necessary gaskets, piston pins, piston rings and circlips are included in the scope of delivery.
Note: Please observe the installation direction when assembling. The piston is inserted with the arrow pointing towards the outlet on the exhaust side.
You can find the necessary racing equipment and other engine kits in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
| Nominal diameter | 44 mm |
| Manufacturer | GPO |
| Material | Aluminum |
| Displacement | 65 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 47.8 mm |
| Hole spacing inlet | 36 mm, 39 mm |
| Surface | sandblasted |
| Ø outlet inside | 22.8 mm |
| Inlet window | 35.5 x 29.5 mm |
| Thread inlet | M5x0.8 (standard thread) |
| Area of application | Tuning |
| Hole pattern [mm] | 44 x 44 |
| Ø piston pin (B) | 12 mm |
| Number of fixing points | 4 pcs |
| Outlet type | slanted |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Decompressor | No |
| Camouflaged | No |
| Tomos |
