The legend is back! The legendary 43.5 mm Metrakit racing cylinder from days gone by has risen from the ashes like a phoenix and ignites new fire in your Puch Maxi S, N, X30 Sport NS, NL, X30 Sport NG-2A and Supermaxi moped / moped.

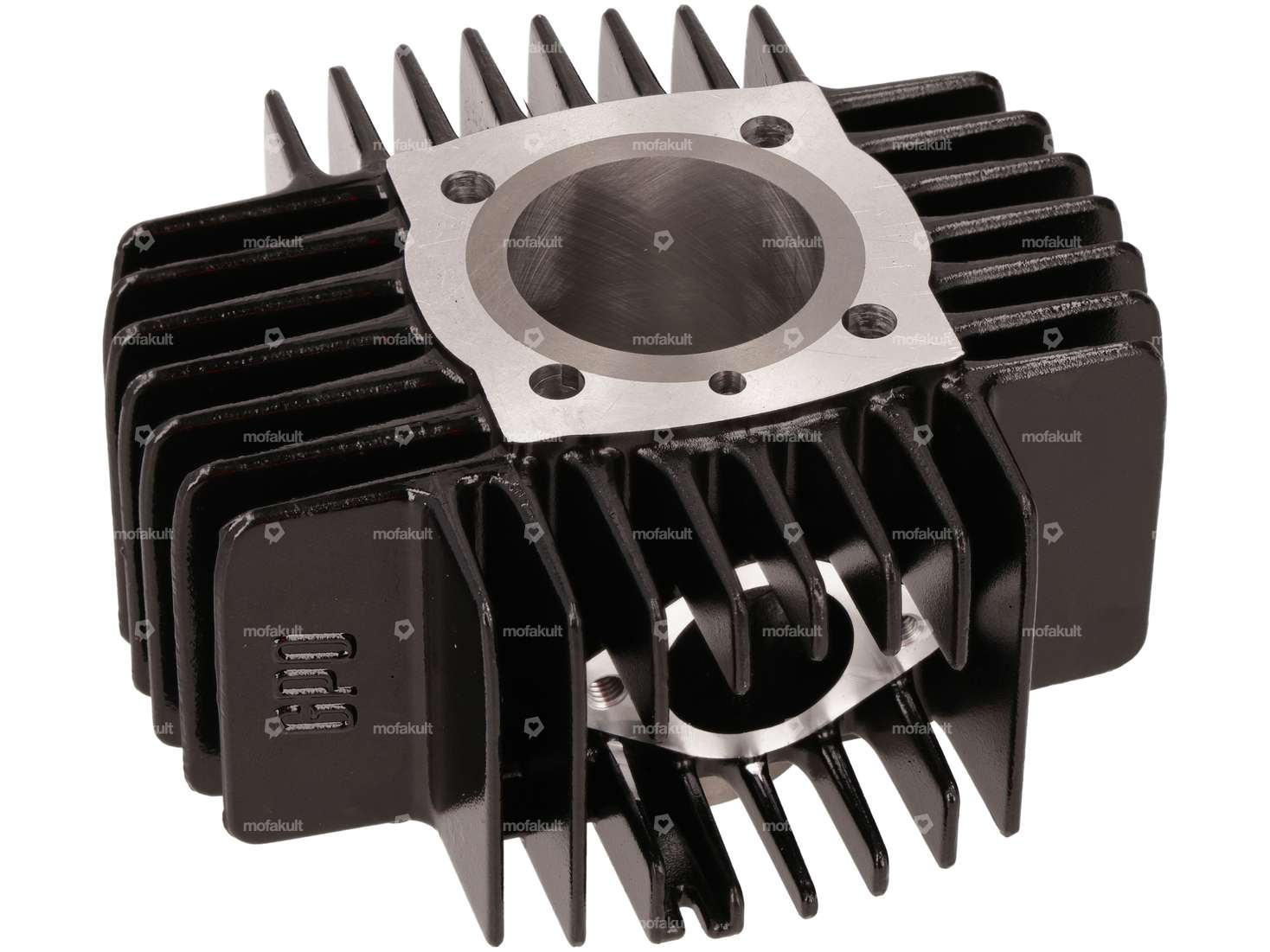

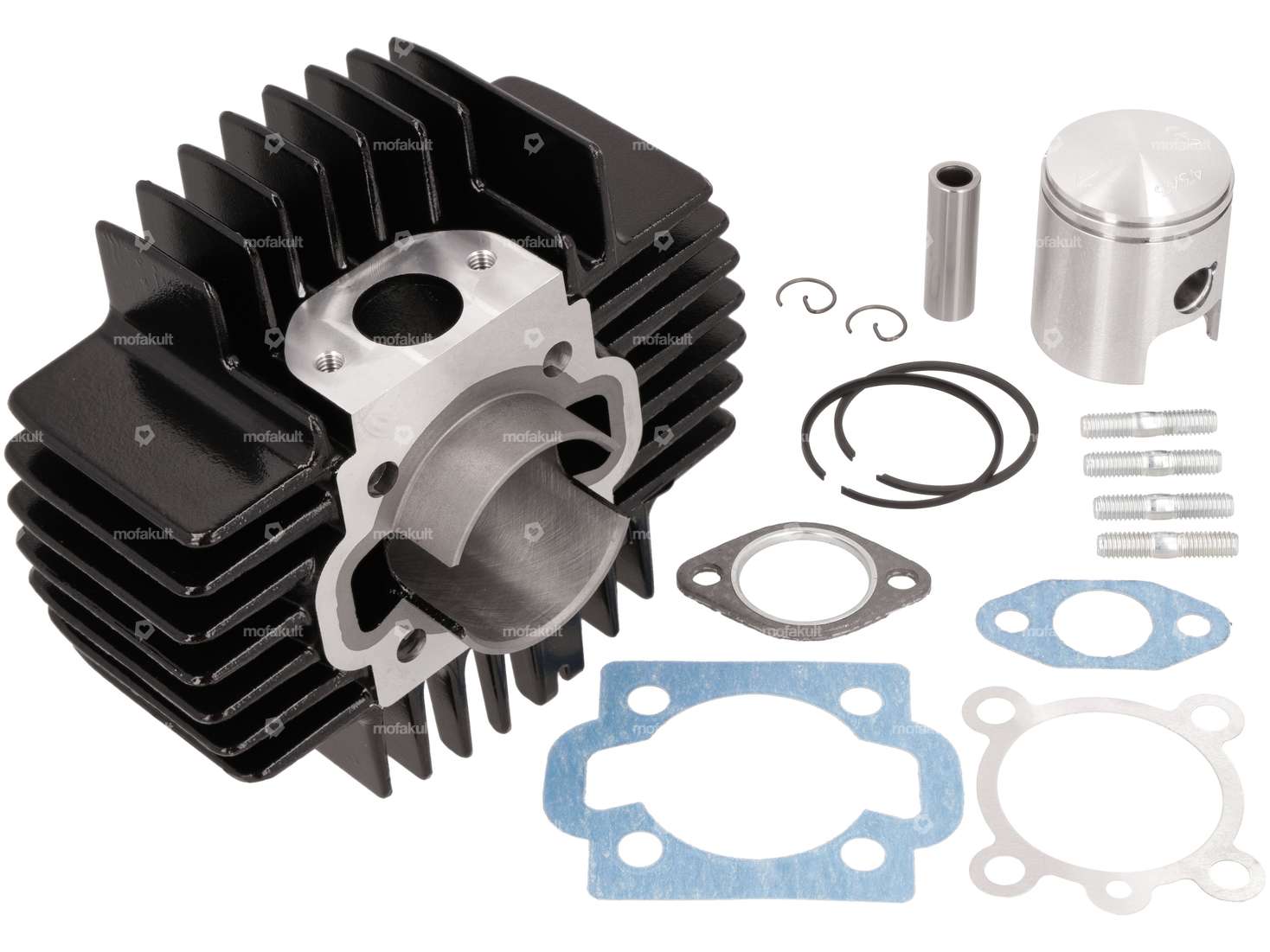

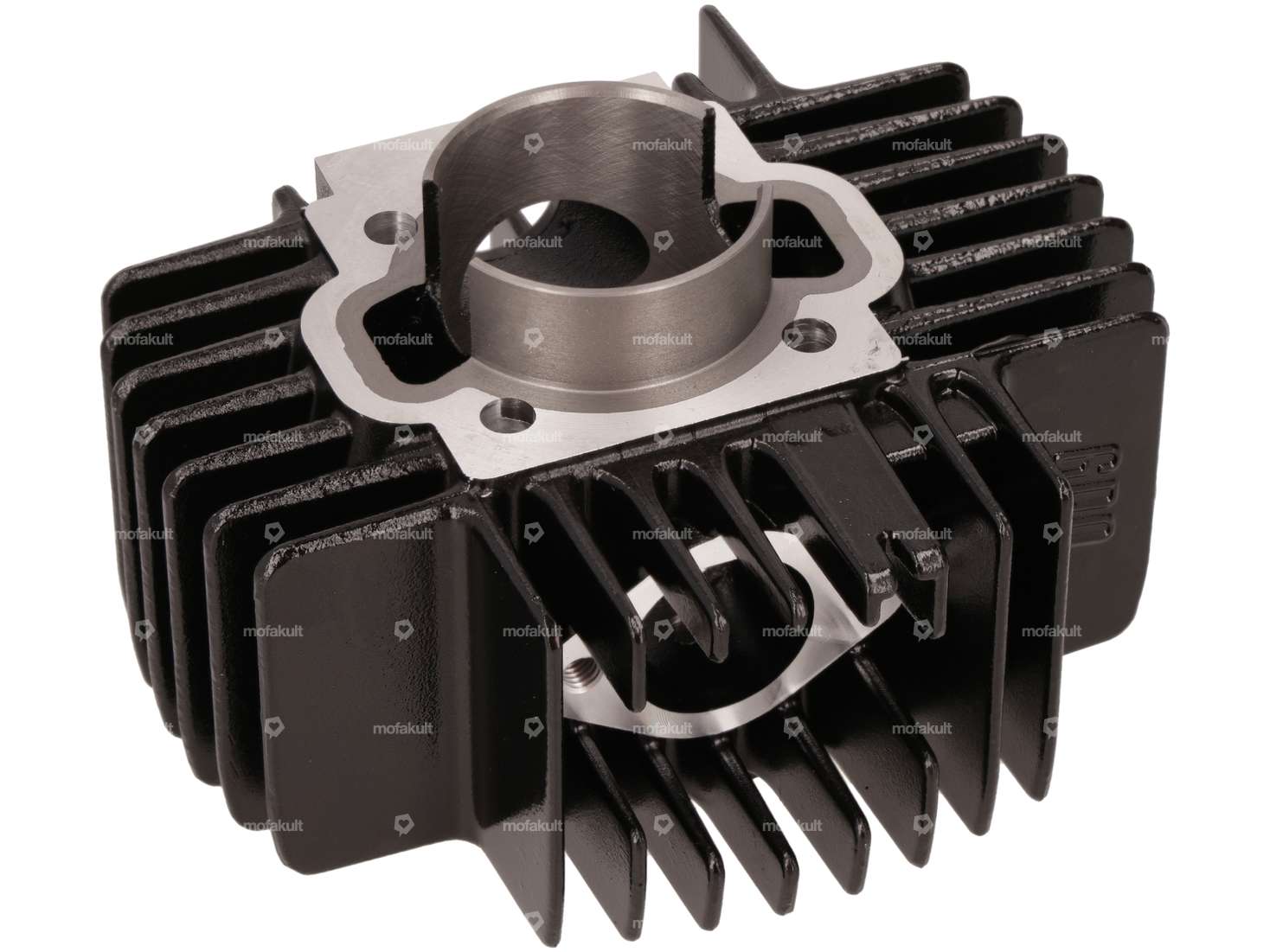

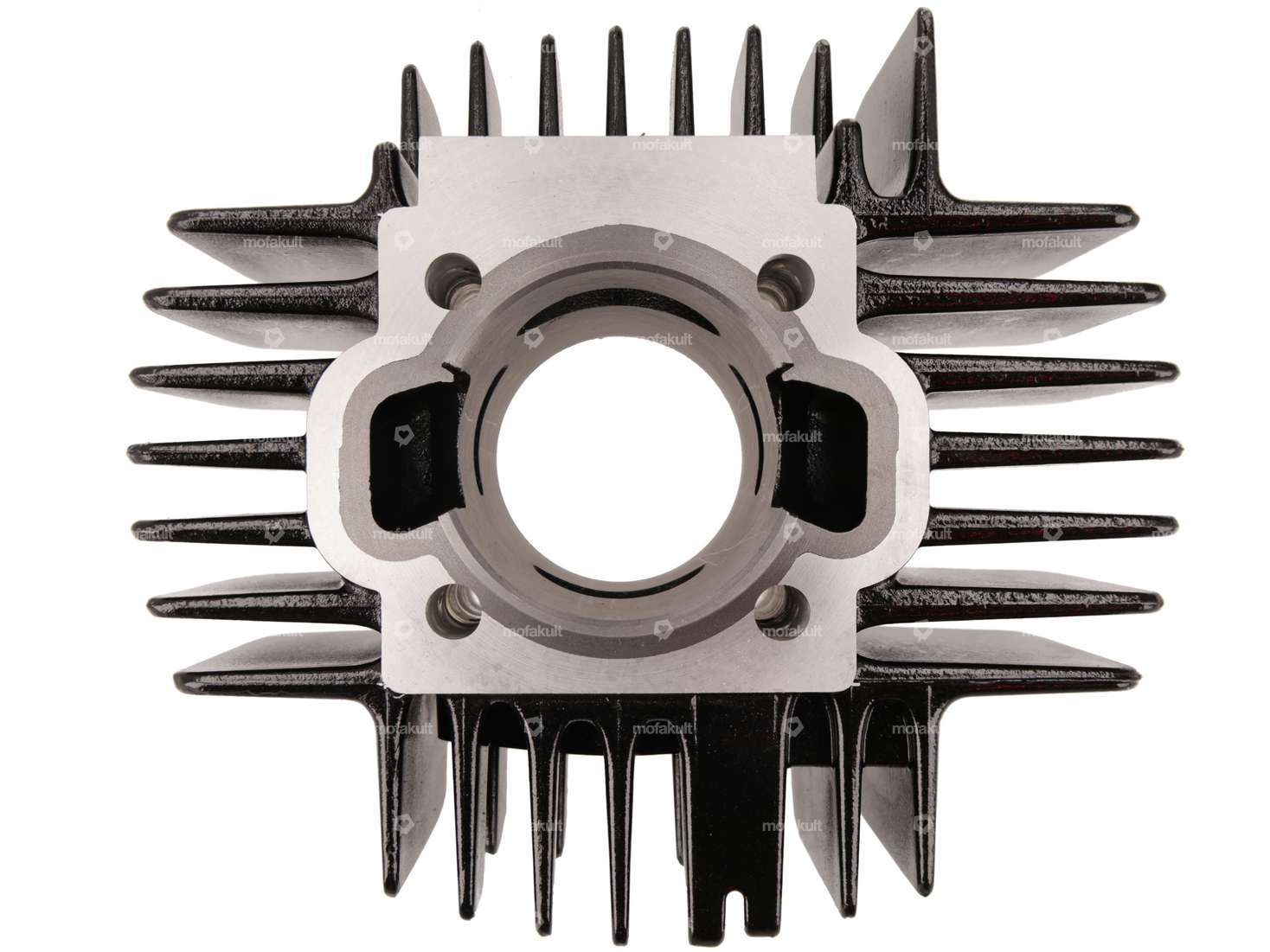

The aluminium cylinder with cast iron liner is an optimized replica of the original Metrakit racing cylinder. The timing has been revised compared to the original and provided with more advance, making the well-known piston sticking problem due to high heat development a thing of the past. In addition, the cylinder height has been precisely adapted so that the extra-thick base gasket previously required is now superfluous.
This GPO racing cylinder is one of the strongest and most powerful in its class and has been extensively tested. It impresses with ample torque across the entire power band and offers an impressively powerful performance. Thanks to the optimizations compared to the original, the cylinder also achieves a noticeably higher engine speed, which ensures even more power and driving pleasure.
To get the full power out of this tuning cylinder, we recommend at least a 15 mm carburetor. However, you can achieve significantly more power with a 17 mm carburetor. Thanks to the generous 19 mm intake, you have sufficient scope for optimum power delivery.
| Manufacturer | GPO |
| Material | Aluminum, Gray cast iron |
| Camouflaged | No |
| Surface | varnished |
| Displacement | 64 ccm |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 43.5 mm |
| Area of application | Tuning, Racing |
| Ø piston pin (B) | 12 mm |
| Ø cylinder neck | 47.8 mm |
| Number of fixing points | 4 pcs |
| Ø Inlet inside | 19 mm |
| Hole spacing inlet | 38 mm |
| Ø outlet inside | 26 mm |
| Thread inlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Hole spacing outlet | 42 mm |
| Outlet type | straight |
| Thread outlet | M6x1 (standard thread) |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
