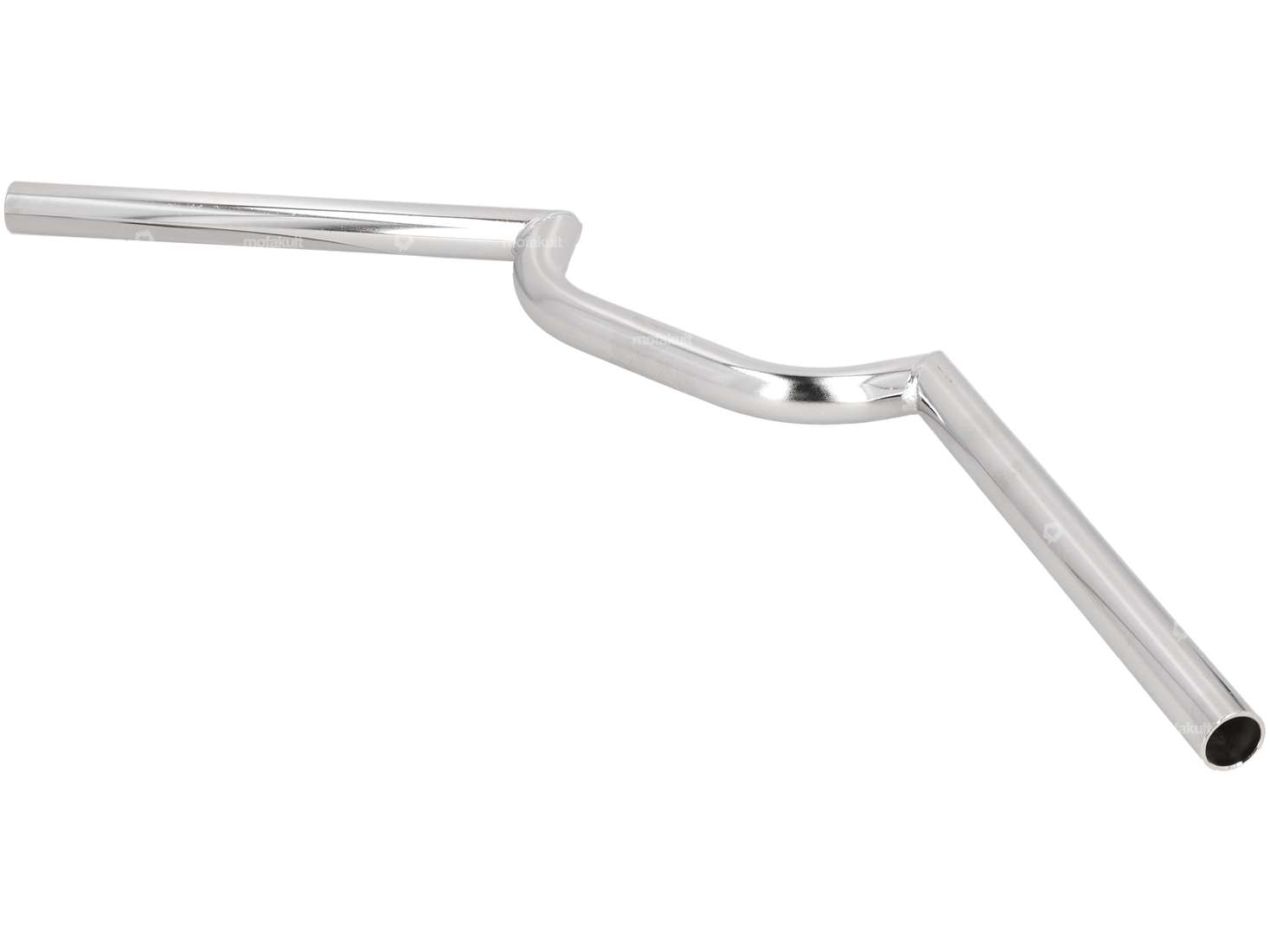

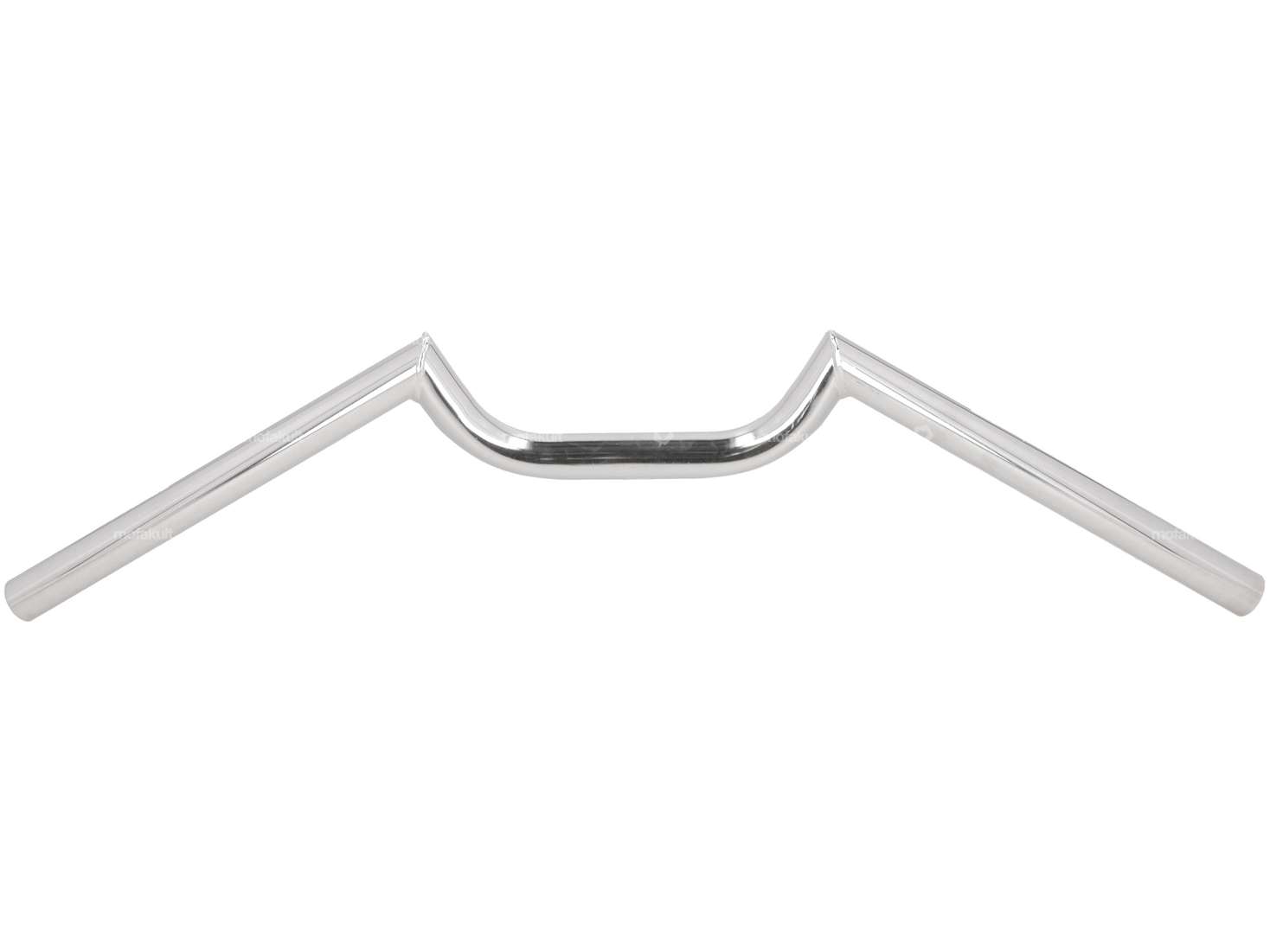

M handlebars for your moped, moped and small motorcycle. The chrome-plated handlebar is mounted on the fork plate.
This sports handlebar is suitable for "cafe racer" conversions and racing mopeds, among other things.
Both balance ends are bent downwards.
Height: 150 mm
Width: 605 mm
Ø tube: 22 mm
Length handlebar ends (for handle mounting): 220 mm
Length fork plate mount: 80 mm
Matching attachments such as clamps, steerer nuts, grips, etc. can be found in the accessories
.Details
| Clamping diameter | 22 mm |
| Material | Steel |
| Surface | chrome-plated |
| Ø outside | 22 mm |
| Color | Chrome |
| Width | 605 mm |
| Height | 150 mm |
| Fork plate holder length | 80 mm |
| Length handlebar ends | 220 mm |
| Mounting type | Fork plate |
| Crossbar | No |
