For the economical repair of damaged or worn threads (of all materials) and as a structural element for thread reinforcement when using materials with low shear strength (e.g. aluminum, aluminum-magnesium alloys). The use of wear-free HeliCoil thread inserts not only repairs the thread, but also increases the thread load-bearing capacity.
Execution:
High-strength, free-running HeliCoil® plus thread inserts made of stainless steel with high wear resistance, low thread friction in tight tolerances, high surface quality as well as corrosion and heat resistance. The flexible design enables even load and stress distribution and thus produces durable screw connections of the highest quality for all operating loads (static, dynamic) with ideal force transmission. Uncomplicated, quick assembly, creates an internal thread that can be used on both sides and contains a gauge.
Complete repair kit for M2x0.4 thread sizes in a plastic case.
Application:
1. Drill out the defective thread with the supplied drill.
2. Check the tap and threaded bolt.
3. Cut the holding thread with the special HeliCoil tap.
4. Turn the thread insert into the holding thread using the installation tool.
5. Remove the tang with the tang breaker.

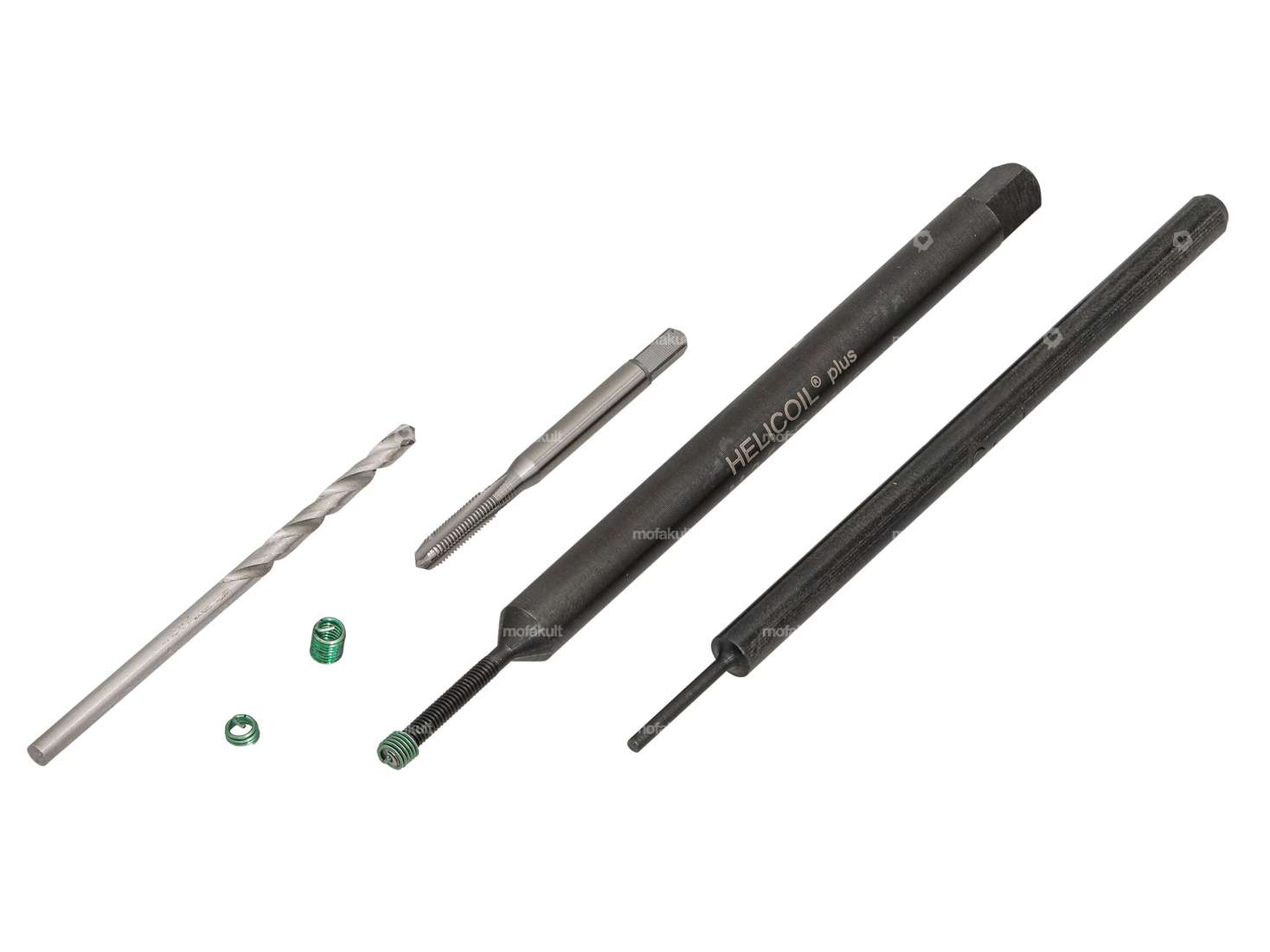

Scope of delivery
- 1 pc. twist drill
- 1 pc. Thread cutter
- 1 pc. Installation tool
- 1 pc. Tang breaker
- 10 pcs. HeliCoil thread insert (1D / 2 mm)
- 10 pcs. HeliCoil thread insert (1.5D / 3 mm)
- 10 pcs. HeliCoil thread insert (2D / 4 mm)

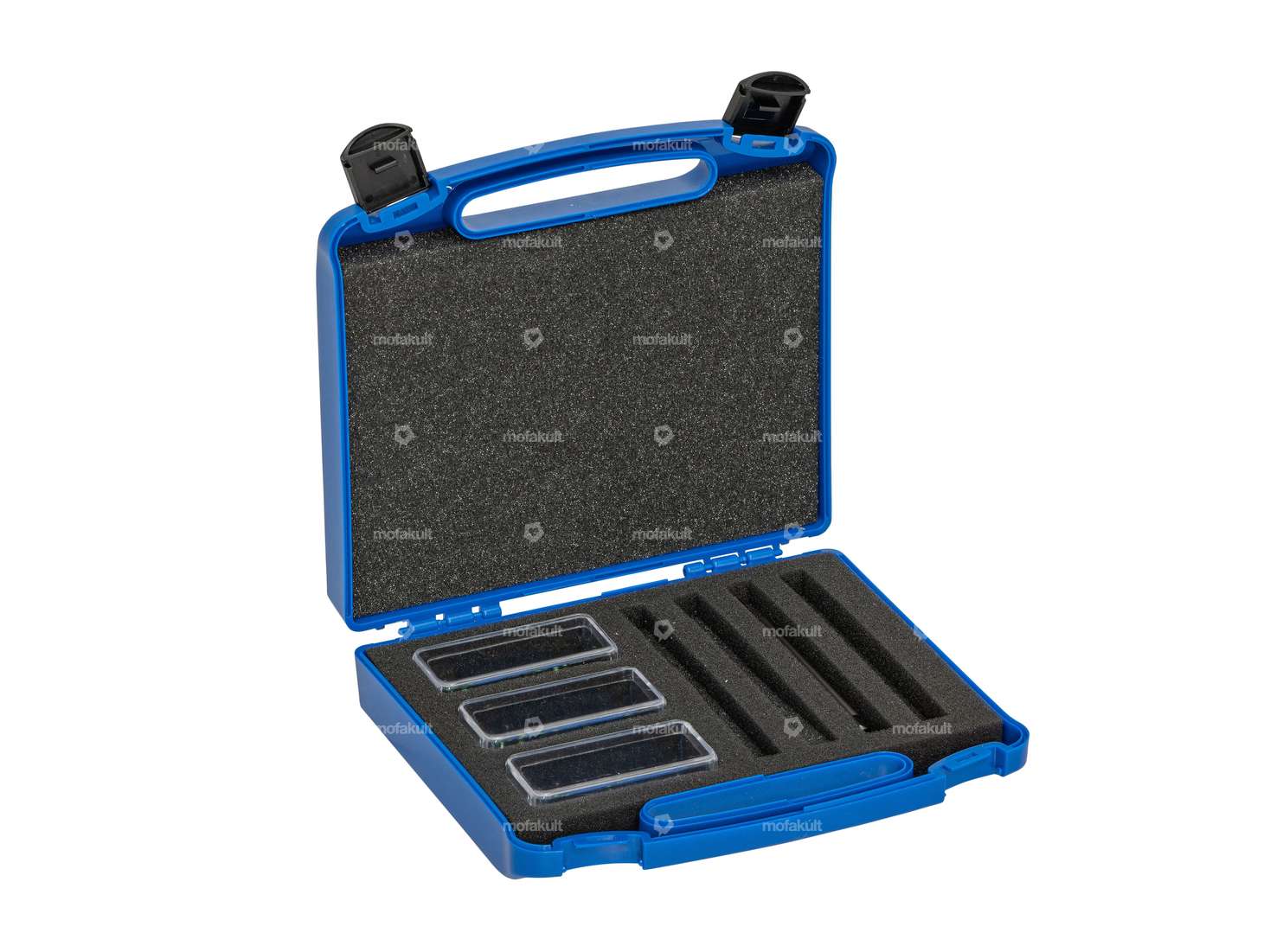

- 1 pc. Plastic case
A detailed instruction manual is included.
Original HeliCoil product from the German manufacturer Böllhoff.
| Storage method | Plastic box |
| Manufacturer | HeliCoil |
| Material | Chrome steel (known as Nirosta®) |
| Number of components | 34 pcs |
| Thread type | M2x0.4 (standard thread) |
| Total length | 2 mm, 3 mm, 4 mm |
| Dimension thread insert | 1D, 1.5D, 2D |
| Nominal diameter (thread) | 2 mm |
| Area of application | Workshop accessories |
Ratings
Accessories & related products
HeliCoil thread repair set M6 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Dimension storage box: 180 x 165 x 45 mm · Material: Chrome steel (known as Nirosta®) · Surface: coated · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Total length: 6 mm · Total length: 9 mm · Total length: 12 mm · Ø bore: 6.3 mm · Area of application: Workshop accessories · Nominal diameter (thread): 6 mm · Number of components: 60 pcs · Thread type: M6x1 (standard thread)
EUR 94.70
HeliCoil thread repair case M5 - M12 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Number of components: 300 pcs · Material: Chrome steel (known as Nirosta®) · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Thread type: M10x1.5 (standard thread) · Thread type: M12x1.75 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Area of application: Workshop accessories · Nominal diameter (thread): 5 mm · Nominal diameter (thread): 6 mm · Nominal diameter (thread): 8 mm · Nominal diameter (thread): 10 mm · Nominal diameter (thread): 12 mm · Dimension storage box: 420 x 345 x 120 mm
EUR 402.70
HeliCoil thread repair case M2.5 - M6 (professional tool)
Manufacturer: HeliCoil · Material: Chrome steel (known as Nirosta®) · Area of application: Workshop accessories · Number of components: 300 pcs · Nominal diameter (thread): 2.5 mm · Nominal diameter (thread): 3 mm · Nominal diameter (thread): 4 mm · Nominal diameter (thread): 5 mm · Nominal diameter (thread): 6 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Storage method: Suitcase · Thread type: M2.5x0.45 (standard thread) · Thread type: M3x0.5 (standard thread) · Thread type: M4x0.7 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Dimension storage box: 420 x 345 x 125 mm
EUR 402.70

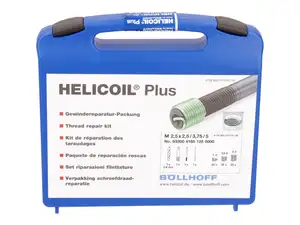

HeliCoil thread repair set M2.5x0.45
