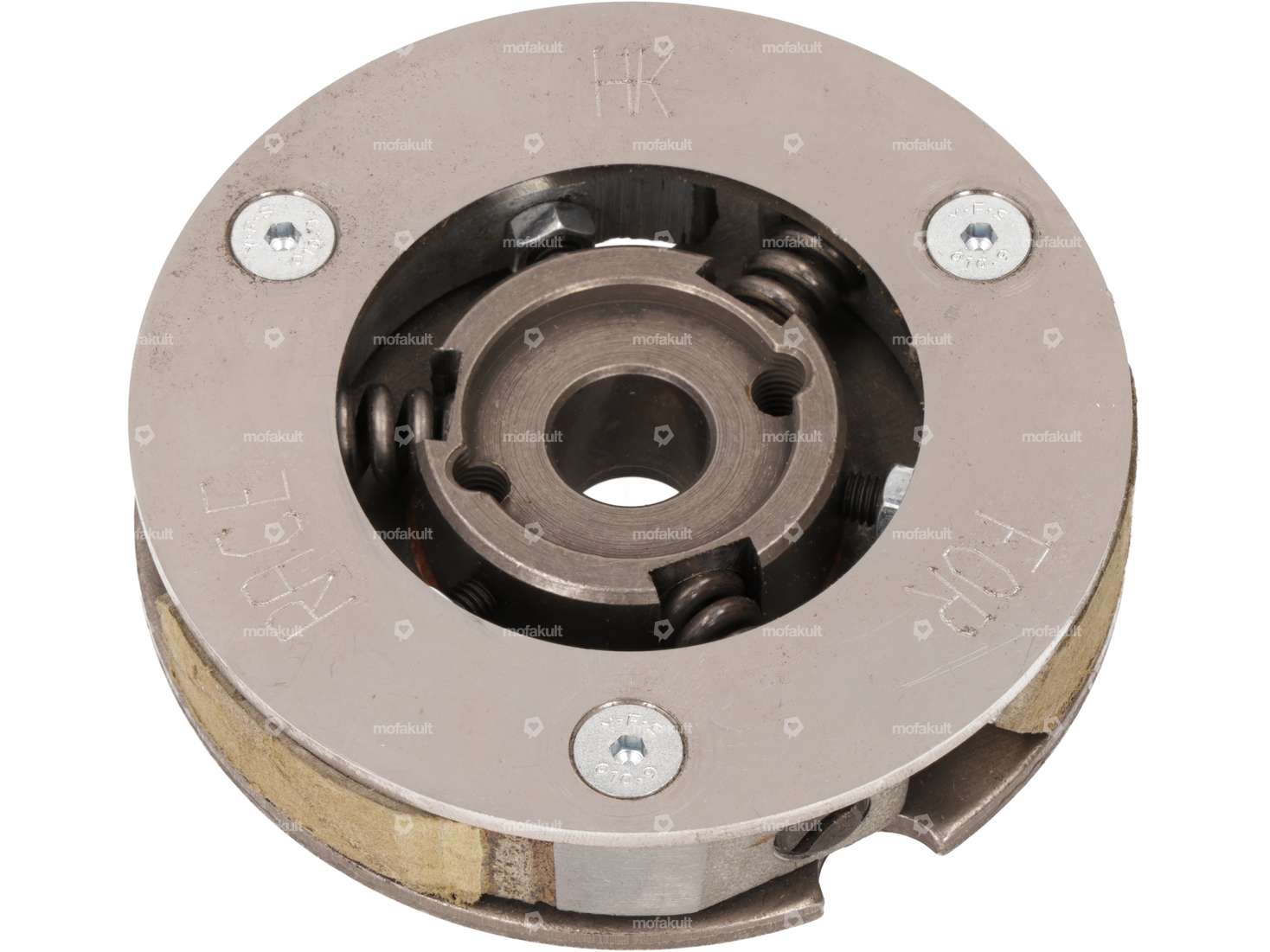

HK Clutch "Racing" Kickstarter Aramid | Puch E50

Buzzetti puller M30x1.5 mm Clutch Racing Special | Puch Maxi

Diameter: 35 mm · Thread type: MF30x1.5 (fine pitch thread) · Width across flats trigger: 27 mm · Width across flats Screw: 22 mm · Manufacturer: Buzzetti · Pull-off depth inside: 40 mm · Total length: 69.6 mm · Total length: 98.6 mm · Strength class: 8.8 · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Surface: galvanized (blue)

swiing® revival oil filler plug with sealing ring | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Number of components: 2 pcs · Total length: 14.6 mm · Drive: Slot · Screw head: Lens head · Ø External head: 14 mm · Thread type: M10x1.5 (standard thread) · Nominal diameter (thread): 10 mm · Thread length: 6 mm · Puch OEM number: 364.1.10.660.1

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents: 450 ml · Gearbox type: Automatic machine · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Gilardoni italkit 47 mm cylinder kit 75 ccm | Puch

Nominal diameter: 47 mm · Manufacturer: Gilardoni italkit · Material: Aluminum · Surface: sandblasted · Outlet type: slanted · Decompressor: No · Camouflaged: No · Area of application: Tuning

Shaft seal NBR 16/25/7 A Kickstarter | Puch E50

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 16 mm · Ø outside: 25 mm · Width: 7 mm · Manufacturer: Puch · Material: NBR

Spring kickstarter Puch E50

Spring design: Torsion spring

Spring Kickstarter | Puch E50

Material: Plastic

swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50

Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Area of application: High End · Area of application: Racing · Area of application: Tuning · Material: Aluminum · Cheek type: Full cheeks · Material: Steel · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread type: MF10x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Weight: 968 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 15 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm

swiing® ingenious adapter plate MVT ignition | Puch, Sachs, Zündapp

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Color: red · Ø outside: 90 mm · Area of application: Tuning

swiing® revival thrust washer set Ø 15 / 17 mm | Puch E50

Manufacturer: swiing® revival parts · Ø inside: 15 mm · Ø inside: 17 mm · Ø outside: 22 mm · Ø outside: 24 mm · Material: Steel · Area of application: Standard · Thickness: 1.1 mm · Thickness: 1.3 mm · Thickness: 1.5 mm · Thickness: 1.7 mm · Surface: hardened & ground

NGK CR4 Racing ignition cable & plug High End red / 5 kΩ interference suppressed

Manufacturer: NGK · Material: Silicone · Color: red · Ø cable: 7 mm · Spark plug socket: SAE · Cable available: Yes · Cable length: 500 mm · Suppressed: Yes · Resistance: 5000 Ω · Subcategory: Ignition cable · Subcategory: Spark plug connector
