For: Sachs

22680

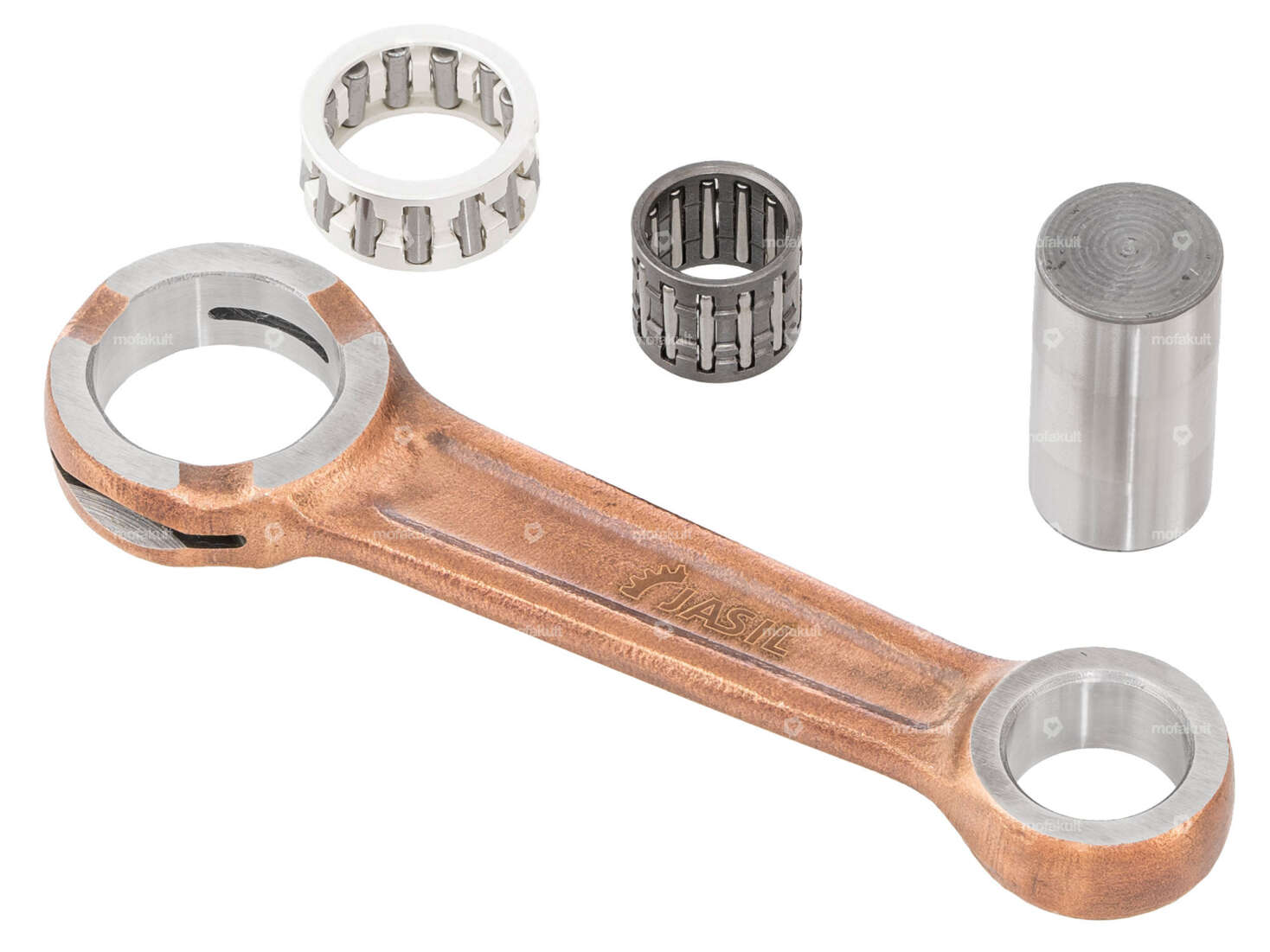

Jasil connecting rod axe 16 mm | Sachs

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 77.10

Incl. 21% VAT.

Description

Complete connecting rod suitable for crankshafts of various mopeds, mopeds and small motorcycles with Sachs engines.
The connecting rod pin at the bottom is conical. In addition, this connecting rod requires a 16 mm piston pin.

  • Dimension connecting rod pin 1: Ø16 x 30 mm
  • Connecting rod length (center - center): 85 mm
  • Total connecting rod length: 107.4 mm
  • Thickness: 10 mm
  • Outer diameter of lower connecting rod eye: 24.75 mm
  • Outer diameter of upper connecting rod eye: 20.85 mm
  • Lower needle bearing (silver ball): Ø21/16 x 9.75 mm
  • Upper needle bearing: Ø15/12 x 12.7 mm
  • Ø für piston pin: 12 mm

Branded product from Portuguese manufacturer Jasil under the Top Racing brand.

ManufacturerJasil
MaterialSteel
Surfacecopper-coated
Total length107.4 mm
Area of applicationStandard, Tuning
Connecting rod length center-center85 mm
Ø Connecting rod bolt16 mm
Ø lower connecting rod eye outside24.75 mm
Ø upper connecting rod eye outside20.85 mm
Ø lower bearing inside21 mm
Thickness10 mm
Ø inside upper bearing15 mm
Dimension lower bearing16/21 x 9.75 mm
Dimension upper bearing12/15 x 12.7 mm
Ø piston pin (B)12 mm
Connecting rod pin length30 mm
Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)
