Not so nice

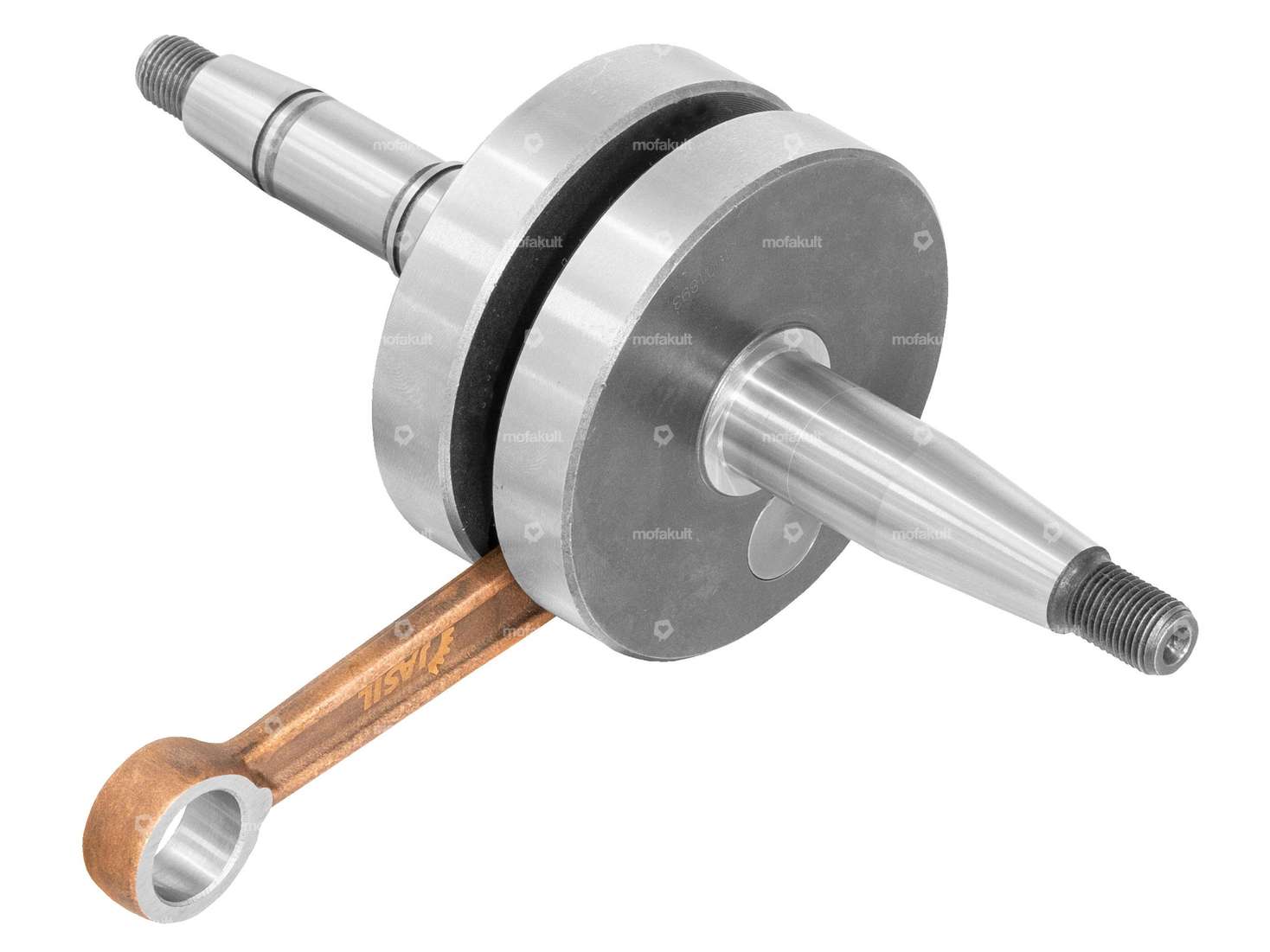

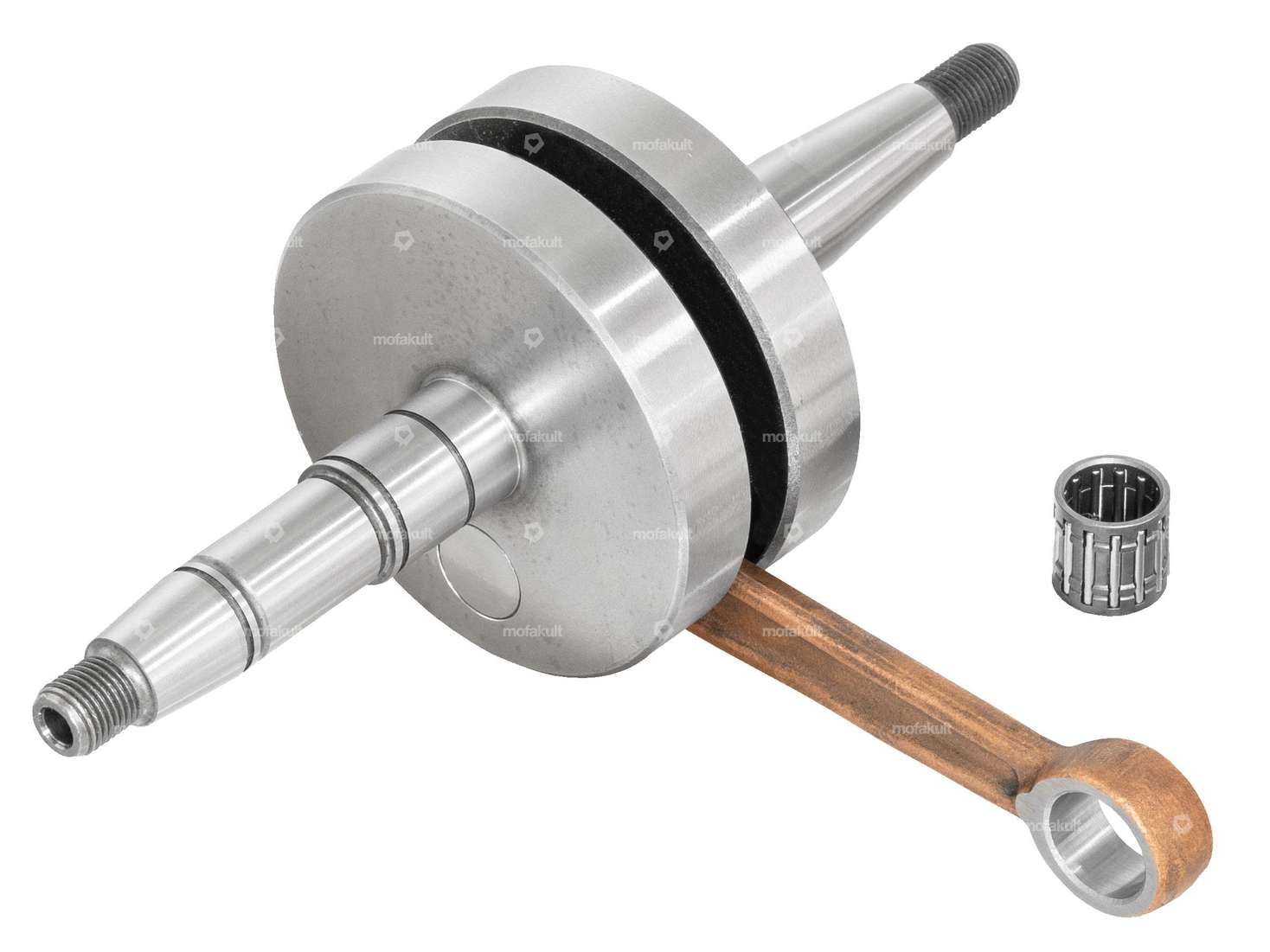

Full cheek shaft suitable for various mopeds / mopeds with Puch E50 engines.
Mäsig-läsig! – We strive to offer you the widest range of moped spare parts. However, this product is of rather poor quality and is not recommended by us. Should you nevertheless choose this item, we understand, but cannot offer you any guarantee or exchange.
The connecting rod bearing may exhibit excessive roughness, which can lead to the lubricating film breaking off. This in turn can cause the connecting rod bearing to run hot.
High-quality alternatives such as our swiing crankshaft can be found in the accessories section.
Branded product from the Portuguese manufacturer Jasil under the Top Racing brand.
| Manufacturer | Jasil |
| Material | Steel |
| Cheek type | Full cheeks |
| Crankshaft stroke | 43 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Connecting rod length center-center | 90 mm |
| Total length of crankpin on clutch side | 74 mm |
| Number of gears | 1 pcs |
| Total length crankpin ignition side | 67 mm |
| Ø crank webs | 69.9 mm |
| Ø Connecting rod eye | 15 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Thread length | 10 mm, 13.5 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Area of application | Racing |
| Dimension needle bearing | 12 / 15 x 14.7 mm (axe 12) |
| Wide crank webs | 34.3 mm |
| Length 1st paragraph | 23.3 mm |
| Length 2nd paragraph | 25 mm |
| Ø 1st step (on the coupling side) | 17 mm |
| Ø 2nd shoulder (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 26.3 mm |
| Weight | 964 g |
| Puch | E50 |
