Jasil crankshaft | Puch E50

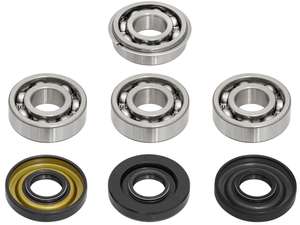

swiing® revival engine revision set (new model) | Puch E50

Manufacturer: swiing® revival parts · Number of components: 7 pcs · Area of application: Tuning

Oil seal NBR 22/40/7 A DUO crankshaft | Puch E50

Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Place of use: Crankshaft · Material: NBR · Surface: rubberized · Ø inside: 22 mm · Ø outside: 40 mm · Temperature resistance (min.): -30 - 100 °C · Width: 7 mm

swiing® ingenious 15 mm intake manifold "Tuning" camouflaged | Puch E50

Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Material: Aluminum · Ø inside: 15 mm · Ø External connection: 20 mm · Mounting type: Screws · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 53 mm · Height flange center hole: 43 mm · Total length: 46 mm · Area of application: Tuning · Puch OEM number: 349.2.15.330.1 · Puch OEM number: 349.2.15.130.1

Oil seal FPM 22/40/7 A DUO crankshaft | Puch E50

Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Place of use: Crankshaft · Material: FPM - Fluororubber · Surface: rubberized · Ø inside: 22 mm · Ø outside: 40 mm · Temperature resistance (min.): -30 - 200 °C · Width: 7 mm

swiing® revival crankshaft "Original" | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Thread type: MF10x1 (fine pitch thread) · Thread type: MF8x1 (fine pitch thread) · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread length: 11 mm · Thread length: 15 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Weight: 873 g · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Area of application: Standard · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs

swiing® revival clutch trigger original | Puch E50

Manufacturer: swiing® revival parts · Area of application: (Dis)assembly tool

swiing® ingenious crankshaft set "High End" (+1 mm stroke) | Puch E50

Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Area of application: High End · Cheek type: Full cheeks · Crankshaft stroke: 44 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Weight: 970 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Number of gears: 1 pcs

DMP clutch "Racing" aluminum reinforced | Puch E50

Manufacturer: DMP · Material: Steel · Material addition: Chrome steel (known as Nirosta®) · Number of springs: 3 pcs · Recording type: Cone mounting · Ø outside: 94 mm · Number of jaws: 3 pcs · Thickness: 22 mm · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning

swiing® ingenious tool Ignition adjustment analog M14x1.25

Manufacturer: swiing® ingenious parts · Material: Steel · Number of components: 4 pcs · Thread type: MF14x1.25 (fine pitch thread) · Area of application: Measuring tool · Puch OEM number: 905.6.32.101.0

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Component group Carburetor: Spark plug connector · Ø cable: 5 mm · Ø cable: 7 mm · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

GPO control bearing set M26x1 mm | Puch

Bearing type: Bearing ring · Manufacturer: GPO · Material: Steel · Color: silver · Ø mounting frame: 31 mm · Ø outside: 41 mm · Ø inside: 26.8 mm · Thread type: MF26x1 (fine pitch thread) · Surface: galvanized (blue)

swiing® ingenious clutch springs reinforced (+20%) | Puch E50

Spring design: Pressure spring · Ø wire: 1.7 mm · Manufacturer: swiing® ingenious parts · Material: Spring steel · Color: blue · Number of components: 3 pcs · Ø outside: 8.3 mm · Ø inside: 4.8 mm · Surface: coated · Total length: 28 mm · Area of application: Tuning

swiing® revival engine revision set (new model) | Puch E50

Manufacturer: swiing® revival parts · Number of components: 7 pcs · Area of application: Tuning

GPO footrests aluminum black anodized

Manufacturer: GPO · Material: Aluminum · Color: black · Ø outside: 34 mm · Ø inside: 16.1 mm · Surface: anodized · Total length: 110 mm · Depth: 29 mm · Reflectors: No

swiing® revival gasket gearbox cover engine 1 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Number of components: 1 pcs · Ø outside: 116 mm · Ø inside: 106 mm · Thickness: 1 mm · Number of fixing points: 4 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

Foot brake | Puch Maxi S

Manufacturer: Made in Portugal · Material: Steel · Color: black · Color: silver · Surface: galvanized (blue) · Surface: varnished · Ø mounting hole: 16.2 mm

GPO 3-jaw clutch (Ultra Light Version) | Puch E50

Manufacturer: GPO · Area of application: Tuning · Material: Aluminum · Material: Steel · Number of springs: 3 pcs · Recording type: Cone mounting · Ø outside: 93.5 mm · Number of jaws: 3 pcs · Thickness: 21 mm
