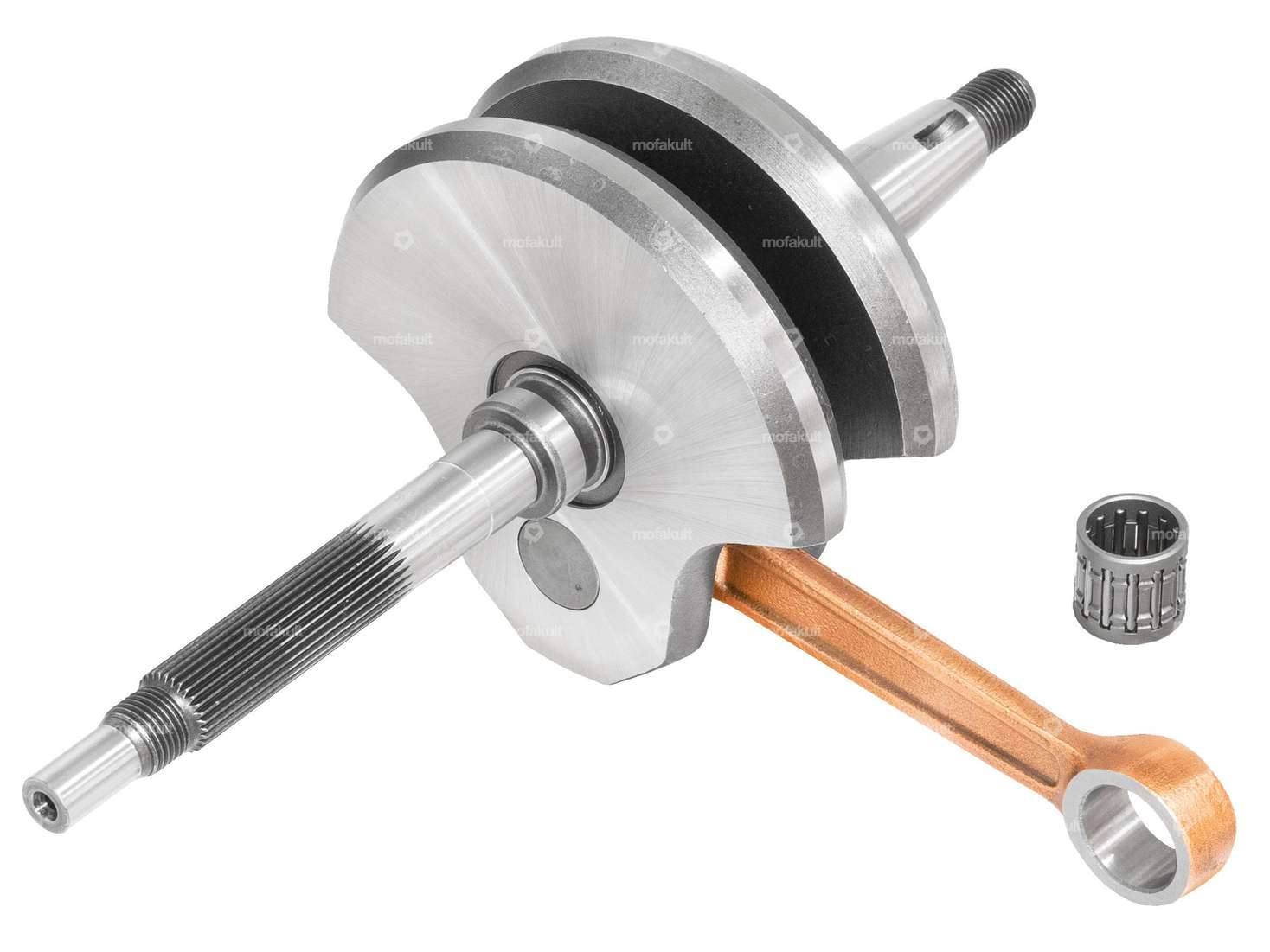

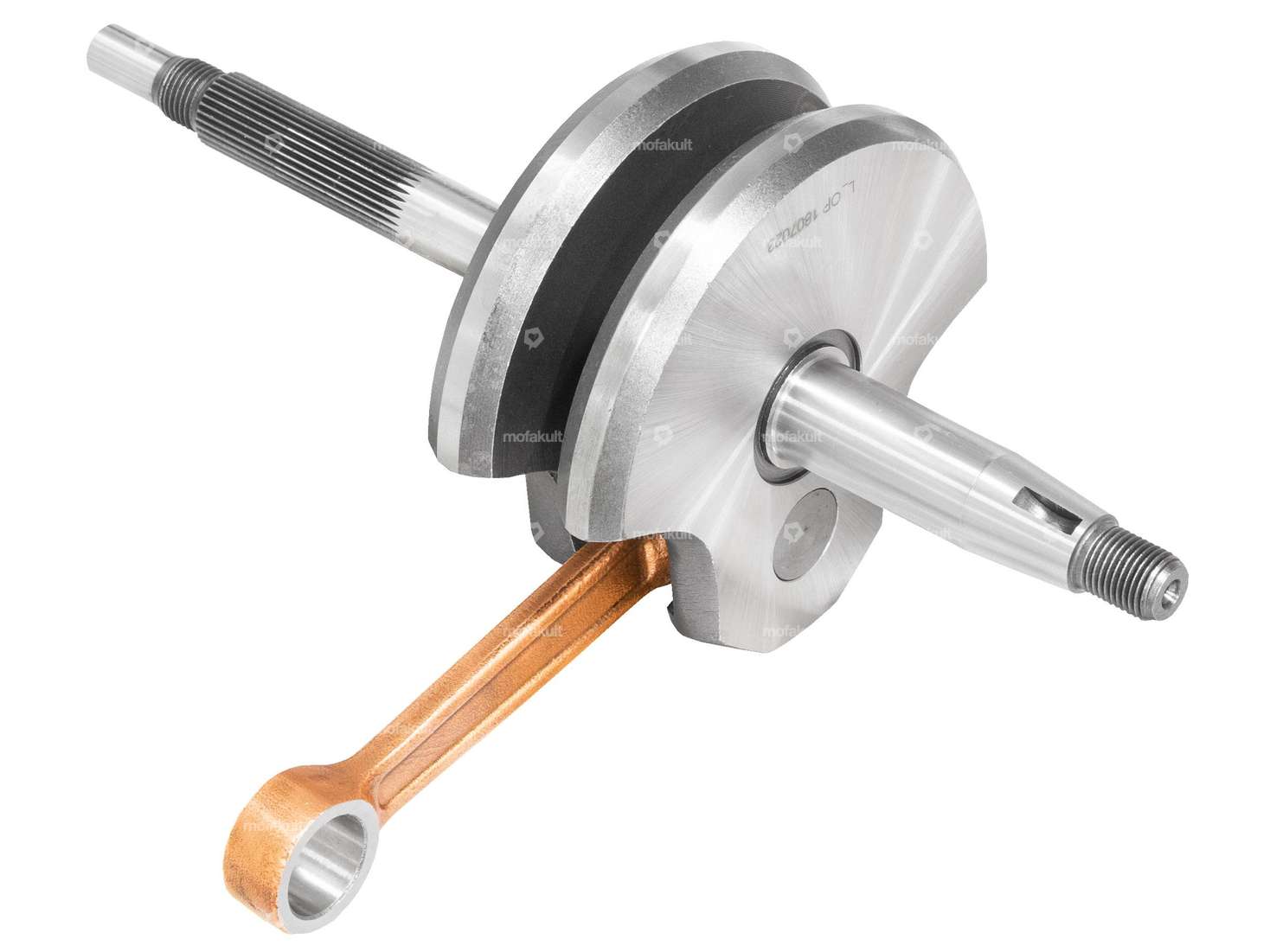

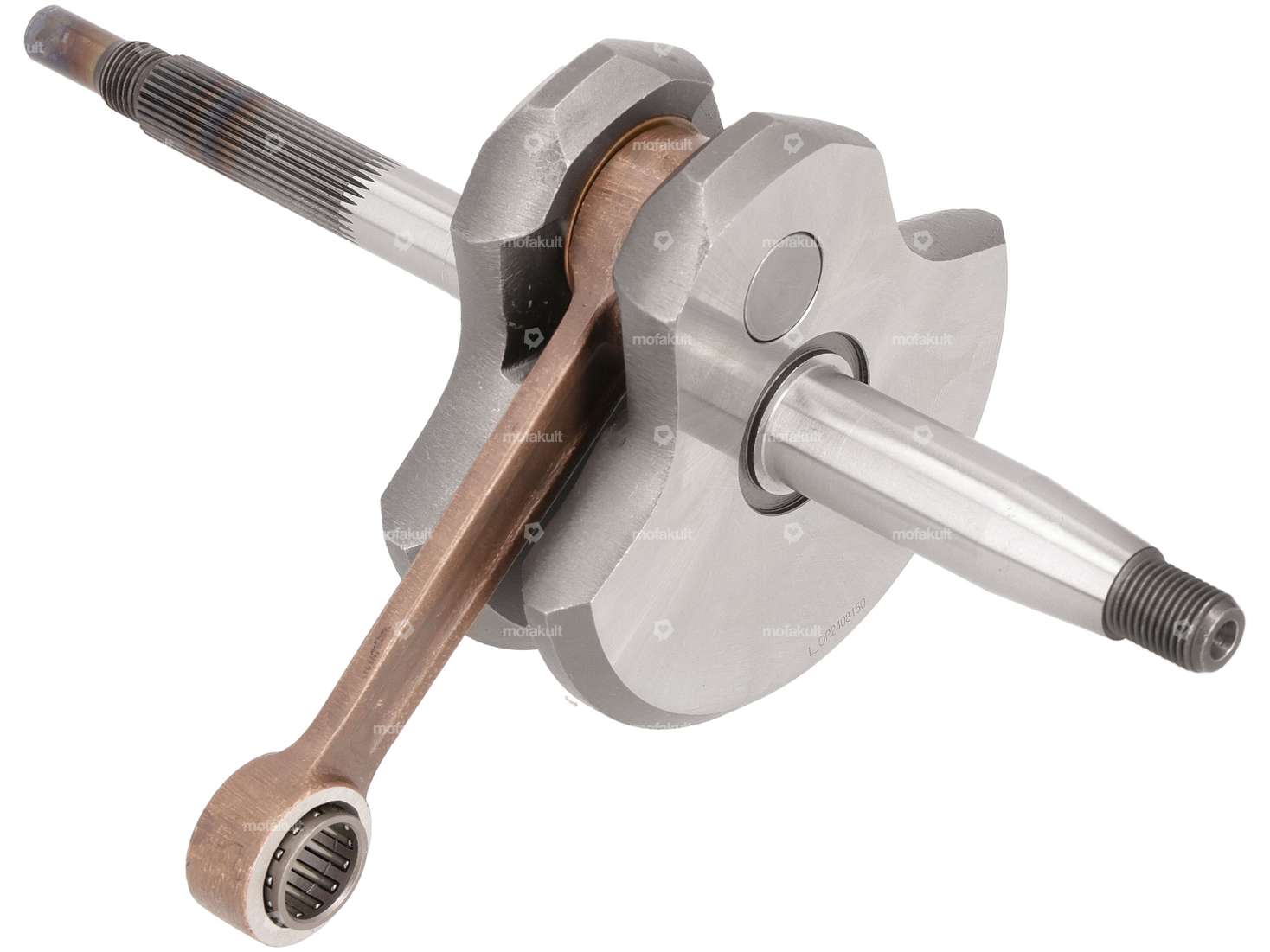

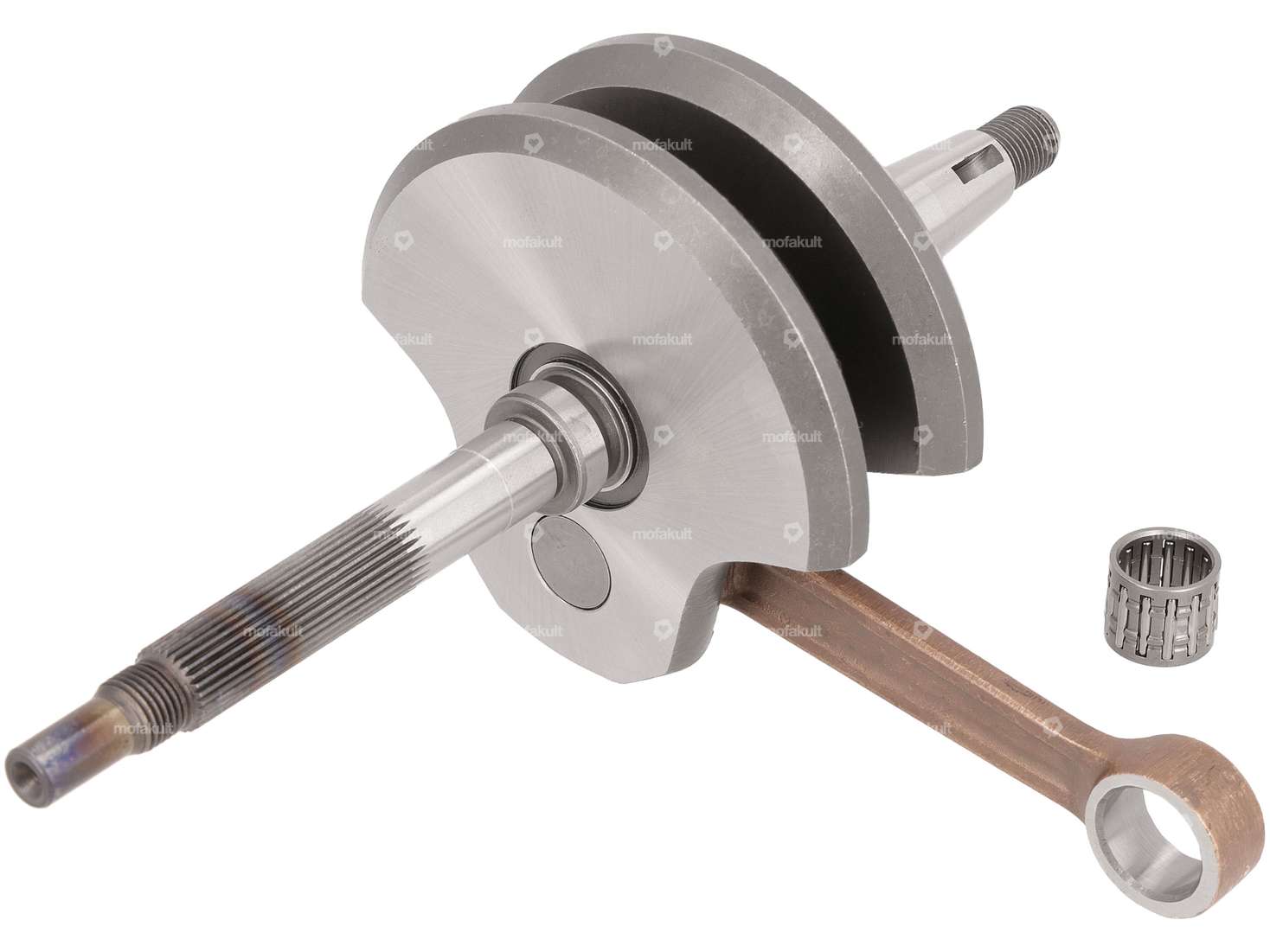

Crankshaft suitable for your moped / moped with a wind-cooled Sachs 503 AC or ADV 2-speed automatic engine
.These are the engines with the large, square cylinder. A catalytic converter is fitted as standard on the ADV and the starter cable leads into the clutch cover.
| Manufacturer | Jasil |
| Material | Steel |
| Area of application | Standard |
| Cheek type | standard |
| Crankshaft stroke | 44 mm |
| Connecting rod length center-center | 86 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Thread length | 7 mm, 11 mm |
| Total length of crankpin on clutch side | 97 mm |
| Total length crankpin ignition side | 62 mm |
| Ø crank webs | 83 mm |
| Ø piston pin (B) | 12 mm |
| Ø Connecting rod eye | 15 mm |
| Ø Bearing seat (clutch side) | 12 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Dimension needle bearing | 12 / 15 x 12.8 mm (axe 12) |
| Wide crank webs | 34.2 mm |
| Length 1st paragraph | 9.4 mm |
| Length 2nd paragraph | 19.4 mm |
| Length 3rd paragraph | 74 mm |
| Ø 1st step (on the coupling side) | 17 mm |
| Ø 2nd shoulder (on the clutch side) | 12 mm |
| Ø 3rd step (on the clutch side) | 11.6 mm |
| Length of shoulder (ignition side) | 32 mm |
| Weight | 964 g |
| Number of gears | 2 pcs |
| Pony OEM number | A3337, A2904 |
| Sachs | 503 - AC , ADV |
Accessories & related products
Oil seal NBR 17/33/7 B DUO crankshaft | Sachs 503 AB, ADV
Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Shaft seal type: B DUO - With sheet metal outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 33 mm · Width: 7 mm · Manufacturer: Sachs · Material: NBR
EUR 10.60
Not in stock
NTN 6202 Ball bearing 15/35/11 | Sachs 503 ADV/AB, 504, 535 (A1165)
Bearing type: Deep groove ball bearing · Stock number: 6202 · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Manufacturer: NTN · Bearing clearance: CN (standard) · Bearing cage: Sheet steel cage ball-guided · Pony OEM number: A1165 · Sachs OEM no.: 0232 120 003
EUR 8.20
Oil seal NBR 15/30/9 B DUO crankshaft | Sachs 503 ADV, AB, AC (A1832)
Shaft seal type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Ø inside: 15 mm · Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Ø outside: 30 mm · Width: 9 mm
EUR 11.80
swiing® revival gasket set | Sachs 503 AB, AC wide wall
Manufacturer: swiing® revival parts · Material: Aluminum · Material: Copper · Material: Rubber · Material: Sealing carton · Material: Sealing paper · Ø outlet inside: 24 mm · Hole spacing outlet: 38.5 mm · Number of components: 21 pcs · Hole pattern [mm]: 56 x 56 · Area of application: Standard
EUR 53.30
swiing® revival gasket set | Sachs 503 ADV wide screen Cat.
Number of components: 15 pcs · Manufacturer: swiing® revival parts · Material: Copper · Material: Fiber · Material: Rubber · Material: Sealing carton · Material: Sealing paper · Area of application: Standard · Ø outlet inside: 23.3 mm · Hole pattern [mm]: 56 x 56 · Decompressor: No · Hole spacing inlet: 38 mm
EUR 53.30
