Technical data sheet DE
Attention:

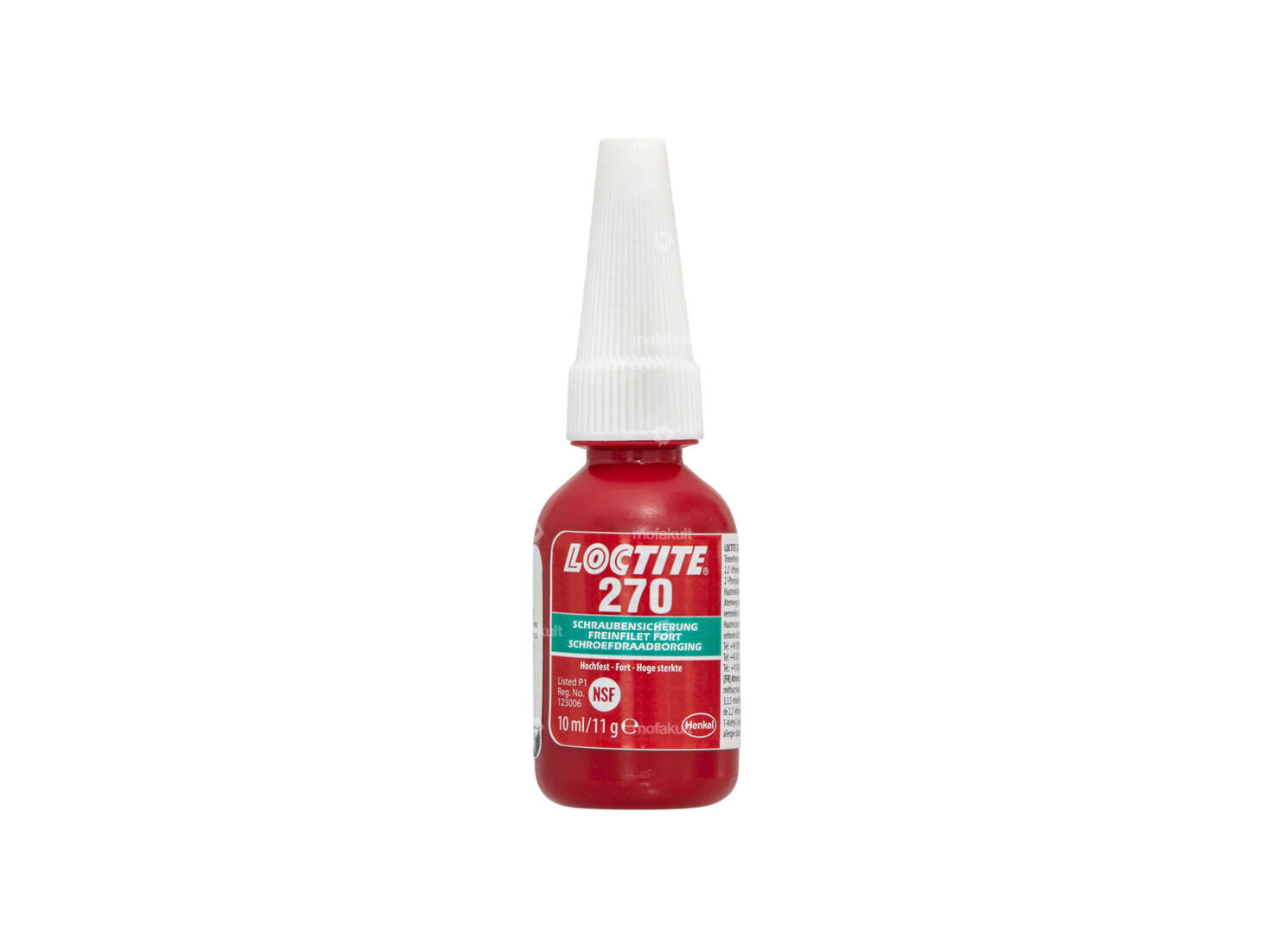

Loctite 270 is an oil- and waterproof high-strength screw connection, suitable for all metal threaded connections subject to high vibration and impact loads. Also for passive materials such as aluminium, stainless and galvanized steel. Prevents loosening due to vibration on stud bolts, gears, motors, etc. The connections can be dismantled with normal tools. However, it is recommended to heat the connection beforehand.
Strength: High strength
Functional strength (at room temperature on steel): 6 hours
Loosening torque: 38 Nm
Thread sizes up to M20 T
Temperature resistance: up to 150 °C
Original Loctite product from the German manufacturer Henkel.
| Manufacturer | Loctite |
| Material to be used | Aluminum, Steel |
| Type of application | 1K |
| Contents | 10 ml |
| Area of application | Chemistry |
| Hazard warning | Causes skin irritation, May cause allergic skin reactions, Causes serious eye irritation, May irritate the respiratory tract, Toxic to aquatic organisms (with long-term effects) |
| Adhesion | high-strength |
| Gap dimension (max.) | 0.01 mm |
| Temperature resistance (min.) | -55 - 180 °C |
| Color | green |
| Alignment time | 600 sec |
| Breakaway torque (according to material) | 5 N/m, 31 N/m, 33 N/m |
