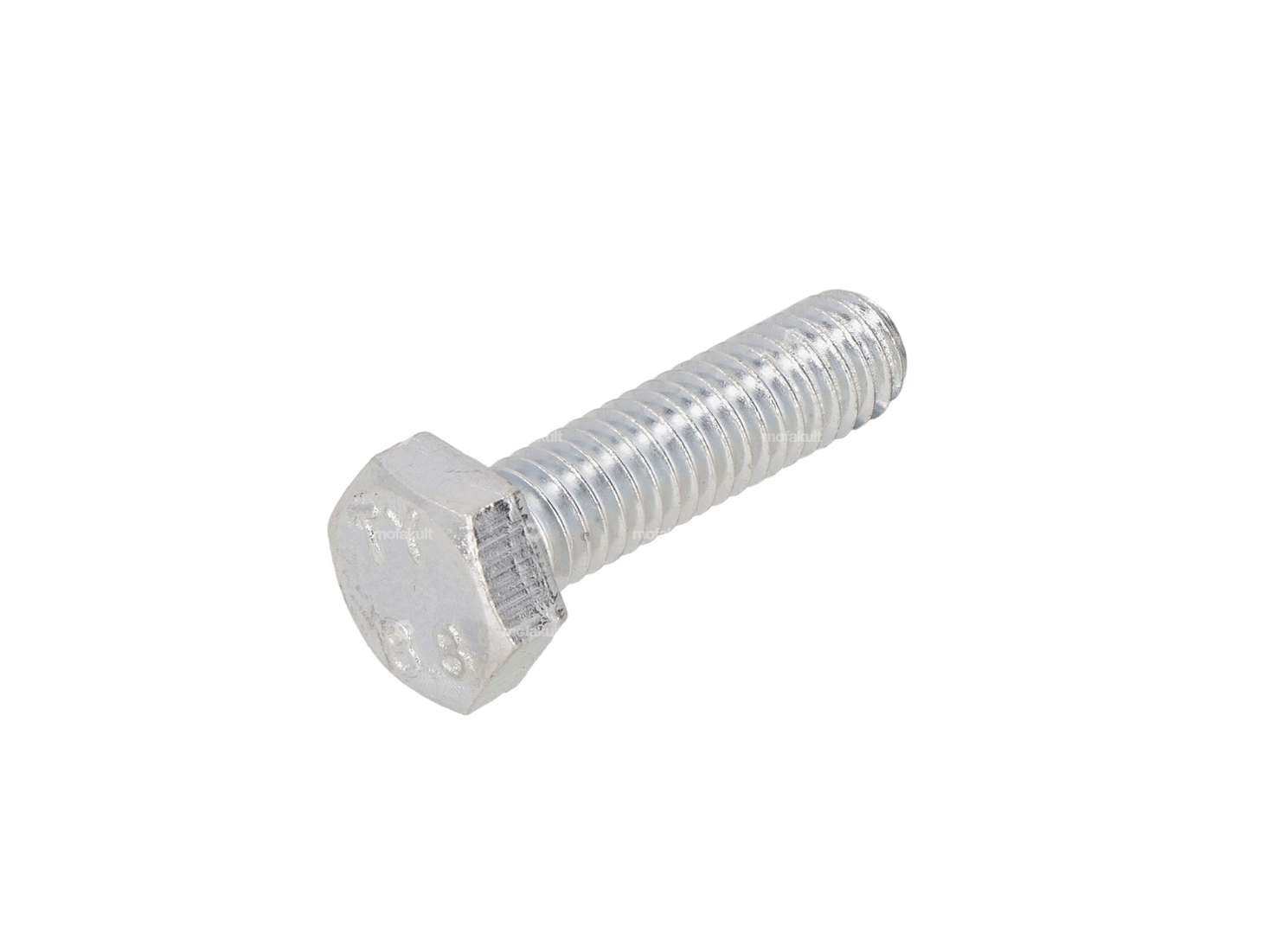

M6x22 hexagon head screw, galvanized

Loctite 243 medium-strength threadlocker 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Type of application: 1K · Contents [ml]: 10 ml · Area of application: Chemistry · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Color: blue · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Temperature resistance (min.): -75 - 200 °C · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

Flange nut M6 galvanized (strength 10)

Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Nut type: Flange nut · Ø outside: 13.9 mm · Drive: External hexagon · Thread type: M6x1 (standard thread) · Strength class: 10 · Height: 9 mm · Width across flats SW: 10 mm

Ripp-Lock washer M6 6.2/14/1.4 galvanized

Thickness: 1.4 mm · Material: Steel · Surface: galvanized (blue) · Nominal diameter (thread): 6 mm · Ø outside: 14 mm · Ø inside: 6.2 mm · Thread size: M6 · Pony OEM number: A1542 · Alternative version of the Pony OEM number: A1644 · Sachs OEM no.: 0244 021 000 · Alternative version of the Sachs OEM number: 0245 023 002

Washer M6 (6.3/16/1.6) Rubber side panel Sheet metal

Material: Rubber · Thickness: 1.7 mm · Ø outside: 16 mm · Ø inside: 6.3 mm · Nominal diameter (thread): 6 mm · Thread size: M6

M6x30 hexagon head screw with galvanized shank (strength 10.9)

Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Screw head: Hexagon · Thread type: M6x1 (standard thread) · Shank: Yes · Strength class: 10.9 · Shank length: 12 mm · Width across flats SW: 10 mm · Thread length: 18 mm

Washer M6 standard (6.4/12/1.6) galvanized

Material: Steel · Surface: galvanized (blue) · Nominal diameter (thread): 6 mm · Ø inside: 6.4 mm · Ø outside: 12 mm · Thickness: 1.6 mm · Hardness [HV]: 140 HV · Thread size: M6 · Pony OEM number: A4515 · Sachs OEM no.: 0944 142 002

GPO Support rubber fork swing arm | Piaggio Ciao

Manufacturer: GPO · Material: Rubber · Color: black · Ø outside: 7.9 mm · Ø mounting hole: 6.9 mm · Total length: 22.8 mm · Width: 16.25 mm · Height: 8.8 mm · Total height: 22.7 mm

Stop rubber spring holder / swing arm | Piaggio Ciao PX, C24

Material: Rubber · Color: black

swiing® ingenious axle swing arm set | Piaggio Ciao

Manufacturer: swiing® ingenious parts · Material: Brass · Material: Chrome steel (known as Nirosta®) · Color: gold · Drive: External hexagon · Ø Bearing inside: 12.85 mm · Ø outside: 16 mm · Ø outside: 22 mm · Thread length: 22 mm · Thread type: M8x1.25 (standard thread) · Total length: 50 mm

swiing® ingenious fork springs (Ø 28 mm) original Inox | Piaggio Ciao PX, C24

Ø wire: 4.25 mm · Manufacturer: swiing® ingenious parts · Material: Chrome steel (known as Nirosta®) · Surface: trowalized · Color: Chrome · Ø outside: 28.4 mm · Ø inside: 20 mm · Total length: 110 mm

swiing® ingenious fork springs (Ø 28 mm) reinforced +20 % Inox | Piaggio Ciao PX, C24

Material: Chrome steel (known as Nirosta®) · Surface: electropolished · Color: Chrome · Total length: 110 mm · Ø wire: 4.25 mm · Manufacturer: swiing® ingenious parts · Ø outside: 28.4 mm · Ø inside: 20 mm

swiing fork springs (Ø 28 mm) reinforced +50 % Inox | Piaggio Ciao PX, C24

Material: Chrome steel (known as Nirosta®) · Surface: electropolished · Color: Chrome · Total length: 110 mm · Ø wire: 4.5 mm · Manufacturer: swiing · Ø outside: 28.4 mm · Ø inside: 20 mm

Nut M6 galvanized

Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Height: 4.8 mm · Nut type: Hexagon nut 0.8D · Area of application: Standard · Strength class: 8 · Thread type: M6x1 (standard thread) · Width across flats SW: 10 mm

Support rubber for fork swing arm (1A quality) | Piaggio Ciao

Manufacturer: Made in Italy · Material: Rubber · Color: black · Total length: 22 mm · Width: 16 mm · Ø External connection: 7 mm

Spring holder swing arm (Ø 28 mm spring) | Piaggio Ciao

Ø inside: 7.8 mm · Ø outside: 23.5 mm · Material: Aluminum · Thread type: M6x1 (standard thread) · Piaggio OEM number: 103411 · Piaggio OEM number: 175865

swiing® ingenious repair kit fork (selection) Inox | Piaggio Ciao PX, C24

Ø wire: 4.25 mm · Ø wire: 4.5 mm · Manufacturer: swiing® ingenious parts · Material: Brass · Material: Chrome steel (known as Nirosta®) · Material: Rubber · Material: Spring steel · Surface: electropolished · Color: Chrome · Color: black · Ø inside: 20 mm · Ø outside: 28.4 mm · Total length: 110 mm
