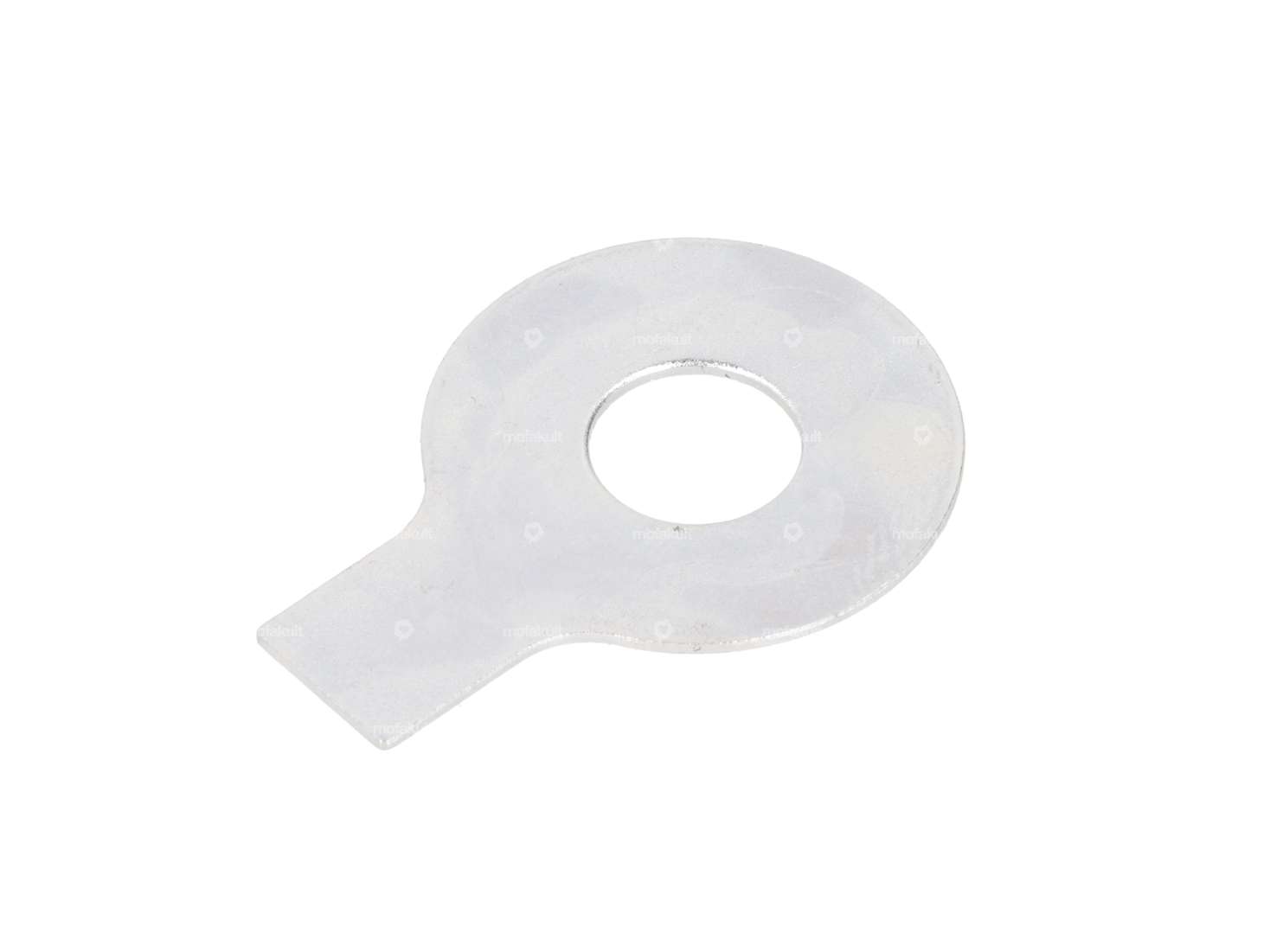

Galvanized lock washer with 1 tab for securing nuts and bolts.

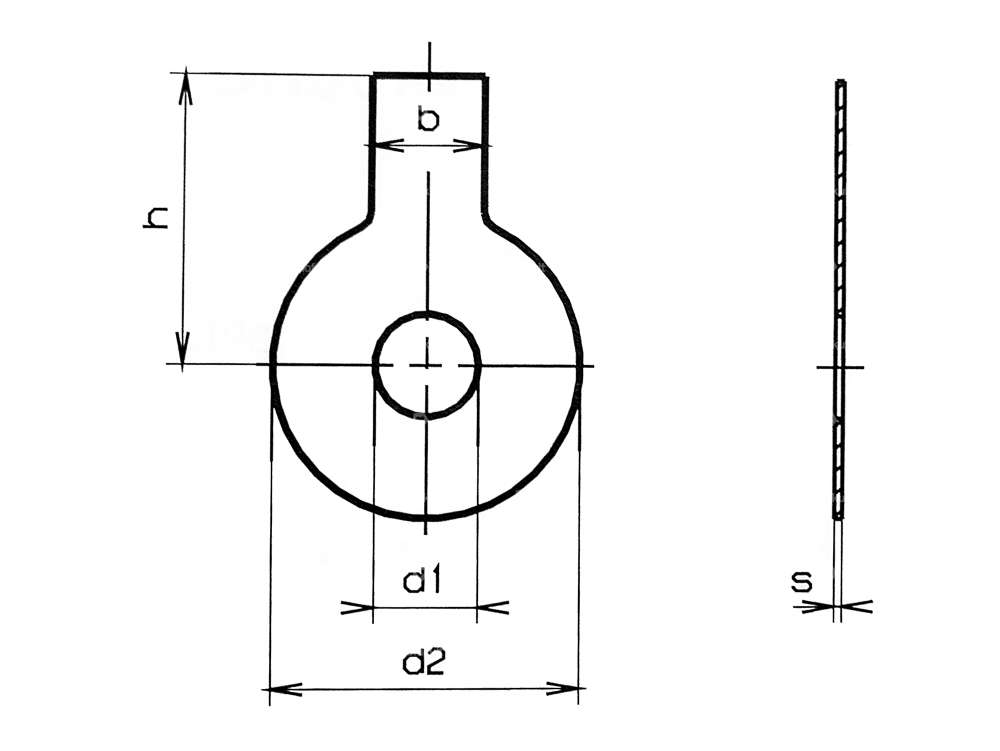

Take the following measurements from figure 2:
- d1: 8.4 mm
- d2: 22 mm
- h: 20 mm
- b: 8 mm
- s: 0.75 mm
Details
| Material | Steel |
| Surface | galvanized (blue) |
| Ø outside | 22 mm |
| Width | 8 mm |
| Number of lobes | 1 pcs |
| Total length | 20 mm |
| Ø inside | 8.4 mm |
| Thickness | 0.75 mm |
| Thread size | M8 |
