Puch engine & gearbox

NTN 6203 NR C3 ball bearing 17/40/12(11) with outer ring (new model) | Puch E50

Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: C3 · Groove ring: Yes · Bearing type: Deep groove ball bearing · Width: 12 mm · Ø inside: 17 mm · Ø outside: 40 mm

swiing® revival auxiliary spring clutch Inox

Spring design: Tension spring · Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Surface: raw · Ø inside: 8 mm · Ø outside: 10.5 mm · Total length: 60 mm · Ø wire: 1.25 mm · Length spring hook: 10 mm · Length spring hook: 29 mm

M8 copper ring 8.3/11.8/0.8

Ø outside: 11.8 mm · Material: Copper · Ø inside: 8.3 mm · Thickness: 0.8 mm

M10 copper ring 10.4/13.8/0.8

Ø outside: 13.8 mm · Material: Copper · Ø inside: 10.4 mm · Thickness: 0.8 mm

Oil seal NBR 17/28/7 A DUO gearbox shaft | Puch Z50

Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Surface: rubberized · Ø outside: 28 mm · Material: NBR · Ø inside: 17 mm · Width: 7 mm

GPO 38 mm gasket cylinder head 0.4 mm aluminum | Puch

Manufacturer: GPO · Material: Aluminum · Area of application: Standard · Nominal diameter: 39 mm · Thickness: 0.4 mm · Ø cylinder: 38 mm · Ø inside: 39 mm · Place of use: Cylinder head · Ø screw holder: 7 mm · Hole pattern [mm]: 44 x 44 · Puch OEM number: 349.3.10.013.1

GPO gasket set | Puch E50

Manufacturer: GPO · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Area of application: Standard · Ø outlet inside: 19.9 mm · Hole spacing inlet: 32 - 38 mm · Number of components: 7 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Decompressor: Yes

swiing® revival nut clutch M16x1.5 | Puch ZA50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon flat nut · Drive: External hexagon · Width across flats SW: 24 mm · Thread type: MF16x1.5 (fine pitch thread) · Height: 6.5 mm

Jasil crankshaft | Puch X30 NS, NL

Manufacturer: Jasil · Material: Steel · Cheek type: standard · Area of application: Standard · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 57 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.7 mm · Thread length: 8 mm · Thread length: 12 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 34.1 mm · Length 1st paragraph: 20 mm · Length 2nd paragraph: 20 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 28 mm · Weight: 910 g · Number of gears: 2 pcs

45 mm gasket cylinder head 0.4 mm | Puch

Material: Aluminum · Thickness: 0.4 mm · Ø cylinder: 45 mm · Place of use: Cylinder head

NSK E20 shoulder ball bearing

Material: Brass · Manufacturer: NSK · Surface: blank · Bearing type: Deep groove ball bearing · Inner ring width: 12 mm · Ø outside: 47 mm · Bearing clearance: CN (standard) · Bearing cage: Brass cage ball-guided · Width: 12 mm · Stock number: E20 · Ø inside: 20 mm · Ball bearing closed: No

MBR plain bearing 15/17/21.75 Clutch basket "Racing" | Puch E50

Manufacturer: MBR · Material: special bearing bronze · Nominal diameter inside: 15 mm · Ø outside: 17 mm · Ø inside: 15 mm · Total height: 21.8 mm

NSK L17 shoulder ball bearing

Surface: blank / oiled · Bearing type: Shoulder bearing · Ø inside: 17 mm · Ø outside: 40 mm · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Bearing cage: Brass cage ball-guided · Width: 10 mm · Material: Brass · Material: Steel · Area of application: Standard · Stock number: L17 · Ball bearing closed: No

Clutch basket 22 teeth 3-plate version | Puch Z50

Material: Steel · Toothing type: helical toothed · Ø inside: 17 mm · Number of teeth: 22 pcs · Ø outside: 75 mm · Area of application: Standard · Height: 10 mm · Height: 20 mm

Clutch basket 19 teeth 3-plate version | Puch Z50

Material: Steel · Toothing type: helical toothed · Area of application: Standard

Cylinder base gasket, fan-cooled cyl.

Place of use: Cylinder base

GPO clutch trigger | Puch E50

Manufacturer: GPO · Material: Steel · Surface: blackened · Area of application: (Dis)assembly tool

swiing® revival clutch shaft Ø 14 mm | Puch E50

Manufacturer: swiing® revival parts · Ø outside: 13.95 mm · Area of application: Standard · Total length: 79.2 mm

Shim 17/24/0.5 Crankshaft L17 Bearing | Puch

Ø inside: 17.2 mm · Manufacturer: Puch · Material: Steel · Surface: blank / oiled · Nominal diameter inside: 17 mm · Ø outside: 23.8 mm · Thickness: 0.5 mm

Rubber kickstarter replica | Puch

Material: Rubber · Ø inside: 8.5 mm · Ø outside: 17.2 mm · Total length: 64 mm

Surflex pressure plate clutch | Puch E50

Manufacturer: Surflex · Material: Steel · Surface: galvanized (blue) · Ø outside: 94.5 mm · Ø outside: 100 mm · Area of application: Original

M10 sealing ring Fiber

Material: Fiber · Place of use: Carburetor · Place of use: Motor housing · Surface: raw · Thickness: 1.6 mm · Ø inside: 10 mm · Ø outside: 13.8 mm · Area of application: Standard · Pony OEM number: A1817 · Pony OEM number: A5650 · Puch OEM number: 27071 · Sachs OEM no.: 0250 042 001 · Sachs OEM no.: 0650 131 000

swiing alternator cover aluminum low | Puch X30 NS, NL

Manufacturer: swiing · Material: Aluminum · Number of fixing points: 2 pcs

Drawbar pin Z50 special 3-slat version | Puch X30 Sport

Manufacturer: Made in Austria · Material: Steel · Area of application: Standard

Puch inlet gasket 1.6 mm thick

Hole spacing inlet: 32 - 38 mm · Place of use: Admission · Thickness: 1.6 mm

O-ring decoupling shaft Z50 Ø 6 x 1.5 mm

Ø inside: 6 mm · Manufacturer: Puch · Ø outside: 9 mm · Cord thickness: 1.5 mm · Place of use: Uncoupling shaft

Oil seal NBR 22/40/7 AS crankshaft | E50

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Puch · Material: NBR · Surface: rubberized · Place of use: Crankshaft · Ø inside: 22 mm · Ø outside: 40 mm · Width: 7 mm · Temperature resistance (min.): -30 - 100 °C

swiing® revival spring basket 3-slat version | Puch Z50

Manufacturer: swiing® revival parts · Material: Aluminum · Surface: anodized · Color: red · Height: 28.5 mm · Ø outside: 62 mm · Ø inside: 24.3 mm · Area of application: Standard

M6 sealing ring Fiber

Ø inside: 6.4 mm · Material: Fiber · Surface: raw · Area of application: Standard · Thickness: 1 mm · Ø outside: 11.8 mm · Place of use: Carburetor · Place of use: Motor housing · Puch OEM number: 24365

swiing® revival tension spring for clutch pressure plate | Puch

Manufacturer: swiing® revival parts · Material: Spring steel · Ø outside: 104 mm · Ø inside: 100 mm · Place of use: Clutch cover · Thickness: 2 mm · Area of application: Original

GPO screw set for engine mounting, galvanized | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Number of components: 12 pcs · Color: silver · Screw head: Hexagon · Thread type: M8x1.25 (standard thread) · Thread length: 23.5 mm · Drive: External hexagon · Shank: Yes · Width across flats SW: 13 mm · Storage method: Sack · Dimension storage box: 100 x 90 x 10 · Strength class: 8.8 · Area of application: Standard

Ignition cover Standard | Puch

Material: Steel · Surface: chrome-plated · Color: Chrome · Height: 48 mm · Ø outside: 130 mm · Ø inside: 125 mm · Number of fixing points: 2 pcs

swiing® revival thrust washer 12.5/18/2.5 gearbox | Puch Z50

Ø inside: 12.5 mm · Manufacturer: swiing® revival parts · Ø outside: 18 mm · Material: Steel · Surface: hardened & ground · Thickness: 2.5 mm

Surflex clutch 1st gear | Puch ZA50

Ø inside: 14 mm · Ø inside: 17 mm · Manufacturer: Surflex · Material: Composite materials · Material: Steel · Recording type: Interlocking · Number of jaws: 3 pcs · Number of springs: 3 pcs · Ø outside: 83.5 mm · Thickness: 12 mm · Area of application: Original · Area of application: Standard

swiing® revival plain bearing clutch basket | Puch Z50

Manufacturer: swiing® revival parts · Material: special bearing bronze · Nominal diameter inside: 15 mm · Ø outside: 17 mm · Ø inside: 15 mm · Total height: 16.2 mm

66HEROES Centering screw M22x1.5 Inox | Puch Z50

Manufacturer: 66HEROES · Material: Chrome steel (known as Nirosta®) · Surface: polished · Thread type: MF22x1.5 (fine pitch thread) · Width across flats SW: 27 mm · Drive: External hexagon · Puch OEM number: 329.1.12.133.1

66HEROES Centering screw M22x1 Inox | Puch Z50

Manufacturer: 66HEROES · Material: Chrome steel (known as Nirosta®) · Surface: polished · Thread type: MF22x1 (fine pitch thread) · Width across flats SW: 27 mm · Drive: External hexagon · Puch OEM number: 050.1.1233

Thrust washer 23/28/5 clutch NOS | Puch ZA50

Manufacturer: Puch · Material: Steel · Surface: hardened & ground · Thickness: 5 mm · Ø outside: 28 mm · Ø inside: 23 mm

Cylinder base gasket, fan-cooled cylinder (1 mm)

Place of use: Cylinder base

Engaging plate compl. Occ. | Puch ZA50

Manufacturer: Puch · Material: Plastic · Area of application: Original

Chain 26 links 3/8x5/32" Pedal start mechanism | Sachs / Kickstarter | Puch

Chain pitch: 3/8 x 5/32" · Material: Metal · Number of chain links: 26 pcs · Puch OEM number: 329.1.13.030.0 · Sachs OEM no.: 0297 006 000

Clutch basket 18 teeth | Puch Z50

Area of application: Standard · Material: Steel · Toothing type: helical toothed · Number of teeth: 18 pcs

Clutch hub 3-plate version NOS | Puch Z50

Area of application: Original · Toothing type: straight toothed · Recording type: Interlocking

Clutch lever | Puch E50

Area of application: Standard

Kickstart lever chrome | Puch

Material: Metal · Surface: chrome-plated · Ø inside: 15.9 mm · Total length: 200 mm

swiing® revival spring cage | Puch ZA50

Manufacturer: swiing® revival parts · Surface: anodized · Ø inside: 45 mm · Ø outside: 61.3 mm · Material: Aluminum · Number of teeth: 7 pcs · Height: 8 mm · Puch OEM number: 21.1.13.652.1

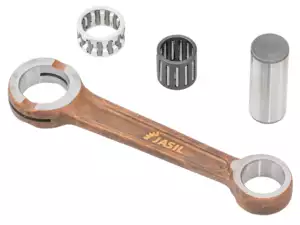

Jasil connecting rod | Puch

Manufacturer: Jasil · Thickness: 10 mm · Area of application: Standard · Material: Steel · Area of application: Tuning · Surface: copper-coated · Ø piston pin (B): 12 mm · Connecting rod length center-center: 90 mm · Ø Connecting rod bolt: 14 mm · Ø lower connecting rod eye outside: 24.6 mm · Ø upper connecting rod eye outside: 20.9 mm · Ø lower bearing inside: 18 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 14/15 x 9.75 mm · Dimension upper bearing: 12/15 x 14.7 mm · Connecting rod pin length: 34 mm · Total length: 114.5 mm

Oil seal NBR 25/35/7 A Transmission shaft | Puch ZA50

Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Puch · Temperature resistance (min.): -30 - 100 °C · Ø inside: 25 mm · Ø outside: 35 mm · Width: 7 mm · Material: NBR · Surface: rubberized

Jammer racing clutch special 65 ccm and more | Puch E50

Manufacturer: Jammer · Material: Steel · Material addition: Steel · Ø outside: 92.5 mm · Number of jaws: 3 pcs · Recording type: Cone mounting · Number of springs: 3 pcs · Thickness: 19 mm · Area of application: High End · Area of application: MX · Area of application: Racing · Area of application: Tuning

swiing® revival clutch spring 2-disc version | Puch Z50

Spring design: Pressure spring · Ø wire: 4 mm · Ø inside: 30.5 mm · Manufacturer: swiing® revival parts · Ø outside: 39 mm · Total length: 19.5 mm · Color: gray · Material: Spring steel · Surface: raw · Number of components: 1 pcs · Area of application: Original · Area of application: Standard
