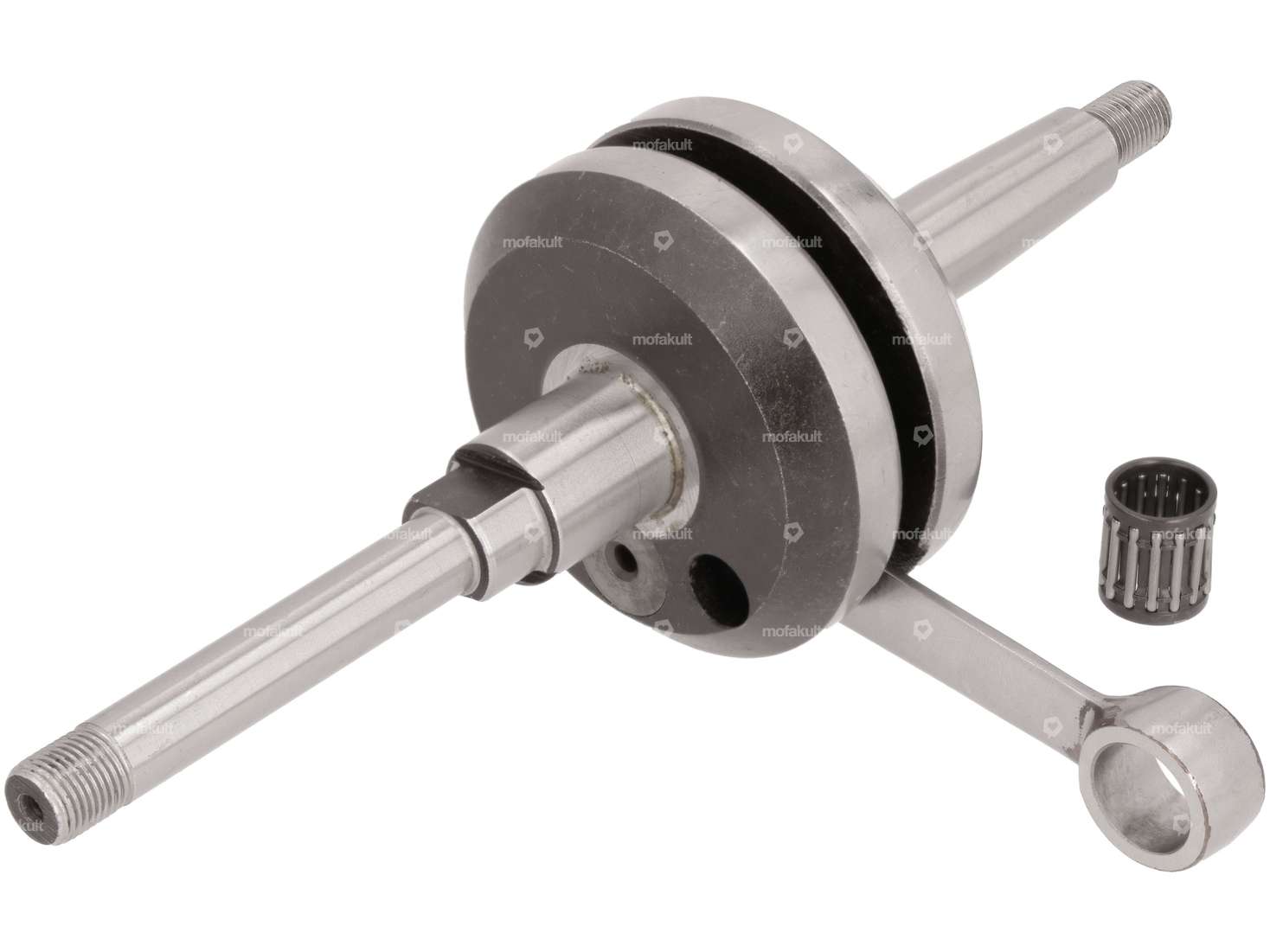

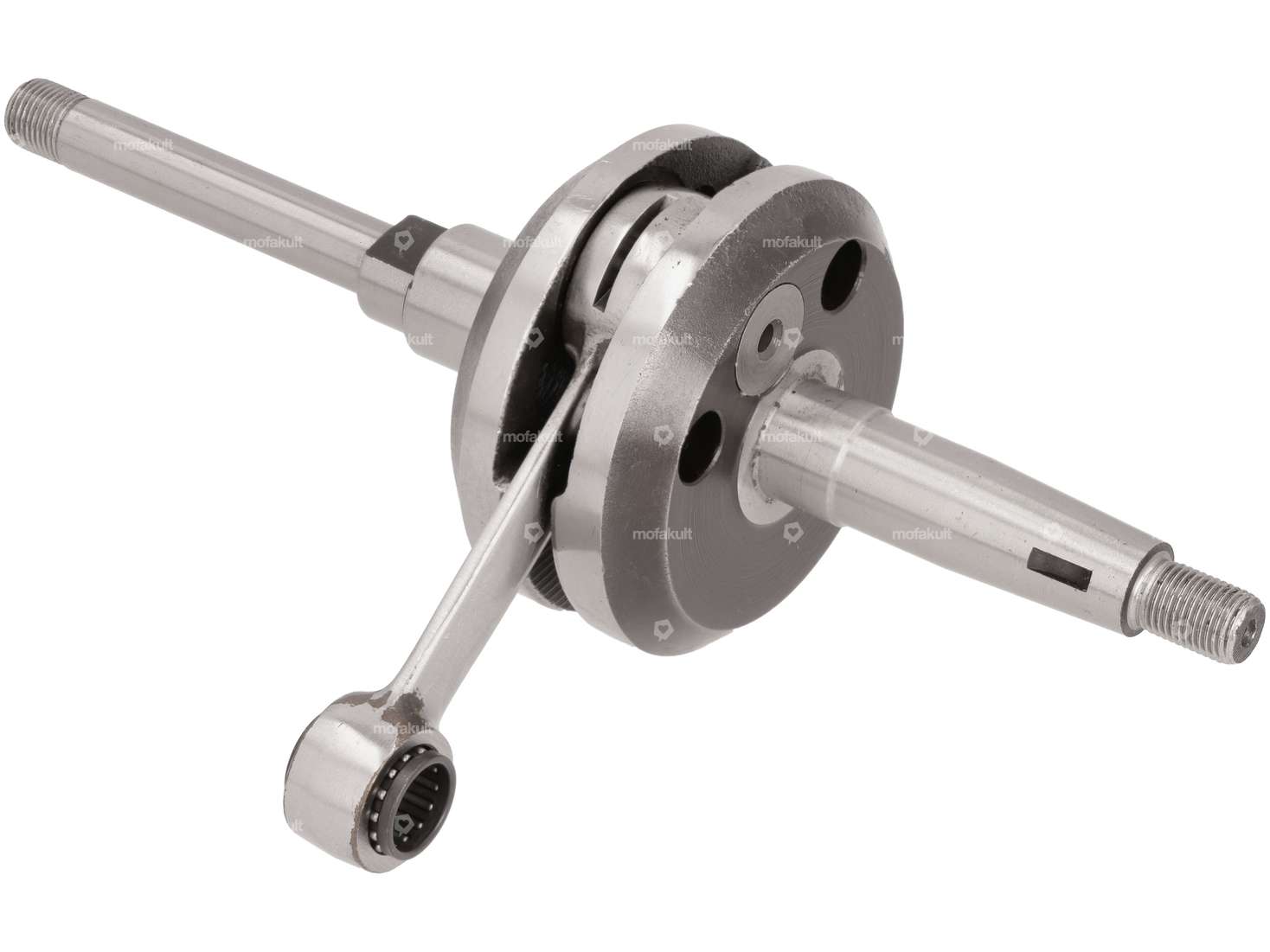

Racing crankshaft for Peugeot 103 SP, MV, MVL, LM, VOGUE and 104 mopeds / mopeds with interrupter ignition.
In addition to additional balancing holes, the connecting rod has been polished and the lower connecting rod eye and cheeks have been reinforced compared to the standard shaft. The workmanship is okay, but won't knock anyone off their feet in terms of quality.
The needle bearing is included in the scope of delivery.
Details
| Weight | 996 g |
| Manufacturer | Mazzucchelli |
| Material | Steel |
| Area of application | Racing, Tuning |
| Cheek type | Full cheeks |
| Crankshaft stroke | 39 mm |
| Ø piston pin (B) | 12 mm |
| Connecting rod length center-center | 76 mm |
| Thread type | MF10x1 (fine pitch thread), MF11x1 (fine pitch thread) |
| Total length of crankpin on clutch side | 100 mm |
| Number of gears | 1 pcs |
| Total length crankpin ignition side | 72 mm |
| Ø crank webs | 68.7 mm |
| Thread length | 11 mm, 14 mm |
| Ø Connecting rod eye | 14 mm |
| Ø Bearing seat (clutch side) | 20 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Dimension needle bearing | 12 / 15 x 12.5 mm (axe 12) |
| Wide crank webs | 36 mm |
| Length 1st paragraph | 22 mm |
| Length 2nd paragraph | 9.5 mm |
| Length 3rd paragraph | 56.5 mm |
| Ø 1st step (on the coupling side) | 20 mm |
| Ø 2nd shoulder (on the clutch side) | 15.9 mm |
| Ø 3rd step (on the clutch side) | 10.9 mm |
| Length of shoulder (ignition side) | 12 mm |
Suitable for the following models
| Peugeot |
Accessories & related products

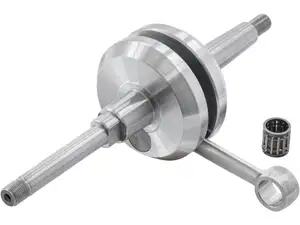

Airsal crankshaft 1 BAL WH | Peugeot 103
Manufacturer: Airsal · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 39 mm · Connecting rod length center-center: 76 mm · Total length of crankpin on clutch side: 100 mm · Total length crankpin ignition side: 72.3 mm · Ø crank webs: 68.5 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 20 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread type: MF11x1 (fine pitch thread) · Thread length: 10 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 15.6 mm (axe 12) · Wide crank webs: 36 mm · Length 1st paragraph: 22 mm · Length 2nd paragraph: 9 mm · Length 3rd paragraph: 57 mm · Ø 1st step (on the coupling side): 20 mm · Ø 2nd shoulder (on the clutch side): 15.9 mm · Ø 3rd step (on the clutch side): 10.9 mm · Length of shoulder (ignition side): 12 mm · Weight: 995 g · Number of gears: 1 pcs · Area of application: Standard
EUR 63.90

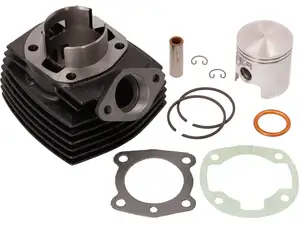

Polini 46 mm cylinder kit cast iron | Peugeot 103, 104, 105, GL 10
Manufacturer: Polini · Material: Gray cast iron · Crankshaft stroke: 39 mm · Displacement: 65 ccm · Ø piston pin (B): 12 mm · Nominal diameter: 46 mm · Ø cylinder neck: 49.9 mm · Number of fixing points: 4 pcs · Ø outlet inside: 23.5 mm · Area of application: Tuning · Hole spacing outlet: 50 mm · Hole pattern [mm]: 46 x 50
EUR 221.10

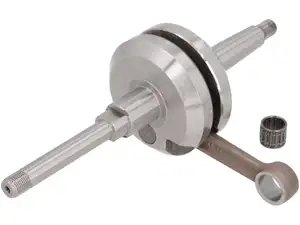

Mazzucchelli crankshaft "Standard" (breaker ignition) | Peugeot 103, 104
