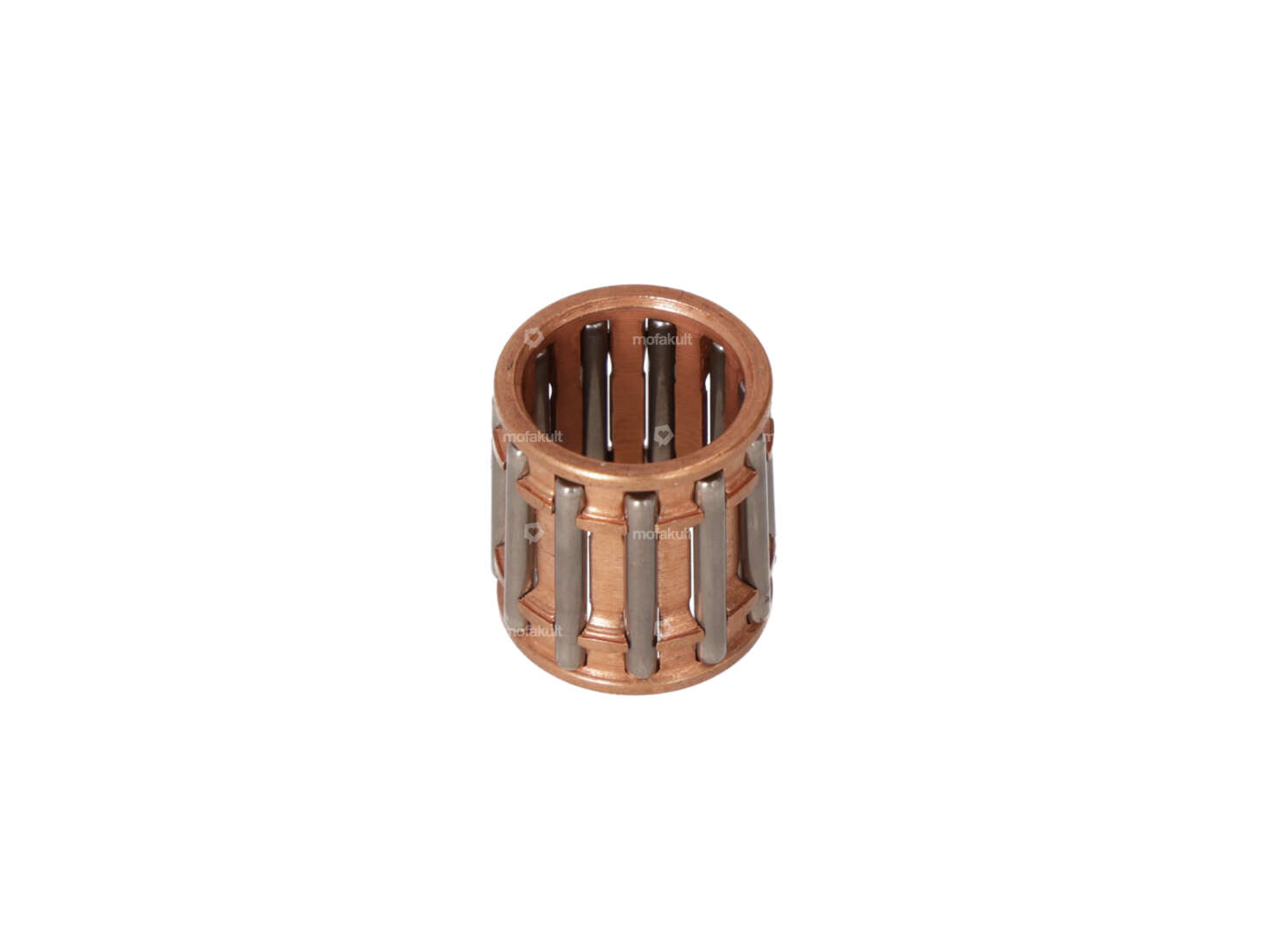

Piston pin bearing for various Piaggio mopeds / mopeds, with crankshafts without sliding bushes, a 10 mm piston pin (axe 10) and a 13 mm connecting rod eye.
Ø inner: 10 mm
Ø outer: 13 mm
Width: 14.5 mm
Attention: For crankshafts with a pressed-in connecting rod eye, a needle roller and cage assembly cannot be used retroactively.
You can find other needle bearings or piston pin retainers in the accessories section.
Quality product from the Italian manufacturer Mazzucchelli.
| Bearing type | Needle roller and cage assembly |
| Dimension needle bearing | 10/13 x 14.5 |
| Width | 14.5 mm |
| Manufacturer | Mazzucchelli |
| Ø outside | 13 mm |
| Ø inside | 10 mm |
| Universal | |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
GPO piston 38.4 mm (10 mm KoBo) oversize | Piaggio Ciao, SI, Bravo, Boxer
Nominal diameter: 38 mm · Manufacturer: GPO · Ø outside piston (A): 38.35 mm · Compression height (C): 26 mm · Curvature (D): 3.7 mm · Total piston height (E): 51.7 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 10 mm · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Piston weight: 75 g
EUR 35.30
Jasil crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Material: Steel · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Manufacturer: Jasil · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Area of application: Racing · Total length crankpin ignition side: 91.5 mm · Total length crankpin ignition side: 105 mm · Ø crank webs: 69.8 mm · Ø piston pin (B): 10 mm · Thread type: M8x1.25 (standard thread) · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 13.5 mm · Wide crank webs: 32.9 mm · Length 1st paragraph: 21.5 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 64.9 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Weight: 716 g · Number of gears: 1 pcs
EUR 153.60
Malossi 43 mm cylinder kit 10 mm KoBo new version | Piaggio Ciao, SI, Bravo, Boxer
Material: Gray cast iron · Manufacturer: Malossi · Surface: sandblasted · Nominal diameter: 43 mm · Camouflaged: No · Crankshaft stroke: 43 mm · Displacement: 63 ccm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.5 mm · Ø piston pin (B): 10 mm · Area of application: Tuning · Ø outlet inside: 18.3 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Hole pattern [mm]: 55 x 34 · Decompressor: Yes
EUR 171.30

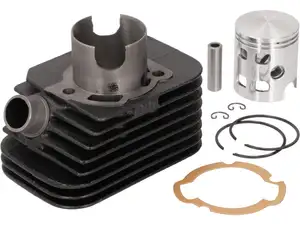

Athena 43 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
