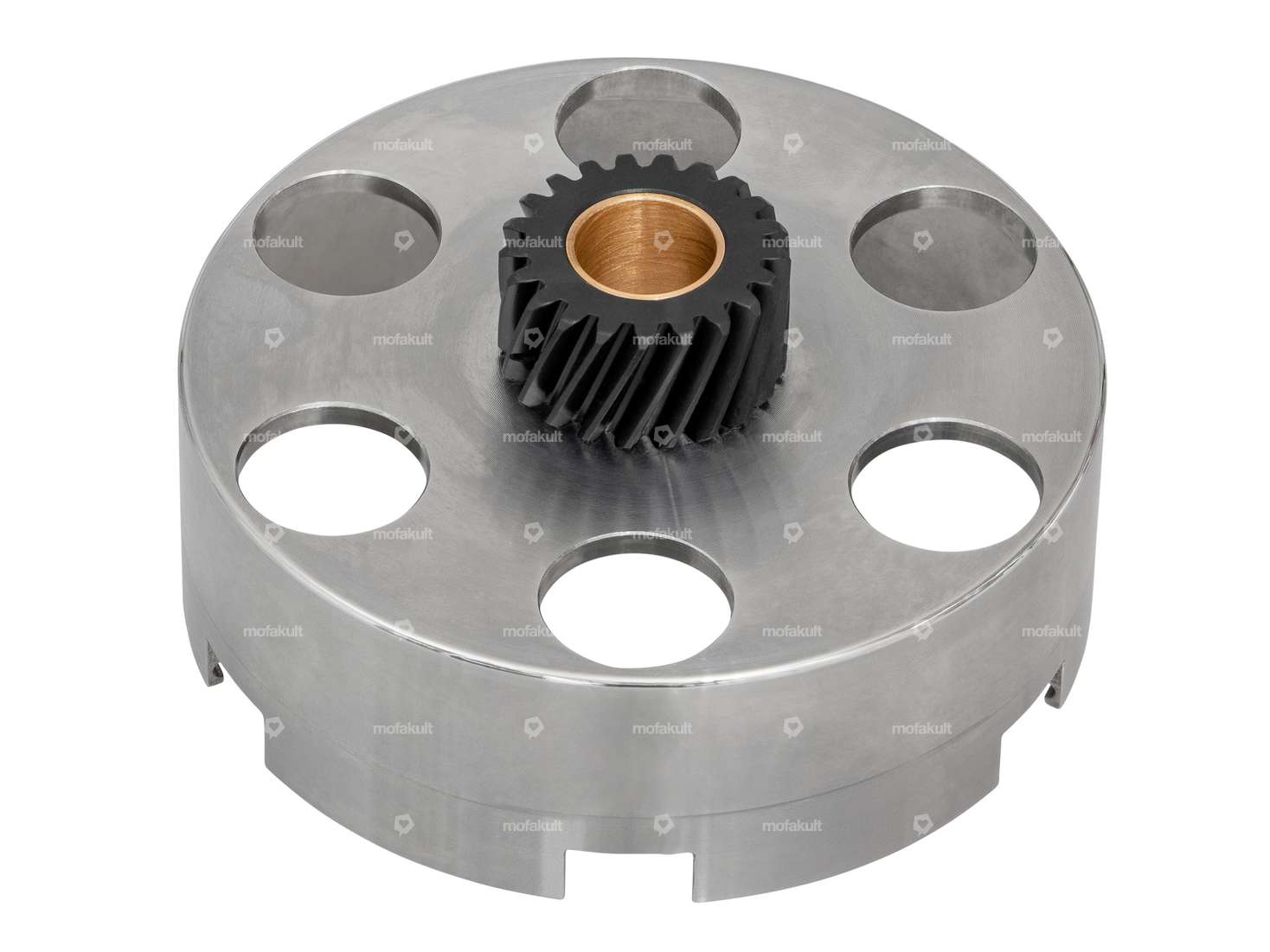

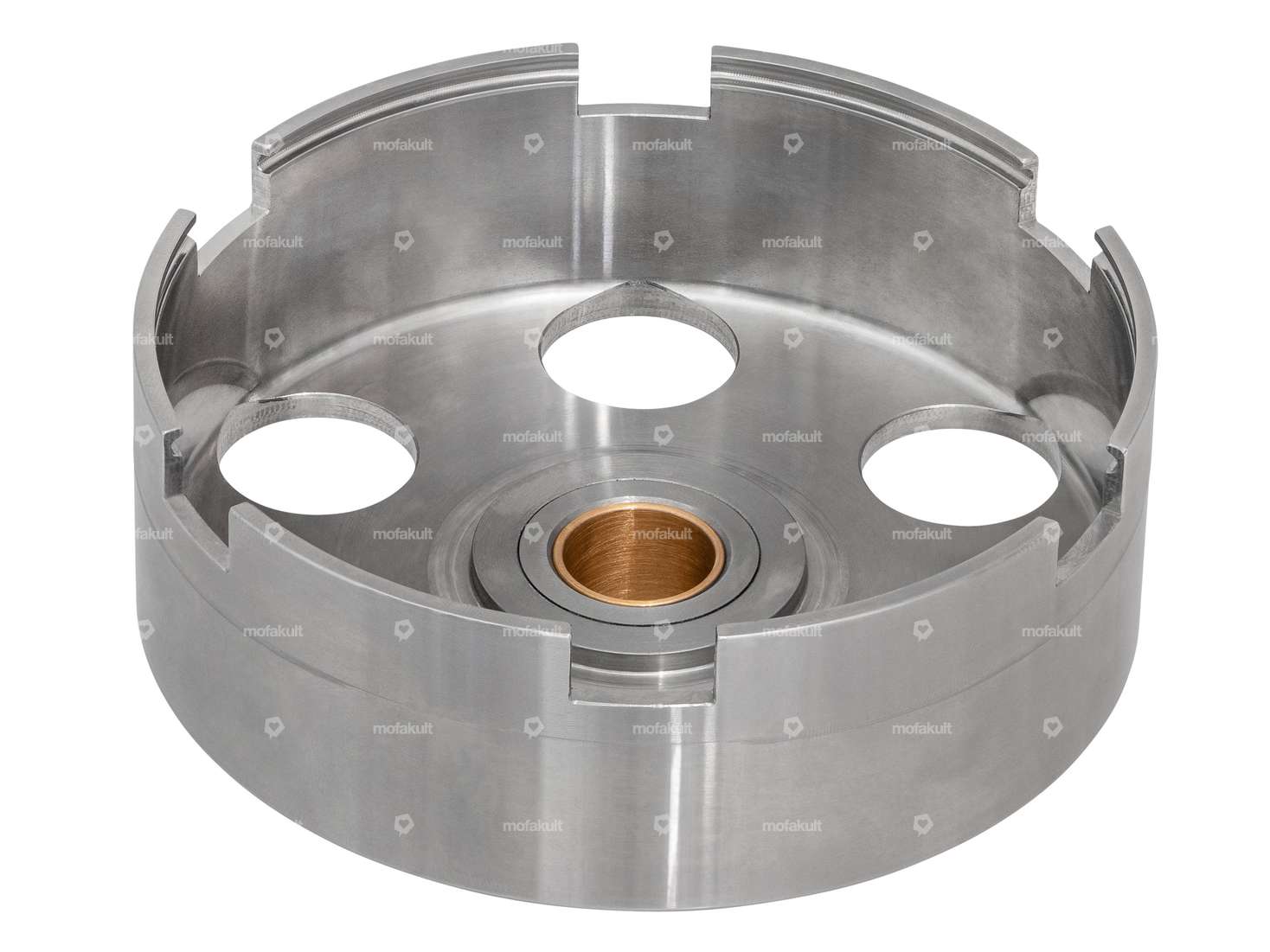

Reinforced, CNC-milled clutch bell for racing purposes. Designed for the highest loads.
Fits E50 engines of all Puch Maxi mopeds.
The original clutch and starter clutch can be used with this basket.
Reinforced press fit. No more welding points necessary.
21 teeth, helically toothed.
The special sliding bushes are included in the scope of delivery.
Details
| Manufacturer | MBR |
| Material | Steel |
| Color | silver |
| Toothing type | helical toothed |
| Recording type | Interlocking |
| Number of teeth | 21 pcs |
| Ø inside | 17 mm, 15 mm |
| Ø outside | 99.5 mm |
| Ø Receptacle | 31 mm |
| Height | 49.2 mm |
| Area of application | Tuning |
Suitable for the following models
| Puch | E50 |
