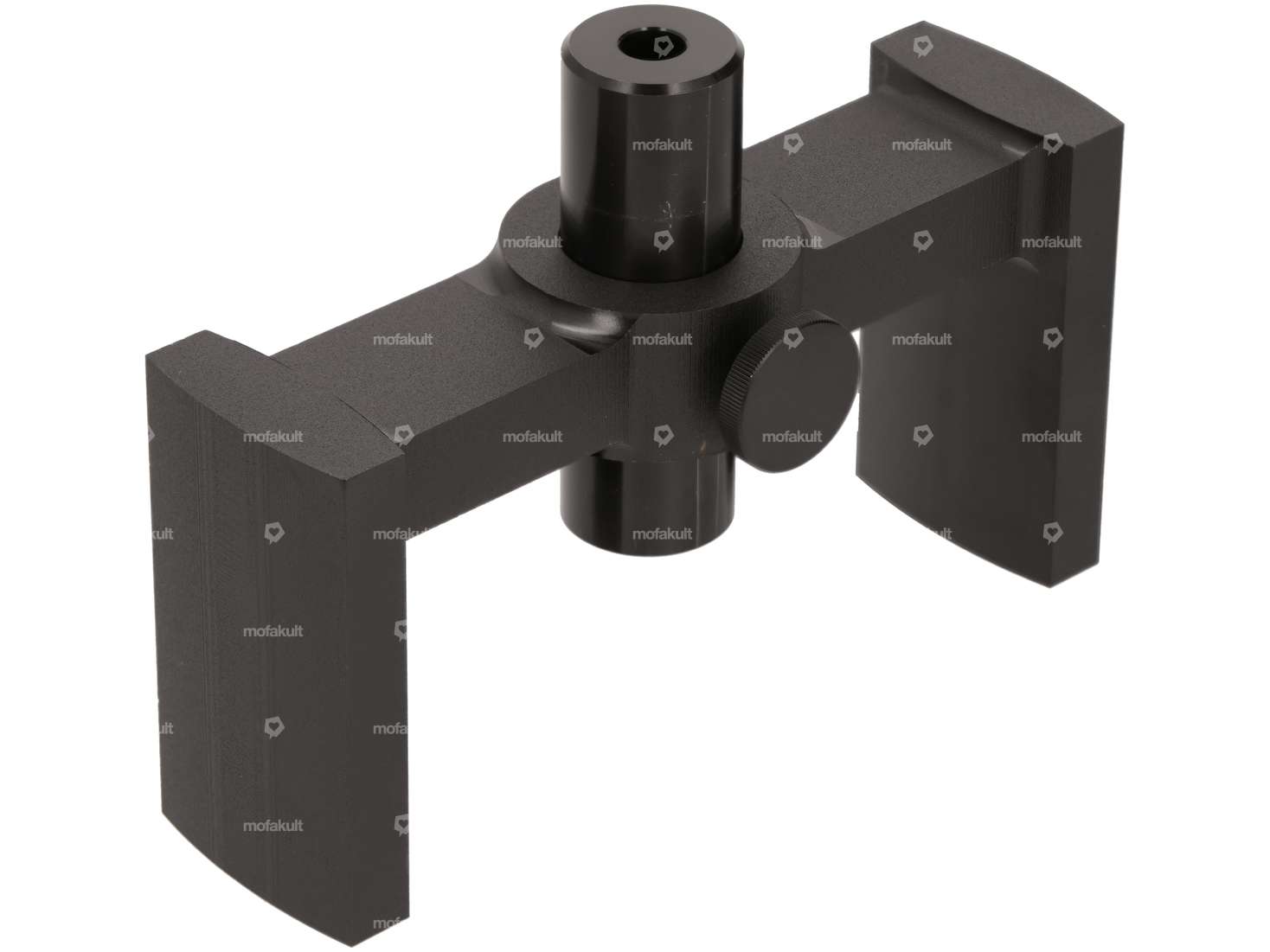

Measuring bridge gearbox | Puch ZA50

swiing® ingenious tool Ignition adjustment analog M14x1.25

Number of components: 4 pcs · Manufacturer: swiing® ingenious parts · Material: Steel · Area of application: Measuring tool · Thread type: MF14x1.25 (fine pitch thread) · Puch OEM number: 905.6.32.101.0

Repair instructions | Puch Maxi, X30

Material: Paper · DIN format: A4 · Number of pages: 165 pcs · Language: French · Language: German

Oil seal NBR 25/35/7 A Transmission shaft | Puch ZA50

Temperature resistance (min.): -30 - 100 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 25 mm · Ø outside: 35 mm · Manufacturer: Puch · Material: NBR · Surface: rubberized · Width: 7 mm

Gearbox shaft NOS | ZA50

Manufacturer: Puch · Material: Steel · Toothing type: helical toothed · Recording type: Interlocking · Number of teeth: 31 pcs · Puch OEM number: 321.1.13.620.2

Repair instructions | Puch X30 2-speed automatic (ZA50)

Material: Paper · DIN format: A4 · Number of pages: 48 pcs · Language: German

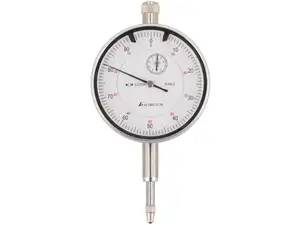

Analog dial gauge (professional tool)

Diameter: 58.3 mm · Total length: 110 mm · Measuring range [mm]: 0 - 10 mm · Reading accuracy [mm]: 0.01 mm · Calibration: C1 · Ø Measuring sphere: 2.3 mm · Ø Clamping shaft: 8 mm · Area of application: Measuring tool · Material: Metal · Material: Plastic · Number of components: 1 pcs

Digital dial gauge (professional tool)

Material: Metal · Measuring range [mm]: 0 - 12.5 mm · Reading accuracy [mm]: 0.01 mm · Calibration: C1 · Ø Clamping shaft: 8 mm · Area of application: Measuring tool

swiing® revival engine revision set ZA50 | Puch Maxi S - 2A

Manufacturer: swiing® revival parts · Number of components: 20 pcs · Area of application: Standard

Measuring bridge crankshaft | Puch ZA50

Area of application: Measuring tool

swiing® revival upright spring blue galvanized | Puch

Spring design: Tension spring · Ø inside: 9 mm · Ø outside: 14 mm · Length spring hook: 19 mm · Length spring hook: 53 mm · Ø wire: 2.5 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: galvanized (blue) · Total length: 122 mm

swiing® revival stud bolt inlet/outlet M6 x 30 mm (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Total length: 30 mm · Thread length: 12 mm · Strength class: 10.9 · Thread type: M6x1 (standard thread)

Woodruff key 3 x 3.7 mm

Material: Steel · Width: 3 mm · Total length: 9.15 mm · Height: 3.7 mm

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Total length: 6 mm · Manufacturer: Magura · Material: Brass · Material: Steel · Surface: nickel-plated · Thread type: M4x0.7 (standard thread) · Drive: Slot · Number of components: 2 pcs · Thread length: 4 mm · Ø Cable bushing: 1.6 mm · Screw head: Lens head · Ø outside: 5 mm

swiing® revival gearbox cover gasket | Puch Maxi S LG2 ZA50 engine

Number of components: 1 pcs · Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Width: 133 mm · Total length: 175 mm · Thickness: 0.3 mm · Number of fixing points: 6 pcs

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents [ml]: 450 ml · Area of application: Gearbox lubrication with clutch · Gearbox type: Automatic machine · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Metrakit gasket set 43.5 mm

Number of components: 5 pcs · Manufacturer: Metracite · Area of application: Tuning · Ø cylinder: 43.5 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm

swiing® revival gearbox cover gasket ZA50 engine | Puch Maxi S -2A, X30 NG - 2AH

Width: 125 mm · Total length: 175 mm · Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Number of components: 1 pcs · Number of fixing points: 6 pcs · Thickness: 0.3 mm · Puch OEM number: 321.1.10.649.1

Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C

Manufacturer: Elring · Material: Silicone · Temperature resistance (min.): -60 - 315 °C · Area of application: Chemistry · Contents [ml]: 70 ml · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Color: gray · Gap dimension (max.): 2 mm

swiing® ingenious crankshaft oil seal assembly aid | Puch ZA50

Material: Aluminum · Surface: anodized · Manufacturer: swiing® ingenious parts · Height: 15 mm · Area of application: Special tool · Number of components: 1 pcs · Ø inside: 19 mm · Ø outside: 20 mm
