logo_meteor-piston-mk

For: Zündapp

28155

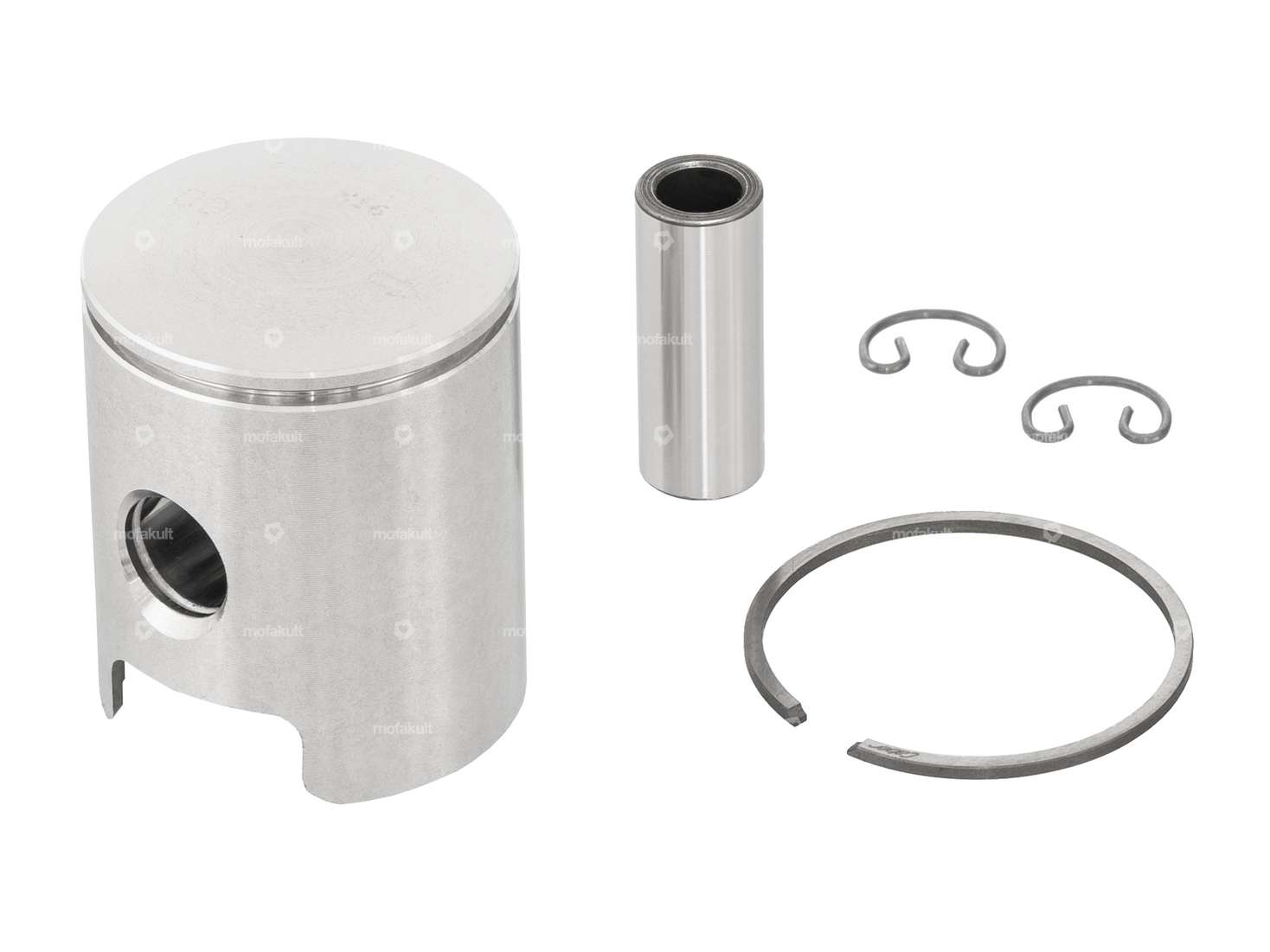

Meteor piston 38.95 mm #CD | Zündapp ZR, ZD, ZA

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 71.10

Incl. 21% VAT.

Description

39.0 mm piston with a 1.5 mm rectangular piston ring with flank lock (FS) for Zündapp ZR25 / ZR50 mopeds / mopeds with a type 250 engine.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerMeteor
Ø outside piston (A)38.95 mm
Compression height (C)23 mm
Curvature (D)1.5 mm
Total piston height (E)48 mm
Number of piston rings (F)1 pcs
Nominal diameter39 mm
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Tolerance groupCD
Weight piston kit75 g
Zündapp

ZR 10 / ZR 20 / ZR 22 / ZR 30 / ZB 22 (type 250-447)

ZD 10 / ZD 30 (type 250-466)

ZA 25 / ZA 40 (type 250-460)
