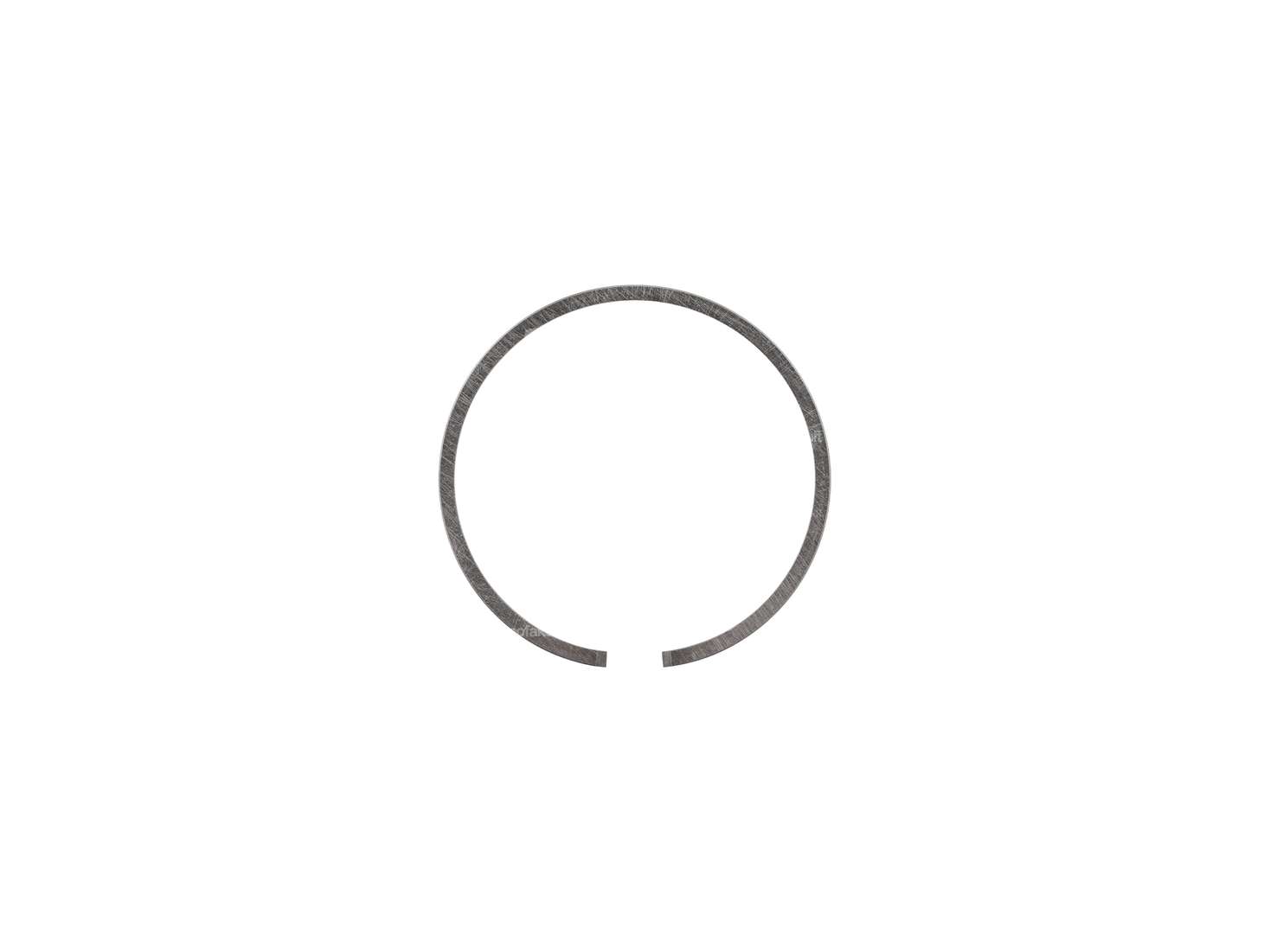

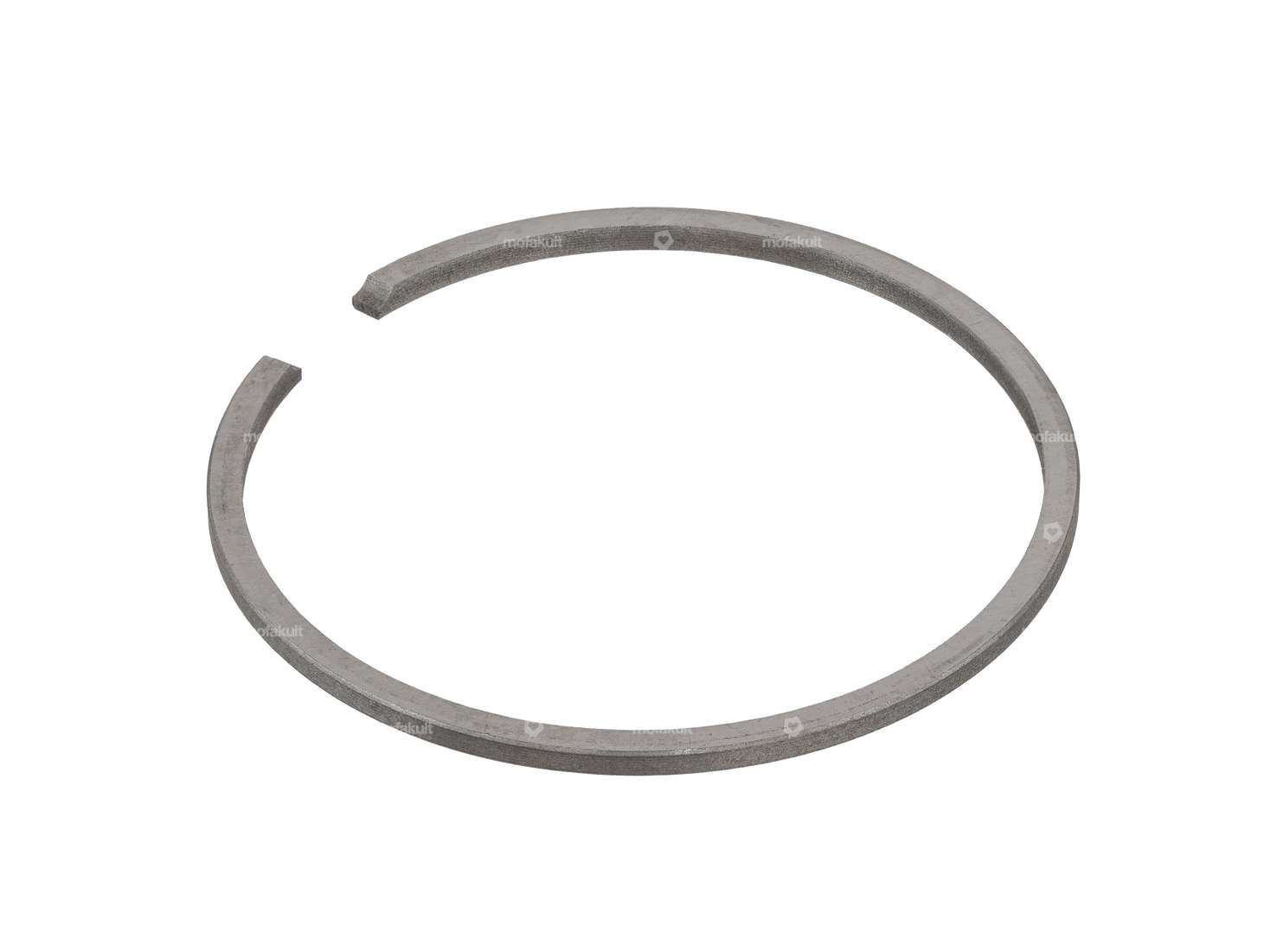

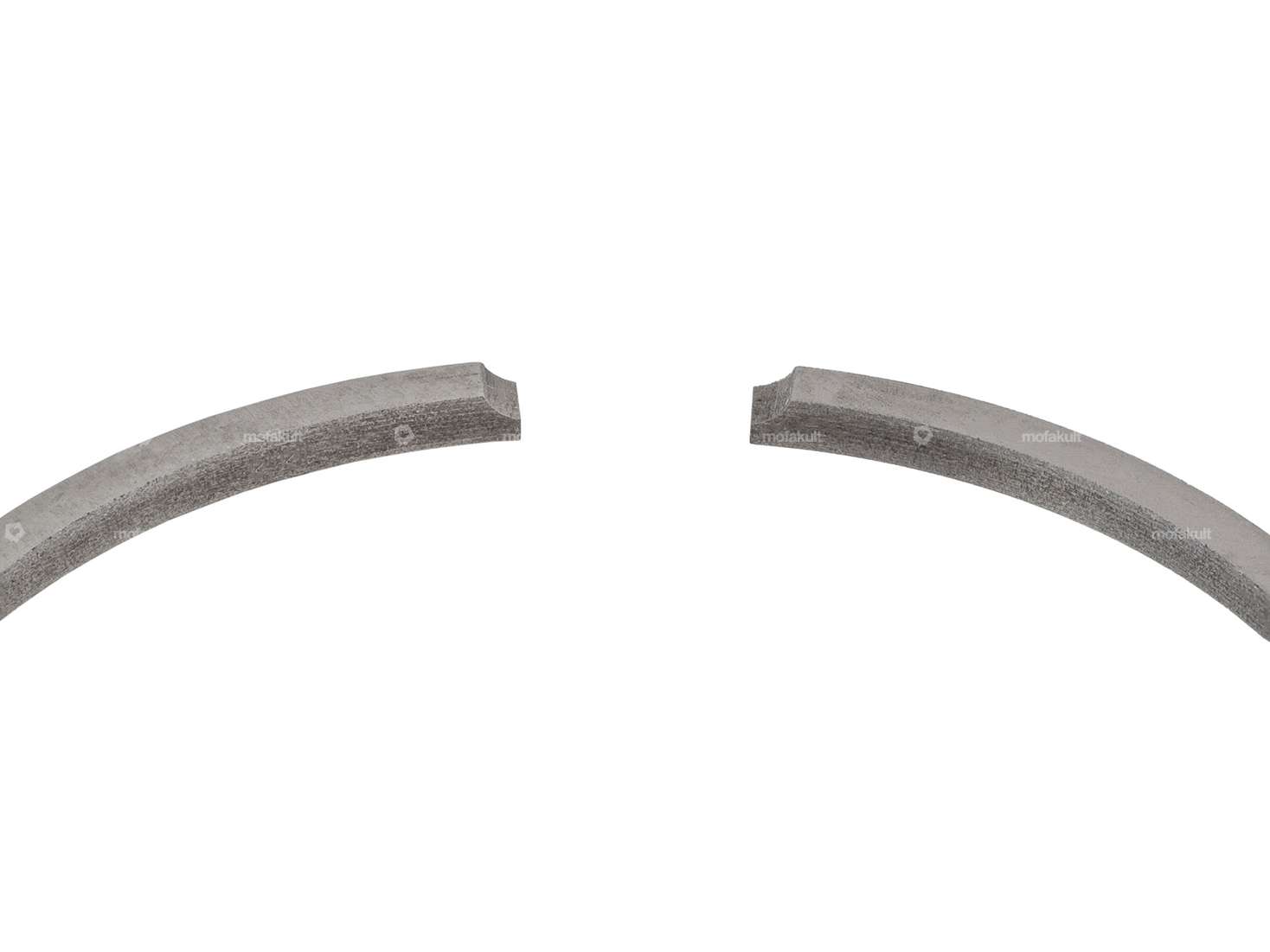

Meteor piston ring 38 x 1.5 mm (FS) | Puch Supermaxi LG1, LG2 Cat.

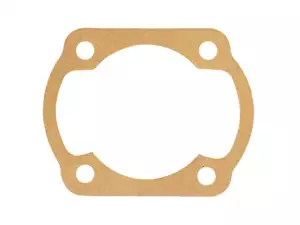

swiing® revival gasket cylinder base | Puch Kat

Place of use: Cylinder base · Manufacturer: swiing® revival parts · Material: Sealing paper · Thickness: 0.6 mm

swiing® revival stud bolts M6 x 106 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Total length: 106 mm · Thread length: 12 mm · Thread length: 20 mm · Puch OEM number: 360.1.10.034.1

Meteor piston 38 mm #1 | Puch Supermaxi Cat.

Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.955 mm · Compression height (C): 24 mm · Curvature (D): 2.3 mm · Total piston height (E): 55.3 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: 1 · Weight piston kit: 78 g

Meteor piston 38 mm #2 | Puch Supermaxi Cat.

Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.96 mm · Compression height (C): 24 mm · Curvature (D): 2.3 mm · Total piston height (E): 55.3 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: 2 · Weight piston kit: 78 g

Gasket cylinder head 38 mm | Puch Supermaxi

Thickness: 0.8 mm · Manufacturer: Puch · Material: Aluminum · Ø cylinder: 38 mm · Place of use: Cylinder head · Ø screw holder: 6.5 mm

Meteor piston 38 mm #3 | Puch Supermaxi Cat.

Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.965 mm · Compression height (C): 24 mm · Curvature (D): 2.3 mm · Total piston height (E): 55.3 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: 3 · Weight piston kit: 78 g

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

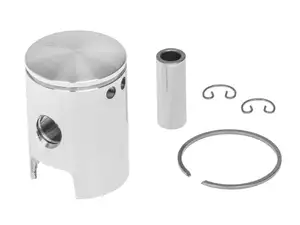

Meteor piston 38 mm type 4 | Puch Supermaxi Cat.

Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.97 mm · Compression height (C): 24 mm · Curvature (D): 2.3 mm · Total piston height (E): 55.3 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: 4 · Weight piston kit: 78 g

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Dimension needle bearing: 12/15 x 14.2 · Manufacturer: swiing® ingenious parts · Ø inside: 12 mm · Ø outside: 15 mm · Width: 14.2 mm · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

GPO control bearing set M26x1 | Puch

Bearing type: Bearing ring · Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Thread type: MF26x1 (fine pitch thread) · Ø inside: 26.8 mm · Color: silver · Ø outside: 41 mm · Ø mounting frame: 31 mm

swiing® revival gasket cylinder base | Puch Kat

Place of use: Cylinder base · Manufacturer: swiing® revival parts · Material: Sealing paper · Thickness: 0.6 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival stud bolt set M6 x 106 | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Diameter: 5.9 mm · Nominal diameter (thread): 6 mm · Drive: External hexagon · Total length: 106 mm · Thread length: 13 mm · Thread length: 18.5 mm · Width across flats: 10 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

Meteor piston ring 38 x 1.5 (FS)

Nominal diameter: 38 mm · Manufacturer: Meteor · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Height: 1.5 mm · Thick piston ring: 1.6 mm

Outlet gasket 18 - 22 mm metal ring

Manufacturer: GPO · Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Ø inside: 22 mm · Thickness: 2 mm · Ø mounting hole: 6.7 mm · Number of fixing points: 2 pcs · Hole spacing: 38 - 42.5 mm

GPO 38 mm gasket cylinder head 0.2 mm | Puch

Place of use: Cylinder head · Manufacturer: GPO · Material: Aluminum · Ø cylinder: 38 mm · Thickness: 0.2 mm · Ø screw holder: 7 mm · Area of application: Original · Area of application: Standard · Alternative version of the Puch OEM number: 349.1.10.004.1

swiing® revival gasket set cylinder | Puch Supermaxi LG1, LG2 (Cat)

Number of components: 4 pcs · Manufacturer: swiing® revival parts · Area of application: Standard · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Ø cylinder: 38 mm · Ø outlet inside: 22 mm · Hole pattern [mm]: 44 x 44 mm · Hole spacing outlet: 42 - 44 mm · Decompressor: No · Hole spacing inlet: 32 - 38 mm
