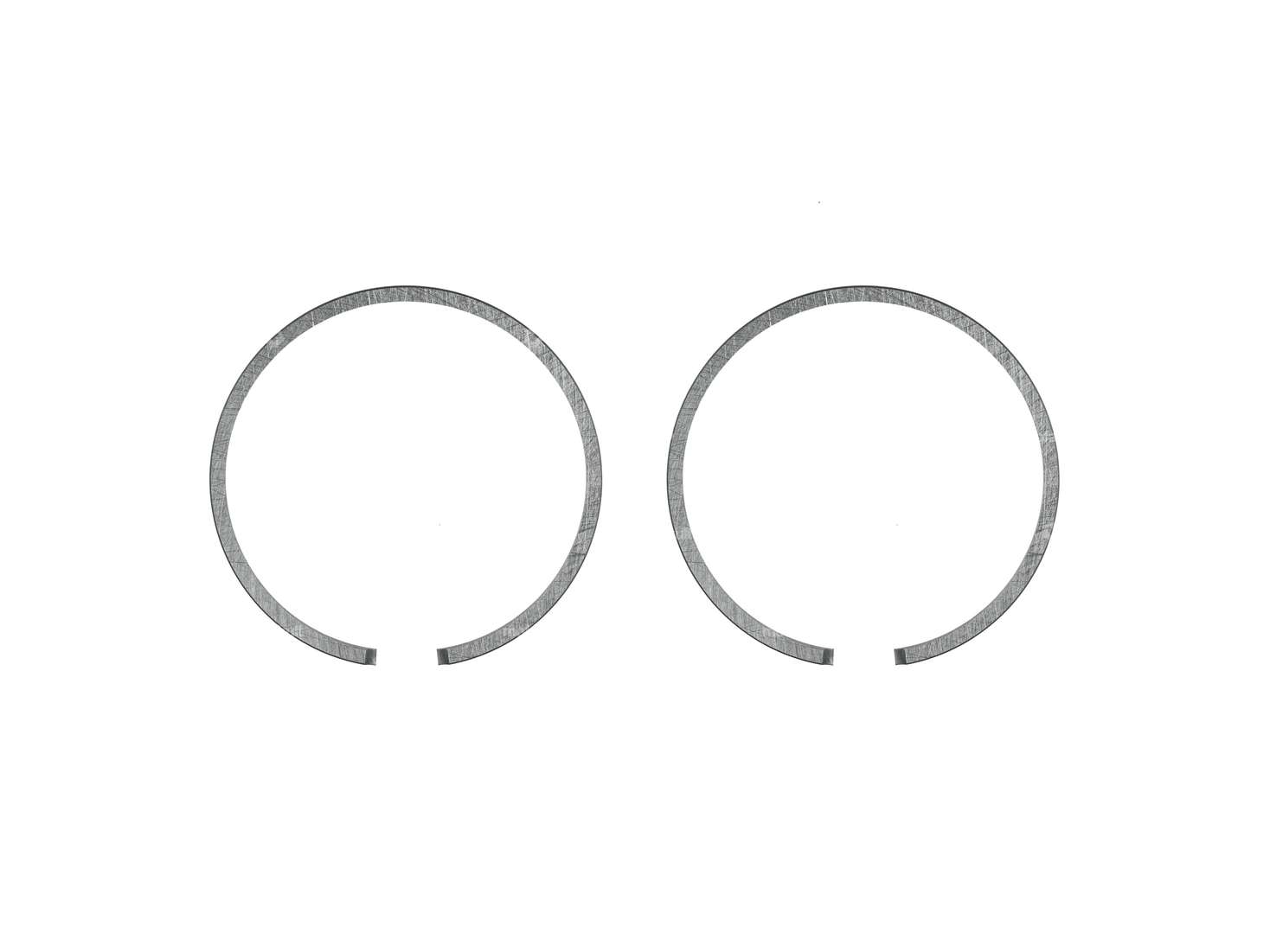

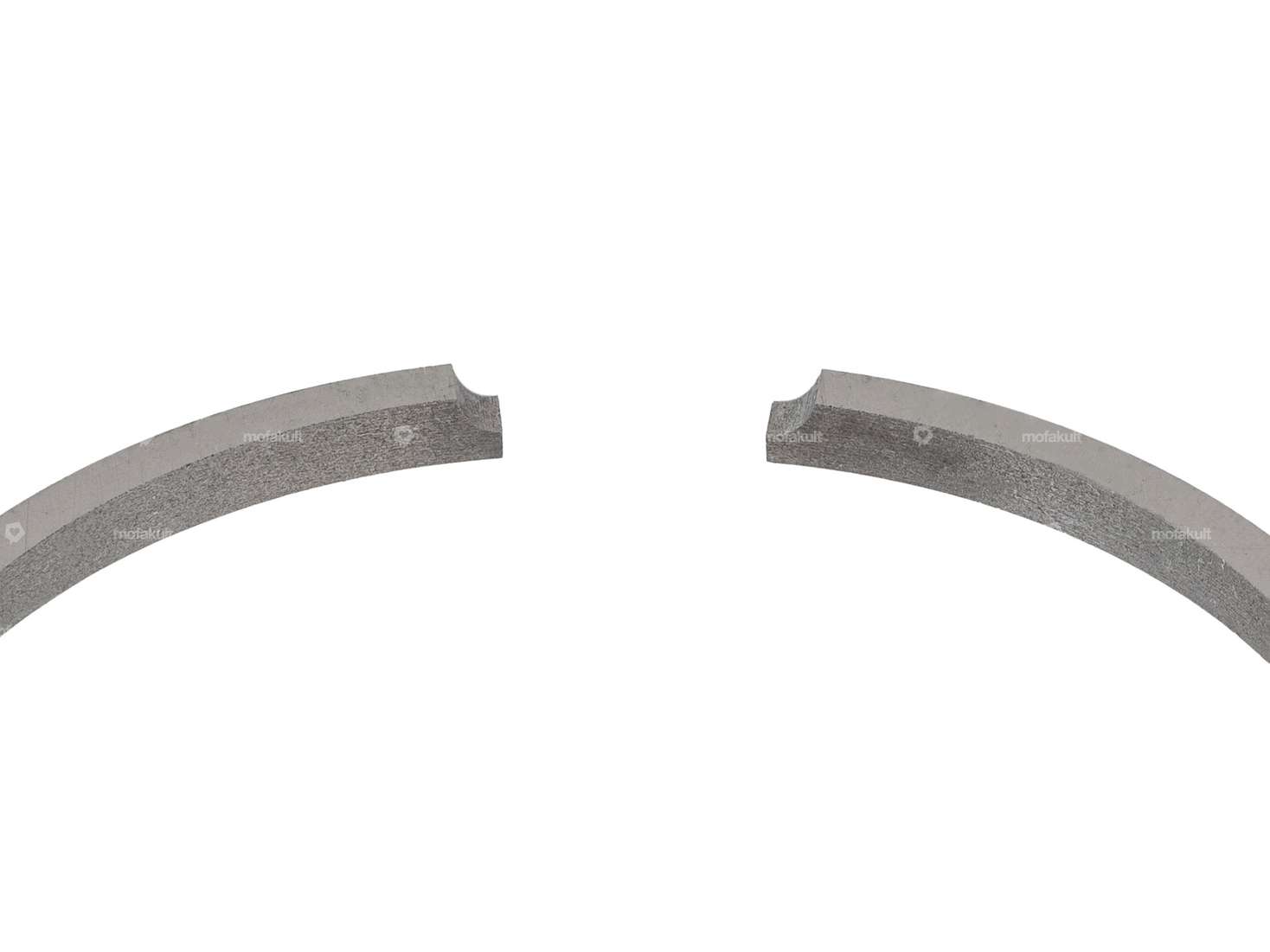

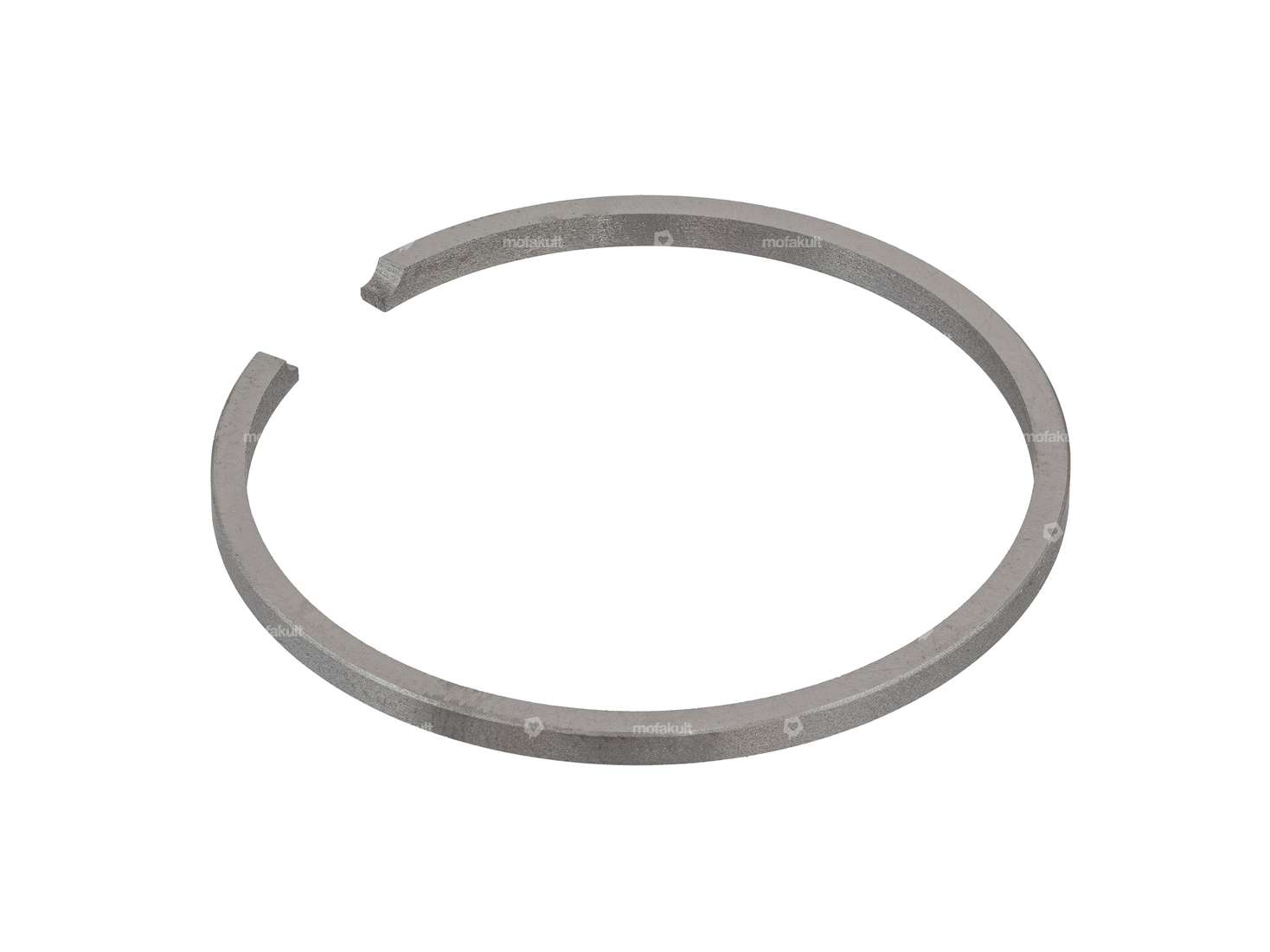

Meteor piston rings 39 x 2 mm (FS) (pair) | Cilo 502

Elring Curil T2 sealing compound 70 ml (polyurethane) non-hardening green

Temperature resistance (min.): -55 - 250 °C · Manufacturer: Elring · Area of application: Chemistry · Contents [ml]: 70 ml · Color: green · Gap dimension (max.): 0.2 mm

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Area of application: Standard · Oil type: semi-synthetic · Contents [ml]: 1000 ml · Color: green

swiing® ingenious piston 40 mm | Cilo 502

Nominal diameter: 40 mm · Manufacturer: swiing® ingenious parts · Thick piston ring: 1.65 mm · Ø outside piston (A): 39.93 mm · Compression height (C): 27.9 mm · Curvature (D): 5.1 mm · Total piston height (E): 54 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Piston weight: 93 g

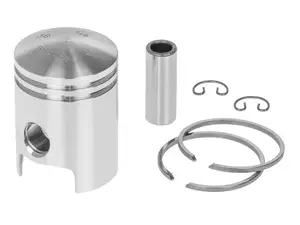

swiing® revival piston 39 mm | Cilo 502

Manufacturer: swiing® revival parts · Nominal diameter: 39 mm · Ø outside piston (A): 38.94 mm · Compression height (C): 28 mm · Curvature (D): 5.05 mm · Total piston height (E): 54 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Piston weight: 85 g

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Bearing type: Needle roller and cage assembly · Ø outside: 15 mm · Ø inside: 12 mm · Width: 14.2 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Alternative version of the Sachs OEM number: 0232 157 001 · Tomos OEM number: 035548

swiing tuning cylinder 40 mm | Cilo 502

Manufacturer: swiing · Material: Gray cast iron · Camouflaged: Yes · Surface: sandblasted · Area of application: Tuning · Nominal diameter: 40 mm · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Outlet type: Union nut · Number of fixing points: 4 pcs

Leonelli 12V voltage regulator (1A quality)

Manufacturer: Leonelli · Material: Aluminum · Material: Plastic · Type of current: Alternating current (AC) · Tension: 12 V · Total length: 50 mm · Width: 27 mm · Performance: 100 W · Mounting type: Screws · Height: 15 mm · Ø mounting hole: 6 mm

GPO bulb 12V - 5W (BA9s) 1-filament rear light

Manufacturer: GPO · Bulb holder: BA9s · Color: white · Tension: 12 V · Total length: 23 mm · Performance: 5 W · Ø base: 9 mm · Height: 23.6 mm · Test mark: none · Ø Lamp head: 11 mm · LED: No

Meteor piston ring 39.2 x 2 mm (FS)

Manufacturer: Meteor · Nominal diameter: 39 mm · Thick piston ring: 1.65 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Height: 2 mm · Pony OEM number: A1112 · Sachs OEM no.: 0215 003 105

Nut M10x1 Inox

Material: Chrome steel (known as Nirosta®) · Nut type: Hexagon nut · Thread type: MF10x1 (fine pitch thread) · Drive: External hexagon

swiing® revival needle roller bearing 12/15/14.2 original

Bearing cage: Sheet steel cage · Manufacturer: swiing® revival parts · Bearing type: Needle sleeve · Width: 14.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Alternative version of the Sachs OEM number: 0232 155 001 · Tomos OEM number: 035548

GPO bulb 12V - 15W (P26s) with collar, 1-filament

Manufacturer: GPO · Test mark: none · Bulb holder: P26s · Color: white · Tension: 12 V · Performance: 15 W · Ø base: 26 mm · Total length: 43 mm · Ø Lamp head: 25 mm · LED: No

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Surface: blank · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

Cable grommet Ø 4.7 / 9.2 mm PVC soft

Total height: 6.6 mm · Manufacturer: Made in Germany · Material: Polyvinyl chloride (PVC-P_soft) · Ø inside: 4.7 mm · Ø Cable bushing: 4.7 mm · Ø Passage: 4.7 mm · Ø mounting hole: 6.5 mm · Ø outside: 9.5 mm · Material thickness: 6.6 mm · Height: 6.6 mm · Color: black

Lockable fuel filler cap

Manufacturer: Made in Italy · Material: Cast aluminum · Material: Plastic · Color: black · Lockable: Yes · Height: 41 mm · Ø External head: 64.5 mm · Ø outside connection piece: 53 mm · Fuel filler cap: Bayonet 30 mm

Meteor piston ring 39 x 2 mm (FS)

Manufacturer: Meteor · Nominal diameter: 39 mm · Thick piston ring: 1.65 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Height: 2 mm · Piaggio OEM number: 166945
