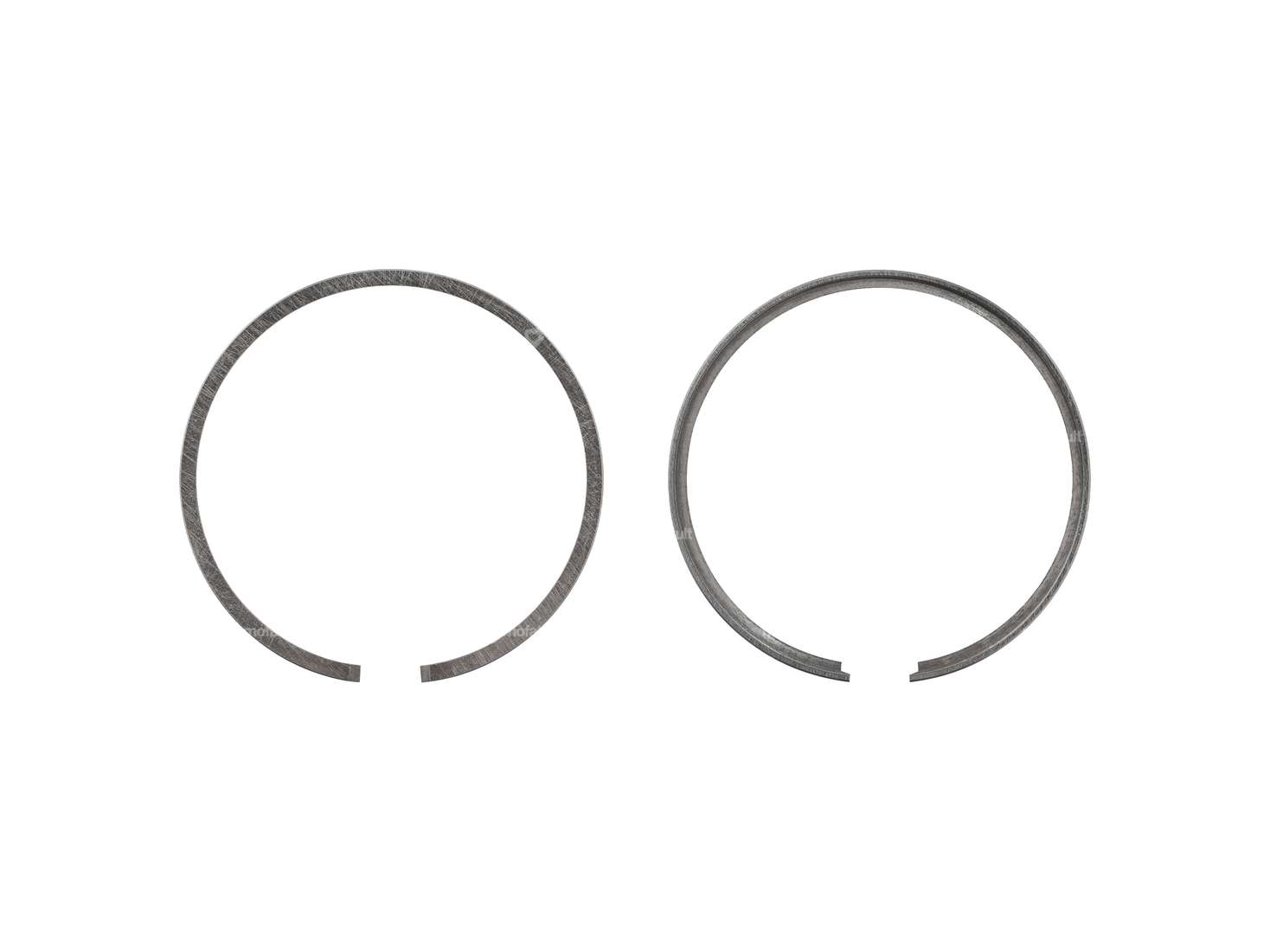

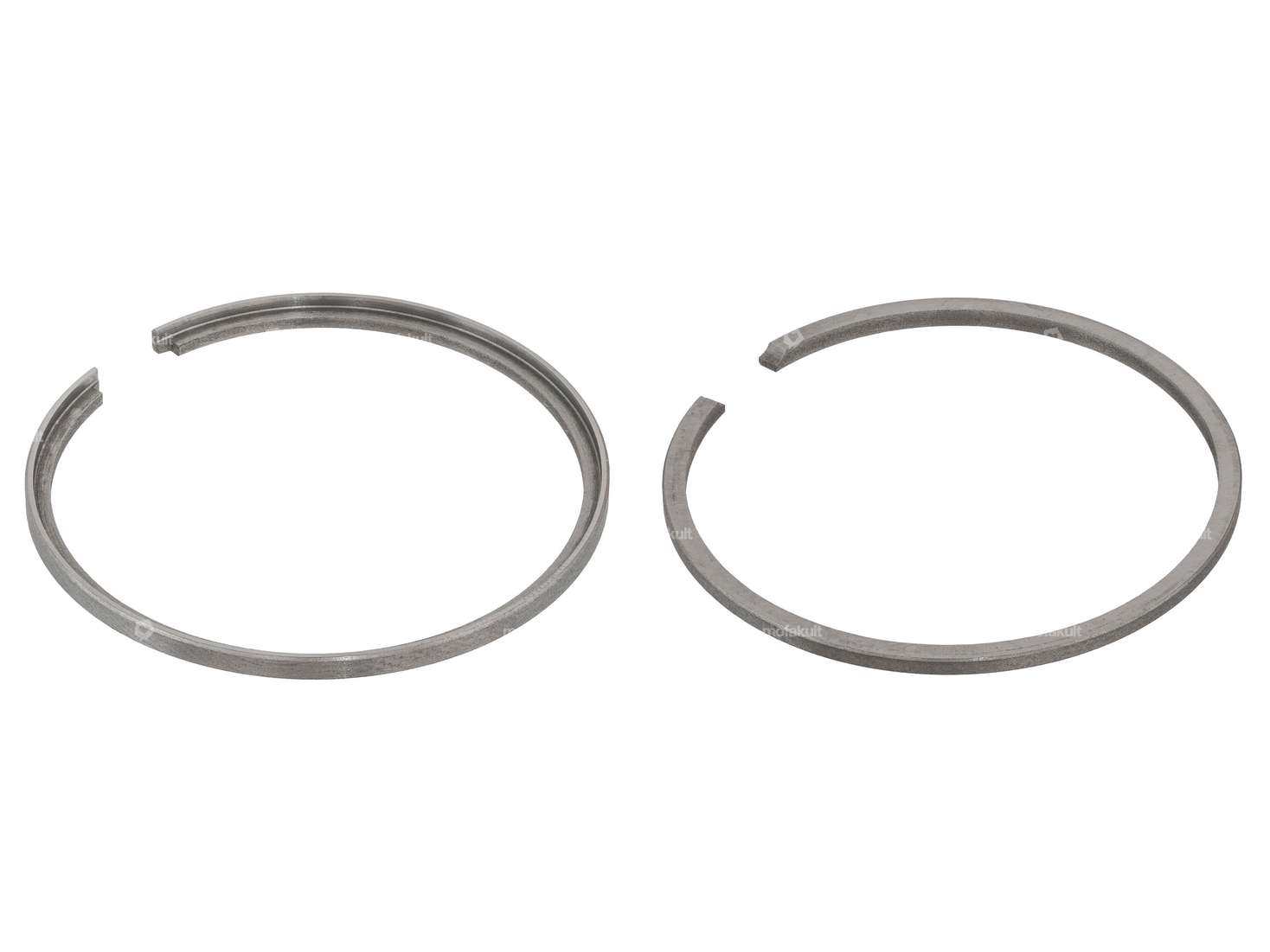

A set of compression rings consisting of a rectangular ring and an L-piston ring, suitable for Piaggio Ciao, Si, Bravo, Boxer, Grillo mopeds / mopeds.

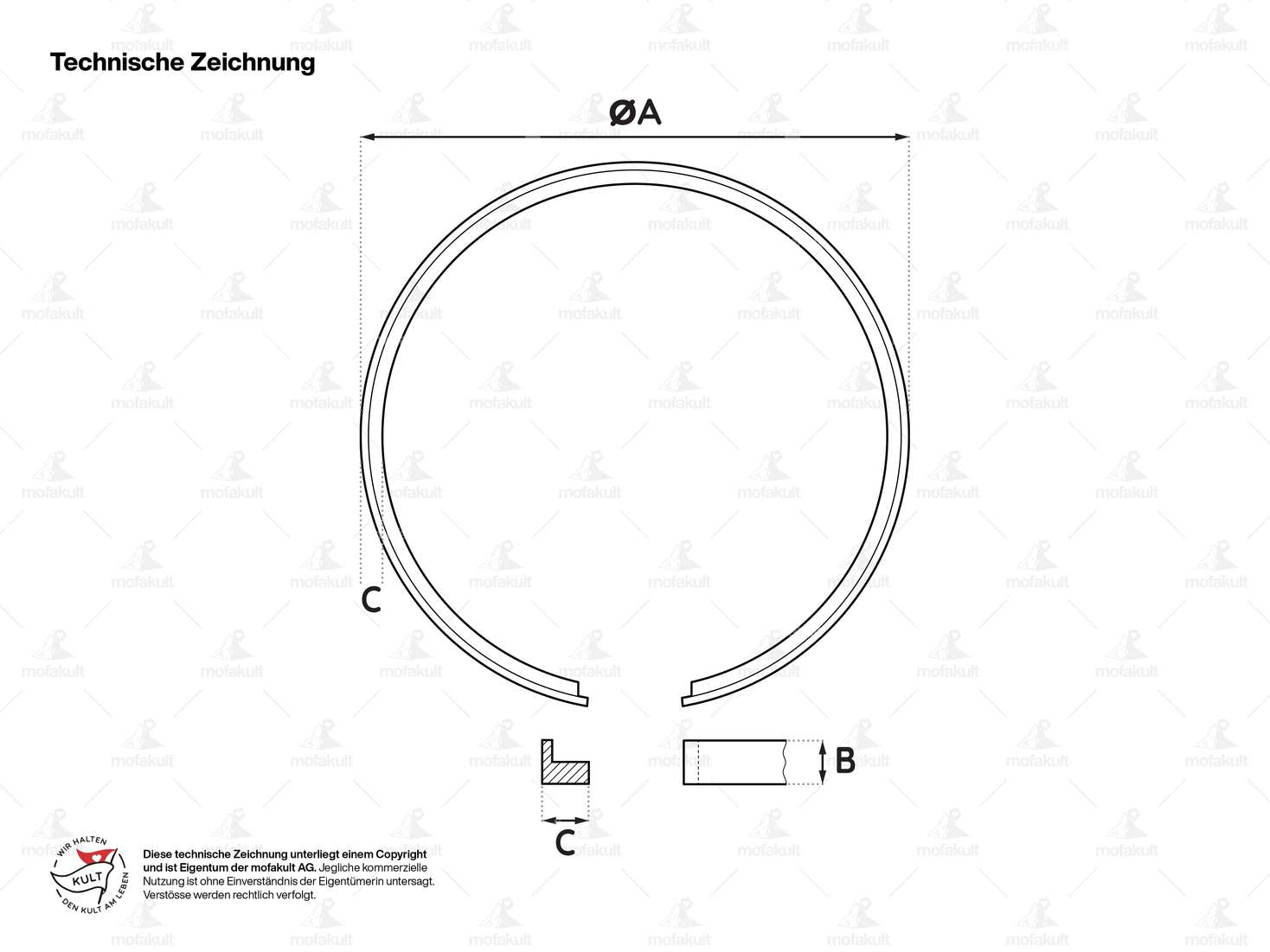

Dimension L-ring:
Ø outside (ØA): 40.00 mm
Height (B): 2.0 mm
Thickness (C): 1.85 mm

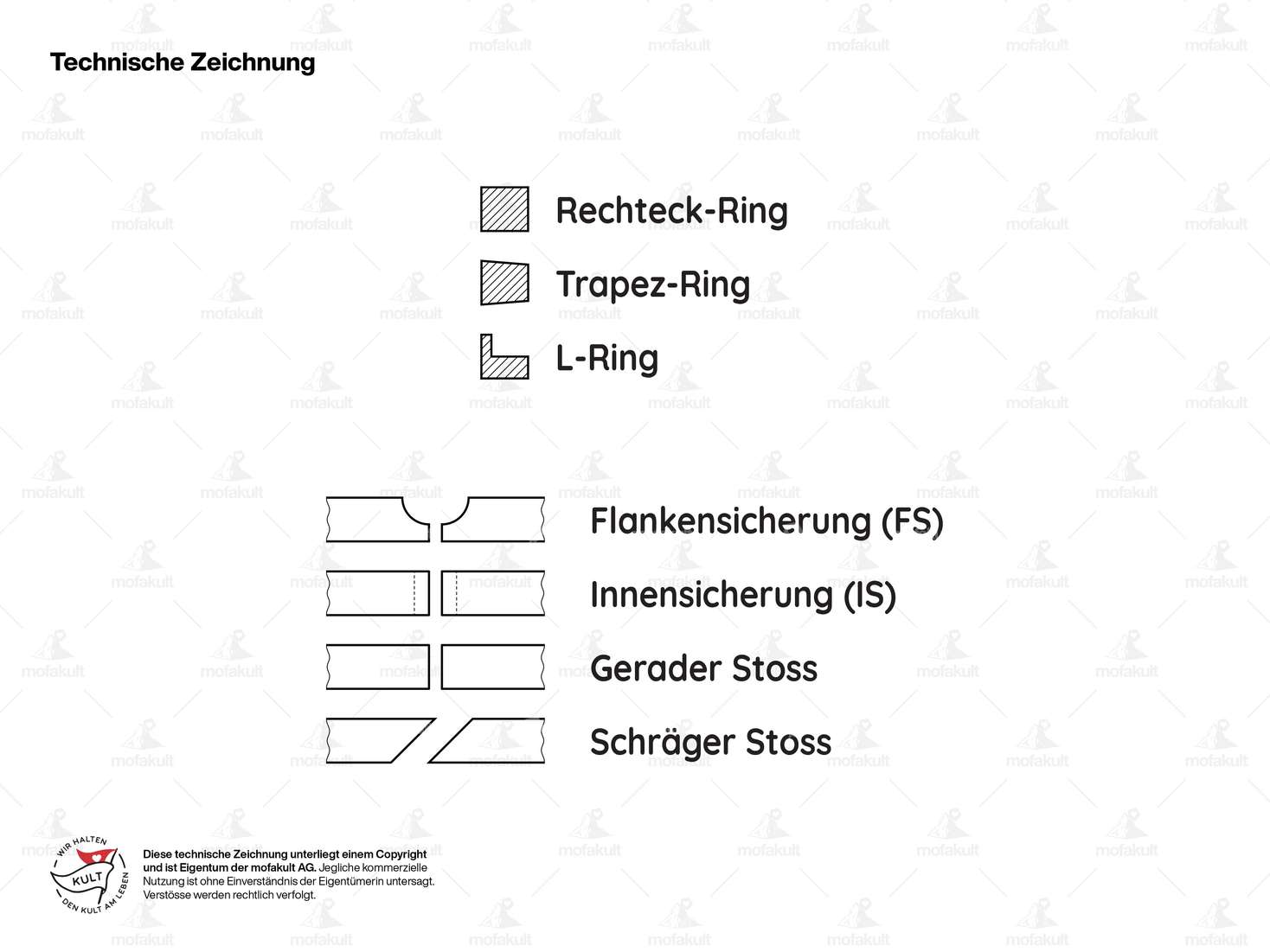

Piston ring shape: L-ring
Piston ring joint: Internal locking (IS)

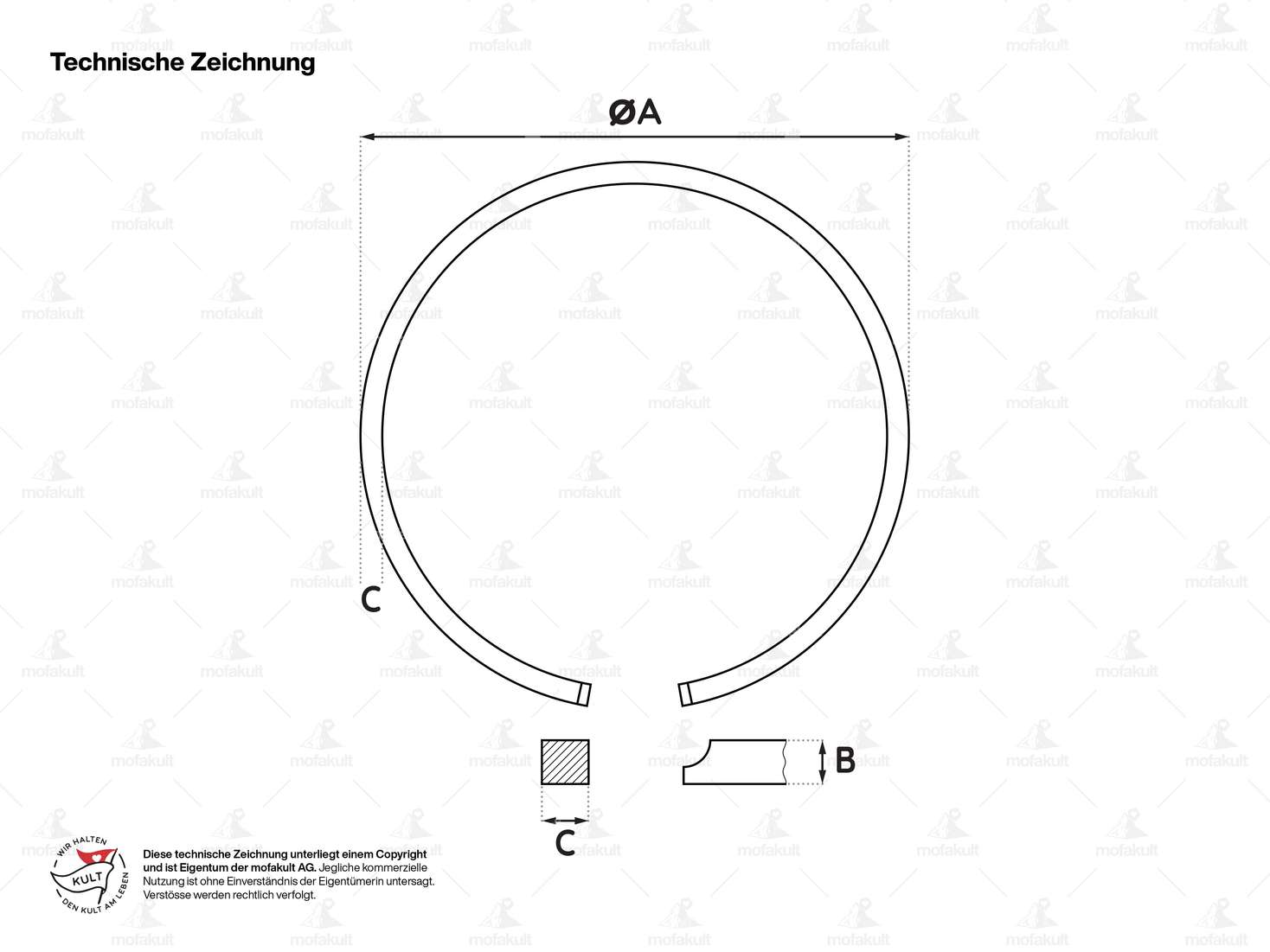

Rectangular ring dimensions:
Ø outer (ØA): 40.00 mm
Height (B): 1.5 mm
Thickness (C): 1.65 mm
Piston ring shape: Rectangular ring
Piston ring butt: Flank lock (FS)
The scope of delivery corresponds to one pair.
Matching pistons, assembly tools and lubricant can be found in the accessories section.
Quality product from the Italian manufacturer Meteor.
Manufacturer: Meteor · Nominal diameter: 40 mm · Thick piston ring: 1.65 mm · Height: 1.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Diameter: 40 mm
Manufacturer: Meteor · Nominal diameter: 40 mm · Thick piston ring: 1.85 mm · Height: 2 mm · Piston ring mold: L-ring · Piston ring impact: Internal fuse (IS) · Diameter: 40 mm
| Manufacturer | Meteor |
| Nominal diameter | 40 mm |
| Height | 2 mm, 1.5 mm |
| Piston ring mold | L-ring, Rectangular ring |
| Piston ring impact | Internal fuse (IS), Flank safety device (FS) |
| Thick piston ring | 1.85 mm, 1.65 mm |
| Diameter | 40 mm |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
