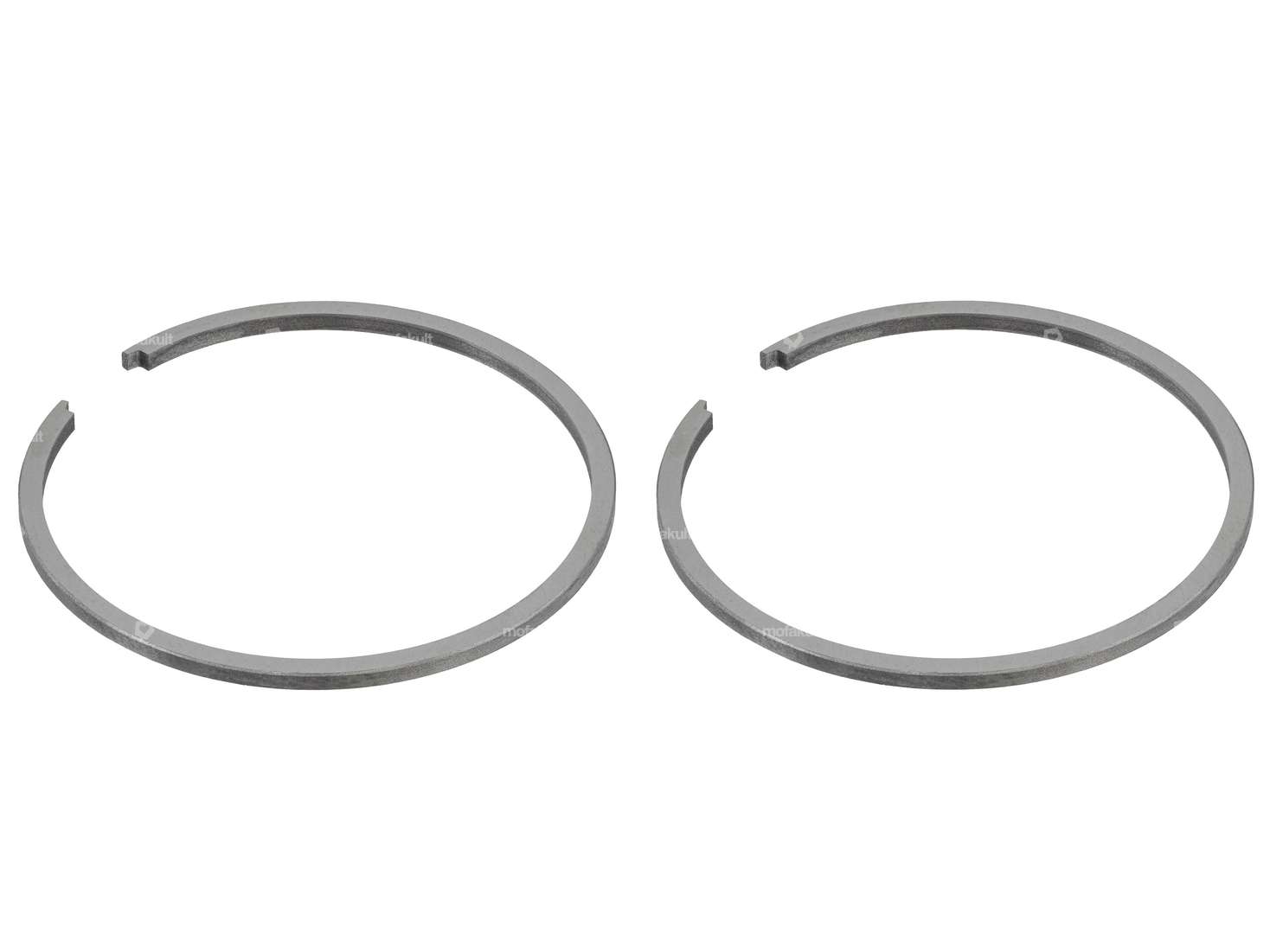

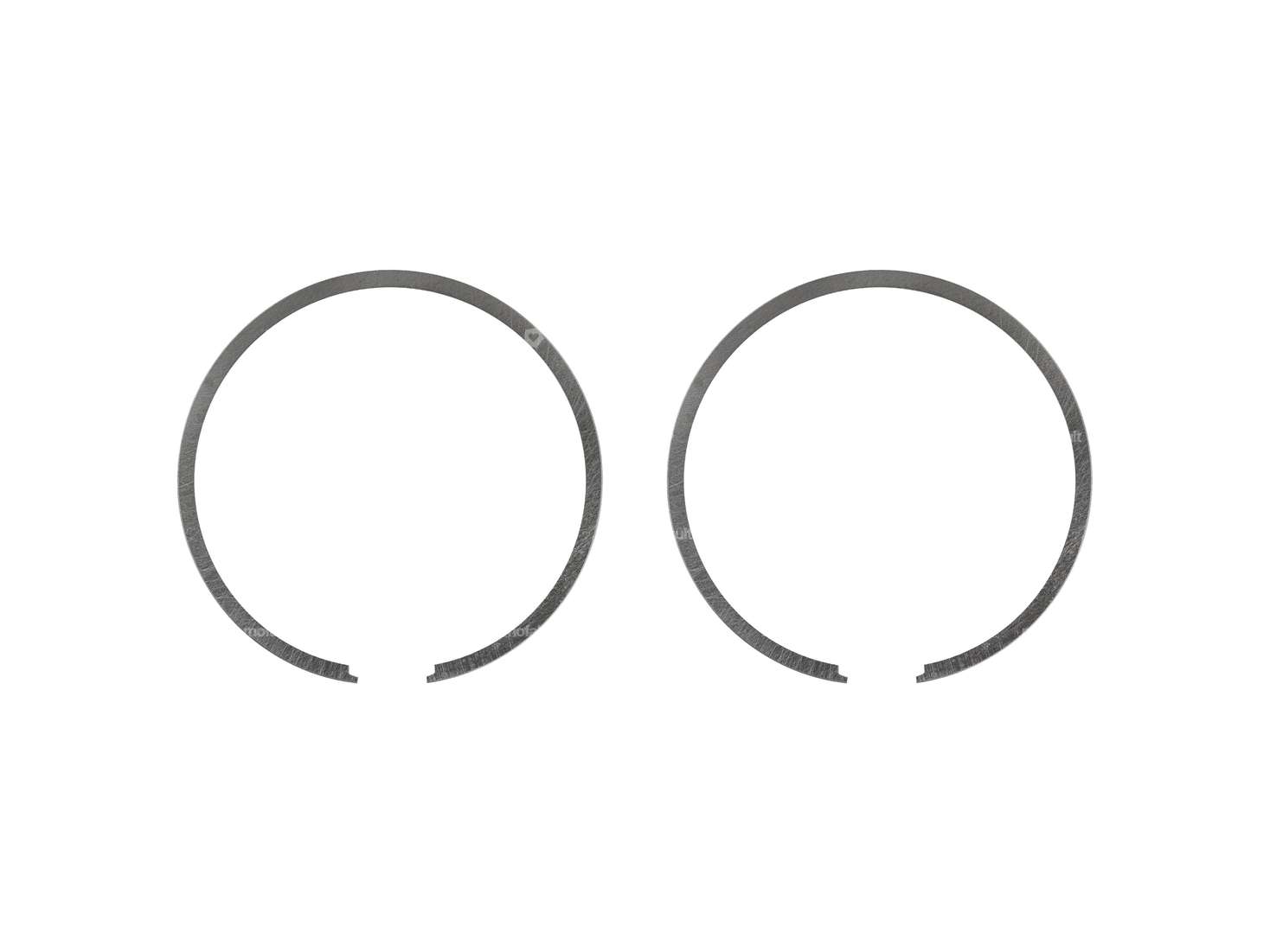

A set of compression rings consisting of two 41.0 x 1.5 mm rectangular rings for Pony Cross & GTX mopeds / mopeds with Beta 521 engines.
Attention: only suitable for Meteor pistons!

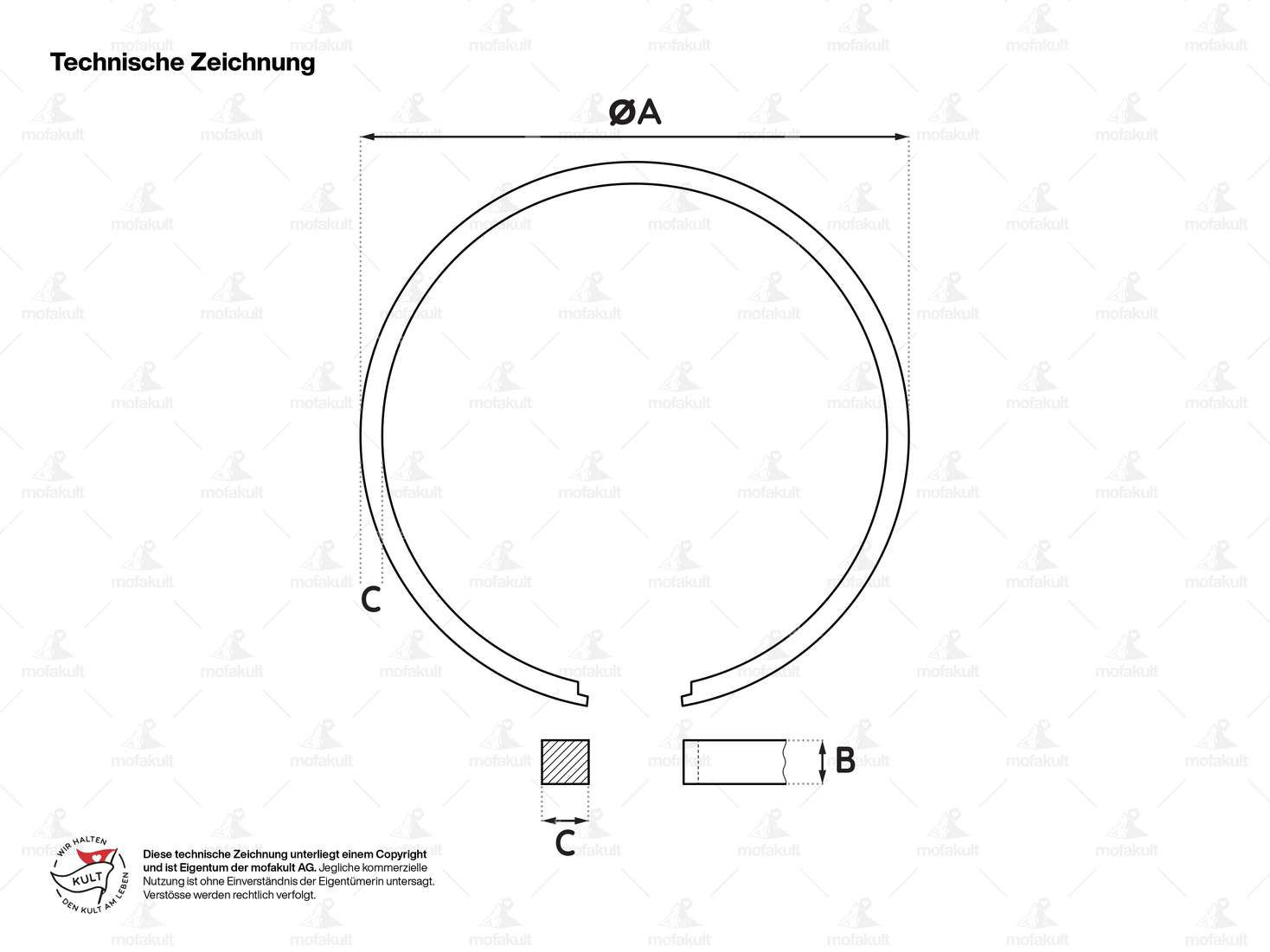

Ø outside (ØA): 41.00 mm
Height (B): 1.50 mm
Thickness (C): 1.70 mm

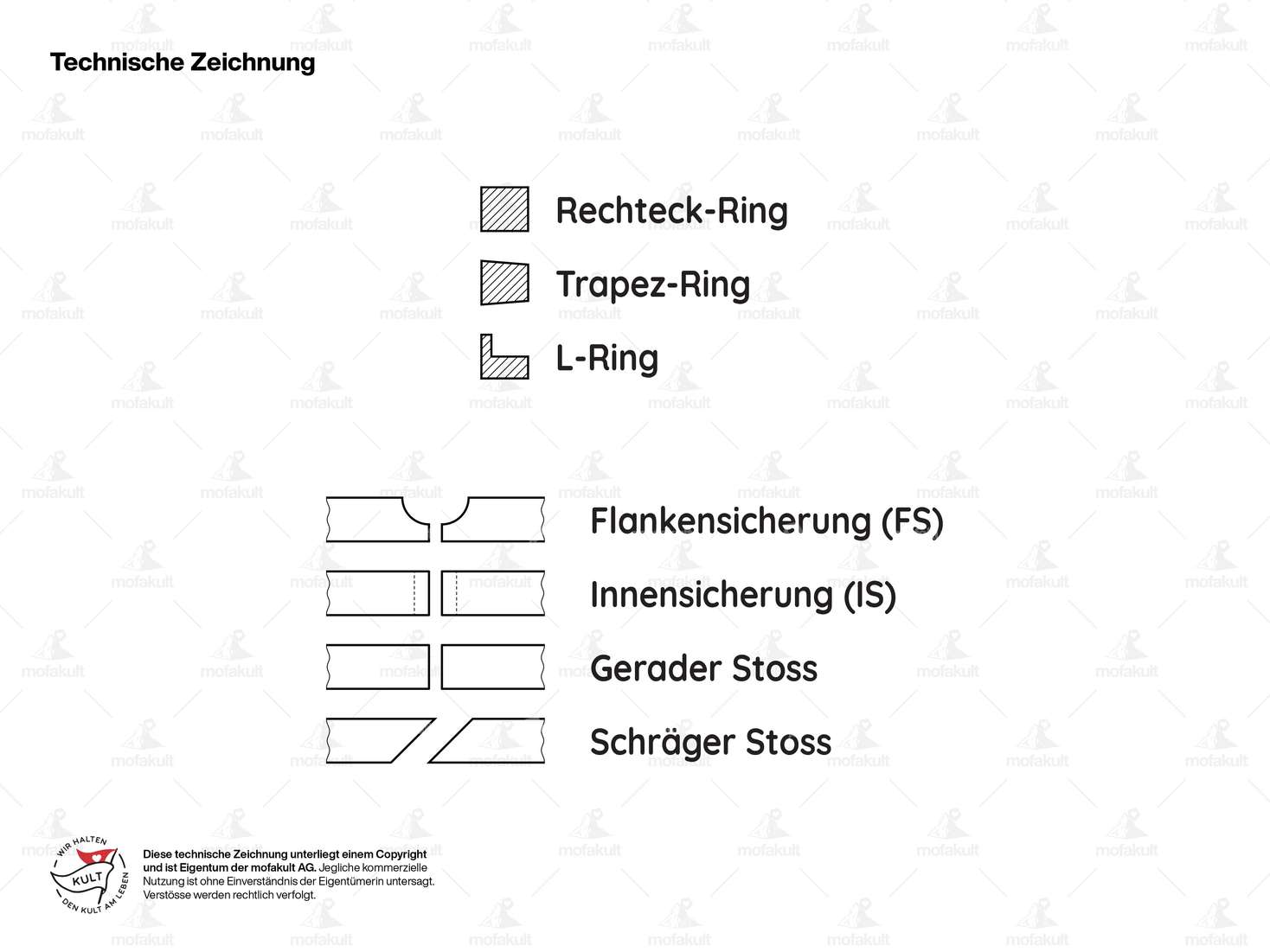

Piston ring shape: Rectangular ring
Piston ring joint: Inner circlip (IS)
The scope of delivery corresponds to one pair.
Matching pistons, assembly tools and lubricant can be found in the accessories section.
Quality product from the Italian manufacturer Meteor.
The set includes the following fixed parts:
Details
| Manufacturer | Meteor |
| Nominal diameter | 41 mm |
| Piston ring mold | Rectangular ring |
| Height | 1.5 mm |
| Piston ring impact | Internal fuse (IS) |
| Thick piston ring | 1.7 mm |
Suitable for the following models
| Pony / Cilo (Beta 521 & 512) | Beta 512 Beta 521 (engine) |
