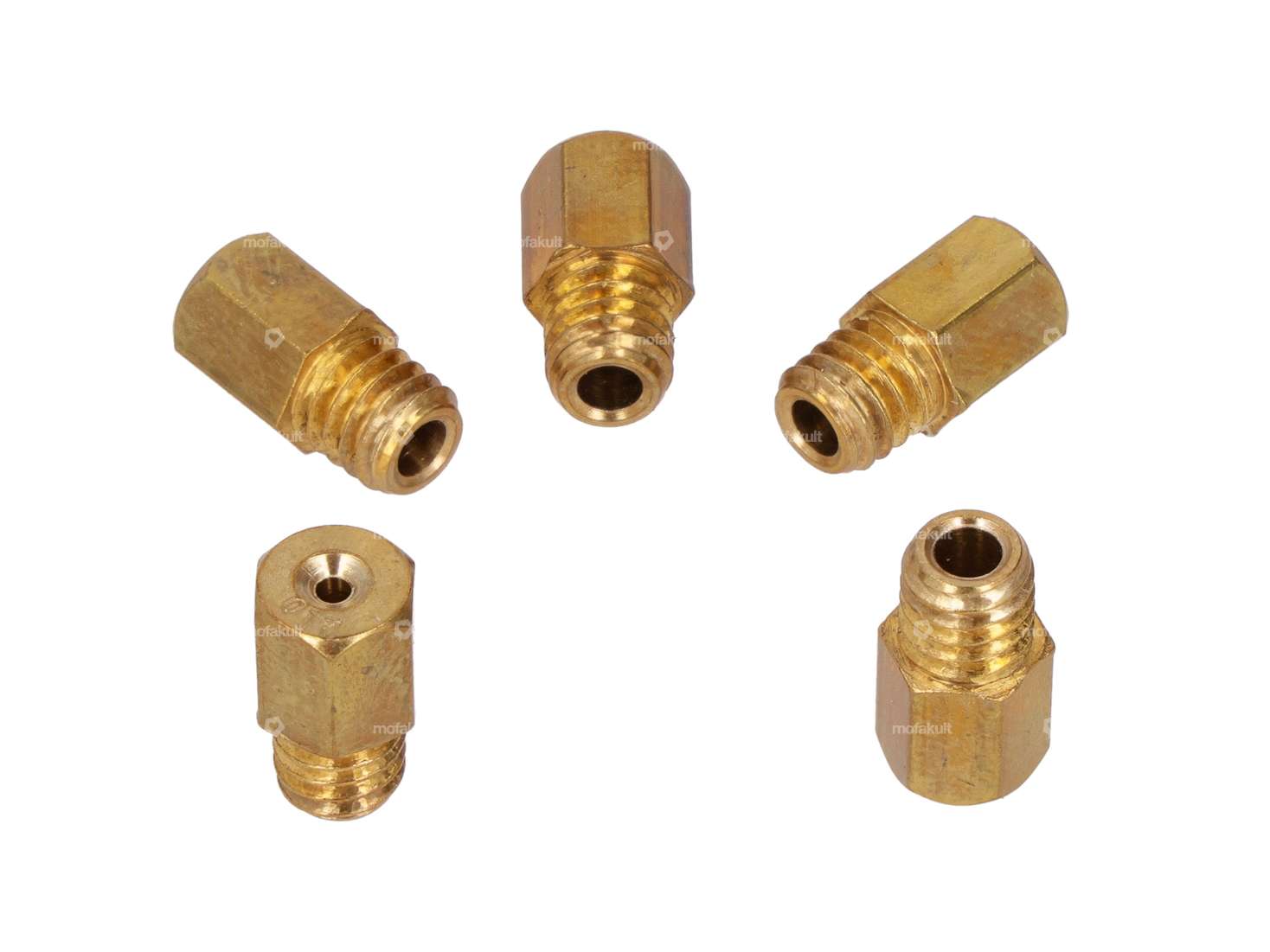

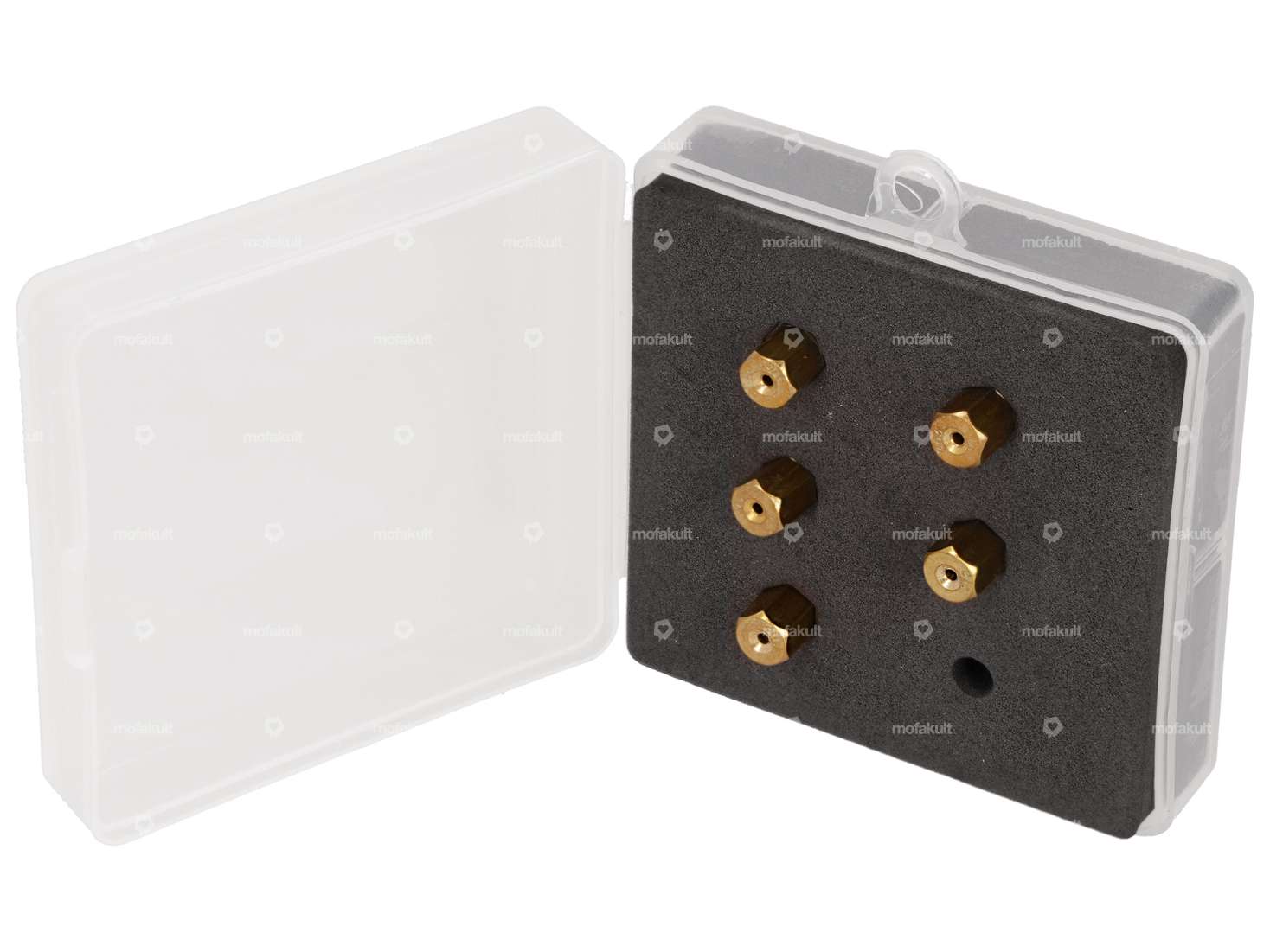

Jetset with five medium-high main jets suitable for Mikuni VM, TM and TMX carburetors.
The following jets are included in the set: 190, 195, 200, 205, 210
With this selection, the fuel-air mixture of your carburetor can be perfectly tuned.
Note: These carburetor jets for Mikuni carburetors are not only described by the physical size (the diameter of the jet hole) like many other carburetor jets, but by the actual flow rate. This means that the Mikuni size specification refers to the amount of fuel that can flow through the nozzle per unit of time.
So if you are using carburettor jets from different manufacturers, you need to be careful, as other manufacturers may describe the diameter of the jet hole.
| Drive | External hexagon |
| Thread length | 4.7 mm |
| Total length | 11.6 mm |
| Material | Brass |
| Component group Carburetor | Spraying |
| Quantity | 5 pcs |
| Carburetor type | Mikuni (VM, TM, TMX) |
| Nozzle type | Main nozzle |
| Width across flats | 6 mm |
| Nozzle thread | M5.3x0.9 (standard thread) |
| Nozzle size | 190, 195, 200, 205, 210 |
Ratings
Accessories & related products
MIKUNI 24 mm flat slide carburetor TM24-9 hand choke
Nominal diameter: 24 mm · Manufacturer: MIKUNI · Component group Carburetor: Carburetor complete · Area of application: Tuning · Carburetor type: Flat slide valve · Choke control: Hand choke · Width: 75 mm · Nozzle thread: M5.3x0.9 (standard thread) · Ø fuel hose connection: 6 mm · Nozzle size: 130 · Height: 130 mm · Ø Air filter connection: 44 mm · Mounting type: Plug connection · Size of secondary nozzle: 51
EUR 232.80
Nozzle set M5 (48 - 66) Mikuni replica
Component group Carburetor: Spraying · Material: Brass · Carburetor type: PWK · Quantity: 10 pcs · Drive: External hexagon · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 48 · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 54 · Nozzle size: 56 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Width across flats: 6 mm
EUR 29.70
Nozzle set M5 (108 - 126) Mikuni replica
Component group Carburetor: Spraying · Material: Brass · Carburetor type: PWK · Quantity: 10 pcs · Drive: External hexagon · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 108 · Nozzle size: 110 · Nozzle size: 112 · Nozzle size: 114 · Nozzle size: 116 · Nozzle size: 118 · Nozzle size: 120 · Nozzle size: 122 · Nozzle size: 124 · Nozzle size: 126 · Width across flats: 6 mm
EUR 29.70

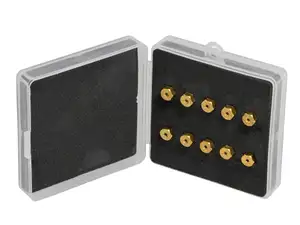

Nozzle set M5 (130 - 148) Mikuni replica
Component group Carburetor: Spraying · Material: Brass · Carburetor type: PWK · Quantity: 10 pcs · Drive: External hexagon · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 130 · Nozzle size: 132 · Nozzle size: 134 · Nozzle size: 136 · Nozzle size: 138 · Nozzle size: 140 · Nozzle size: 142 · Nozzle size: 144 · Nozzle size: 146 · Nozzle size: 148 · Width across flats: 6 mm
EUR 29.70

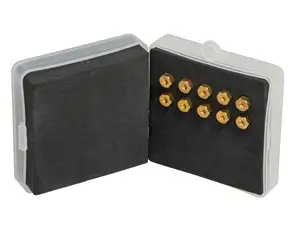

Nozzle set M5 (68 - 86) Mikuni reproduction
