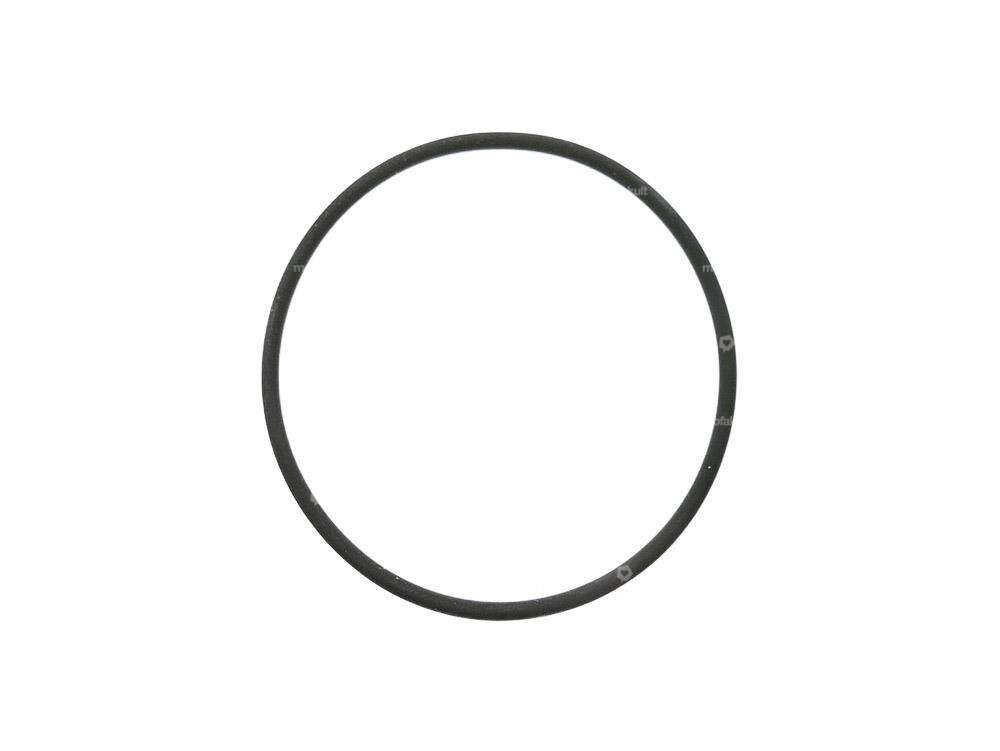

Sealing ring for the carburetor cover of the float chamber of Dell'Orto carburetors on your Piaggio Ciao, Si, Bravo, Boxer, Grillo moped / moped.
This high-quality gasket impresses with its extremely high fuel resistance and guarantees absolute tightness of the float cover.
Suitable carburetors can be found in the accessories section.
Original Piaggio spare part number: 113909
| Place of use | Float chamber |
| Ø inside | 41 mm |
| Manufacturer | Piaggio |
| Material | NBR |
| Number of components | 1 pcs |
| Color | black |
| Ø outside | 44 mm |
| Cord thickness | 1.5 mm |
| Piaggio OEM number | 113909 |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo Gilera CBA Gilera Citta |
Ratings
Accessories & related products
Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao PX / C24, Bravo, SUPERbravo
Total length: 46 mm · Width: 60 mm · Height: 96 mm · Manufacturer: Dell'Orto · Area of application: Tuning · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SHA (Piaggio) · Choke control: Hand choke · Color: black · Mounting type: Plug connection clamped · Nominal diameter: 13 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Internal connection: 16 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 66
EUR 71.10

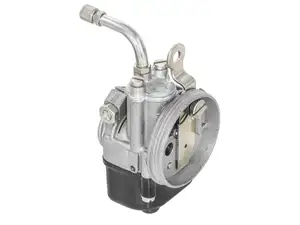

Dell'Orto 12/7 carburetor hand choke original | Piaggio Ciao PX
Total length: 45 mm · Width: 60 mm · Height: 97 mm · Manufacturer: Dell'Orto · Area of application: Original · Component group Carburetor: Carburetor complete · Carburetor type: SHA (Piaggio) · Choke control: Hand choke · Mounting type: Plug connection clamped · Nominal diameter: 12 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 7 mm · Ø Internal connection: 16 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 6 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 36
EUR 77.00
Dell'Orto 12/10 SHA carburetor hand choke | Piaggio Ciao PX
Manufacturer: Dell'Orto · Area of application: Tuning · Component group Carburetor: Carburetor complete · Total length: 45 mm · Carburetor type: SHA (Piaggio) · Width: 60 mm · Height: 96 mm · Nominal diameter: 12 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 19 mm · Ø Inside entrance: 10 mm · Ø Internal connection: 16 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 37
EUR 77.00

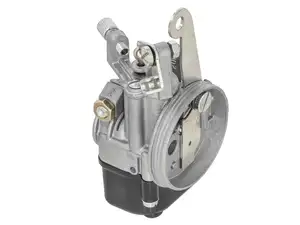

12/7 SHA carburetor original | Piaggio SI
Manufacturer: Piaggio · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Width: 64 mm · Carburetor type: SHA (Piaggio) · Height: 110 mm · Nominal diameter: 12 mm · Total length: 58 mm · Ø Internal connection: 16 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 7 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 36 · Mounting type: Plug connection clamped · Area of application: Original
EUR 106.70
Dell'Orto 12/7 SHA carburetor hand choke | Piaggio SI
Manufacturer: Dell'Orto · Camouflaged: No · Component group Carburetor: Carburetor complete · Width: 60 mm · Carburetor type: SHA (Piaggio) · Height: 117 mm · Nominal diameter: 12 mm · Total length: 60 mm · Ø Internal connection: 16 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 7 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 36 · Mounting type: Plug connection · Area of application: Original
EUR 78.20
Not in stock
Dell'Orto 13/13 SHA carburetor | Piaggio SI, Boss, Grillo
Total length: 55 mm · Width: 60 mm · Height: 118 mm · Manufacturer: Dell'Orto · Area of application: Tuning · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SHA (Piaggio) · Choke control: Hand choke · Color: black · Mounting type: Plug connection clamped · Nominal diameter: 13 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Internal connection: 16 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 66
EUR 82.90

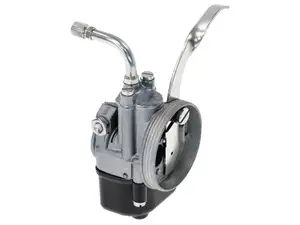

Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao P, SC
Total length: 55 mm · Width: 60 mm · Height: 110 mm · Manufacturer: Dell'Orto · Area of application: Tuning · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SHA (Piaggio) · Choke control: Hand choke · Color: black · Mounting type: Plug connection clamped · Nominal diameter: 13 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Internal connection: 16 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.9 mm · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 66
EUR 82.90

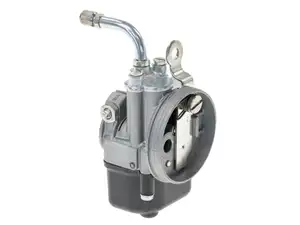

Dell'Orto 12/7 SHA carburetor hand choke | Piaggio Ciao C24
