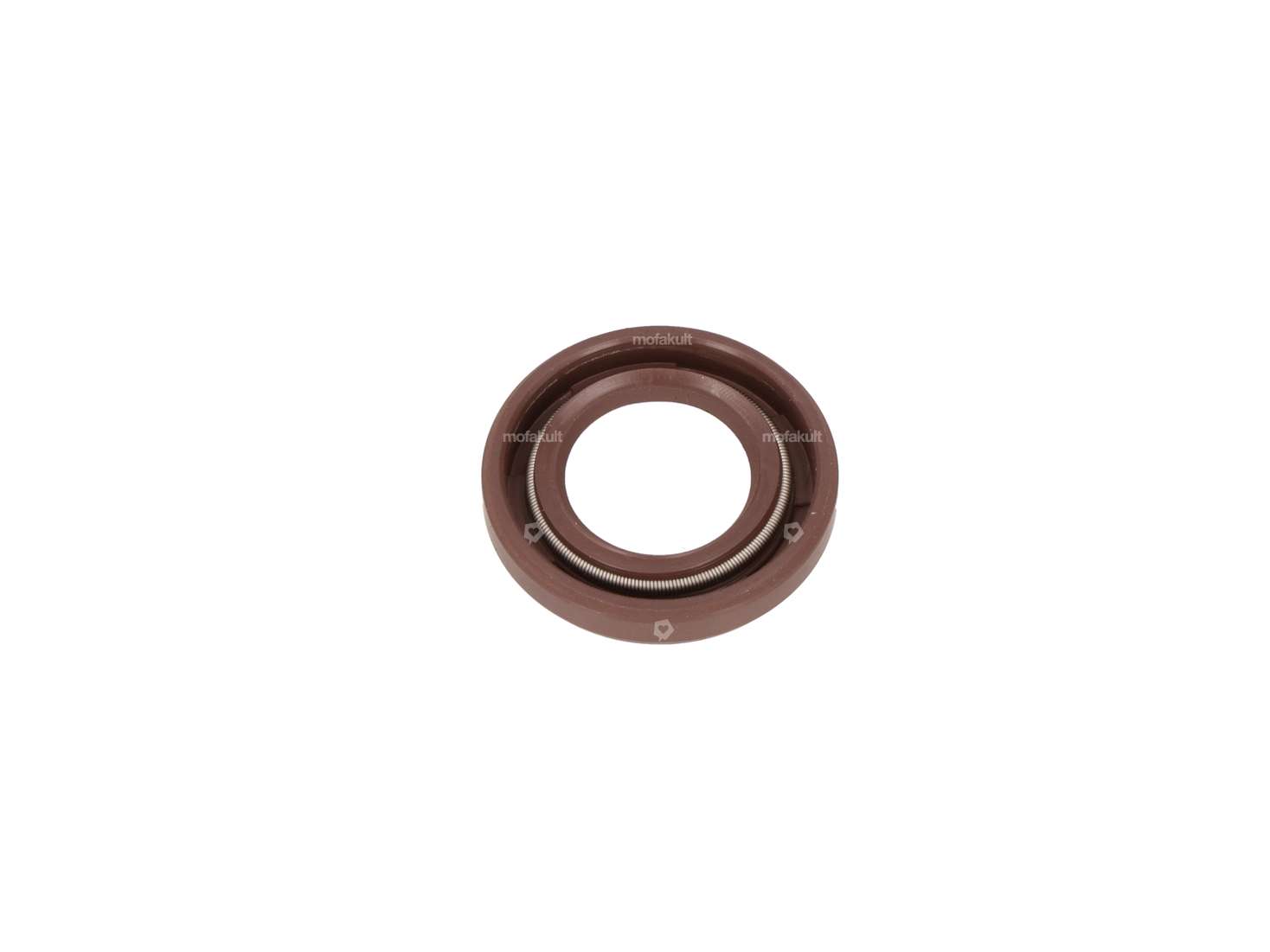

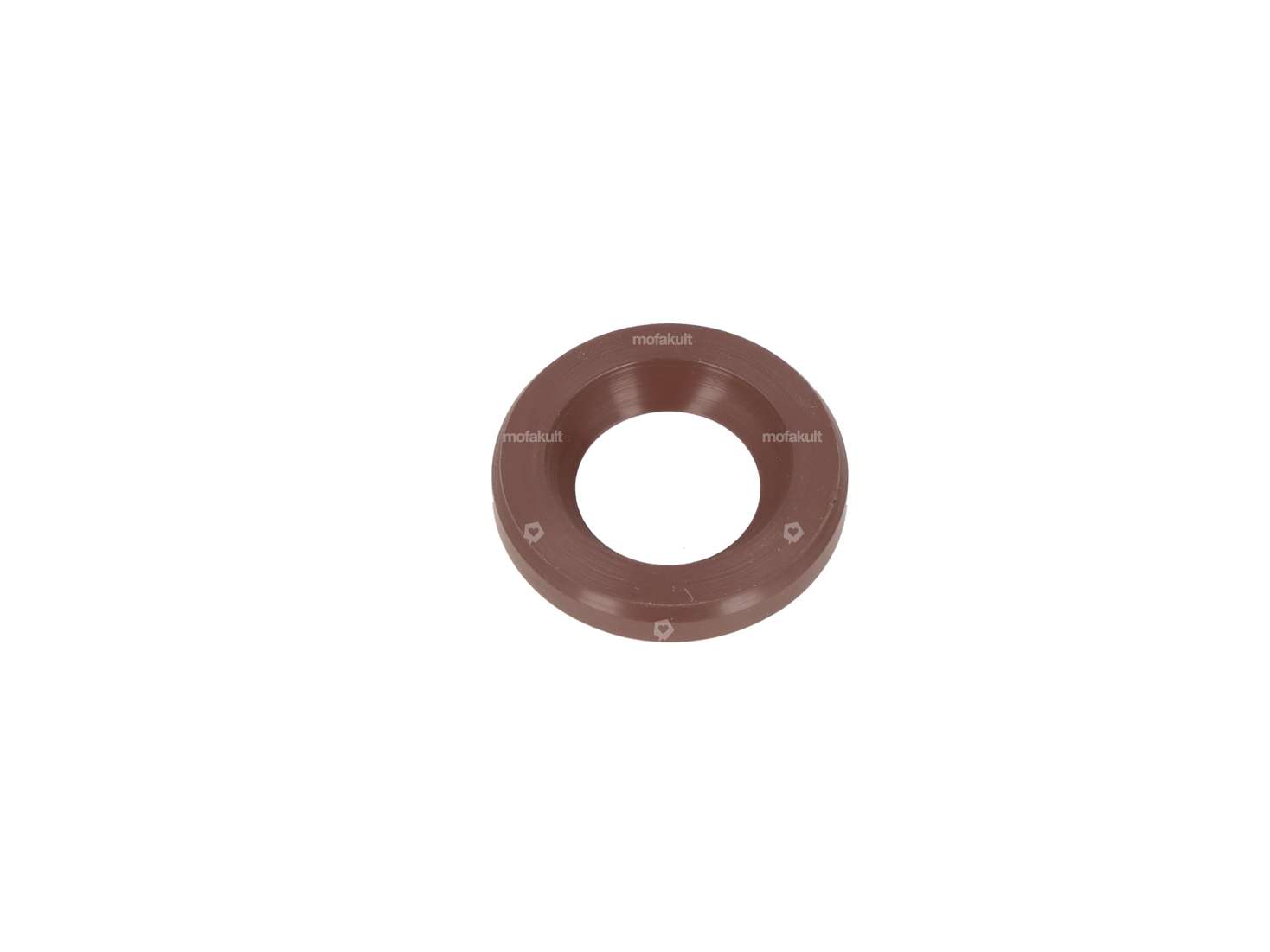

Oil seal FPM 13/22/4 A

CIF gasket set engine / gearbox with oil seals Mono | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Place of use: Gear hub · Gearbox type: Mono · Area of application: Standard · Piaggio OEM number: 112967 · Piaggio OEM number: 114469 · Piaggio OEM number: 124571 · Piaggio OEM number: 131511 · Piaggio OEM number: 182519 · Piaggio OEM number: 480464 · Piaggio OEM number: 482552

Oil seal 13/22/4 A NBR gearbox Vario original | Piaggio Ciao, SI, Bravo, Boxer

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Piaggio · Material: NBR · Surface: rubberized · Width: 4 mm · Ø inside: 13 mm · Ø outside: 22 mm · Piaggio OEM number: 240222

Malossi SAE 75W-90 gear oil "RACING" 250 ml

Manufacturer: Malossi · Oil type: GL4 · Oil type: fully synthetic · Viscosity (SAE): 75W-90 · Area of application: Gearbox lubrication without clutch · Contents: 250 ml · Gearbox type: Automatic machine · Gearbox type: Mono · Gearbox type: Vario

Oil seal FPM 15/30/5.5 AS

Temperature resistance (min.): -30 - 200 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Material: FPM / FKM (colloquially known as Viton) · Surface: rubberized · Width: 5.5 mm · Ø inside: 15 mm · Ø outside: 30 mm

Oil seal FPM 15/24/5 AS

Temperature resistance (min.): -30 - 200 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Material: FPM / FKM (colloquially known as Viton) · Surface: rubberized · Width: 5 mm · Ø inside: 15 mm · Ø outside: 24 mm

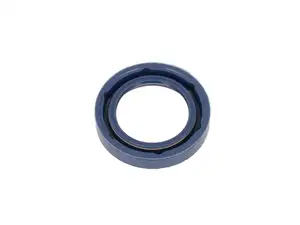

Corteco oil seal NBR 20/30/5 A gearbox | Piaggio Ciao, SI, Bravo, Boxer

Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 20 mm · Ø outside: 30 mm · Width: 5 mm · Manufacturer: Corteco · Material: NBR · Surface: rubberized · Place of use: Gear hub · Temperature resistance (min.): -30 - 100 °C · Piaggio OEM number: 131511

Karcoma fuel tap M12x1 vertical (with union nut) 2 connections

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: vertical / vertical · Thread type: MF12x1 (fine pitch thread) · Outlet direction: any · Mounting type: Union nut · Spare tube shape: straight · Ø fuel hose connection: 6 mm · Reserve level: 50 mm

Karcoma fuel tap M16x1 vertical | Puch X30 Velux

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: vertical / vertical · Thread type: MF16x1 (fine pitch thread) · Outlet direction: any · Mounting type: Union nut · Spare tube shape: straight · Ø fuel hose connection: 6 mm · Reserve level: 50 mm

M8 sealing ring Fiber

Place of use: Carburetor · Place of use: Motor housing · Material: Fiber · Surface: raw · Area of application: Standard · Ø outside: 13.7 mm · Ø inside: 8.3 mm · Thickness: 1 mm · Puch OEM number: 26482

Tank cap with dipstick black | Piaggio Ciao

Manufacturer: Made in Italy · Material: Plastic · Color: black · Fuel filler cap: Plug 33 mm · Lockable: No · Vented: Yes · Height: 39 mm · Height: 274 mm · Ø External head: 44.3 mm

NewFren clutch plates | Sachs 50/2, 503 2AL/2BL (A3887)

Manufacturer: NewFren · Material: Composite materials · Material: Steel · Area of application: Standard · Ø outside: 93.8 mm · Recording type: Interlocking · Ø inside: 30 mm · Ø inside: 36 mm · Number of slats: 2 pcs · Thickness: 3.3 mm · Pony OEM number: A3887 · Sachs OEM no.: 0659 010 006

Sealing ring 8.3/13.7/1 oil filler plug / oil drain plug | Piaggio Ciao, SI, Bravo, Boxer

Place of use: Motor housing · Thickness: 1 mm · Ø inside: 8.3 mm · Ø outside: 13.7 mm · Manufacturer: Piaggio · Material: Fiber · Piaggio OEM number: 000397, 485703

O-ring shift fork (Velogang) original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Cord thickness: 1.7 mm · Ø inside: 6 mm · Ø outside: 9.4 mm

Corteco oil seal NBR 20/30/5 A gearbox | Piaggio Ciao, SI, Bravo, Boxer

Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 20 mm · Ø outside: 30 mm · Width: 5 mm · Manufacturer: Corteco · Material: NBR · Surface: rubberized · Place of use: Gear hub · Temperature resistance (min.): -30 - 100 °C · Piaggio OEM number: 131511

Oil seal FPM 13/22/4 A Gearbox Vario | Piaggio Ciao, SI, Bravo, Boxer

Place of use: Housing cover · Temperature resistance (min.): -30 - 200 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 13 mm · Ø outside: 22 mm · Width: 4 mm · Material: FPM / FKM (colloquially known as Viton) · Surface: rubberized · Piaggio OEM number: 240222
