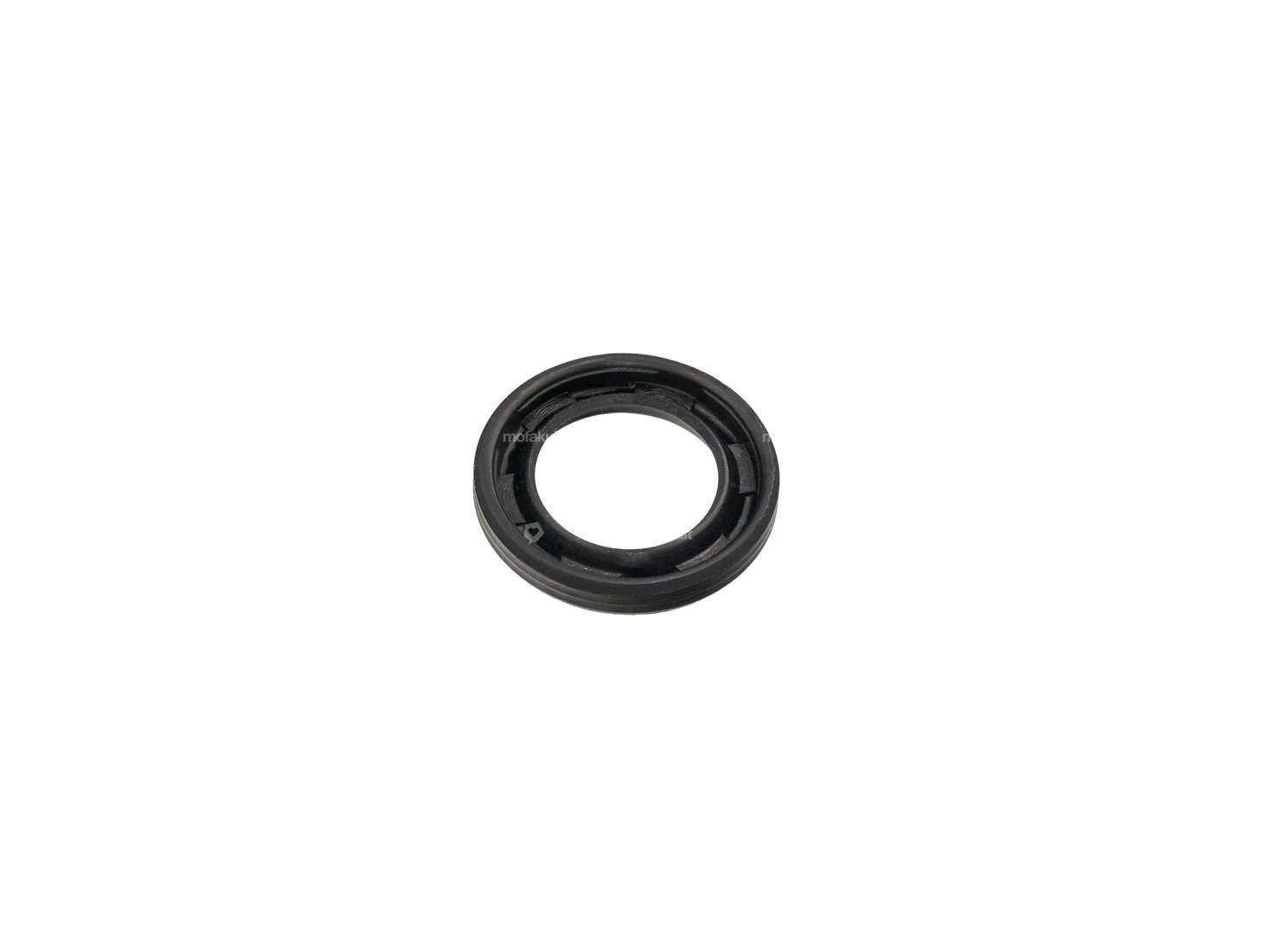

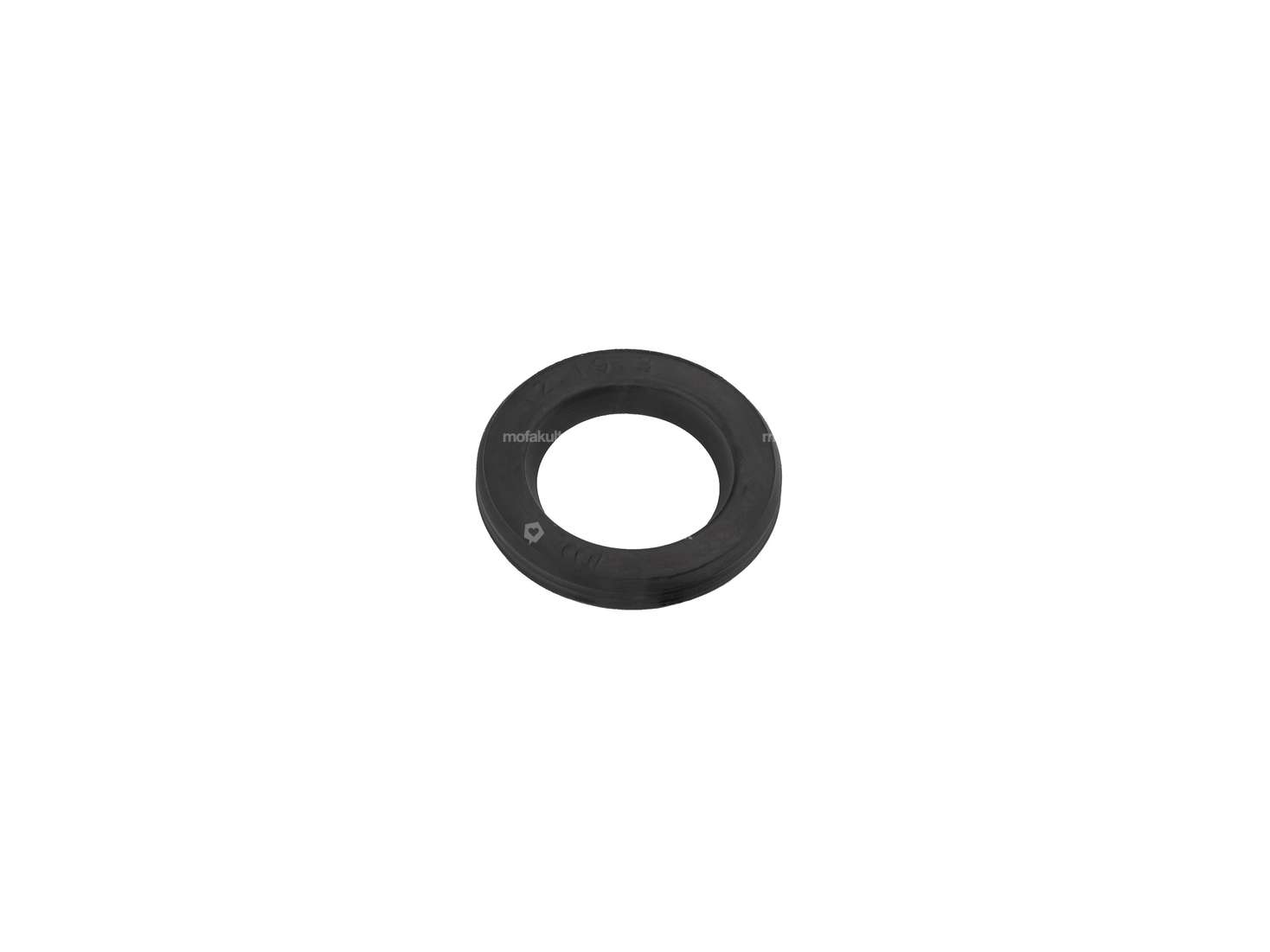

Oil seal NBR 12/19/3 A original Vario clutch hub | Piaggio Ciao, SI, Bravo, Boxer

Adjustable holding/blocking tool

Opening width: 140 mm · Ø Cam: 5.6 mm · Area of application: (Dis)assembly tool

Loctite 243 medium-strength threadlocker 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents [ml]: 10 ml · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Temperature resistance (min.): -75 - 200 °C · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m · Area of application: Chemistry

CIF revision set gearbox variator | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Gearbox type: Vario · Area of application: Original · Area of application: Standard

CIF locking plate clutch Vario | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF

GPO clutch spring compressor converter | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Material: Steel · Width: 140 mm · Height: 115 mm · Area of application: Special tool

swiing® revival plain bearing converter Vario | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: special bearing bronze · Ø outside: 31 mm · Nominal diameter inside: 27 mm · Ø inside: 27 mm · Total height: 24.9 mm

swiing® revival nut M24x0.75 SW32 variator | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon flat nut · Thread type: MF24x0.75 (fine pitch thread) · Drive: External hexagon · Width across flats SW: 32 mm · Height: 4 mm · Strength class: 8

Oil seal NBR 18/24/4 A Vario torque converter original | Piaggio Ciao, SI, Bravo, Boxer

Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Piaggio · Material: NBR · Surface: rubberized · Ø outside: 24 mm · Ø inside: 18 mm · Width: 4 mm · Temperature resistance (min.): -30 - 100 °C

Wedge 12.1x4.9x3 mm

Material: Steel · Total length: 12.5 mm · Width: 3 mm · Height: 4.9 mm

Locking plate starter clutch Mono & Vario original | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Leaf spring · Manufacturer: Piaggio · Material: Spring steel · Piaggio OEM number: 220441

CIF locking plate clutch Vario | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF

Koyo HK1312 needle roller bearing 13/19/12

Manufacturer: Koyo · Bearing type: Needle sleeve · Ø outside: 19 mm · Ø inside: 13 mm · Stock number: HK1312 · Width: 12 mm · Dimension needle bearing: 13/19 x 12

Oil seal 13/22/4 A NBR gearbox Vario original | Piaggio Ciao, SI, Bravo, Boxer

Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Piaggio · Material: NBR · Surface: rubberized · Ø outside: 22 mm · Ø inside: 13 mm · Width: 4 mm · Temperature resistance (min.): -30 - 100 °C · Piaggio OEM number: 240222

swiing® revival plain bearing converter Vario | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: special bearing bronze · Ø outside: 31 mm · Nominal diameter inside: 27 mm · Ø inside: 27 mm · Total height: 24.9 mm

swiing® revival locking plate nut Variomatic Inox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Surface: blank · Number of lobes: 1 pcs · Ø outside: 33.5 mm · Ø inside: 8.15 mm · Area of application: Original · Area of application: Standard

Wedge flywheel / torque converter bell Vario | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Total length: 12.1 mm · Width: 3 mm · Height: 4.9 mm

Oil seal NBR 18/24/4 A Vario torque converter original | Piaggio Ciao, SI, Bravo, Boxer

Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Piaggio · Material: NBR · Surface: rubberized · Ø outside: 24 mm · Ø inside: 18 mm · Width: 4 mm · Temperature resistance (min.): -30 - 100 °C

swiing® revival revision set converter | Piaggio Ciao, SI

Manufacturer: swiing® revival parts · Gearbox type: Vario
