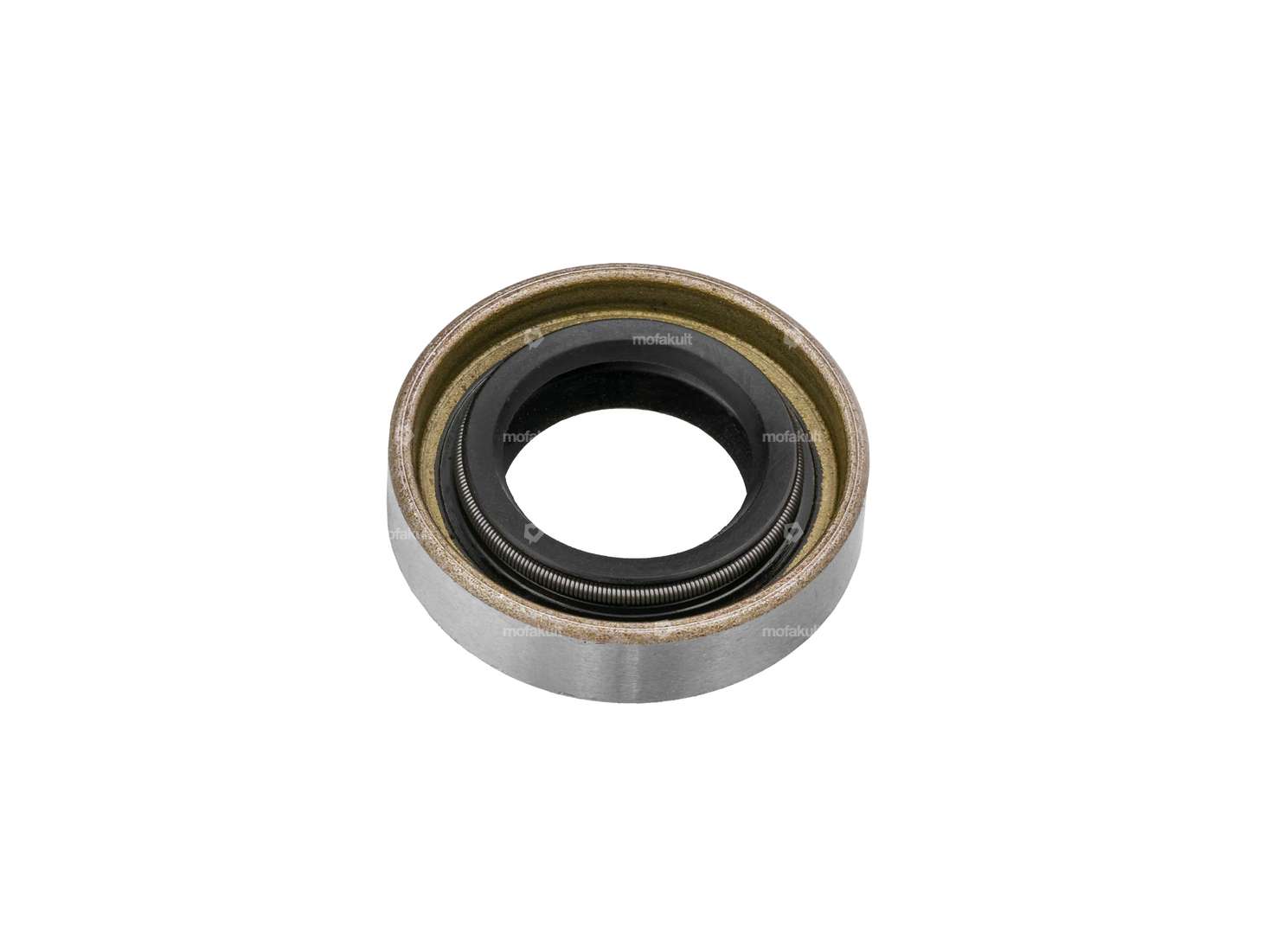

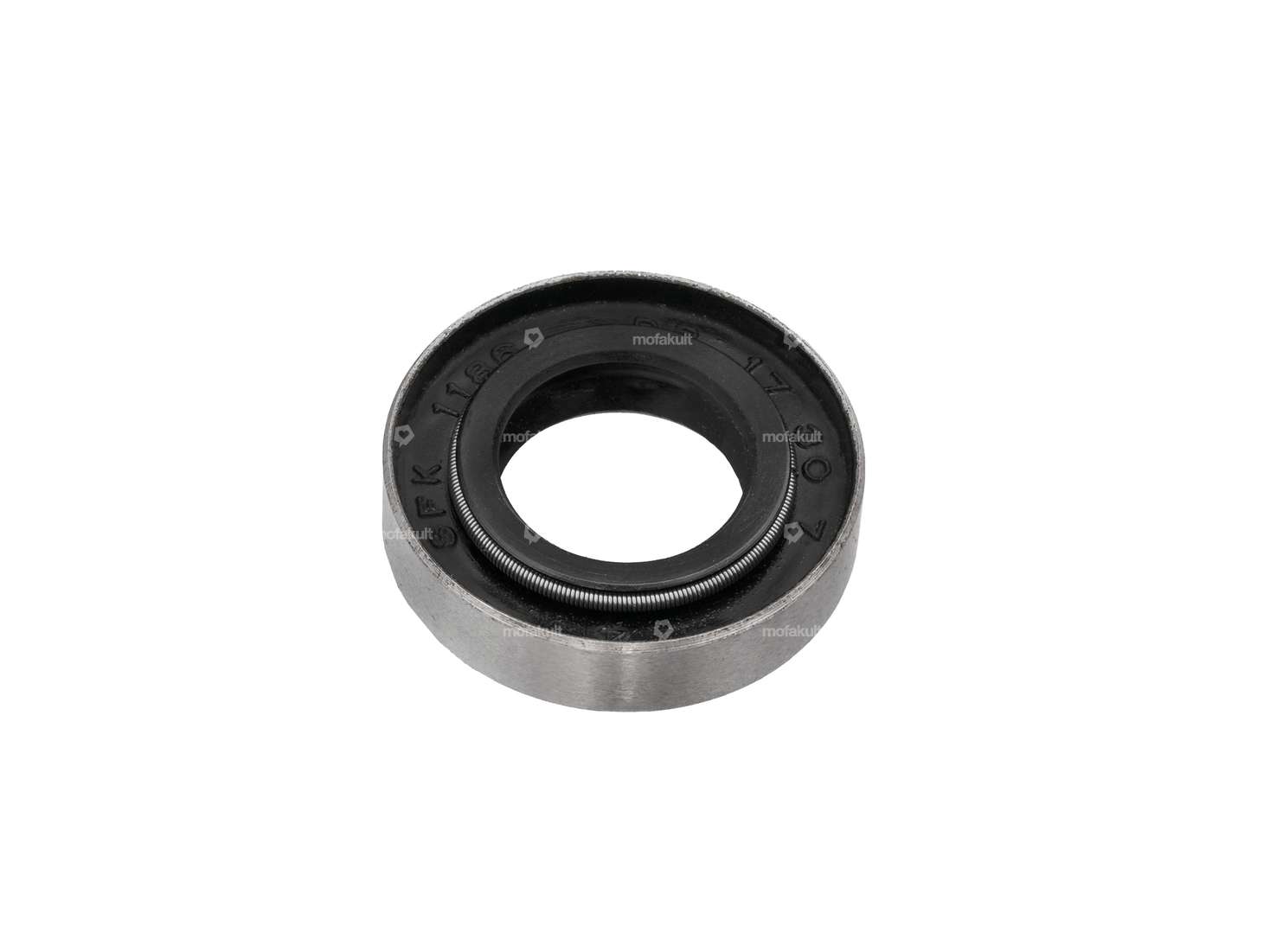

Oil seal NBR 17/30/7 B DUO crankshaft | Sachs 50/3, 50/4

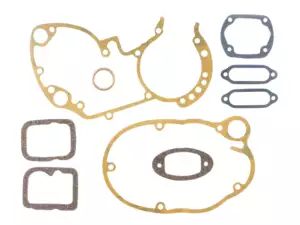

Gasket set diaphragm version | Sachs 3-speed 50/3 engine

Number of components: 9 pcs · Area of application: Standard · Ø outlet inside: 28 mm · Hole spacing inlet: 67 mm · Hole pattern [mm]: 51 x 40

GPO gasket set slot version | Sachs 50/3 3-speed engine

Manufacturer: GPO · Number of components: 8 pcs · Area of application: Standard · Ø outlet inside: 28 mm · Hole spacing inlet: 31 mm · Hole pattern [mm]: 51 x 40

Oil seal NBR 17/30/7 AS crankshaft | Cilo

Temperature resistance (min.): -30 - 100 °C · Material: NBR · Surface: rubberized · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Width: 5 mm · Manufacturer: Cilo · Place of use: Crankshaft · Ø outside: 24 mm · Ø inside: 15 mm

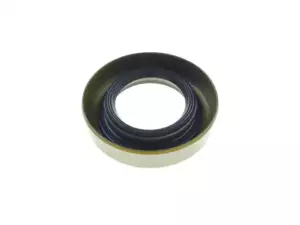

Oil seal NBR 17/30/7 BS crankshaft | Sachs 50/3, 50/4

Temperature resistance (min.): -30 - 100 °C · Material: NBR · Simmering type: BS - With sheet metal outer casing / one sealing lip / one dust lip. · Width: 7 mm · Place of use: Crankshaft · Manufacturer: Sachs · Ø outside: 17 mm · Ø inside: 30 mm

Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C

Temperature resistance (min.): -60 - 315 °C · Manufacturer: Elring · Material: Silicone · Contents [ml]: 70 ml · Color: gray · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Area of application: Chemistry · Gap dimension (max.): 2 mm

Dirko Dichtmasse rot (Silikon) Hochtemperatur 70 ml dauerelastisc

Temperature resistance (min.): -60 - 300 °C · Manufacturer: Elring · Contents [ml]: 70 ml · Color: red · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Area of application: Chemistry · Gap dimension (max.): 2 mm

Motorex engine oil (gear oil) manual 450 ml

Temperature resistance (min.): -30 - 220 °C · Manufacturer: Motorex · Oil type: GL4 · Viscosity (SAE): 80W · Contents [ml]: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Area of application: Gearbox lubrication with clutch

NSK L17 shoulder ball bearing

Surface: blank / oiled · Bearing type: Shoulder bearing · Ø inside: 17 mm · Ø outside: 40 mm · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Bearing cage: Brass cage ball-guided · Width: 10 mm · Material: Brass · Material: Steel · Area of application: Standard · Stock number: L17 · Ball bearing closed: No

swiing® revival gasket cylinder base 0.3 mm | Sachs 50, 50/3, 50/4 DE engines

Material: Oiled paper · Thickness: 0.5 mm · Place of use: Cylinder base · Manufacturer: swiing® revival parts · Hole pattern [mm]: 40.5 x 51

GPO ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Manufacturer: GPO · Bearing type: Deep groove ball bearing · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided · Material: Steel · Surface: blank / oiled · Area of application: Standard · Ø inside: 15 mm · Thread type: MF20x1 (fine pitch thread) · Ø outside: 35 mm · Width: 8 mm · Width: 25.6 mm · Ball bearing closed: No · Pony OEM number: A2531 · Sachs OEM no.: 0286 079 105

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Manufacturer: swiing® revival parts · Total length: 23 mm · Material: Steel · Surface: galvanized (blue) · Diameter: 4.9 mm · Thread type: M5x0.8 (standard thread) · Area of application: Standard · Thread length: 6 mm · Thread length: 12 mm · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101 · Sachs OEM no.: 0640 016 102

Oil seal NBR 17/30/7 BS crankshaft | Sachs 50/3, 50/4

Temperature resistance (min.): -30 - 100 °C · Material: NBR · Simmering type: BS - With sheet metal outer casing / one sealing lip / one dust lip. · Width: 7 mm · Place of use: Crankshaft · Manufacturer: Sachs · Ø outside: 17 mm · Ø inside: 30 mm

NSK L17 shoulder ball bearing 17/40/10 | Sachs 50/3, 50/4

Bearing type: Shoulder bearing · Stock number: L17 · Manufacturer: NSK · Ø inside: 17 mm · Ø outside: 40 mm · Width: 10 mm

swiing® revival engine seal | Sachs 502, 50/2, 50/3, 50/4 (A1828)

Width: 170 mm · Manufacturer: swiing® revival parts · Total length: 250 mm · Number of fixing points: 16 pcs · Material: Sealing paper · Color: sand-colored · Number of components: 1 pcs · Ø inside: 86 mm · Thickness: 0.4 mm · Pony OEM number: A1828 · Sachs OEM no.: 0250 088 100

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

Nominal diameter: 41 mm · Manufacturer: GPO · Thick piston ring: 1.8 mm · Ø outside piston (A): 40.94 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Piston weight: 86 g

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Material: Steel · Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: E15 · Width: 8 mm · Inner ring width: 25.6 mm · Manufacturer: swiing® revival parts · Ø outside: 35 mm · Bearing clearance: CN (standard) · Ø inside: 15 mm · Area of application: High End · Area of application: Standard · Thread type: MF20.8x1 LH (fine/left-hand thread) · Pony OEM number: A2531 · Sachs OEM no.: 0286 079 105
