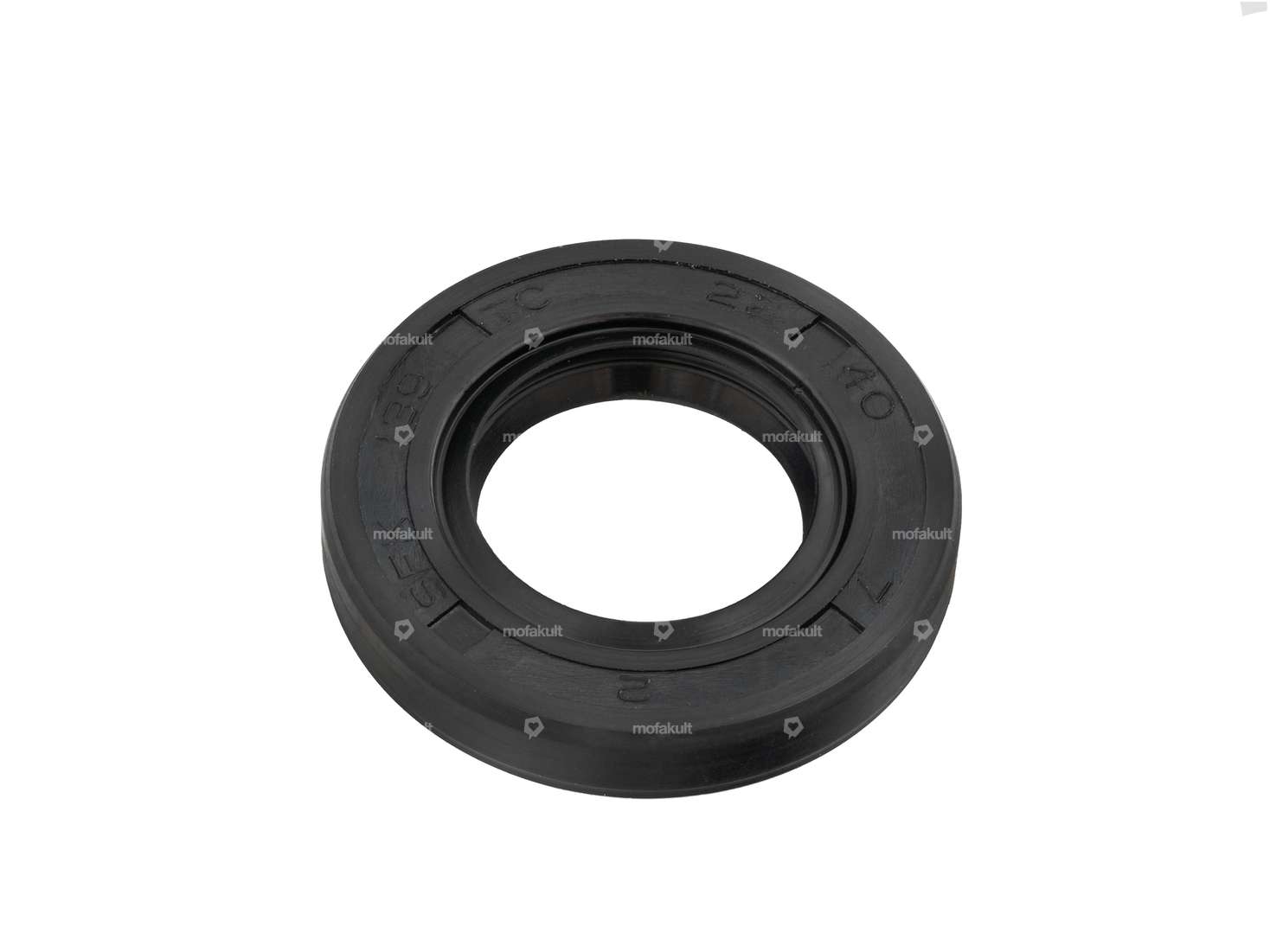

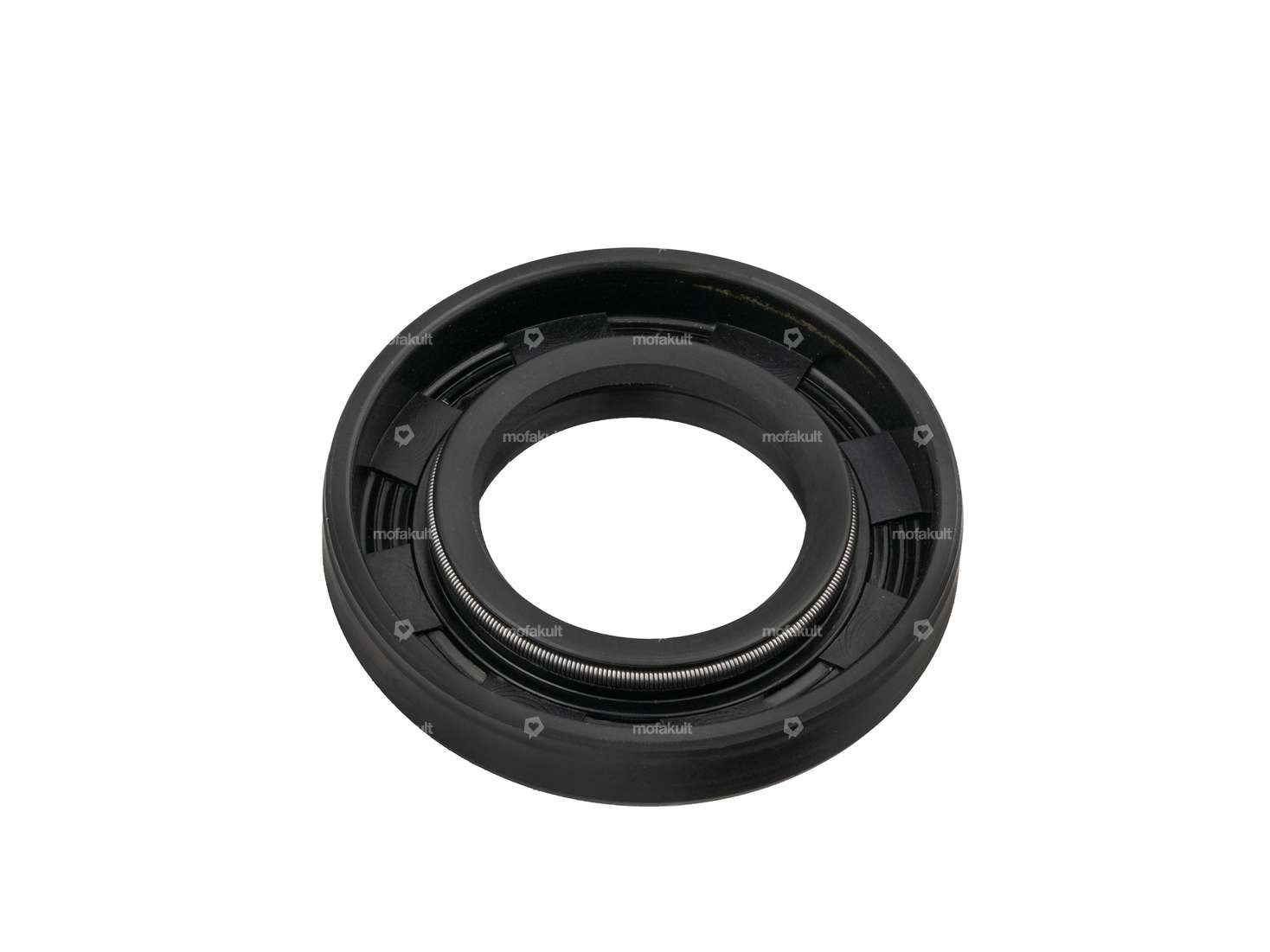

Shaft seal 22x40x7 mm for use on the crankshaft of your moped / moped with E50 engine.
Fits Puch Maxi S / N, as well as Puch Supermaxi mopeds.
This radial shaft seal (also known under the trademarked brand name Simmerring®) is fitted to the crankshaft on the clutch side (only on the old model with a larger seat).
Ø inner: 22 mm
Ø outer: 40 mm
Width: 7 mm
Material: NBR
Temperature resistant: -30 to +100 °C, briefly up to 120 °C
Type: AS - With rubberized outer casing and a sealing lip & dust lip.
Details
| Temperature resistance (min.) | -30 - 100 °C |
| Width | 7 mm |
| Simmering type | AS - With rubberized outer casing / one sealing lip / one dust lip. |
| Manufacturer | Puch |
| Place of use | Crankshaft |
| Material | NBR |
| Ø outside | 40 mm |
| Ø inside | 22 mm |
| Surface | rubberized |
Suitable for the following models
| Puch | E50 |
