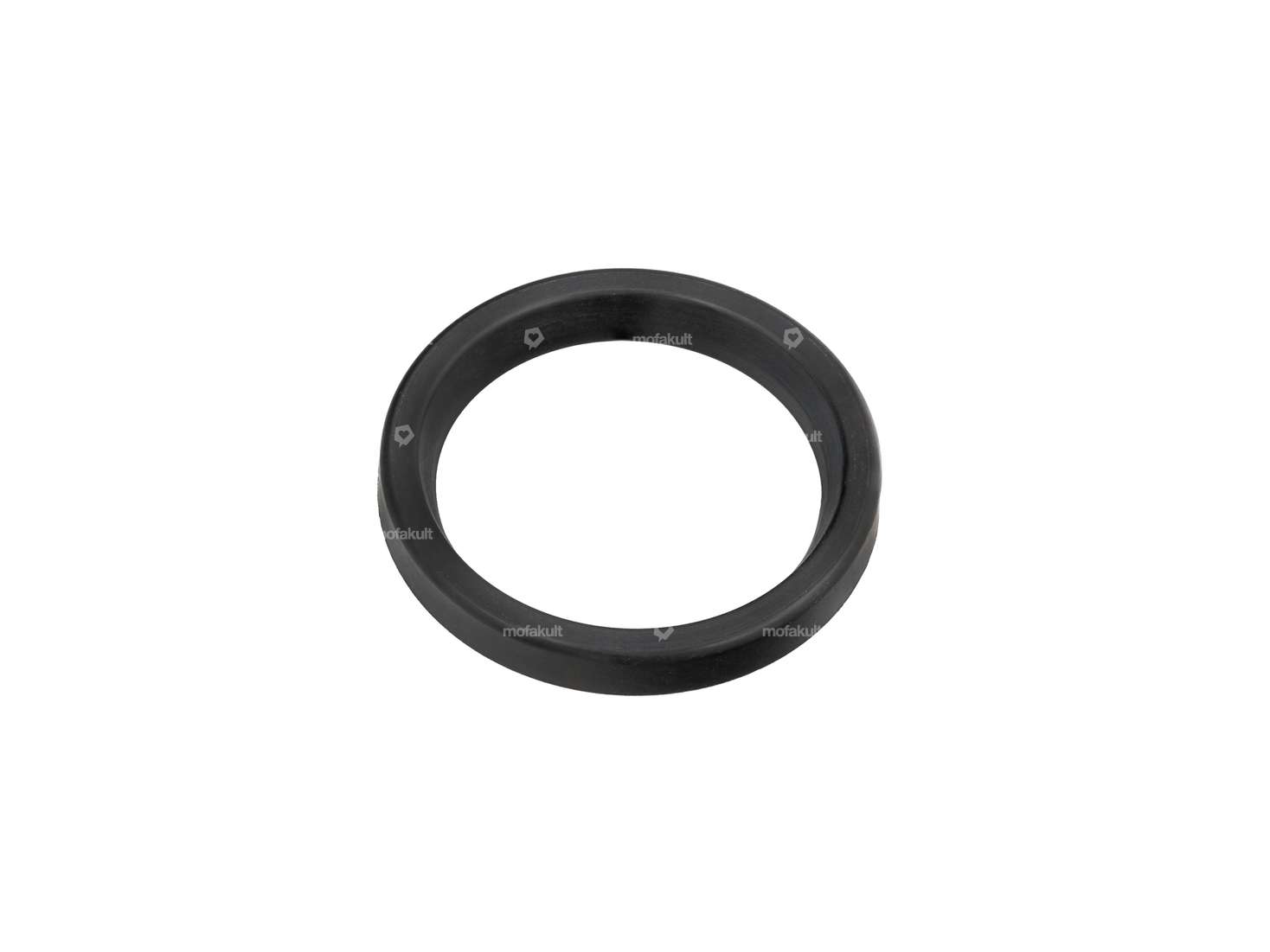

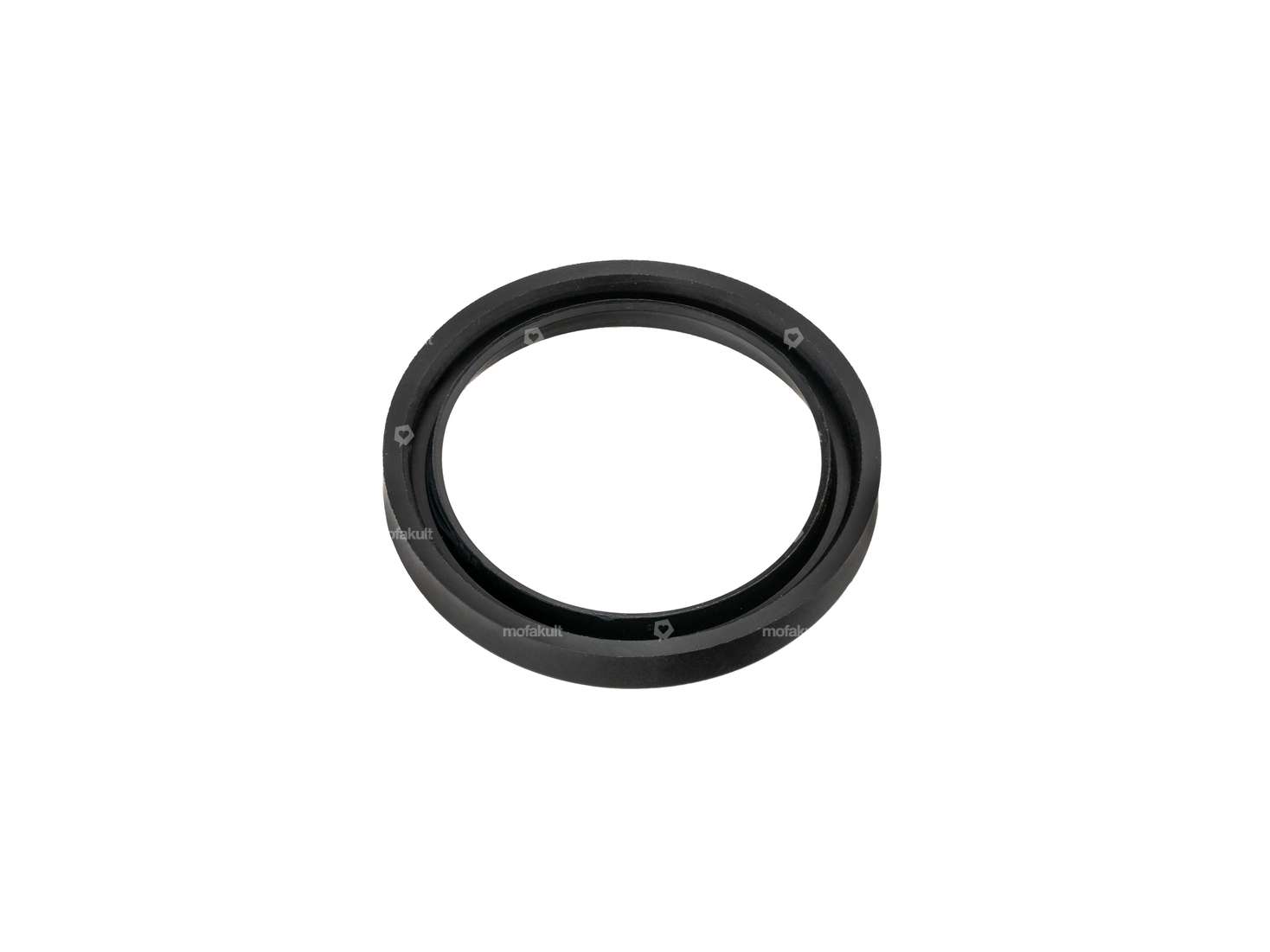

Oil seal NBR 24.8/31.4/4 A Brake shaft | Sachs 50

Loctite 243 medium-strength threadlocker 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Color: blue · Contents [ml]: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Temperature resistance (min.): -75 - 200 °C · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

Loctite 638 High-strength adhesive 10 ml

Temperature resistance (min.): -75 - 150 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Contents [ml]: 10 ml · Color: green · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Type of application: 1K · Gap dimension (max.): 0.25 mm · Alignment time: 300 sec · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m

Spacer washer 16/22/0.15 Pinion shaft / pedal start | Sachs

Ø inside: 16 mm · Ø outside: 22 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Thickness: 0.15 mm · Nominal diameter inside: 16 mm

Sprocket 18/20 teeth pedal start | Sachs 50/2

Material: Metal · Number of teeth: 18 pcs · Number of teeth: 20 pcs

Large idler 31 teeth pedal start | Sachs 50/3, 50/4

Material: Metal · Number of teeth: 31 pcs

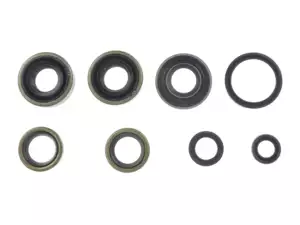

GPO oil seal set 3-speed pedal start | Sachs

Width: 2.5 mm · Width: 3.5 mm · Width: 4 mm · Width: 4.5 mm · Width: 7 mm · Ø inside: 10 mm · Ø inside: 13 mm · Ø inside: 14 mm · Ø inside: 15 mm · Ø inside: 16 mm · Ø inside: 24 mm · Ø outside: 16 mm · Ø outside: 19 mm · Ø outside: 24 mm · Ø outside: 30 mm · Ø outside: 31.4 mm · Ø outside: 31.5 mm · Manufacturer: GPO

Shaft seal set 2-speed pedal start | Sachs

Width: 2.5 mm · Width: 3.5 mm · Width: 4 mm · Width: 7 mm · Ø inside: 12.96 mm · Ø inside: 13.8 mm · Ø inside: 15 mm · Ø inside: 16 mm · Ø inside: 31.4 mm · Ø outside: 19 mm · Ø outside: 24 mm · Ø outside: 24.8 mm · Ø outside: 30 mm · Ø outside: 31.5 mm

NSK E15 shoulder ball bearing 15/35/8 (A1149)

Width: 8 mm · Bearing cage: Brass cage ball-guided · Ø inside: 15 mm · Stock number: E15 · Ø outside: 35 mm · Inner ring width: 8 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Groove ring: No · Material: Brass · Area of application: Standard · Material: Steel · Surface: blank · Bearing type: Shoulder bearing · Ball bearing closed: No · Pony OEM number: A1149 · Sachs OEM no.: 0232 017 006

Squeeze ring 25/33/4 copper

Ø inside: 25.6 mm · Ø outside: 32.8 mm · Material: Copper · Material: Graphite / Graphite · Thickness: 4 mm

GPO sealing ring 12.8/19/2.4 shift/clutch lever (version 2.0) | Sachs 50/2, 503 A3844

Ø inside: 12.8 mm · Ø outside: 19 mm · Manufacturer: GPO · Material: NBR · Thickness: 2.4 mm · Pony OEM number: A3844 · Sachs OEM no.: 0650 017 000

swiing® revival silent block Ø 19.3 x 15 mm | Sachs 50/2, 50/3

Ø inside: 9 mm · Ø outside: 19.3 mm · Manufacturer: swiing® revival parts · Material: Rubber · Material: Steel · Total length: 15 mm

Shaft seal NBR 16/24/4 B pedal crank axle | Sachs pedal start mechanism

Temperature resistance (min.): -30 - 100 °C · Width: 4 mm · Simmering type: B - With sheet metal outer casing / one sealing lip. · Ø inside: 16 mm · Ø outside: 24 mm · Manufacturer: Sachs · Material: NBR

swiing® revival engine seal | Sachs 502, 50/2, 50/3, 50/4 (A1828)

Width: 170 mm · Ø inside: 86 mm · Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Thickness: 0.4 mm · Number of components: 1 pcs · Number of fixing points: 16 pcs · Total length: 250 mm · Pony OEM number: A1828 · Sachs OEM no.: 0250 088 100

Shaft seal NBR 16/24/4 A

Temperature resistance (min.): -30 - 100 °C · Width: 4 mm · Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 16 mm · Ø outside: 24 mm · Material: NBR · Surface: rubberized

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Width: 8 mm · Bearing cage: "-" Sheet steel cage ball-guided · Ø inside: 15 mm · Stock number: E15 · Ø outside: 35 mm · Inner ring width: 25.6 mm · Manufacturer: swiing® revival parts · Bearing clearance: CN (standard) · Thread type: MF20.8x1 LH (fine/left-hand thread) · Area of application: High End · Area of application: Standard · Material: Steel · Bearing type: Deep groove ball bearing · Pony OEM number: A2531 · Sachs OEM no.: 0286 079 105

Shaft seal NBR 16/24/4 A Pedal start mechanism | Sachs 50/2, 50/3, 50/4

Temperature resistance (min.): -30 - 100 °C · Width: 4 mm · Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 16 mm · Ø outside: 24 mm · Manufacturer: Sachs · Material: NBR · Surface: rubberized
