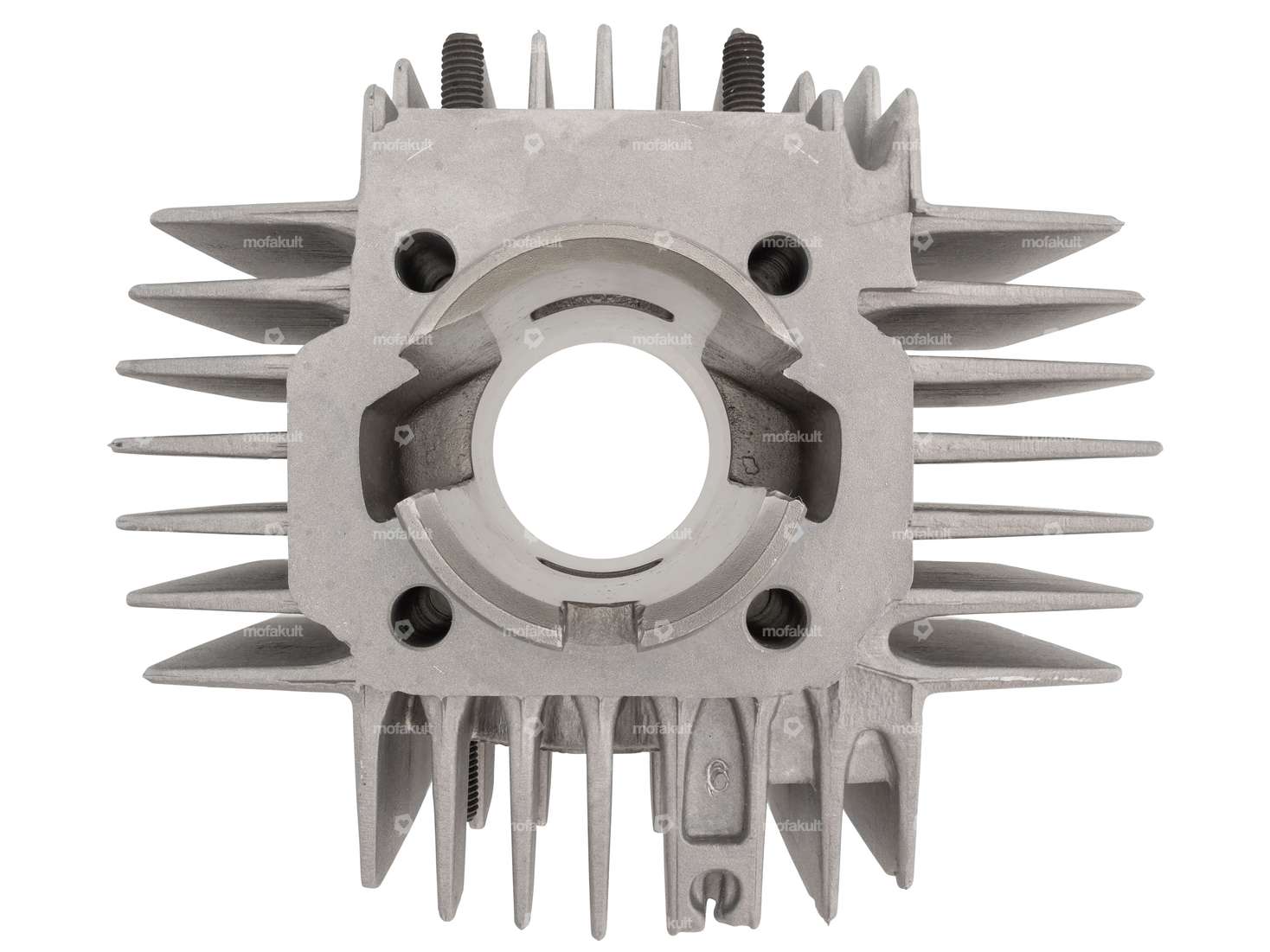

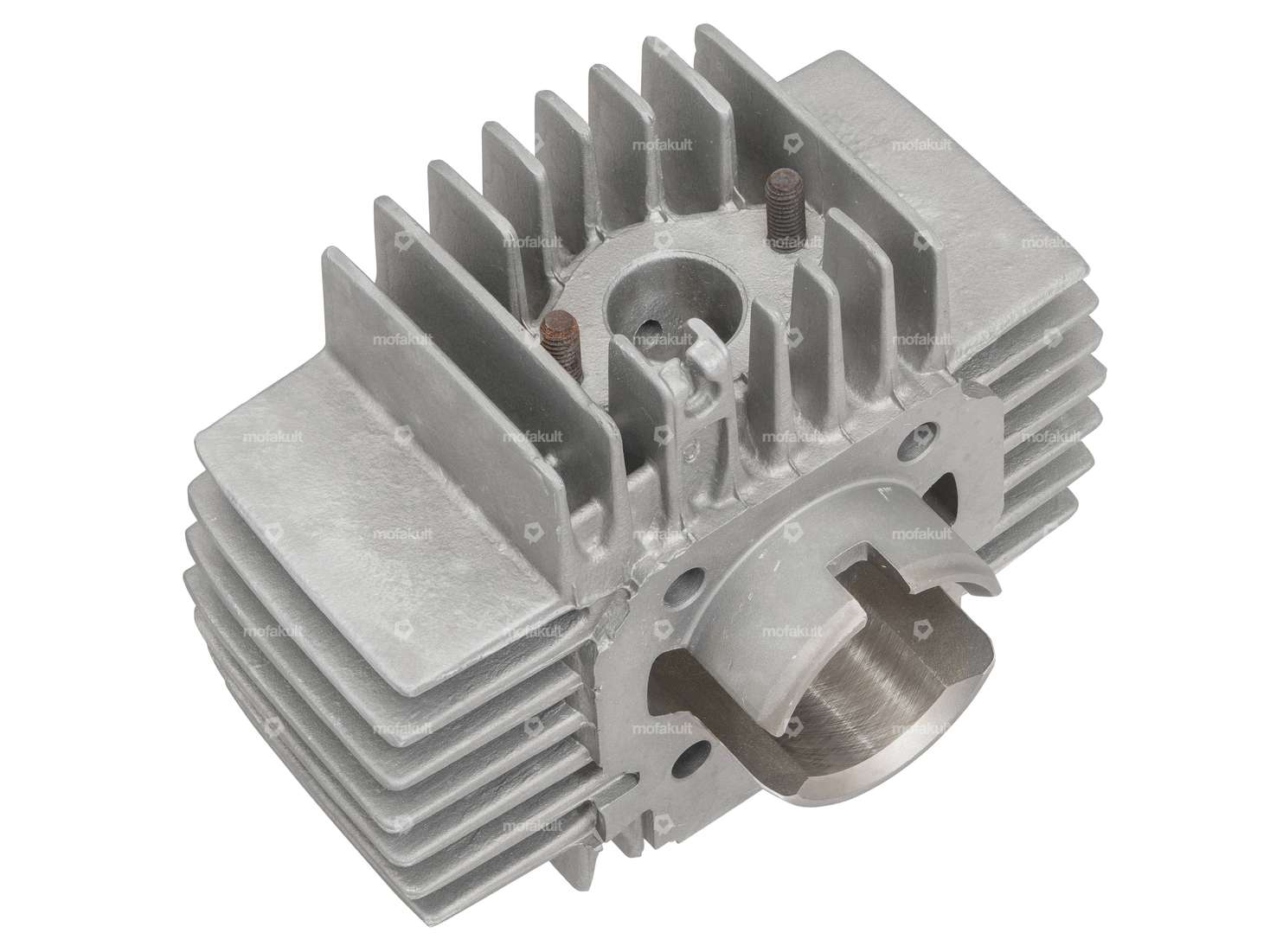

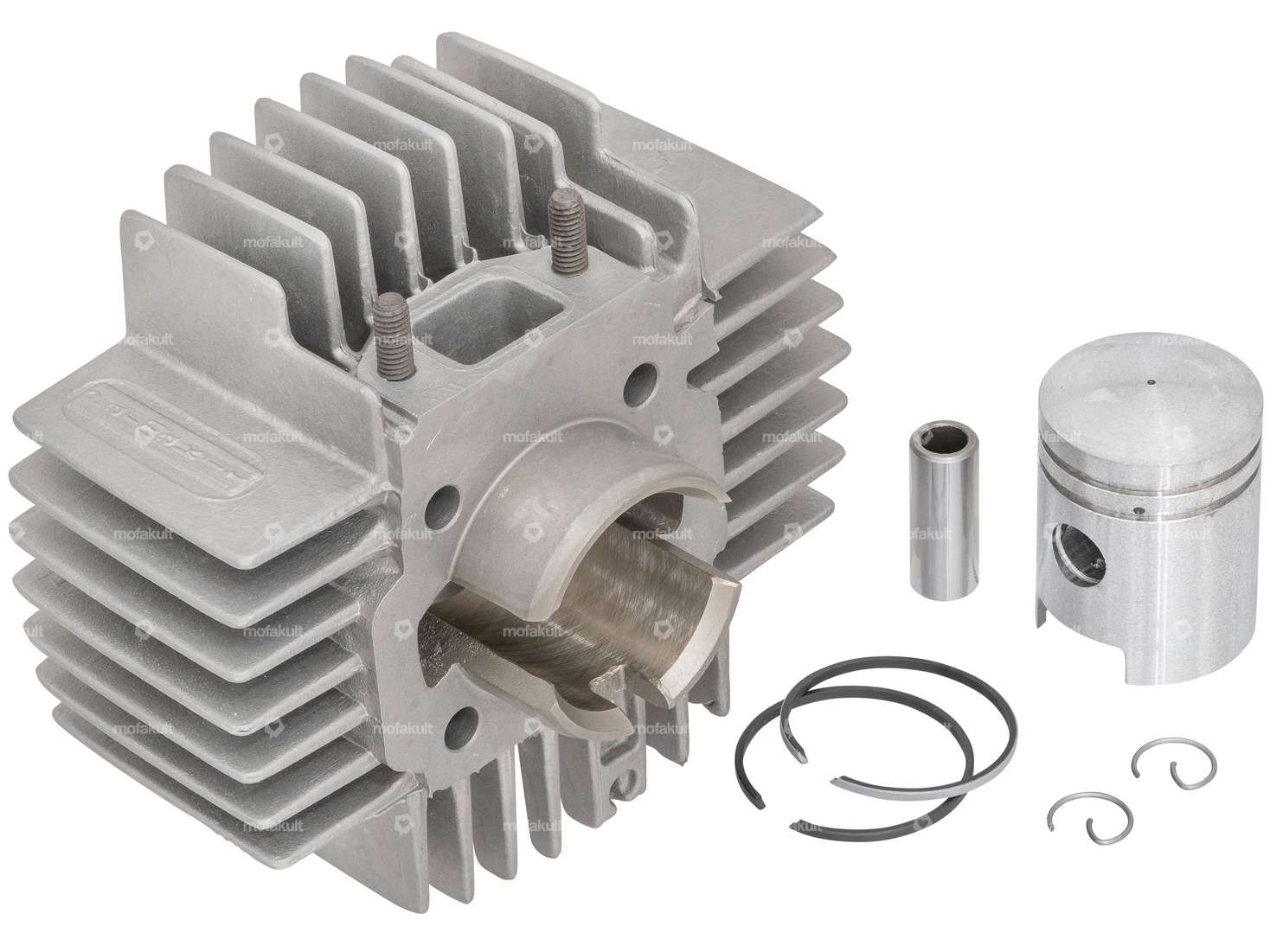

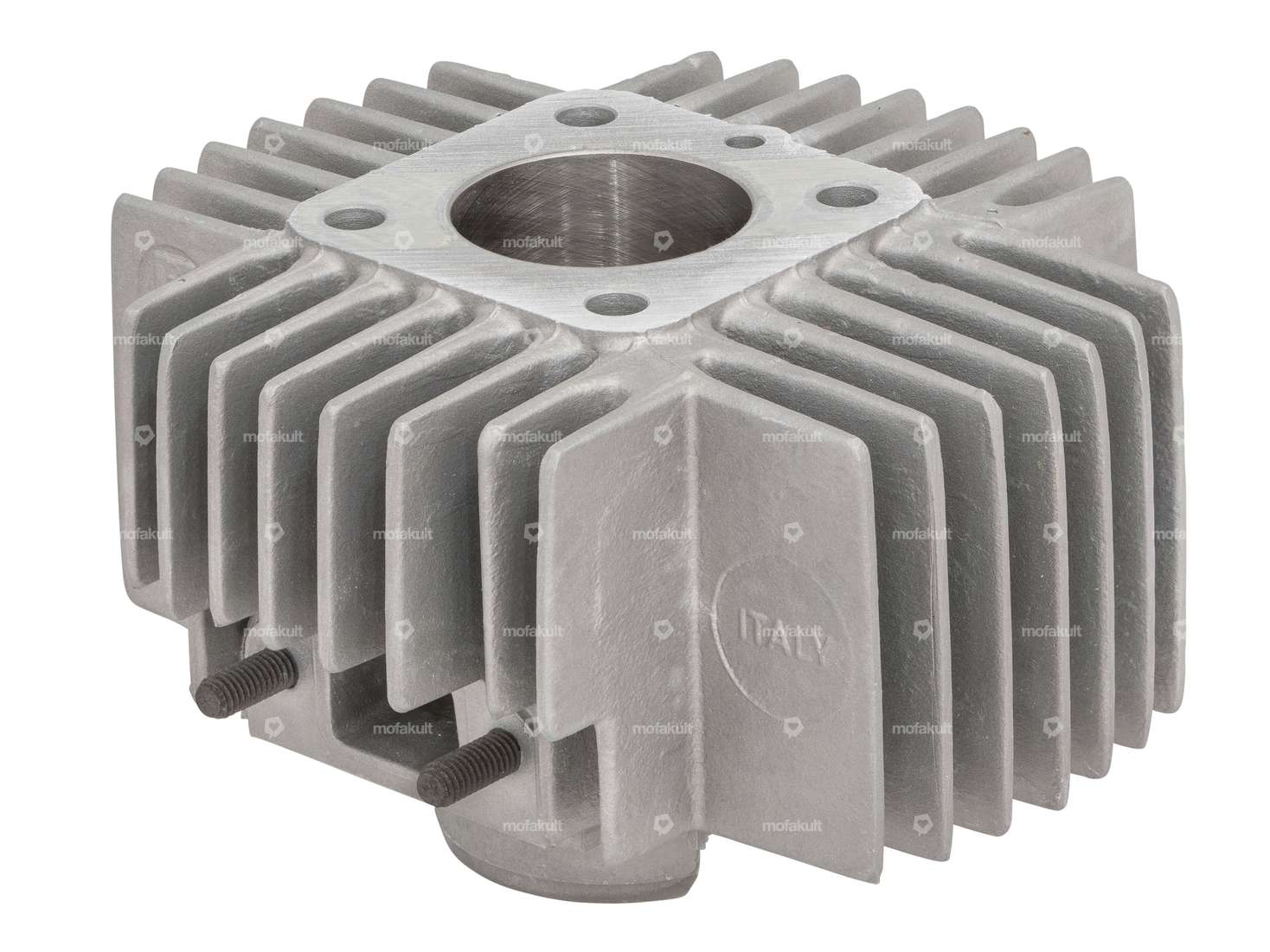

The Ø 38 mm (50cc) racing cylinder kit from the premium brand Parmakit is compatible with the Puch Maxi S, N | X30 Sport NS, NL | X30 Sport NG-2AH, and Supermaxi.
This racing kit is of the highest quality and known for its long service life.
This racing kit should preferably be used with a 22 mm exhaust—that is, a double-bend pipe or a 22 mm exhaust manifold—to ensure that exhaust gases are properly vented and heat does not build up.
Note: Please observe the installation direction during assembly. The piston should be installed with the arrow pointing toward the exhaust on the exhaust side.
The gasket set is not included in the package. You can find the appropriate gasket set among the accessories.
Product from the Italian manufacturer Parmakit.
| Nominal diameter | 38 mm |
| Manufacturer | Parmakit |
| Material | Aluminum |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Area of application | Tuning |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 47.8 mm |
| Ø outlet inside | 20 mm |
| Inlet window | 21.8 x 15.5 mm |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing inlet | 38.5 mm |
| Ø piston pin (B) | 12 mm |
| Outlet type | straight |
| Hole spacing outlet | 42 mm |
| Number of fixing points | 4 pcs |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Decompressor | Yes |
| Camouflaged | No |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
